FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-14 © 2023 Nordson Corporation
7.10.4.3 List 3
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.06.DA.6200 0001-08008-00689
COMPACT GUIDE CYLINDER
(CLEAN)
100,000 1
A100.06.DA.4000 0001-08008-00688
COMPACT GUIDE CYLINDER
(CLEAN)
150,000 1
A100.06.DA.1500 0001-08016-00064 SOLENOID VALVE 5/3 WAY, DIA 6 1,000,000 1
A100.06.DA.1500 0001-08016-00532 SOLENOID VALVE 5/2 WAY, DIA 4 1,000,000 1
A100.06.DA.5000 0001-04013-00090 SINGLE AXIS TABLE 1,000,000 1
A100.06.DA.5200 0001-08008-00702 13-MXS PRECISION SLIDE TABLES 10,000,000 1
Figure 7-11 Magazine Elevator Assembly List 3
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-15
7.10.4.4 List 4
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.06.DB.9200 0001-08008-00686 AIR SLIDE TABLE CLEAN ROOM 250,000 1
A100.06.DB.9200 0001-08008-00731 CLEAN ROOM AIR SLIDE TABLE 250,000 1
A100.06.DB.5000 0001-04013-00091 SINGLE AXIS TABLE 1,000,000 1

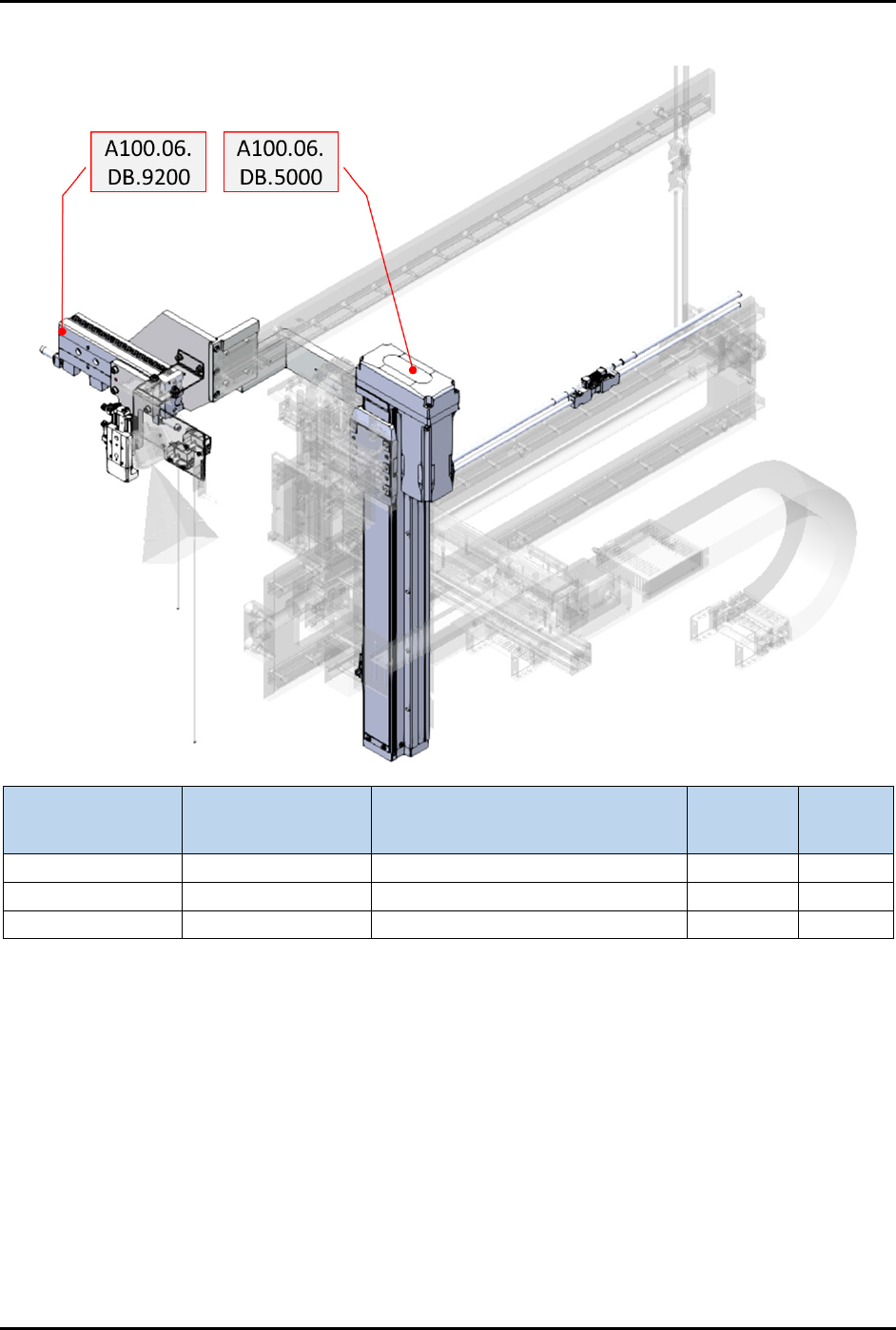

Figure 7-12 Magazine Elevator Assembly List 4
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-16 © 2023 Nordson Corporation
7.10.5 Lifter Assembly
7.10.5.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.JB.0000
1999-01000-
A100_04_DA_6306
SPRING 150,000 1
A100.07.JD.0000 0001-08008-00724 CYLINDER 200,000 1
A100.07.JB.0000
1999-01000-
A100_07_JB_0004
DETECT SHAFT 300,000 1
A100.07.JC.0000 0001-04013-00092 ACTUATOR 1,000,000 1
A100.07.JE.0000 0001-08016-00064 SOLENOID VALVE 5/3 WAY, DIA 6 1,000,000 1

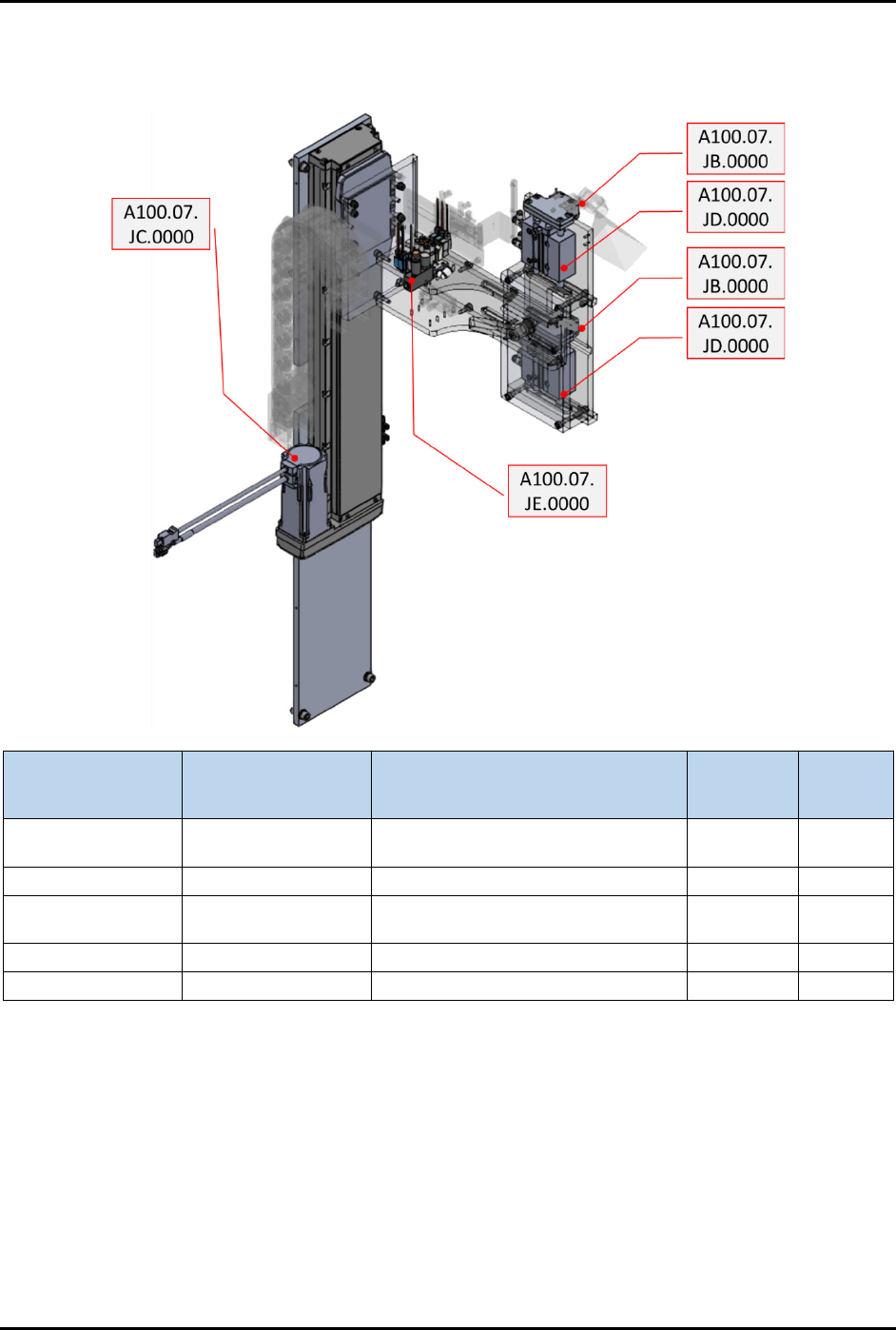

Figure 7-13 Lifter Assembly List 1
