FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-9

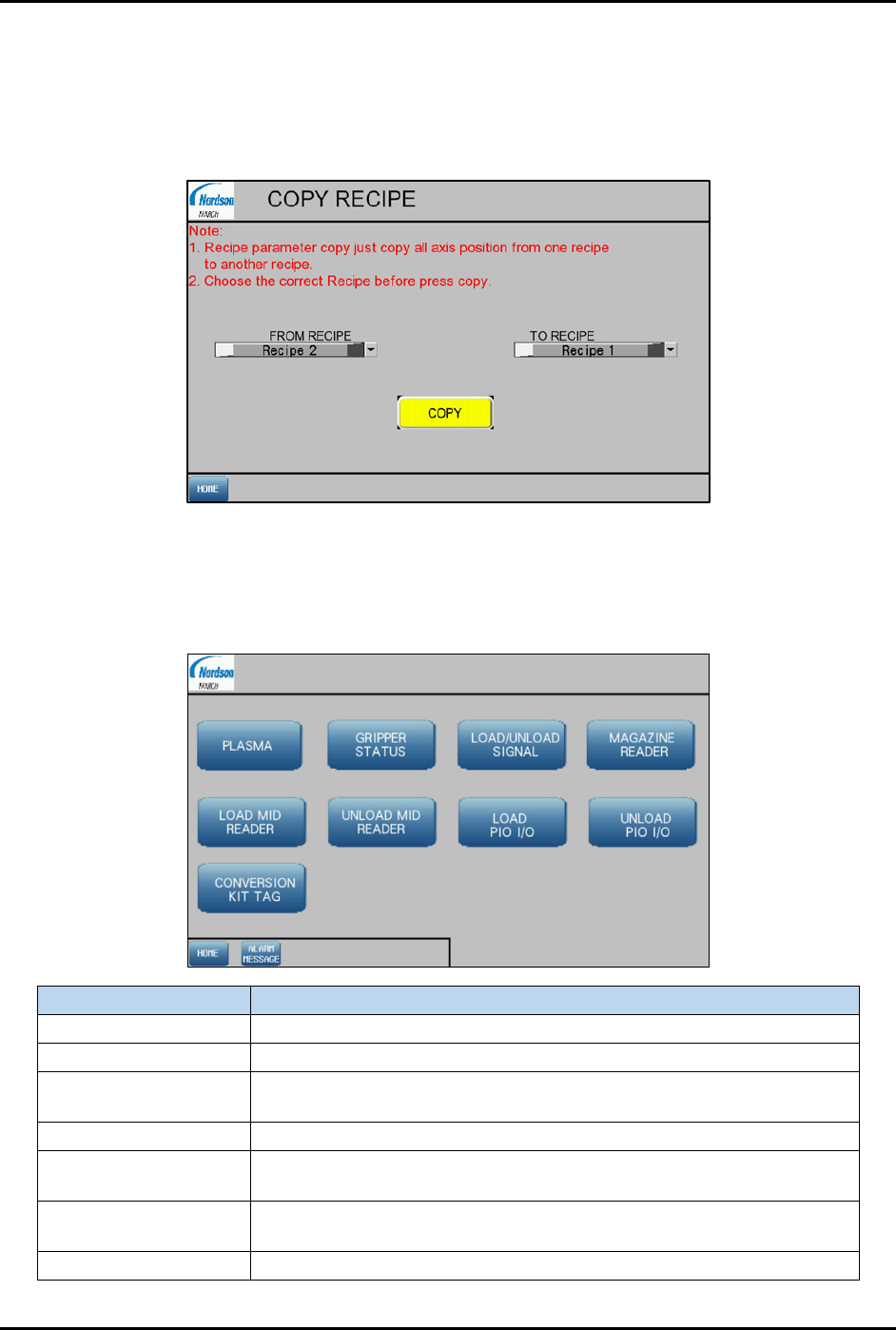

4.8.3 Recipe Copy
The Copy Recipe screen (Figure 4-8) is displayed when the RECIPE COPY button is selected on the
Recipe Selection screen. Select the desired recipe numbers in the
FROM RECIPE and TO RECIPE drop
down list, and then press the
COPY button (e.g., copy from Recipe 2 to Recipe 1 as shown in Figure 4-8).
This function will copy all parameters and setup values from one recipe to the other.
Figure 4-8 Copy Recipe Screen
4.9 Control Screen
Select Control on the Home screen to access the Control screen (Figure 4-9).
Item
Description
Plasma Displays the plasma upstream and downstream signal state screen.
Gripper Status Displays the magazine gripper condition monitoring status screen .
Load/Unload Signal
Displays the overhead conveyor magazine feeding in and out status
screen.
Magazine Reader
Displays the magazine ID reading screen.
Load/Unload MID
(Magazine ID) Reader
Displays the magazine loading and unloading strip ID reading screen.
Load/Unload PIO
(Parallel IO) I/O
Displays the signal sending and receiving between PLC and PIO
Load/Unload Input and Output screens.
Conversion Kit Tag
Displays the conversion kit (lane and claw) ID tracking screen.
Figure 4-9 Control Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-10 © 2023 Nordson Corporation

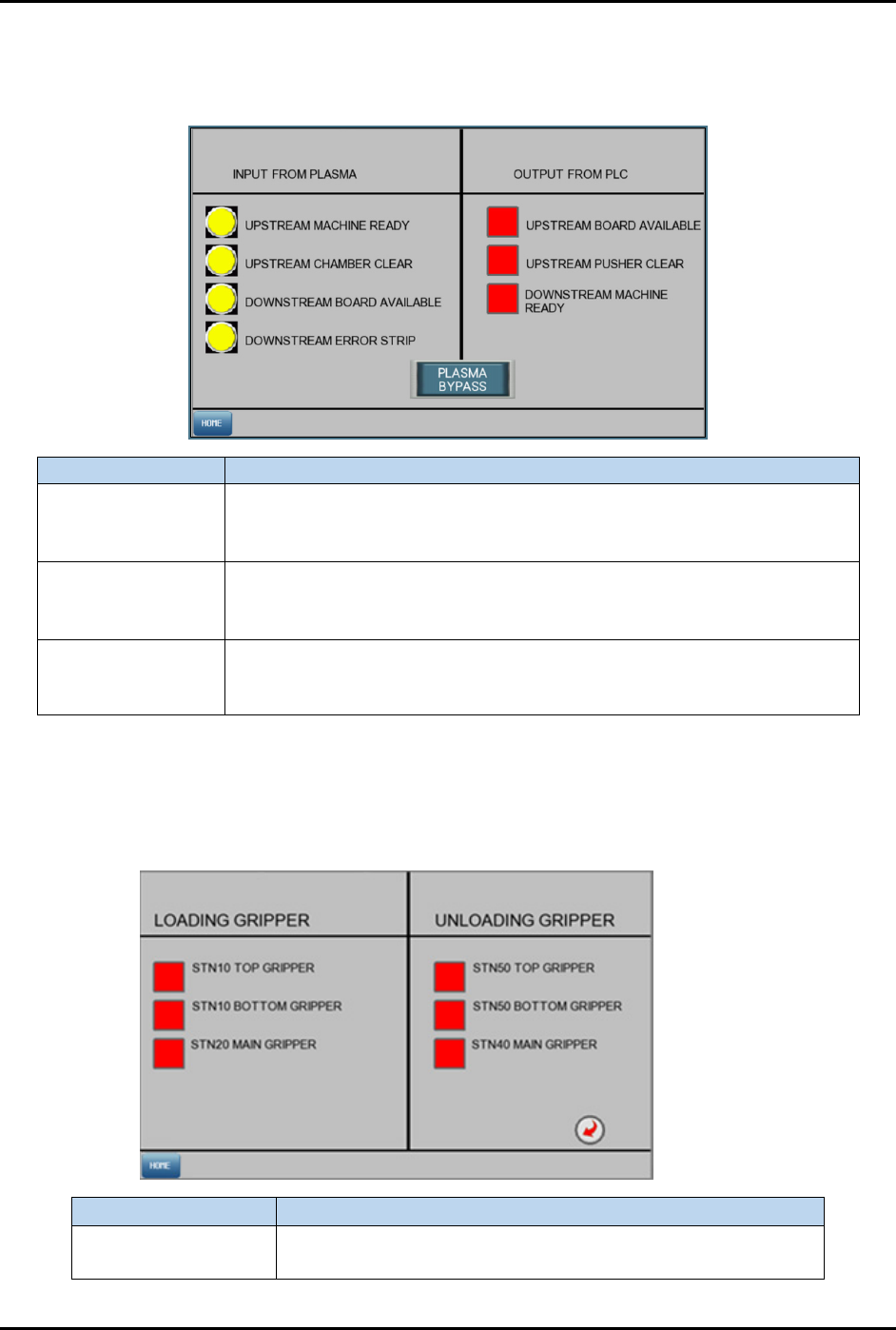

4.9.1 Plasma Communication
Select PLASMA from the Control screen (Figure 4-9) to open the Plasma Communication screen
(Figure 4-10).
Item
Description
Input from Plasma
Indicates signal status from plasma to PLC state.
Yellow: PLC not receiving signals from plasma.
Green: PLC received a signal from plasma.
Output from PLC
Indicates signal status from PLC to plasma state.
Red: PLC not sending signals to plasma.
Green: PLC sending signals to plasma.
Plasma Bypass
Dark blue: Enables the plasma process in strip handling process
sequence.
Light blue: Skips the plasma process in strip handling process sequence.
Figure 4-10 Plasma Communication Screen
4.9.2 Gripper Status
Select GRIPPER STATUS from the Control screen (Figure 4-9) to open the Gripper Status Screen
(Figure 4-11)
Label
Description
Loading/unloading
gripper
Red: Magazine is not present in loading/unloading gripper.
Green: Magazine is present in loading/unloading gripper.
Figure 4-11 Gripper Status Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-11

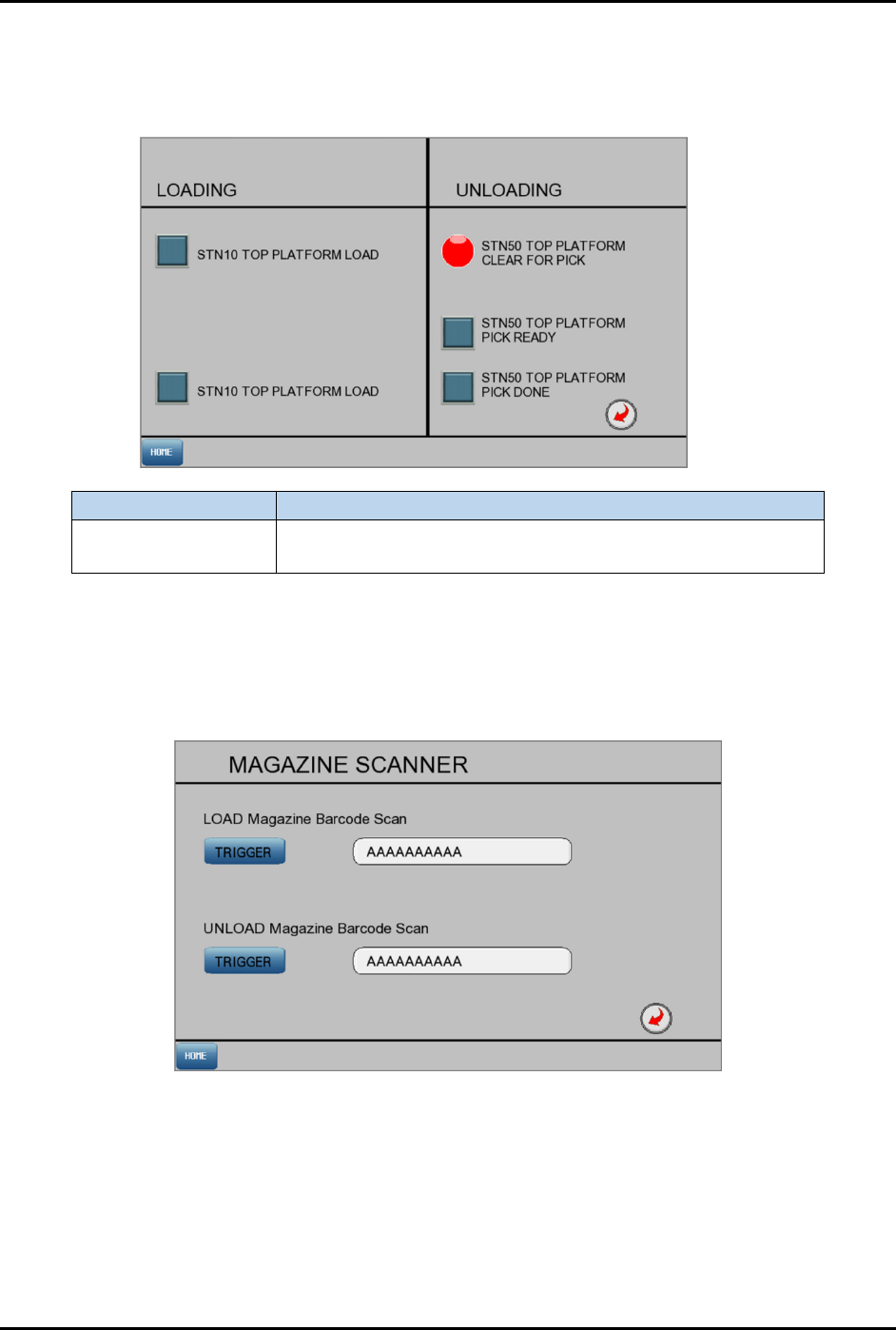

4.9.3 OHT (Overhead Transfer) Load/Unload Signal
Select LOAD/UNLOAD SIGNAL from the Control screen (Figure 4-9) to open the Loading/Unloading
screen (Figure 4-12).
Label
Description
Loading/Unloading
Signal
Dark blue/red: OFF mode. Statement beside switch is false.
Light blue/green: ON mode. Statement beside switch is true.
Figure 4-12 Load/Unload Signal Screen
4.9.4 Magazine Reader
Select MAGAZINE READER from the Control screen (Figure 4-9) to open the Magazine Scanner screen
(Figure 4-13) Press the
TRIGGER button to read the barcode data from load and unload magazine.
Figure 4-13 Magazine Reader Screen
