FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-75
15. Proceed to save configuration.
NOTE If the following save settings are not followed properly, the edited setting will
be missing after a camera reboot or power cycle.

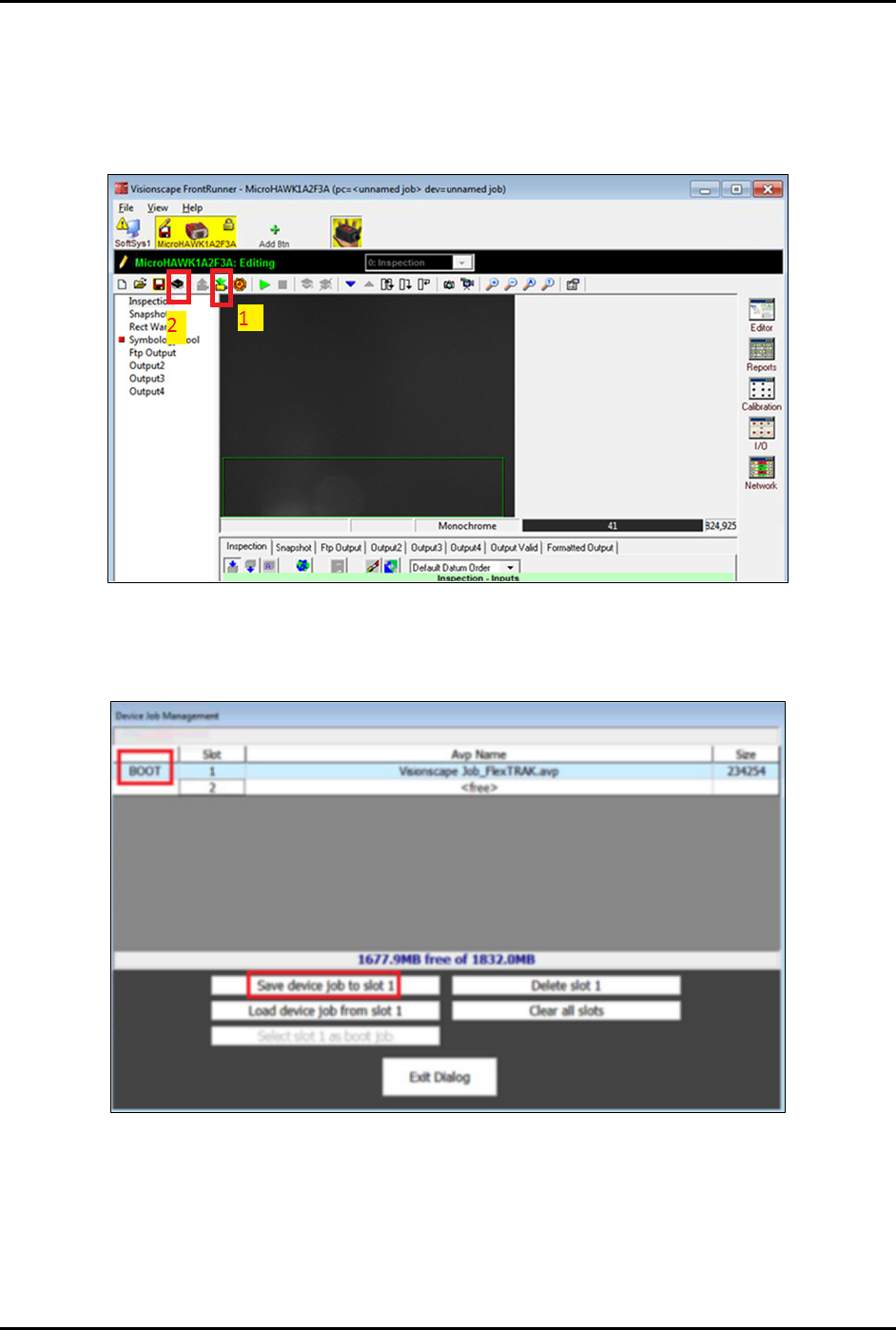

a. Click
Download to Camera and then open Manage Jobs (Figure 4-124).
Figure 4-124 Download to Camera and Manage Jobs
b. In the following image, BOOT means currently running that job slot, clicking Save
device job to slot
will overwrite the previous job (Figure 4-125).
Figure 4-125 Save Device to Job Slot
© 2023 Nordson Corporation 5-1
5 Maintenance
5.1 Overview
Performing the recommended maintenance procedures at the intervals suggested in this manual increases
system life and ensures high quality machine performance for every production run.
This section covers the following topics:
• General Maintenance and Inspection
• Common Cylinder Replacement
• Preventive Maintenance Schedule
• Belt Tensioning Adjustment
• Removal and Replacement of Access Panels
• Magazine Gripper Replacement
• Lubrication Requirements
5.2 Safety First
Operation of your FlexTRAK-OH Material Handler involves mechanical devices, air pressure, and
electrical power. It is essential that every person servicing or operating the FlexTRAK-OH fully
understands all hazards, risks, and safety precautions. When properly operated and maintained, the
FlexTRAK-OH Material Handler should be safe and reliable. Refer to Section 2 - Safety prior to
performing maintenance procedures
.
WARNING! Allow only qualified personnel to perform the following tasks. Observe and
follow the safety instructions in this document and other related documentation.
WARNING! Lockout and Tagout (LOTO) power to the FlexTRAK-OH before performing
service or maintenance on the FlexTRAK-OH. See 2.19 Service Shutdown for
details.
5.3 Hazardous Materials
Some maintenance procedures involve the use of hazardous materials. Always follow all applicable
national and local statutes and regulations, facility safety practice, and the material manufacturer’s Safety
Data Sheet (SDS) recommendations.
5.4 Recordkeeping
The type of maintenance performed should be recorded in the FlexTRAK-OH maintenance records. At
minimum, dates, procedure type, technician name, part numbers/serial numbers of replaced parts, and
post-procedure functional test results should be recorded.
