FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-37
4.12.3.2 Device Control Screen
Label
Description
Cylinder Shows the control list of electro-pneumatic cylinders.
Motor
Shows the configuration list of motor driver parameters and the
axis platform position.
Figure 4-55 Device Control Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-38 © 2023 Nordson Corporation
4.12.3.3 Cylinder Control 1
Pressing the CYLINDER button on the Device Control screen (Figure 4-55) will show the control list of
electro-pneumatic cylinders.

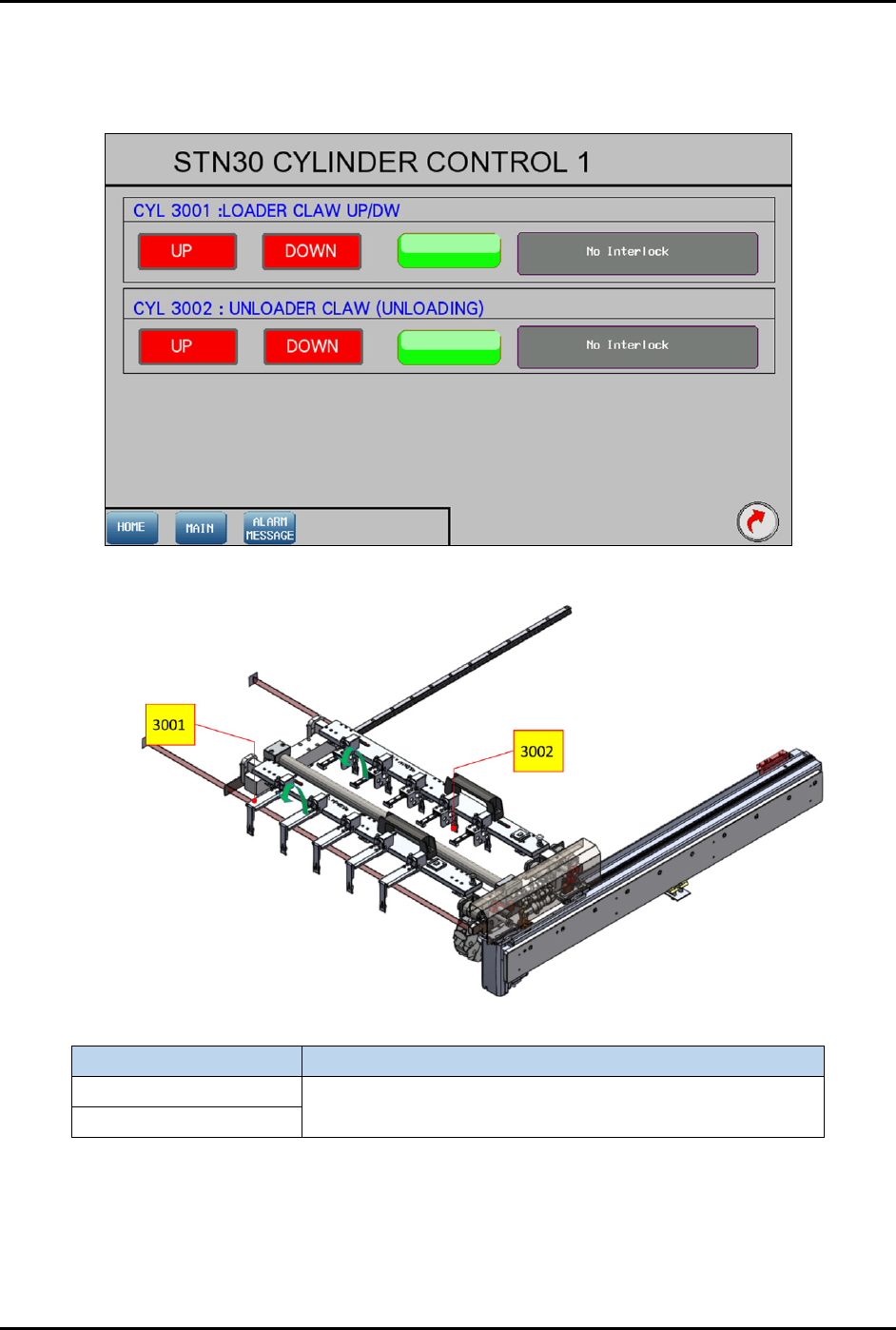

Figure 4-56 Station 30 – Cylinder Control 1 Screen
Label
Description
CYL 3001
UP – Ready to move back after transfer the strip.
DOWN – Ready to transfer the strip to another station.
CYL 3002
Figure 4-57 Station 30 – Cylinder Control 1 Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-39
4.12.3.4 Cylinder Control 2 and 3
Figure 4-58 Station 30 – Cylinder Control 2 Screen
Figure 4-59 Station 30 – Cylinder Control 3 Screen
