FlexTRAK-OH Material Handli ng System IOM Manual Parts Replacement 7-44 © 2023 Nordson C orporation 7.11.9.2 List 2 Assembly Drawin g Number Part Number Descriptio n Estimated Life Span (cycles) Quantity A100.04.Y0.04 00…
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-43
7.11.9 Conversion Kit
7.11.9.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.Y0.0000
1073-99999-
A100_04_Y0_0400
FINGER-1 100,000 2
A100.04.Y0.0000
1073-99999-
A100_04_Y0_0500
FINGER-2 100,000 2

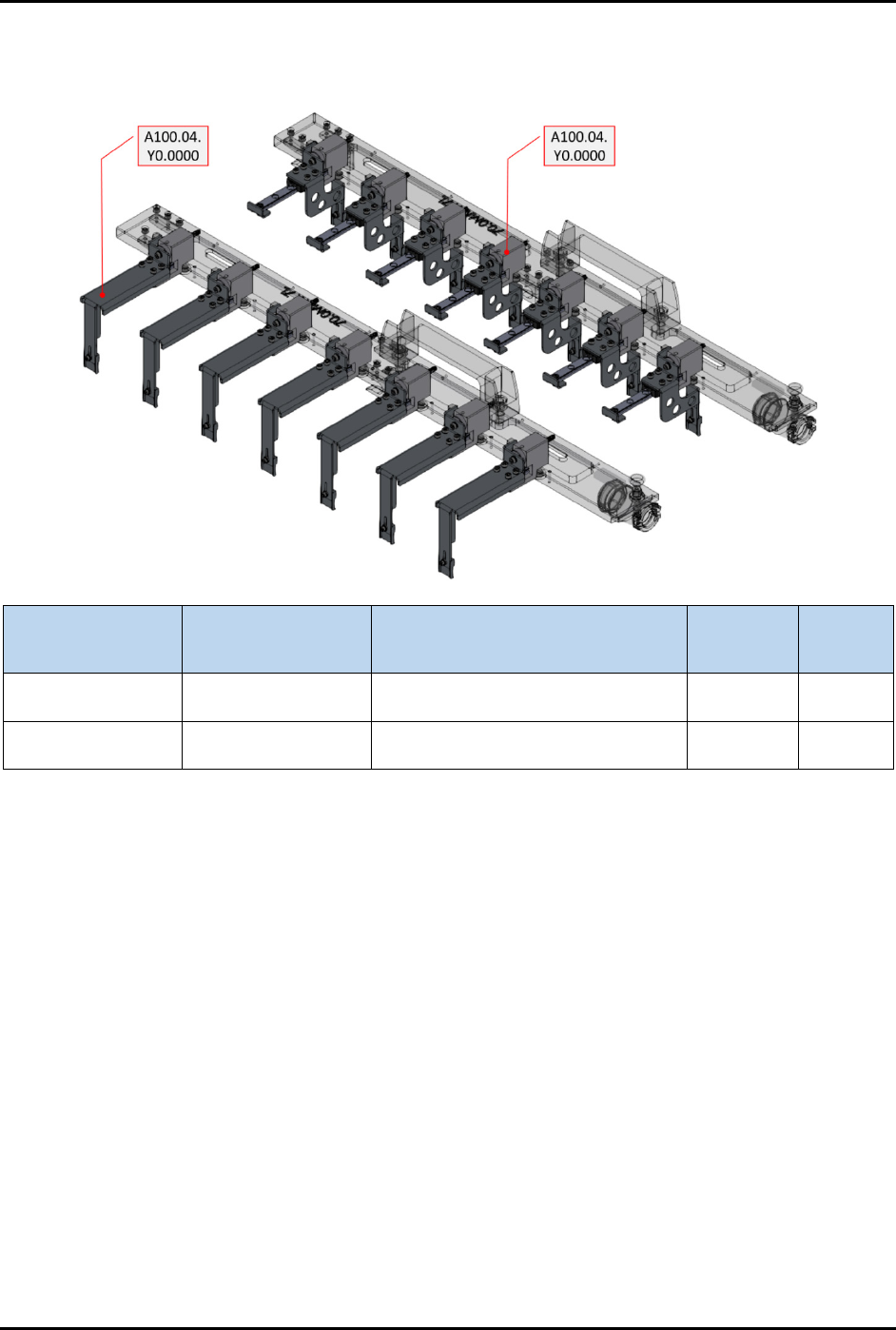

Figure 7-40 Conversion Kit List 1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-44 © 2023 Nordson Corporation
7.11.9.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.Y0.0400 0001-10005-00221 PHOTOMICROSENSOR 1,000,000 1
Figure 7-41 Conversion Kit List 2
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-45
7.12 Electrical Parts Lists (Level 2)
Electrical Parts (Level 2) are shown in Figure 7-42 through Figure 7-60.
7.12.1 AC Panel
Refer to Figure 1-2 (Item no. 7) for the location of AC panel in the FlexTRAK-OH.

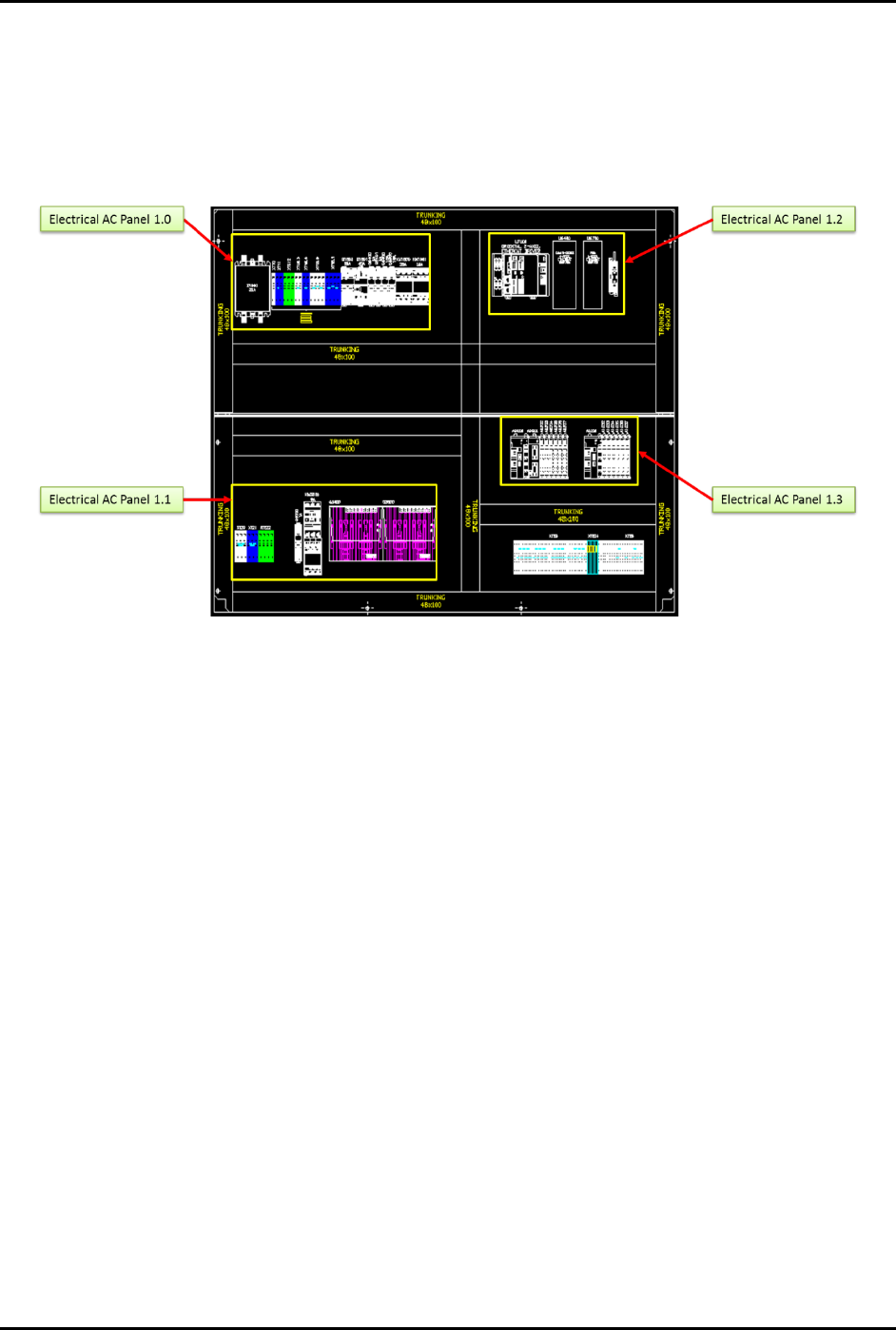

Figure 7-42 AC Panel
