FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-46 © 2023 Nordson Corporation
7.12.1.1 AC Panel 1.0
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-05002-00028
POWER LINE FILTER, CHASSIS,32A,
250 VAC, EMI, RFI, SCREW
1,000,000 1
2 0002-11002-00111 MCB 2 POLES,25A 20,000 1
3 0002-11002-00113 RCCB, 2P, 40A, 30mA 20,000 1
4 0002-11002-00106
ACTI 9, IC60N, MCB, 1POLE,6AMP,
CURVE C, 10KA
20,000 1
5 0002-11002-00116 MCB, 1P, 16A, TYPE C 20,000 1
6 0002-02004-00057 CONTACTOR, 25A, 3 POLES, 24VDC 300,000 1

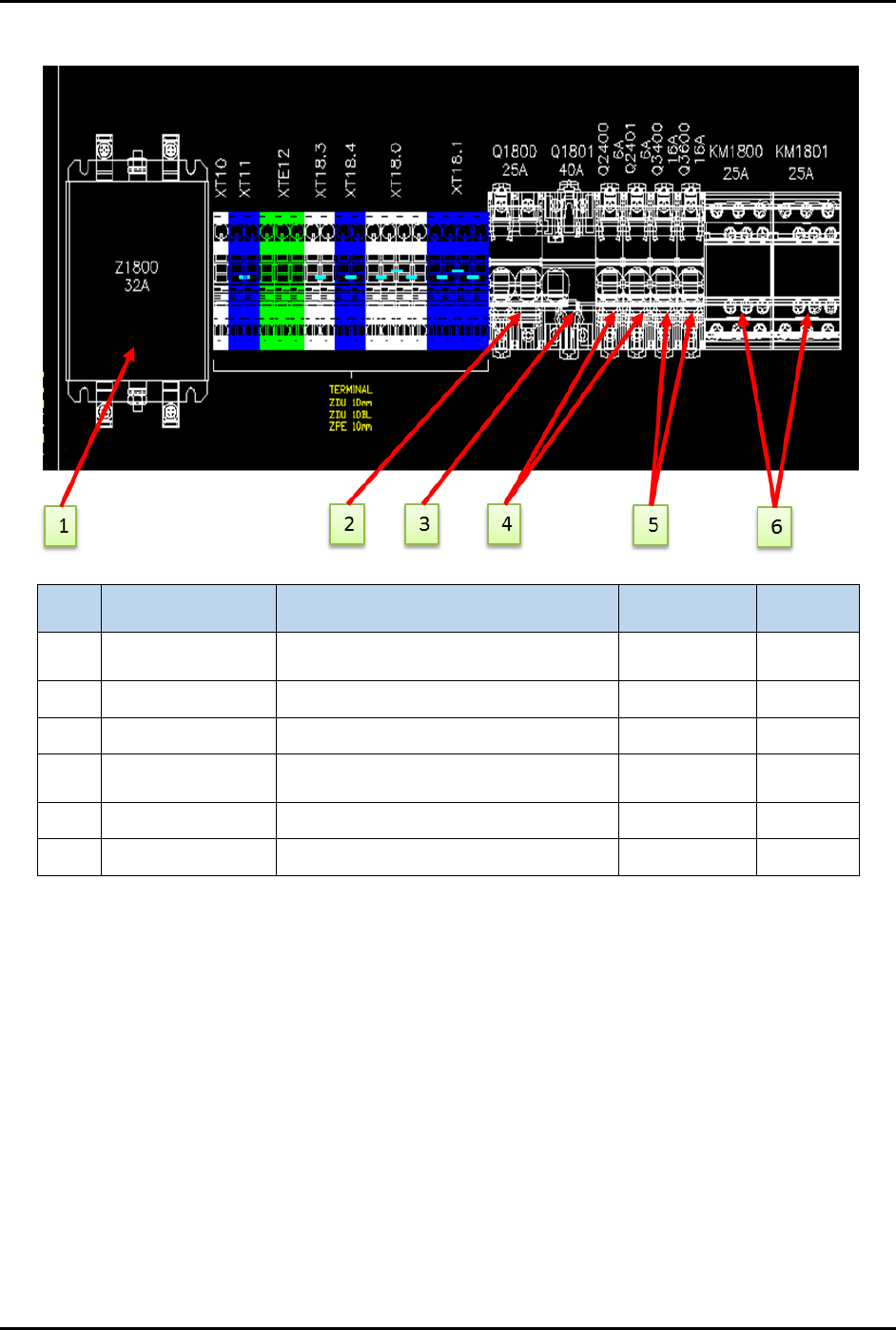

Figure 7-43 AC Panel 1.0
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-47
7.12.1.2 AC Panel 1.1
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-11002-00115 MCB, 1P, 1A, TYPE C 20,000 1
2 0002-11002-00114
THERMAL-MAGNETIC MOTOR CIRCUIT
BREAKER, 1-1.6A
100,000 1
3 0002-02004-00058 CONTACTOR 300,000 1
4 0002-05001-00531
PRO MAX DIN Rail Power Supply, 960W,
24V dc/,40A
1 year 1

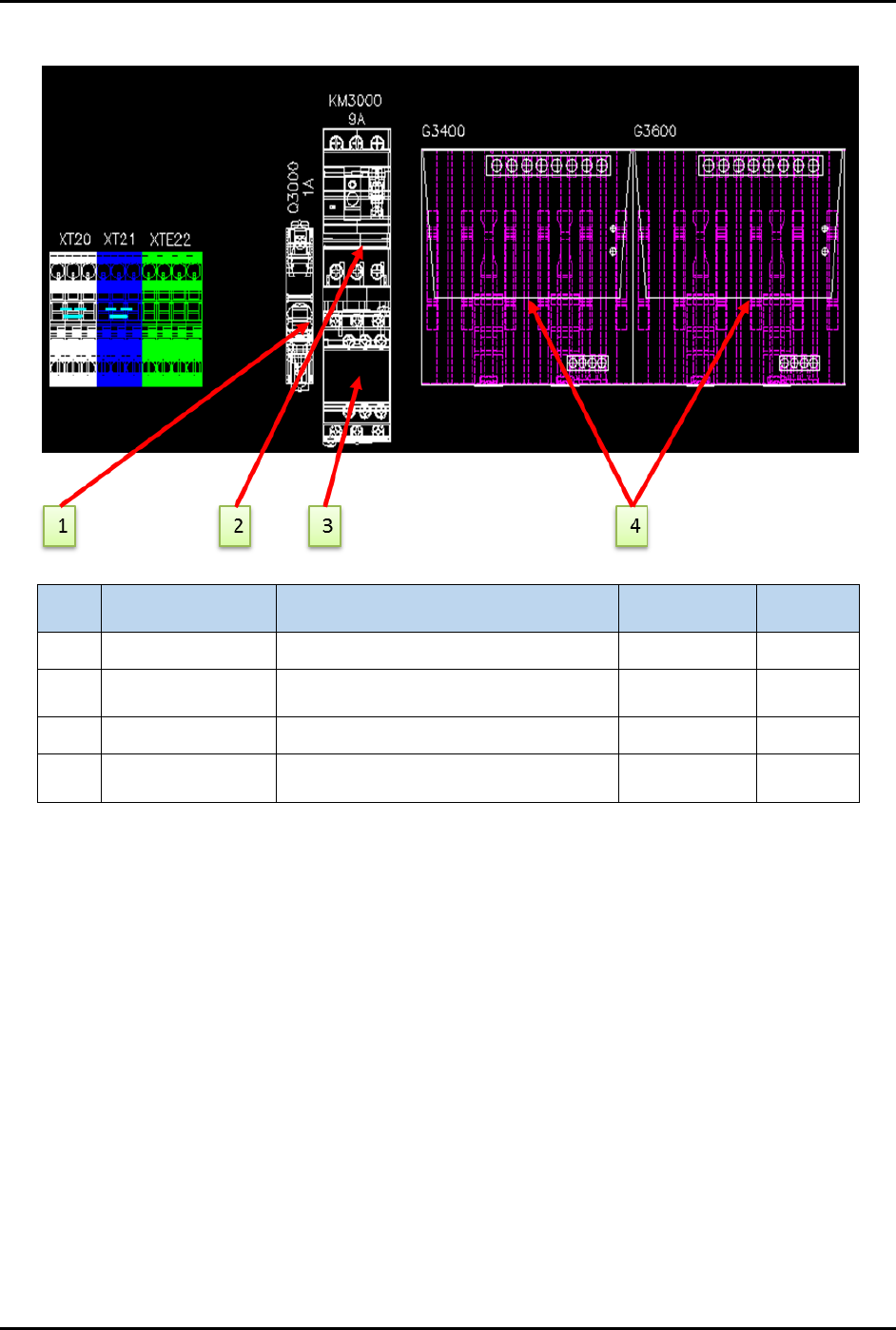

Figure 7-44 AC Panel 1.1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-48 © 2023 Nordson Corporation
7.12.1.3 AC Panel 1.2
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0001-07008-00134
STEPPER MOTOR CONTROLLER
ORIENTAL
1 year 1
2 0001-07008-00060 MULTI AXIS ETHERCAT 1 year 1
3 0001-07028-00002 ETHERCAT STEPPER DRIVER 1 year 1
4 0002-02008-01274 G7SA SERIES OMRON RELAY 36,000 1
5 0002-02008-01275 P7SA SERIES OMRON RELAY SOCKET 36,000 1

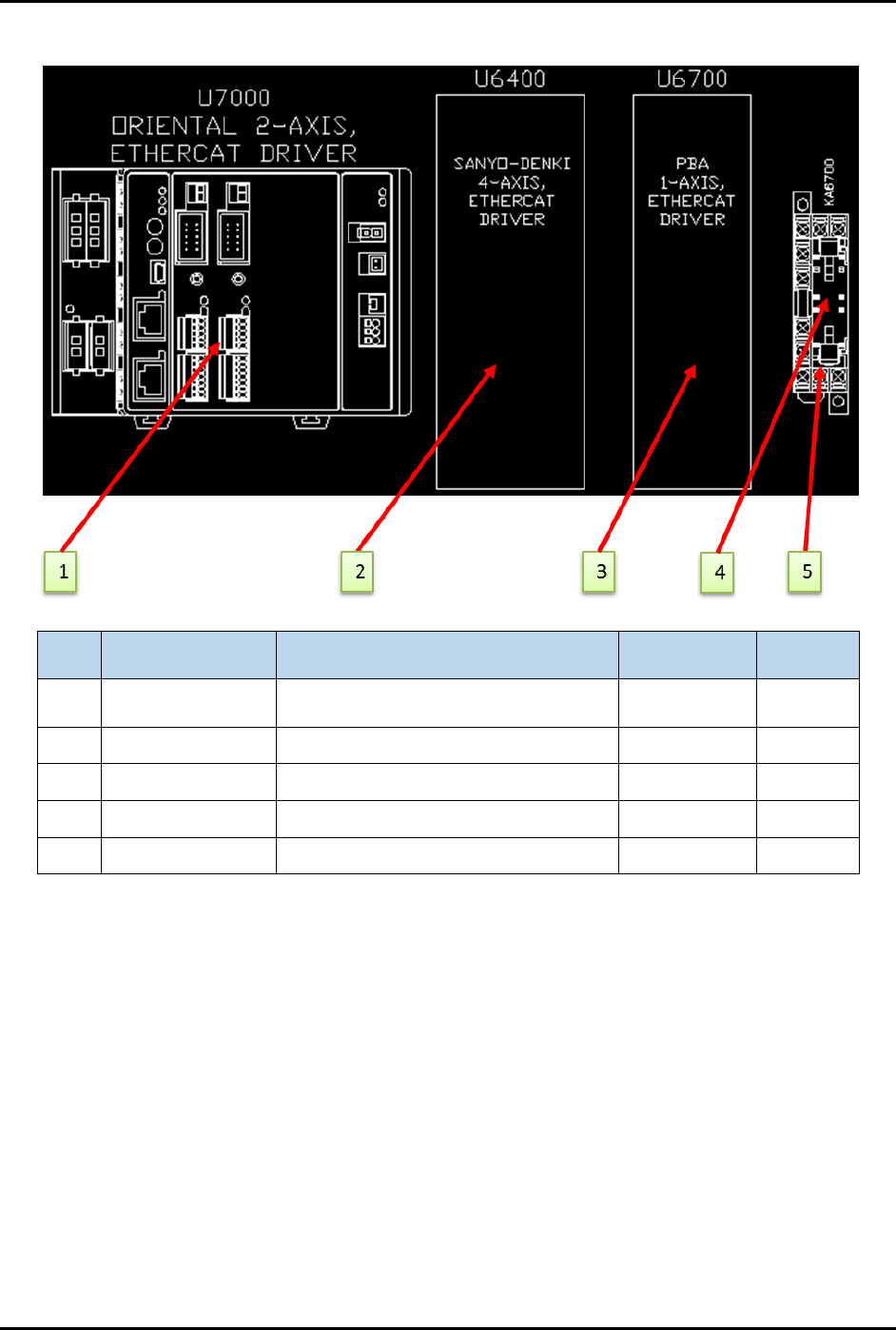

Figure 7-45 AC Panel 1.2
