FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-48 © 2023 Nordson Corporation
4.12.4.7 Motor Control in Axis 5 (Y-axis)
Pressing the MOTOR button on the Device Control screen (Figure 4-65)) displays a configuration list of
motor driver parameters and the axis platform position.
Refer to 4.11 Station Main Menu Layout for interface descriptions.
The following selections are available in the "Pos Name" drop down list:
• Standby
• To Stn50 grippers (top conv)
• Collect position (first lane)
• Manual unload port (bottom conv)
• Slot map position

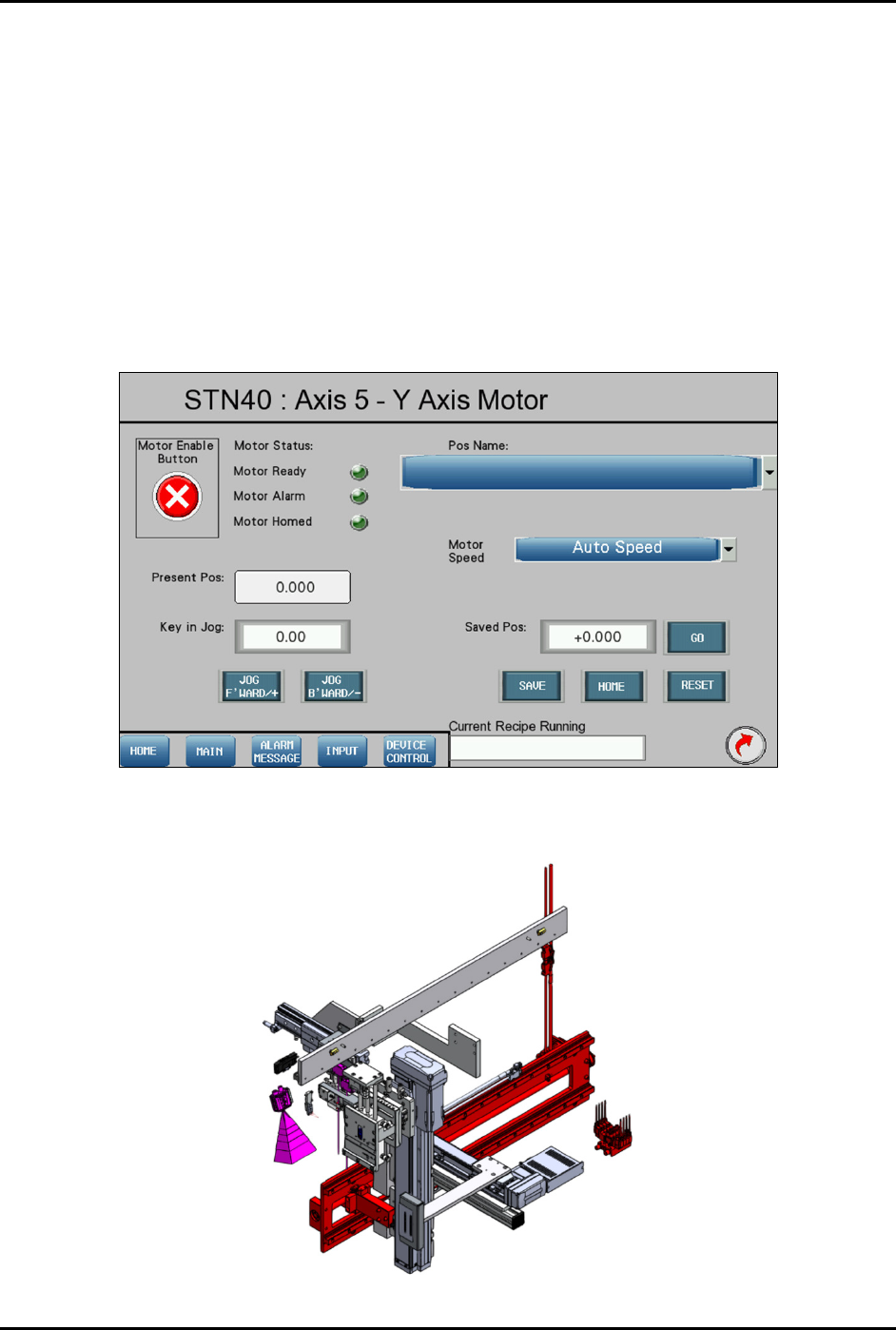

Figure 4-74 Station 40 – Axis 5 (Y-Axis Motor) Screen
The red highlighted part in the following image shows the location of Axis 5 – Y-axis in Station 40.
Figure 4-75 Station 40 – Axis 5 (Y-Axis Motor) Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-49
4.12.4.8 Motor Control in Axis 6 (Z-axis)
Refer to 4.11 Station Main Menu Layout for interface descriptions.
The following selections are available in the "Pos Name" drop down list:
• Standby
• To Stn50 grippers (top conv)
• Collect position (first strip bottom)
• Manual unload port (bottom conv)
• Slot map position (first strip bottom)
Figure 4-76 Station 40 – Axis 6 (Z-Axis Motor) Screen
The red highlighted part in the following image shows the location of Axis 6 – Z-axis in Station 40.
Figure 4-77 Station 40 – Axis 6 (Z-Axis Motor) Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-50 © 2023 Nordson Corporation
4.12.4.9 Motor Control in Axis 7 (Pinch Wheel Roller Out)
Refer to 4.11 Station Main Menu Layout for interface descriptions.
Figure 4-78 Station 40 – Axis 7 (Roller Out) Screen
The red highlighted part in the following image shows the location of Axis 7 in Station 40.
Figure 4-79 Station 40 – Axis 7 (Roller Out) Location
