FlexTRAK-OH Material Handli ng System IOM Manual Parts Replacement 7-50 © 2023 Nordson C orporation 7.12.2 DC Panel Refer to Figure 1-1 ( Item no. 9) for the locat ion of DC panel in the FlexTRAK - OH . Figure 7- 47 DC P…
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-49
7.12.1.4 AC Panel 1.3
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-14003-00057 OMRON PLC ETHERCAT COUPLE UNIT 1 year 1
2 0002-14014-00038 OMRON PLC RS232 PORT X 2 1 year 1
3 0002-14003-00058 OMRON PLC 16 POINTS INPUT UNIT 1 year 1
4 0002-14003-00059 OMRON PLC 16 POINTS OUTPUT UNIT 1 year 1

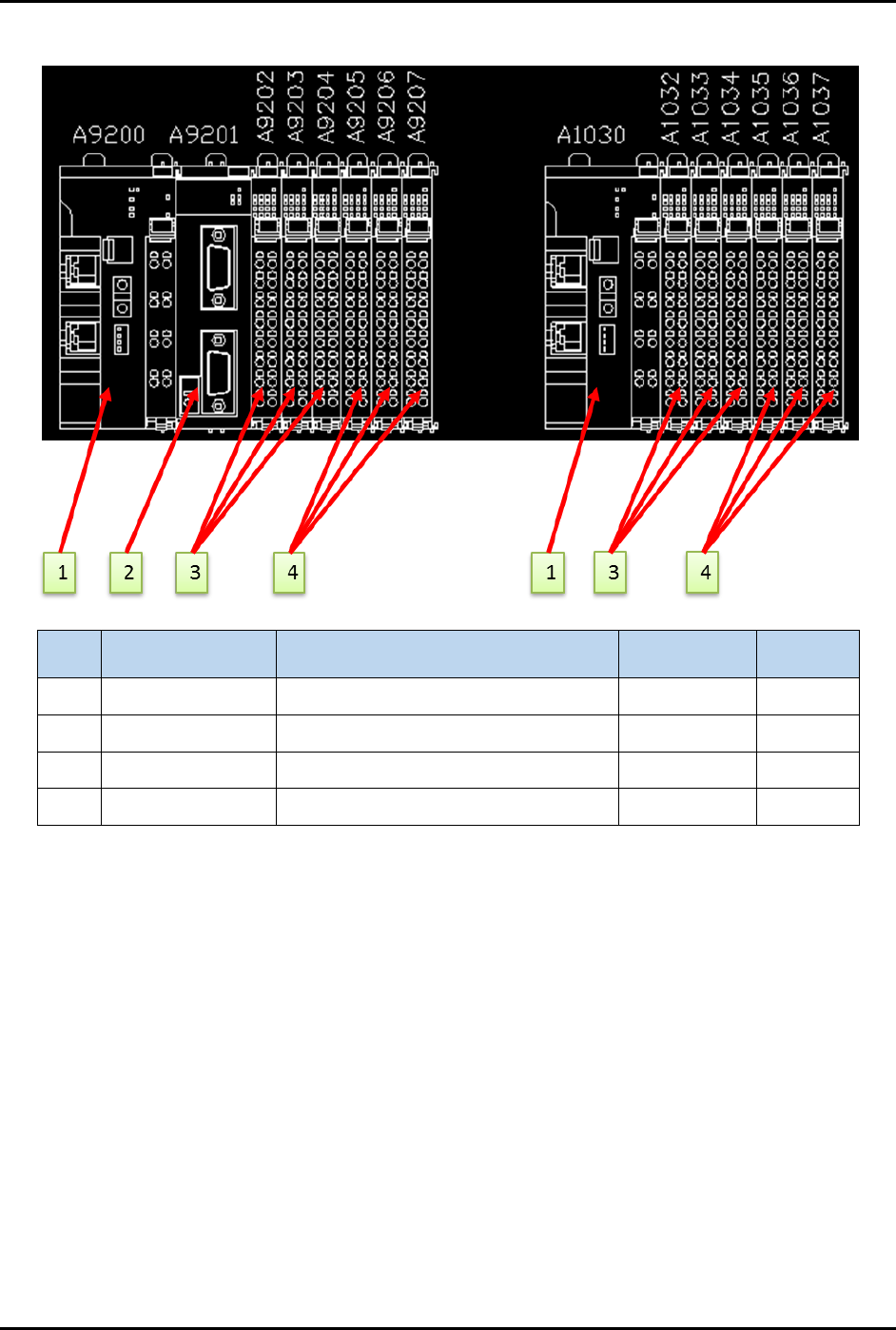

Figure 7-46 AC Panel 1.3
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-50 © 2023 Nordson Corporation
7.12.2 DC Panel
Refer to Figure 1-1 (Item no. 9) for the location of DC panel in the FlexTRAK-OH.

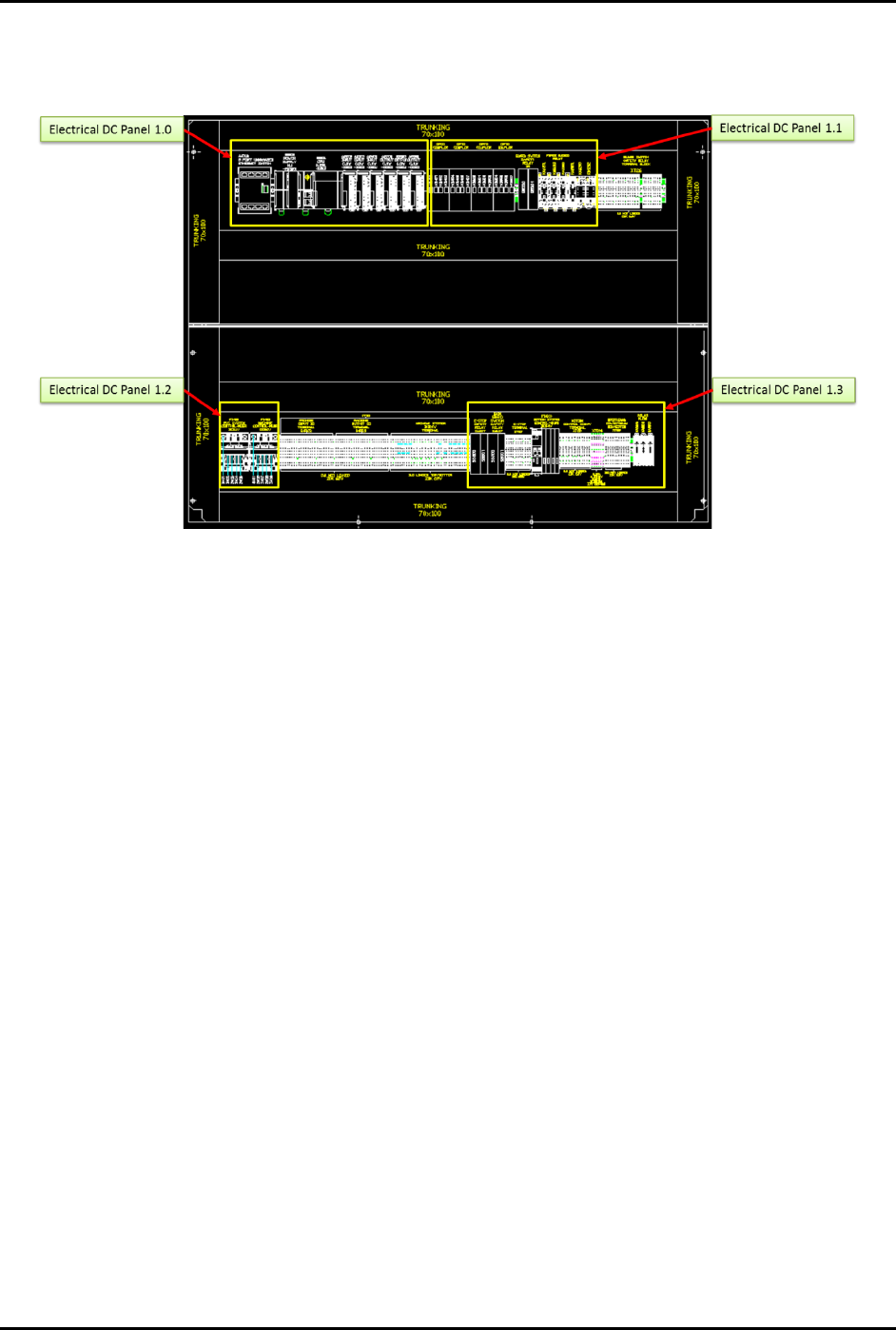

Figure 7-47 DC Panel
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-51
7.12.2.1 DC Panel 1.0
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-01014-00046
INDUSTRIAL UNMANAGED|ECO
SWITCH; 8- PORT
1 year 1
2 0002-14014-00034 OMRON NJ 16 MOTION AXIZ PLC 1 year 1
3 0002-14014-00035 OMRON PLC POWER SUPPLY UNIT 1 year 1
4 0002-14013-00015 OMRON PLC 16 POINTS INPUT UNIT 1 year 1
5 0002-14013-00065 OMRON PLC 16 POINTS OUTPUT UNIT 1 year 1

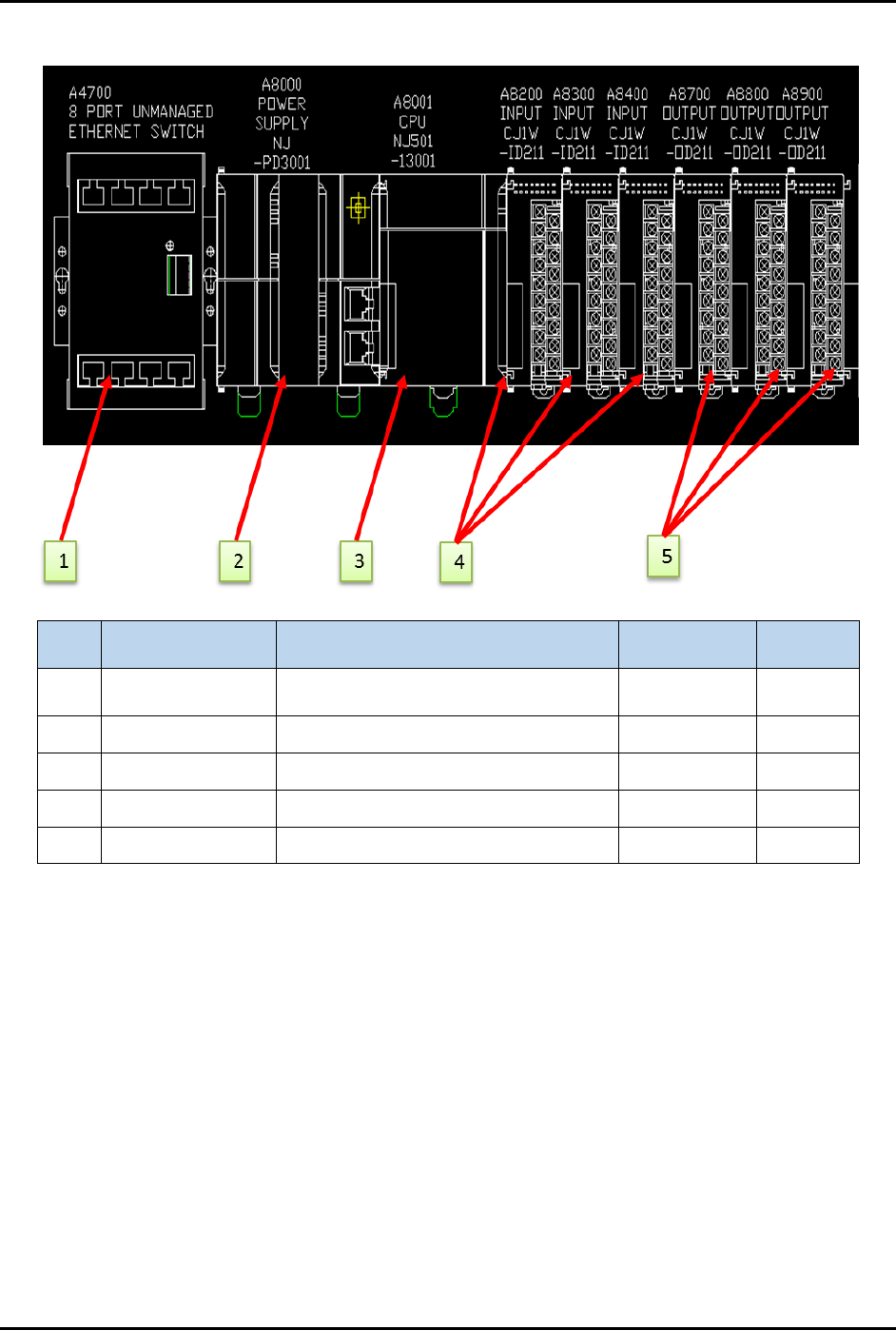

Figure 7-48 DC Panel 1.0
