4.12.1.4 Cylinder Control 2

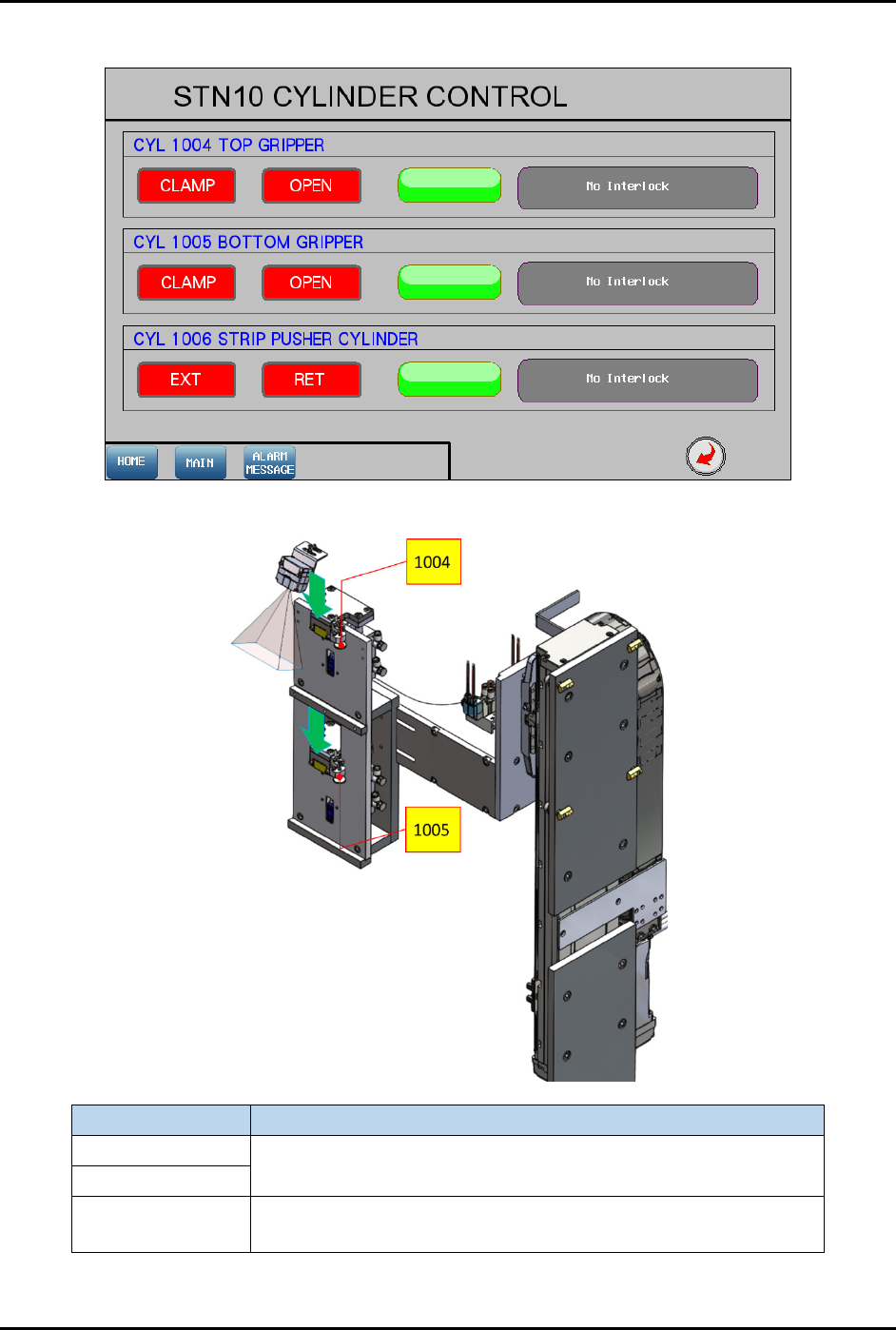

Figure 4-30 Station 10 – Cylinder Control 2
Label
Description
CYL 1004
CLAMP – Clamp magazine.
OPEN – Release magazine.
CYL 1005
CYL 1006
EXT – Push strip against magazine transfer station.
RET – Release strip.
Figure 4-31 Station 10 – Cylinder Control 2 Locations
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-25
4.12.1.5 Motor Control in Axis 8 (Z-Axis)
Pressing the MOTOR button on the Device Control screen (Figure 4-27) displays a configuration list of
motor driver parameters and the axis platform position.
Refer to 4.11 Station Main Menu Layout for interface descriptions.
The following selections are available in the "Pos Name" drop down list (Figure 4-32):
• Top gripper to top platform
• Top gripper to bottom platform
• Bottom gripper to bottom platform
• Top gripper to Stn20 gripper
• Bottom gripper to Stn20 gripper
• Strip barcode scan position
• Magazine barcode scan position
• Strip slot mapping position
Figure 4-32 Station 10 – Axis 8 (Z-Axis) Screen
The red highlighted area in Figure 4-33 shows the location of Axis 8 in Station 10.
Figure 4-33 Station 10 – Axis 8 (Z-Axis) Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-26 © 2023 Nordson Corporation
4.12.2 Station 20
The red highlighted area in Figure 4-34 shows the location of Station 20 (transfer input module) in the
FlexTRAK-OH.
Figure 4-34 Station 20 (Transfer Input Module) Location
4.12.2.1 Input Screens
Main Screen – Refer to 4.11 Station Main Menu Layout for interface descriptions.
Input and Output Mode – Refer to 4.10 General I/O Screen for interface descriptions.

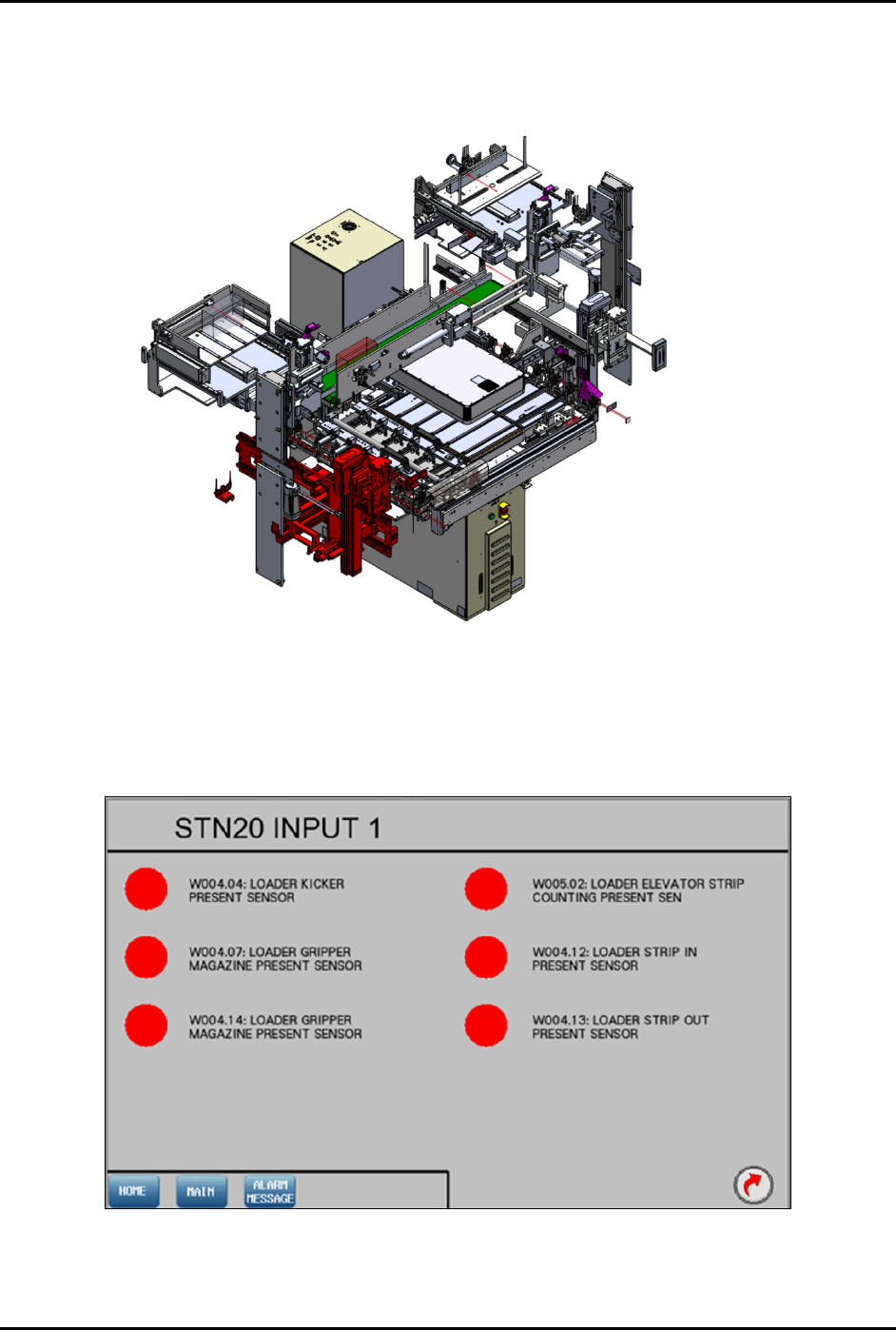

Figure 4-35 Station 20 – Input 1 Screen
