FlexTRAK-OH Material Handling System IOM Manual Installation
3-10 © 2023 Nordson Corporation
g. Push (A) in the direction indicated by the yellow arrow to lock the conversion kit
(Figure 3-16).

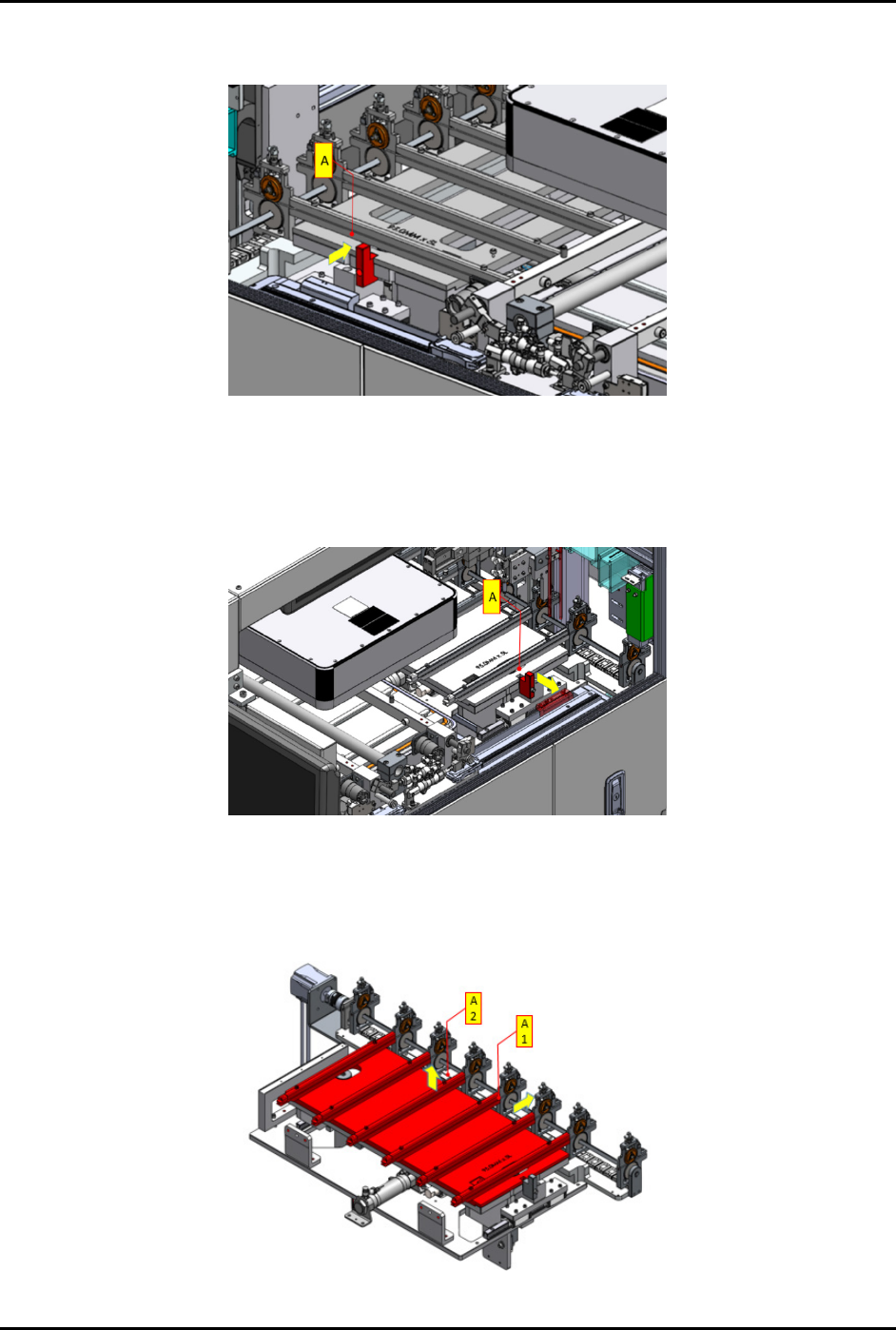

Figure 3-16 Lock Conversion Kit in Place
5. Follow the steps below to remove and assemble strip unloading lane:
a. Pull (A) in the direction indicated by the yellow arrow to unlock the conversion kit
(Figure 3-17).
Figure 3-17 Unlock Conversion Kit in Place
b. Pull out the conversion kit from the pinch wheel assembly (A1) and manually lift the kit
up (A2) and remove from the machine (Figure 3-18).
c. Safely place the kit on a conversion keeping rack.
Figure 3-18 Remove Conversion Kit from Machine
FlexTRAK-OH Material Handling System IOM Manual Installation
© 2023 Nordson Corporation 3-11
d. Place the correct conversion kit for new production recipe (A1). Install the pinch wheel
assembly with the dowel pins on unloading lane (A2) (Figure 3-19).

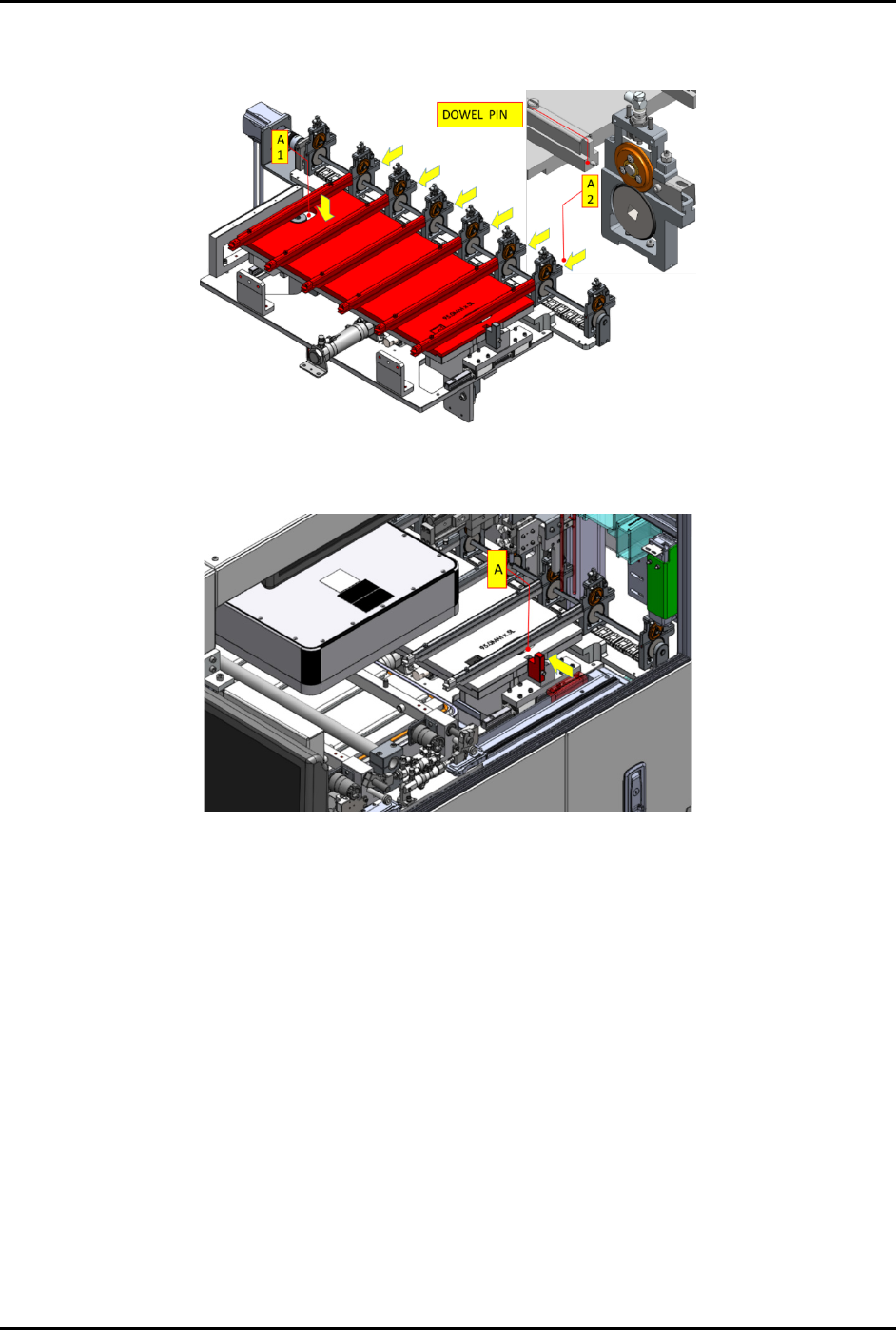

Figure 3-19 Place Correct Unloading Lane to Machine
e. Push (A) in the direction indicated by the yellow arrow to lock the conversion kit.
Figure 3-20 Lock Conversion Kit in Place
6. Follow the steps below to remove and assemble the chamber conversion kit at the plasma
chamber station:
a. Push out the strip transfer claw – base assembly from the chamber area (A1)
(Figure 3-21).
b. Manually lift the kit up (A2) and remove from the machine. Safely place the kit on a
conversion keeping rack.
FlexTRAK-OH Material Handling System IOM Manual Installation
3-12 © 2023 Nordson Corporation

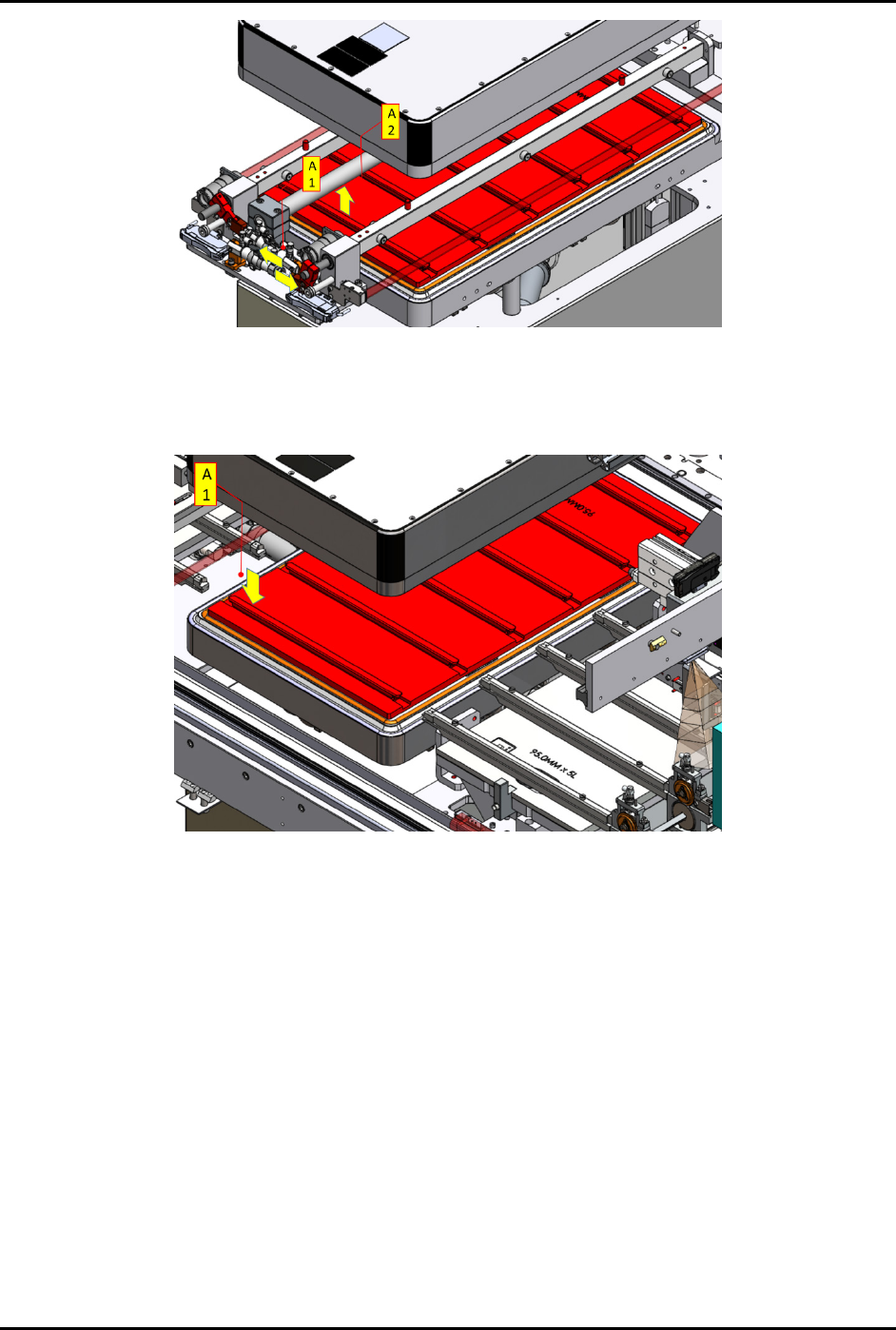

Figure 3-21 Remove Base Assembly from Chamber Area
c. Place a correct chamber conversion kit for new production recipe (A1) (Figure 3-22).
d. Ensure all the rails sit properly inside the pocket of the base plate.
Figure 3-22 Installing Chamber Kit in Plasma Chamber
7. Follow the steps below to assemble strip claw 1 and strip claw 2:
a. Place a correct strip claw 1 assembly for new production setup.
b. Ensure the components on the claw module are properly assembled (Figure 3-23).
• CAM follower guides (A1) and (A2)
• Locking plunger (B)
