FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-19
7.10.7 Overhead Output Port Assembly
7.10.7.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.HA.3000 0001-08008-00721 CYLINDER 50,000 1
A100.07.HA.2000 0001-08008-00727 CLEAN ROOM GUIDER CYLINDER 150,000 1
A100.07.HA.2000
1999-01000-
A100_07_HA_2002
LEAD IN PLATE 150,000 1
A100.07.HA.1000
1999-01000-
A100_07_HA_1005
PLATE 300,000 1
Figure 7-16 Overhead Output Port Assembly List 1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-20 © 2023 Nordson Corporation
7.10.7.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.HB.1000 0001-09015-00448 BEARING 50,000 1
A100.07.HB.2000 0001-08008-00728 CLEAN ROOM SINGLE ROD 150,000 1
A100.07.HB.2000 0001-08011-01481 ELBOW FITTING 250,000 1
A100.07.HB.3000
1999-01000-
A100_07_HB_3001
GEAR RACK 300,000 1
A100.07.HB.1000
1999-01000-
A100_07_HB_1001
GEAR 300,000 1
A100.07.HB.0000 0001-04006-00359 LM GUIDE 400,000 1
Figure 7-17 Overhead Output Port Assembly List 2
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-21

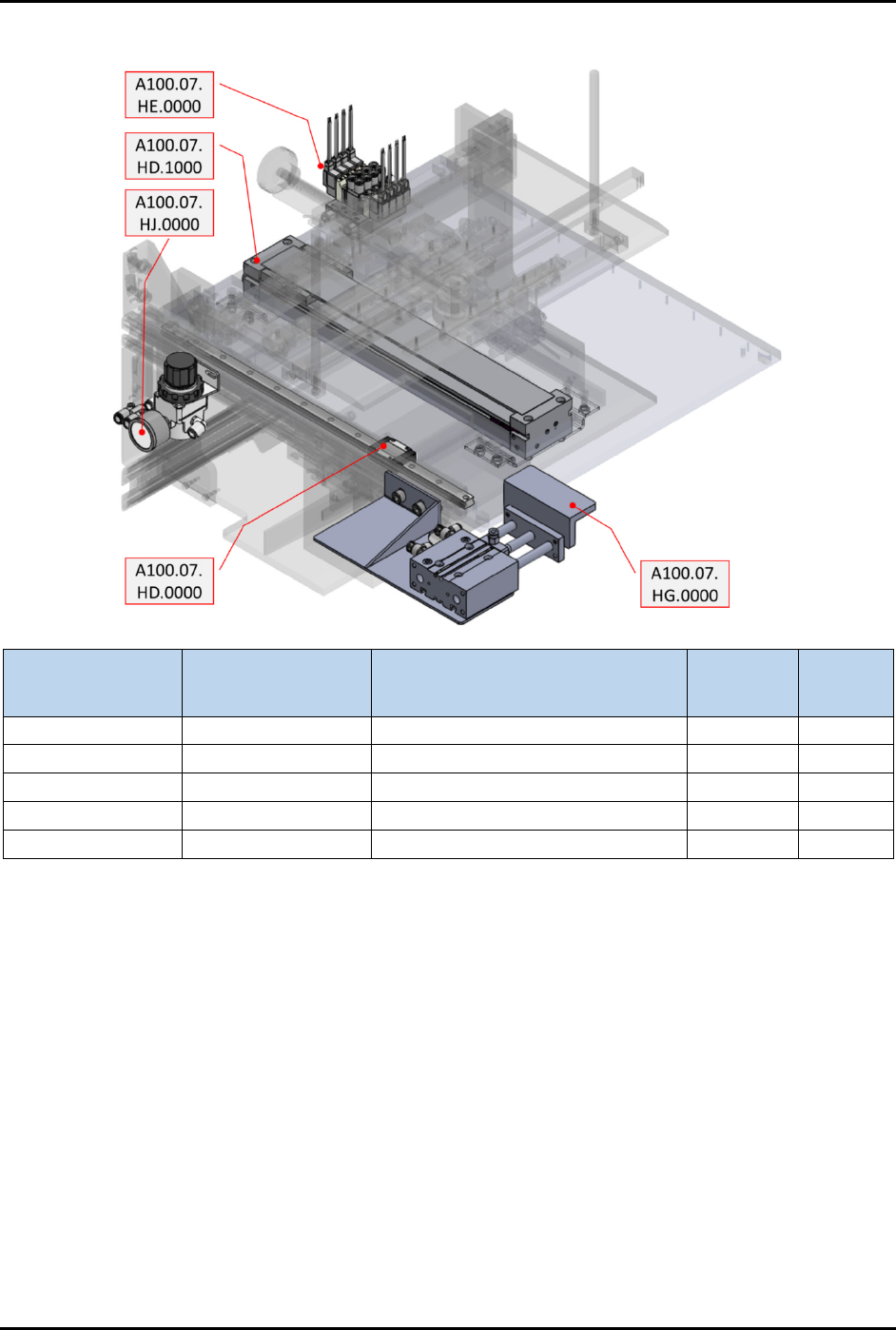

7.10.7.3 List 3
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.HD.1000 0001-08008-00723 CYLINDER 50,000 1
A100.07.HD.0000 0001-04006-00354 LM GUIDE 200,000 1
A100.07.HG.0000
0001-08008-00724
CYLINDER
200,000
1
A100.07.HJ.0000 0001-08019-00008 MODULAR STYLE REGULATOR 250,000 1
A100.07.HE.0000 0001-08016-00055 SOLENOID VALVE 5/2 WAY, DIA 6 1,000,000 1
Figure 7-18 Overhead Output Port Assembly List 3
