FlexTRAK-OH Material Handli ng System IOM Manual Parts Replacement 7-62 © 2023 Nordson C orporation 7.12.6.2 Rear View No. Part Numb er Des cription Estimated Li fe Span (cycles) Quantity 1 0002 - 15001 - 0 0053 PATLITE …
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-61
7.12.6.1 Front View
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-15001-00053
PATLITE LED WALL MOUNT|LIGHT
R/Y/G/B C/W BUZZER
1 year 1
2 0002-01005-00009 MAGNET SWITCH 1 year 1
3 0002-01001-00258
EMERGENCY STOP COMPLETE
STATION, 2NC + 1NO
300,000 1

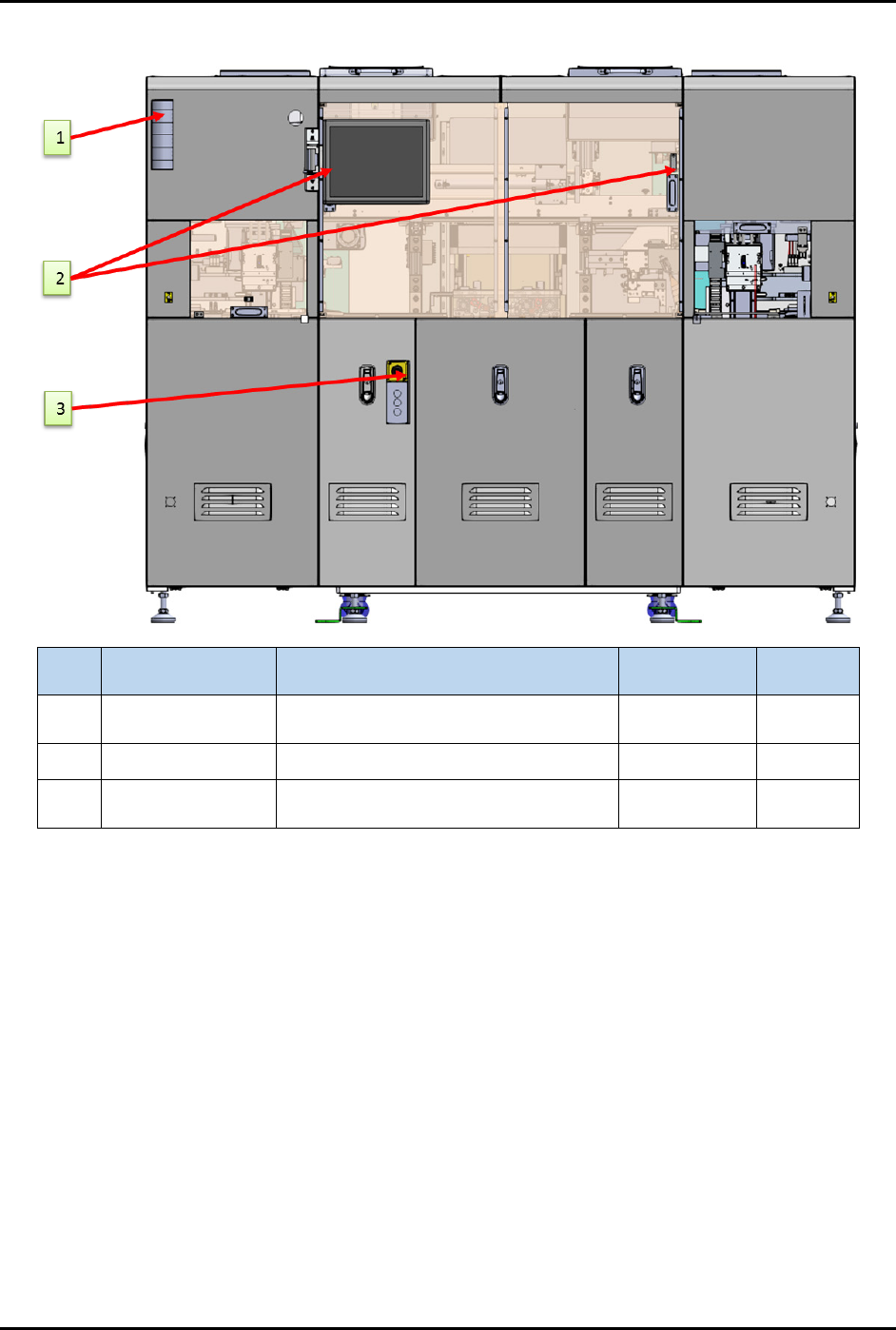

Figure 7-58 Front View
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-62 © 2023 Nordson Corporation
7.12.6.2 Rear View
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1
0002-15001-00053 PATLITE LED WALL MOUNT|LIGHT
R/Y/G/B C/W BUZZER
1 year 1
2
0002-01001-00258 EMERGENCY STOP COMPLETE
STATION, 2NC + 1NO
300,000 1
3
0002-01001-00253 SWITCH DISCONNECTOR, 3 POLE,40A,
DOOR MOUNTING, RED/YELLOW
100,000 1
4
0002-05008-00029 FRONTCOM, INSERT PLATE,
UNSHIELDED, 1X POWER, 2X DATA
1 year 1

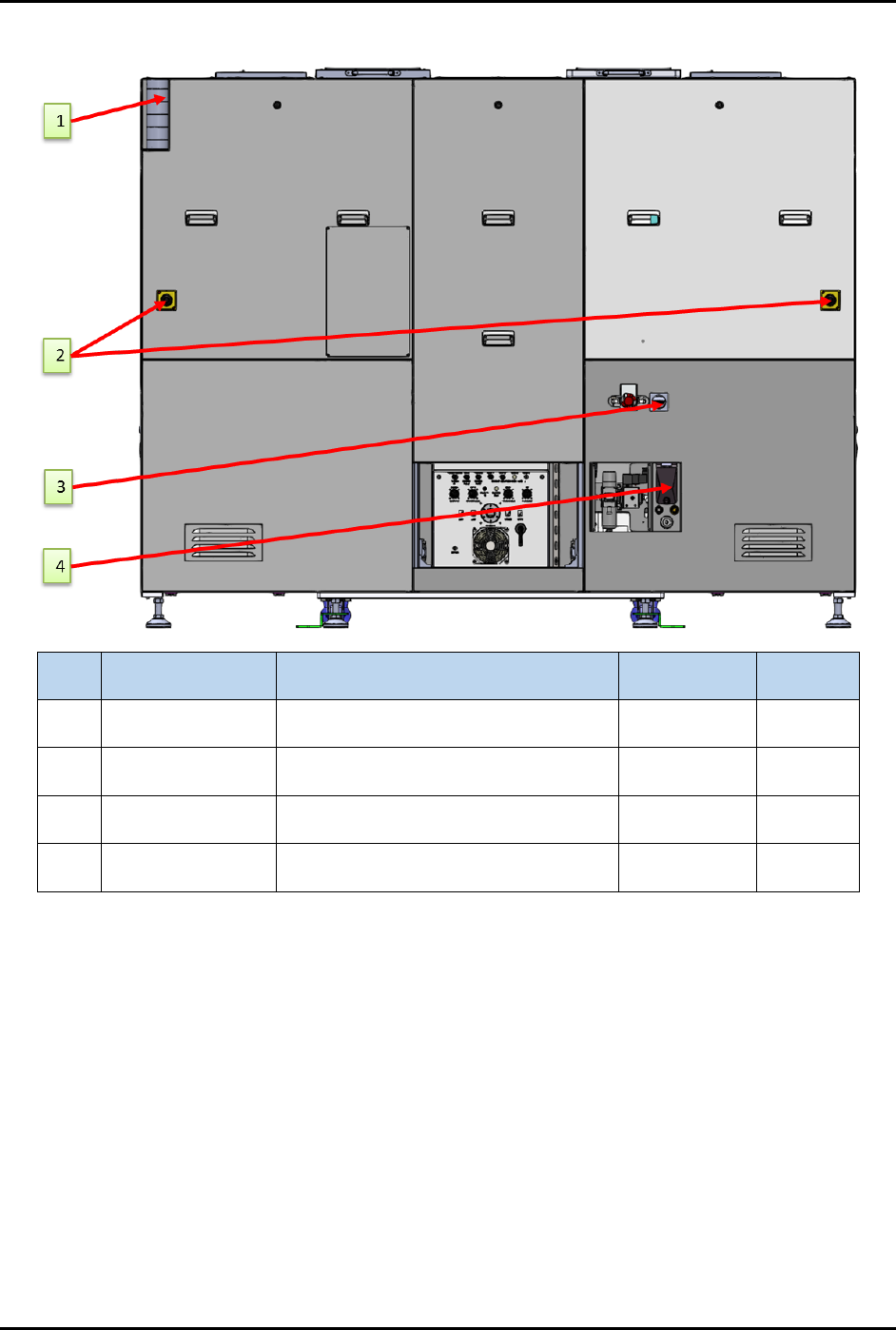

Figure 7-59 Rear View
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-63
7.12.6.3 Left and Right Views
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-01005-00009 MAGNET SWITCH 1 year 1
Figure 7-60 Left and Right Views
