FlexTRAK-OH Material Handling System IOM Manual Introduction
© 2023 Nordson Corporation 1-19

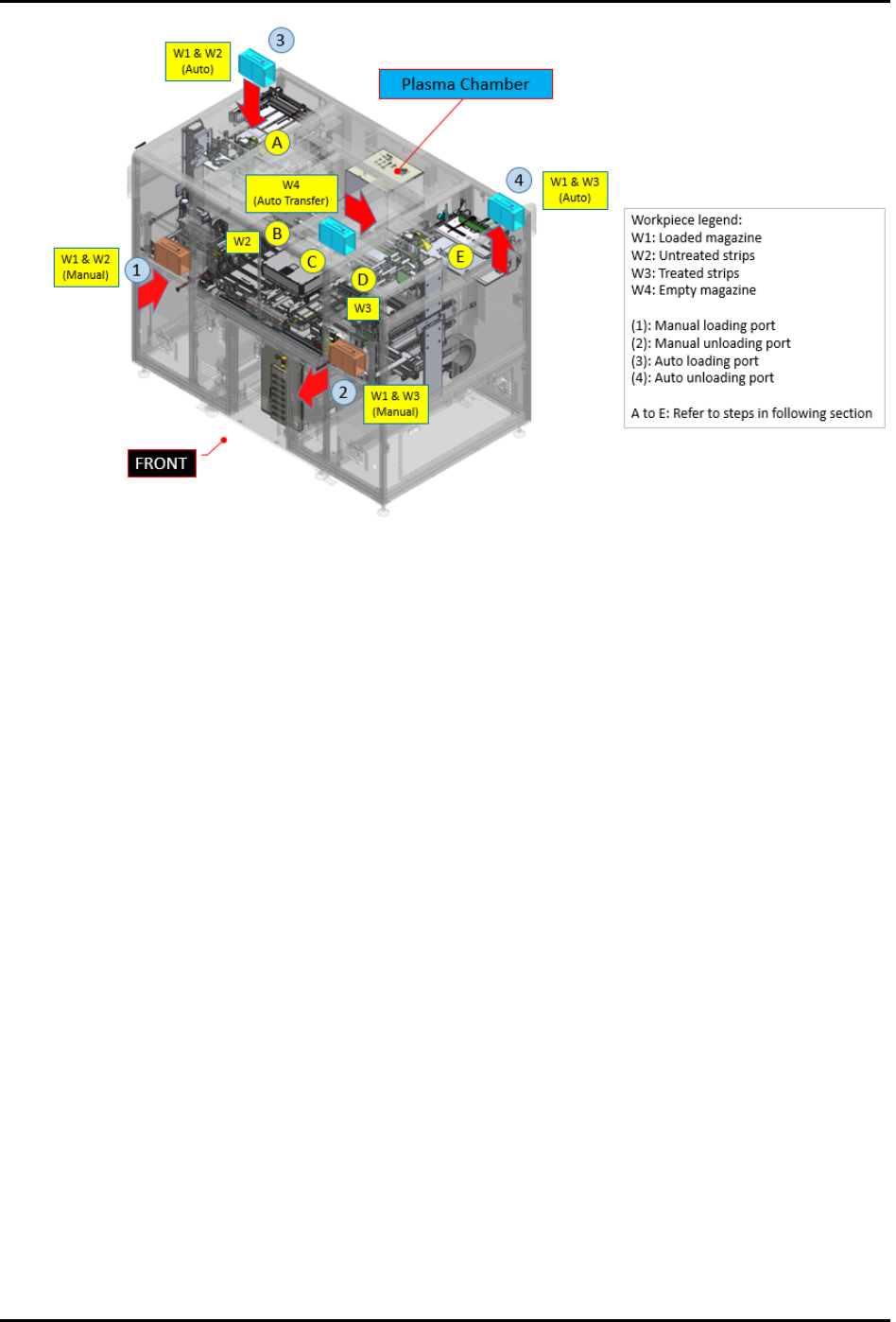

Figure 1-17 General Operation Flow
1.8.2 Automatic Overhead Production Process
The following steps outline the automatic overhead production process. Refer to the item numbers in
Figure 1-17.
1. Load magazine with untreated strips into overhead magazine auto loading port (3).
2. The platform receives the magazine from the overhead conveyor system and transfers the
magazine to the magazine station (A).
3. Material transfer station will grip the magazine from the conveyor and load the strips into
the buffer lanes (B).
4. Strips will be transferred by the loader claw into the plasma chamber for treatment (C).
5. Treated strips will be transferred by the unloader claw from the plasma chamber to unloader
buffer (D).
6. Treated strips will be unloaded from the buffer lanes into the empty magazine (auto
transfer).
7. Material transfer station will unload the fully loaded magazine onto the conveyor (E).
8. Unload the magazine with the treated strips from the overhead magazine auto unloading
port (4).
FlexTRAK-OH Material Handling System IOM Manual Introduction
1-20 © 2023 Nordson Corporation
1.8.3 Manual Production Process
The following steps outline the manual production process Refer to the item numbers in Figure 1-17.
1. Manually load the magazine with untreated strips to the magazine manual loading port (1)
and transfer the magazine to the magazine station (A).
2. The material transfer station will grip the magazine from the conveyor and load the strips
into the buffer lanes (B).
3. The strips will be transferred by the loader claw into the plasma chamber for treatment (C).
4. The treated strips will be transferred by the unloader claw from the plasma chamber to
unloader buffer (D).
5. The treated strips will be unloaded from the buffer lanes into the empty magazine (auto
transfer).
6. The material transfer station will unload the fully loaded magazine onto the conveyor (E).
7. The operator manually unloads the magazine with the treated strips from magazine manual
unloading port (2).
© 2023 Nordson Corporation 2-1
2 Safety
2.1 Overview
This section is intended to provide basic safety information necessary for operating and servicing the
FlexTRAK-OH Material Handler. The FlexTRAK-OH Material Handler is physically and electronically
connected to the March FlexTRAK-S System. Refer to the FlexTRAK Series Plasma Systems Installation,
Operation, and Maintenance Manual safety precautions when operating or servicing the FlexTRAK-S
System.
This section covers the following topics:
• Intended Use
• Emergency Shutdown
• Basic Safety Precautions and Practices
• Human Machine Interface (HMI)
• Safety of Personnel
• Pilot Switch
• Material Safety
• Ethernet Socket
• Preventing Workpiece Damage
• Safety Interlocks
• Disposal
• Light Tower Status Lights
• Earthquake Precautions
• Air Preparation Unit
• Safety Warning Labels
• Foot Pad and Castor Wheel
• Isolator Switch
• Service Shutdown
Precautions and recommended practices are included with the procedures throughout this manual to
optimize safe operation.
WARNING! Unsafe equipment conditions can result in personal injury or property damage.
Failure to properly operate and maintain the system in accordance with this
manual may jeopardize the built-in safety features.
NOTE Safety is considered a joint responsibility between the original equipment manufacturer
(March) and the end-user (owner). All safety precautions and practices should be in
accordance with local regulations and facility practice.
