FlexTRAK-OH Material Handling System IOM Manual Maintenance
© 2023 Nordson Corporation 5-5
5.8 Lubrication Requirements
Lubrication should be performed after cleaning and inspecting moving mechanisms. The FlexTRAK-OH
Material Handler components requiring lubrication and the procedures to perform the lubrication are
included below.
Tools and Materials Needed:
• Lubricating grease (AFE-CA Grease-THK) (Figure 5-1).
Figure 5-1 AFE-CA Grease- THK
• Soft, lint-free shop rag
• Personal Protective Equipment as applicable
5.8.1 Lubricating Process
To perform the lubrication process:
1. Using the AFE-CA Grease and a soft cloth, clean the
ball screw and sliding guide.
2. If necessary, wipe off excess grease and spills.
FlexTRAK-OH Material Handling System IOM Manual Maintenance
5-6 © 2023 Nordson Corporation
5.9 Common Cylinder Replacement
5.9.1 Loader and Unloader Elevator Gripper (CYL 2001 and 4001)
To remove and replace the loader and unloader elevator gripper cylinder (Figure 5-2):
1. Loosen two (2) screws (A) to separate the mounting plate (B) with the cylinder (C).
2. Loosen four (4) screws (D) to separate the magazine side plate (E) with the cylinder holder
plate (F).
3. Safely remove the cylinder from the module.
4. Reverse the steps above to install a new cylinder into the module.
Before installing the new cylinder, ensure the sensor position is properly measured and
marked (Figure 5-3).

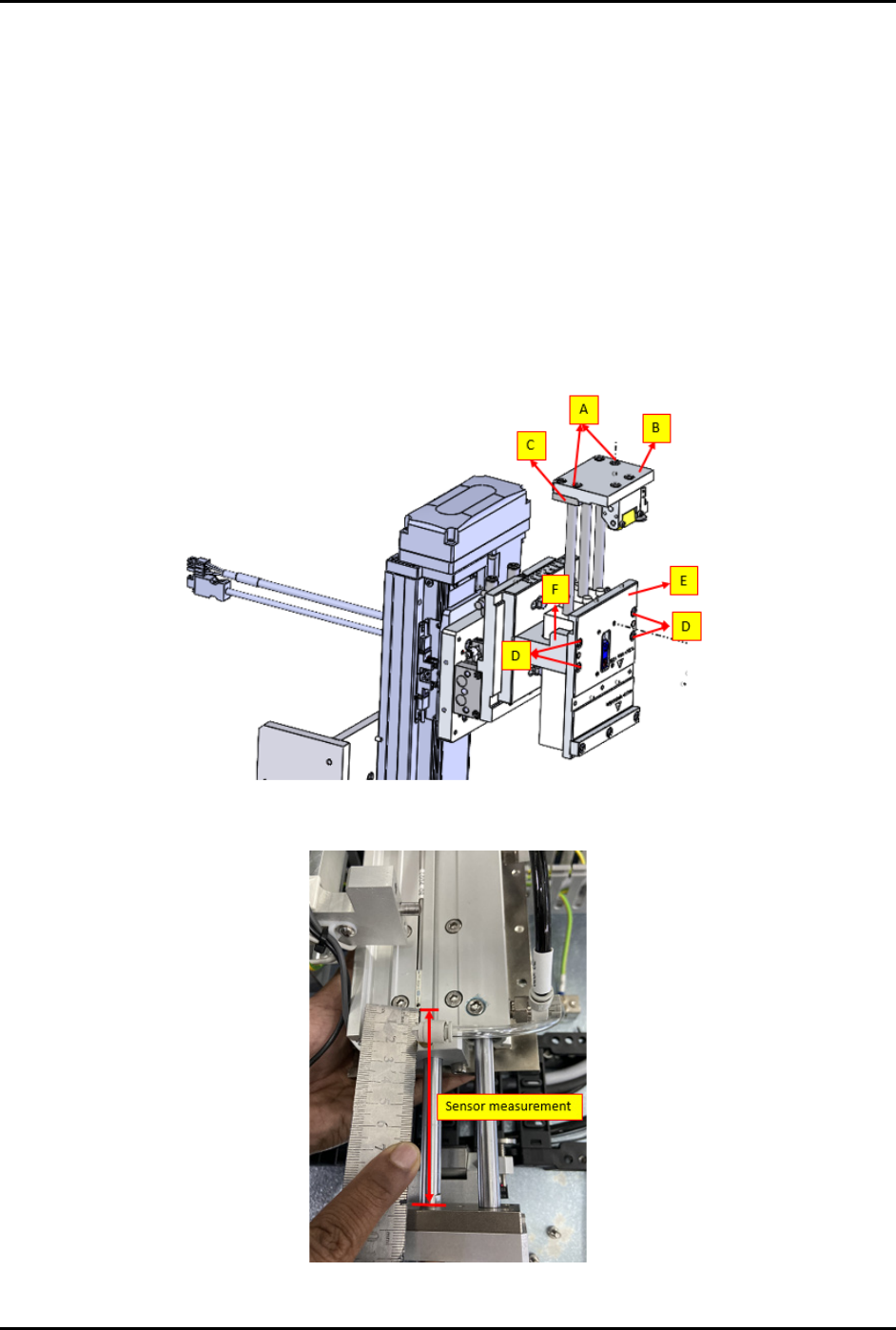

Figure 5-2 Loader and Unloader Elevator Gripper (CYL 2001 and 4001)
Figure 5-3 Measure Sensor Position
FlexTRAK-OH Material Handling System IOM Manual Maintenance
© 2023 Nordson Corporation 5-7
5.9.2 Loader Elevator Pitch Wheel Sensor (CYL 2002)
Cylinder 2002 is mounted with the sensor (strip sensors) plate in Station 20. The following steps explain
on how to remove and replace the cylinder:
To remove and replace the loader elevator pinch wheel cylinder (Figure 5-4):
1. Loosen four (4) screws (A) to separate the sensor plate (B) with the cylinder top plate (C).
2. Remove the sensor plate.
3. Loosen four (4) screws (D) to separate the cylinder with the spacer (E) that is mounting on
the cylinder plate.
4. Remove the cylinder.
5. Reverse the steps above to install a new cylinder into the module.

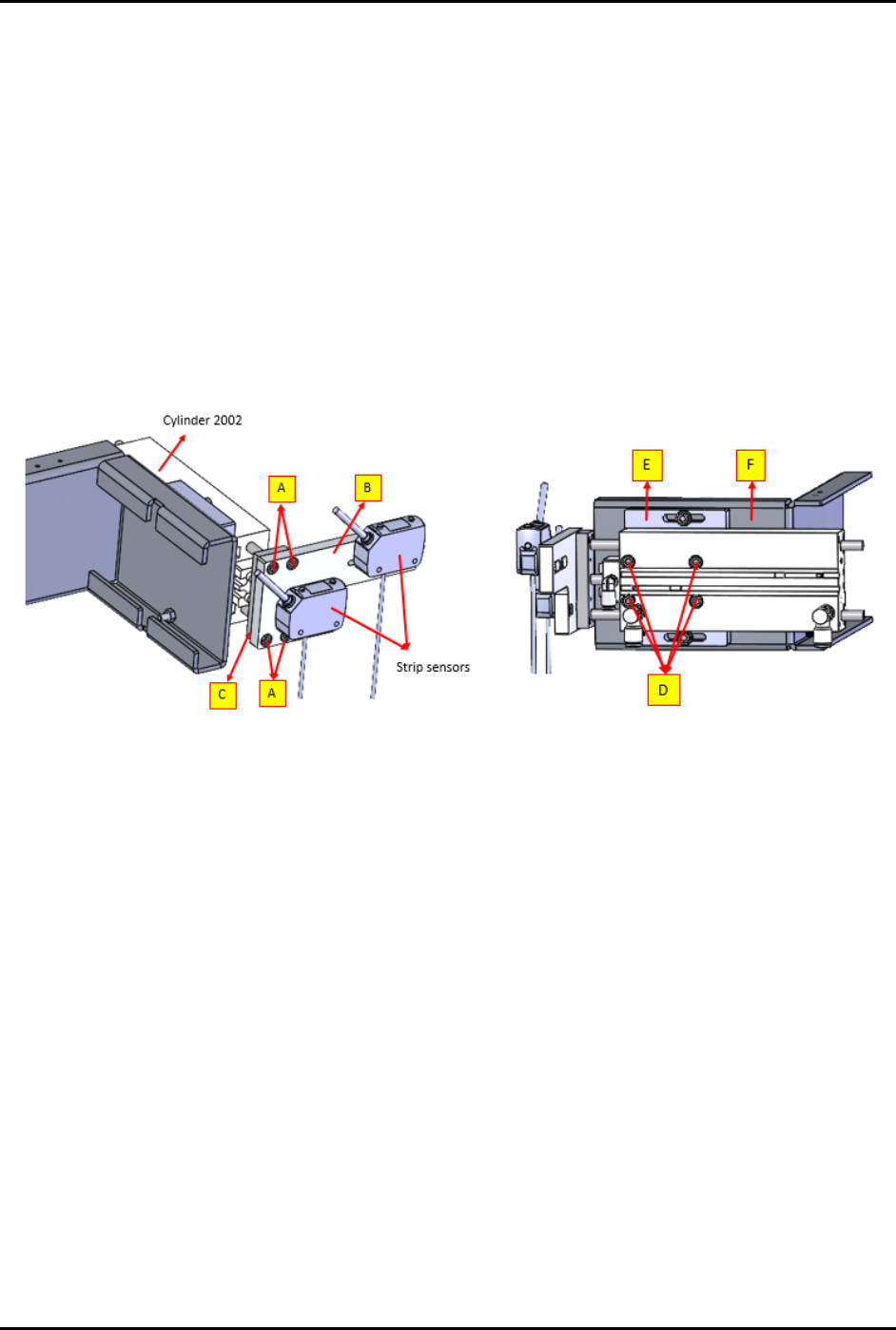

Figure 5-4 Loader Elevator Pitch Wheel Sensor (CYL 2002)
