FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-26 © 2023 Nordson Corporation
7.11.1.3 List 3
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.AB.1000
1073-99999-
A100_04_AA_1100
DOUBLE ACTING CYLINDER 150,000 1
A100.06.AB.3000
1073-99999-
A100_06_AB_3100
PINCH WHEEL 150,000 2

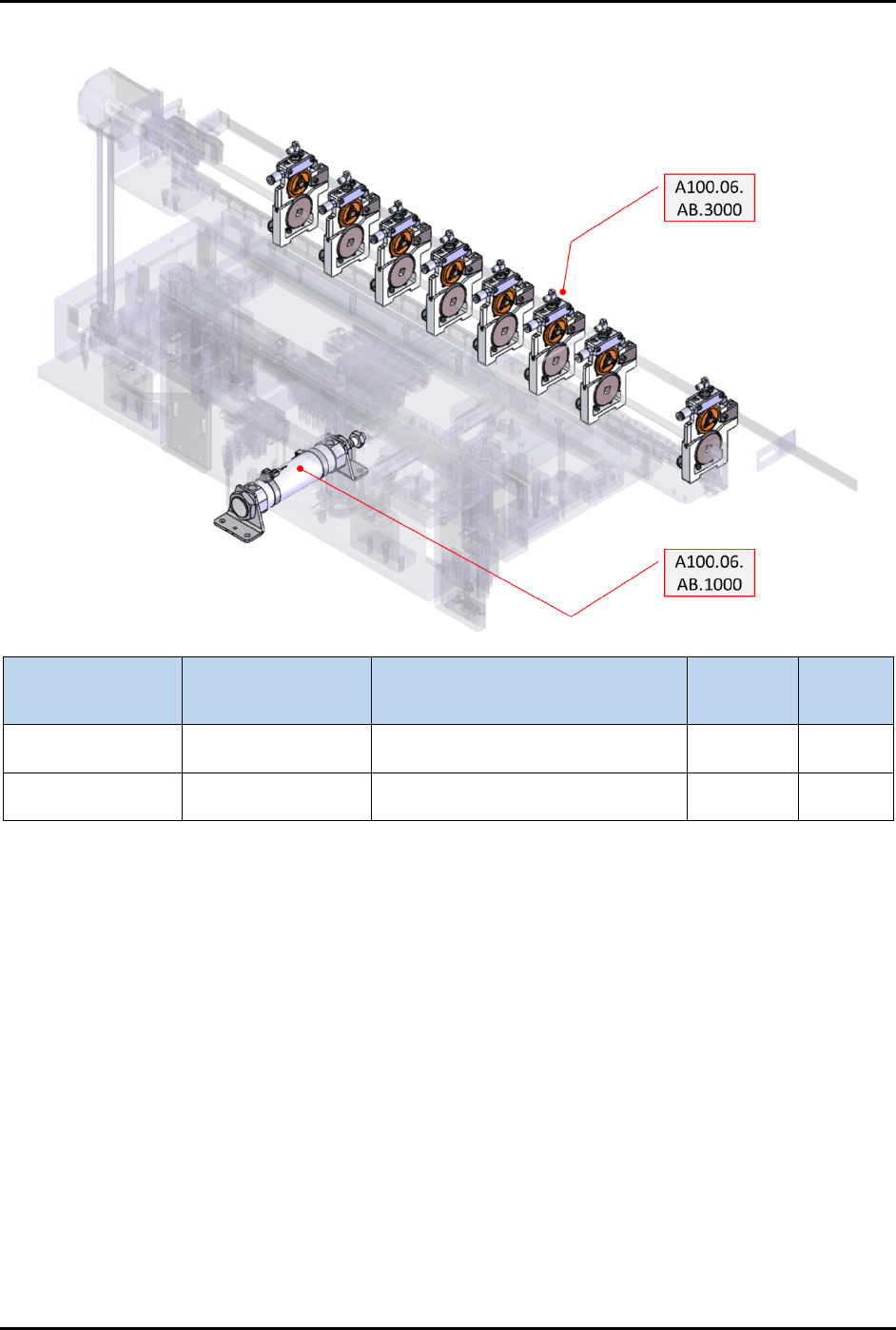

Figure 7-23 Transfer Assembly List 3
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-27
7.11.2 Claw Assembly
7.11.2.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.BB.0000 0001-10016-00108 REFLECTIVE TAPE 500,000 1
A100.04.BB.0300 0001-09002-00049 CAM FOLLOWER 500,000 1
A100.04.BB.0600 0001-10005-00223 LASER SENSOR AREA BEAM 1,000,000 1

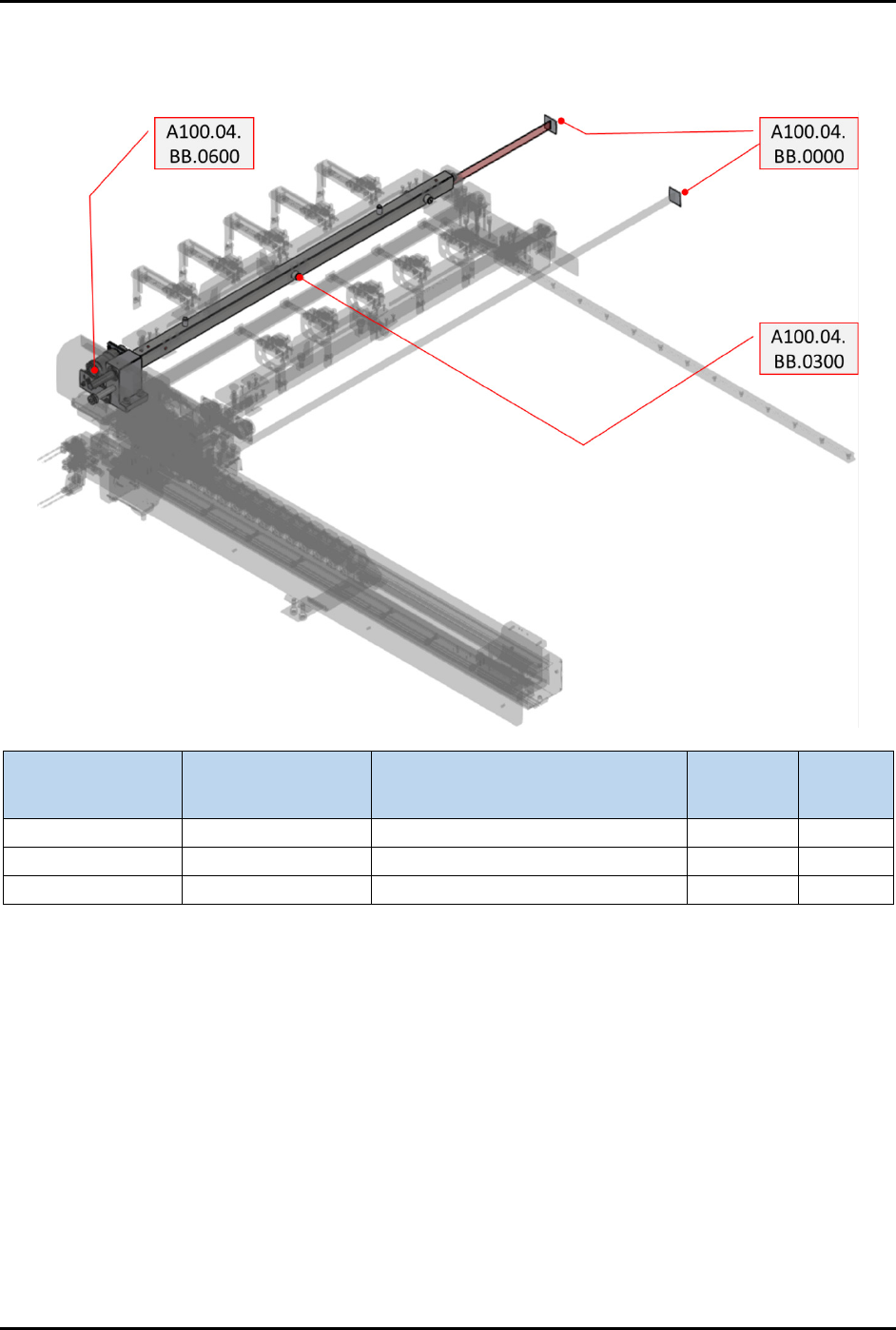

Figure 7-24 Claw Assembly List 1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-28 © 2023 Nordson Corporation
7.11.2.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.BC.0000 0001-04013-00082 LINEAR ACTUATOR W MOTOR 125,000 1
A100.04.BC.0000 0001-07008-00134
STEPPER MOTOR CONTROLLER
ORIENTAL; AZD2A-KED
500,000 1
A100.04.BA.0000 0001-10005-00206 PHOTOMICRO SENSOR 1,000,000 1
Figure 7-25 Claw Assembly List 2
