FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-56 © 2023 Nordson Corporation
7.12.3.1 Electrical Unloader Panel 1.0
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0001-07008-00060 MULTI AXIS ETHERCAT 1 year 1
2 0001-07028-00002 ETHERCAT STEPPER DRIVER 1 year 1
3 0002-14003-00057 OMRON PLC ETHERCAT COUPLE UNIT 1 year 1
4 0002-14014-00038 OMRON PLC RS232 PORT X 2 1 year 1
5 0002-14003-00058 OMRON PLC 16 POINTS INPUT UNIT 1 year 1
6 0002-14003-00059 OMRON PLC 16 POINTS OUTPUT UNIT 1 year 1
Figure 7-53 Electrical Unloader Panel 1.0
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-57
7.12.3.2 Electrical Unloader Panel 1.1
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-02008-01275 P7SA SERIES OMRON RELAY SOCKET 36,000 1
2 0002-02008-01274 G7SA SERIES OMRON RELAY 36,000 1

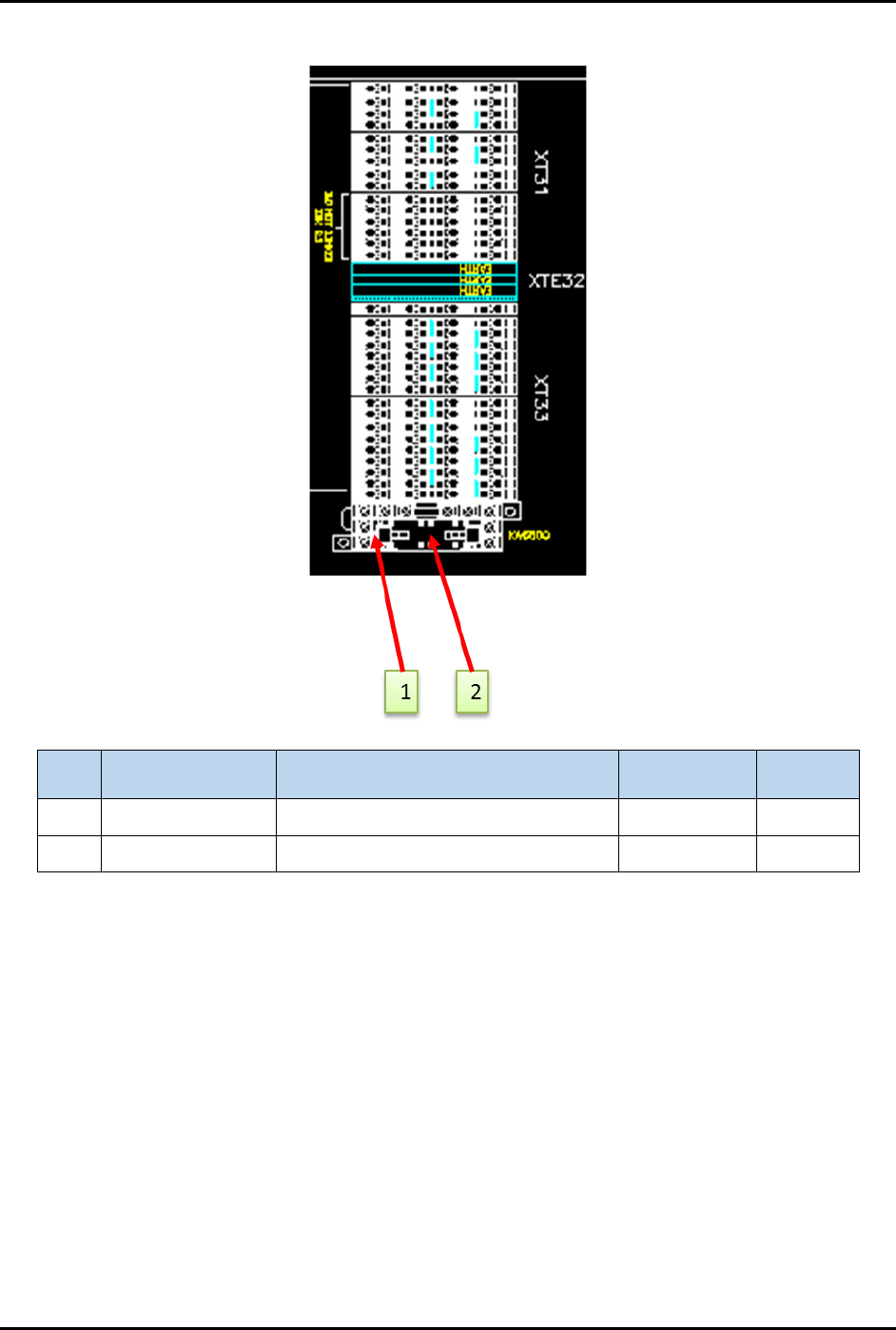

Figure 7-54 Electrical Unloader Panel 1.1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-58 © 2023 Nordson Corporation
7.12.4 AC and DC Air Flow Vent
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-17002-00048
TOYO MINIBLOWER TM Series 24VDC
PLASTIC HOUSING
30,000 1
Figure 7-55 AC and DC Air Flow Vent
