FlexTRAK-OH Material Handli ng System IOM Manual Installation © 2023 Nordson C orporation 3-13 Figure 3- 23 Claw Module Compo nents c. Ensure all sen sor cables, con nection sockets, a ir tubes, and the vac uum manifol d…

FlexTRAK-OH Material Handling System IOM Manual Installation

Figure 3-21 Remove Base Assembly from Chamber Area

c. Place a correct chamber conversion kit for new production recipe (A1) (Figure 3-22).

d. Ensure all the rails sit properly inside the pocket of the base plate.

Figure 3-22 Installing Chamber Kit in Plasma Chamber

7. Follow the steps below to assemble strip claw 1 and strip claw 2:

a. Place a correct strip claw 1 assembly for new production setup.

b. Ensure the components on the claw module are properly assembled (Figure 3-23).

• CAM follower guides (A1) and (A2)

• Locking plunger (B)

FlexTRAK-OH Material Handling System IOM Manual Installation

Figure 3-23 Claw Module Components

c. Ensure all sensor cables, connection sockets, air tubes, and the vacuum manifold are in

good condition.

 All fingers on the claw module should be able to move freely.

d. Install strip claw 1 assembly onto the strip transfer claw module – claw 1 linkage

(Figure 3-24).

e. Holding the handle (A), pull up and hold locking plunger (B). Then push forward the

claw (C) via the handle guided by the CAM follower guides.

 The CAM follower guides are labeled A1 and A2 (Figure 3-23).

Figure 3-24 Installation of Strip Claw 1

FlexTRAK-OH Material Handling System IOM Manual Installation

f. Repeat Step d and e to install strip claw 2 assembly onto the strip transfer claw module

– claw 2 linkage (Figure 3-25 and Figure 3-26).

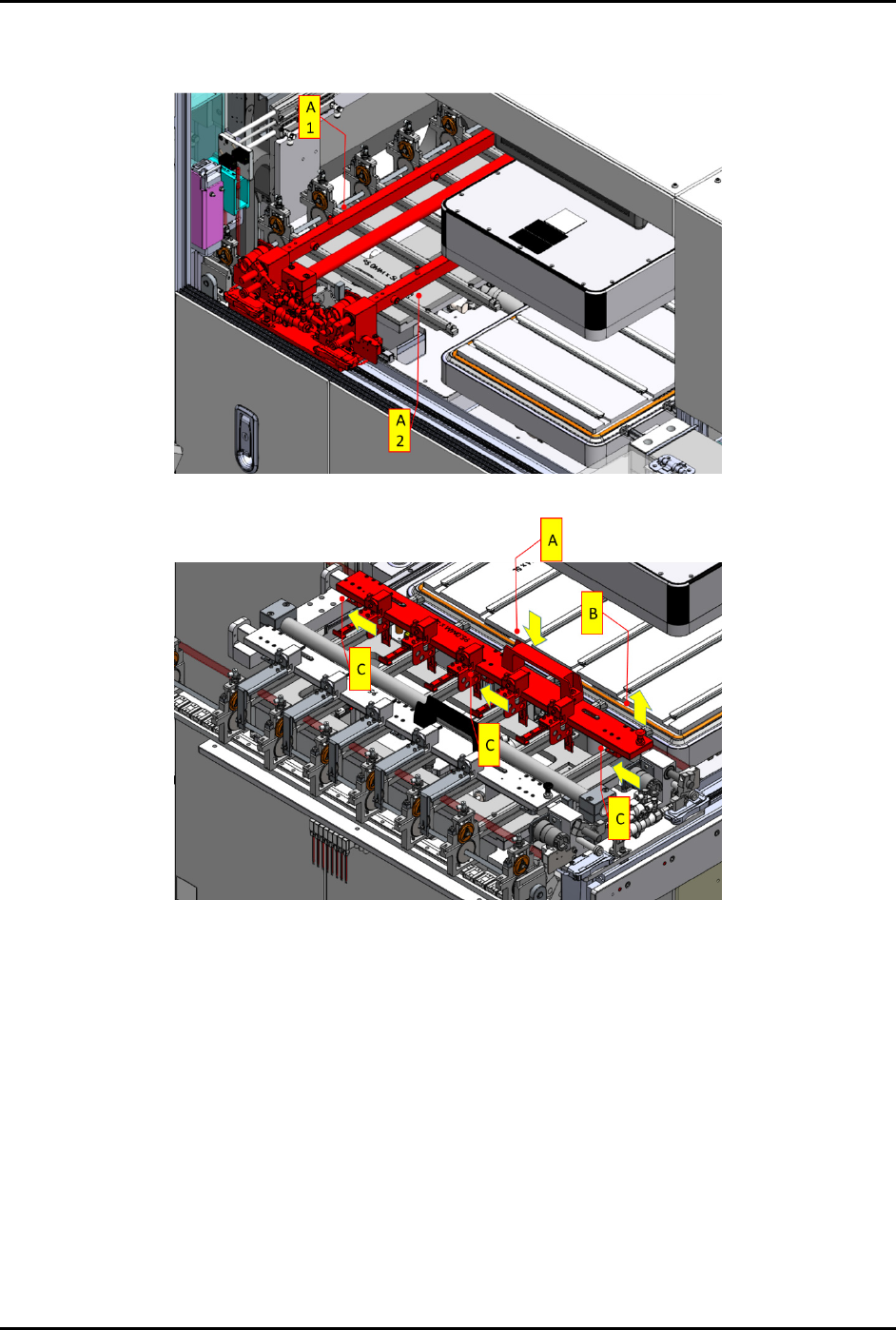

Figure 3-25 Position of Claw 1 (A1) and Claw 2 (A2) Linkage on the Strip Transfer Claw Module

Figure 3-26 Installation of Strip Claw 2

8. When all the above settings are completed, perform final integration checking on the

conversion kit. Ensure all parts are tightened properly.
