FlexTRAK-OH Material Handling System IOM Manual Maintenance
© 2023 Nordson Corporation 5-9
5.9.4 Loader and Unloader Elevator Zero Gap (CYL 2004 and 4004)
Cylinder 2004 and 4004 are located in between the clamper holder plate.
To remove and replace the loader and unloader elevator zero gap cylinders (Figure 5-6):
1. Loosen the four (4) screws (A) to separate the right clamper holder plate (B) with the
cylinder (C).
2. Remove the right clamper plate.
3. Loosen the four (4) screws (D) to separate the left clamper holder plate (E) with the
cylinder.
4. Remove the left clamper plate.
5. Reverse the steps above to install a new cylinder into the module.

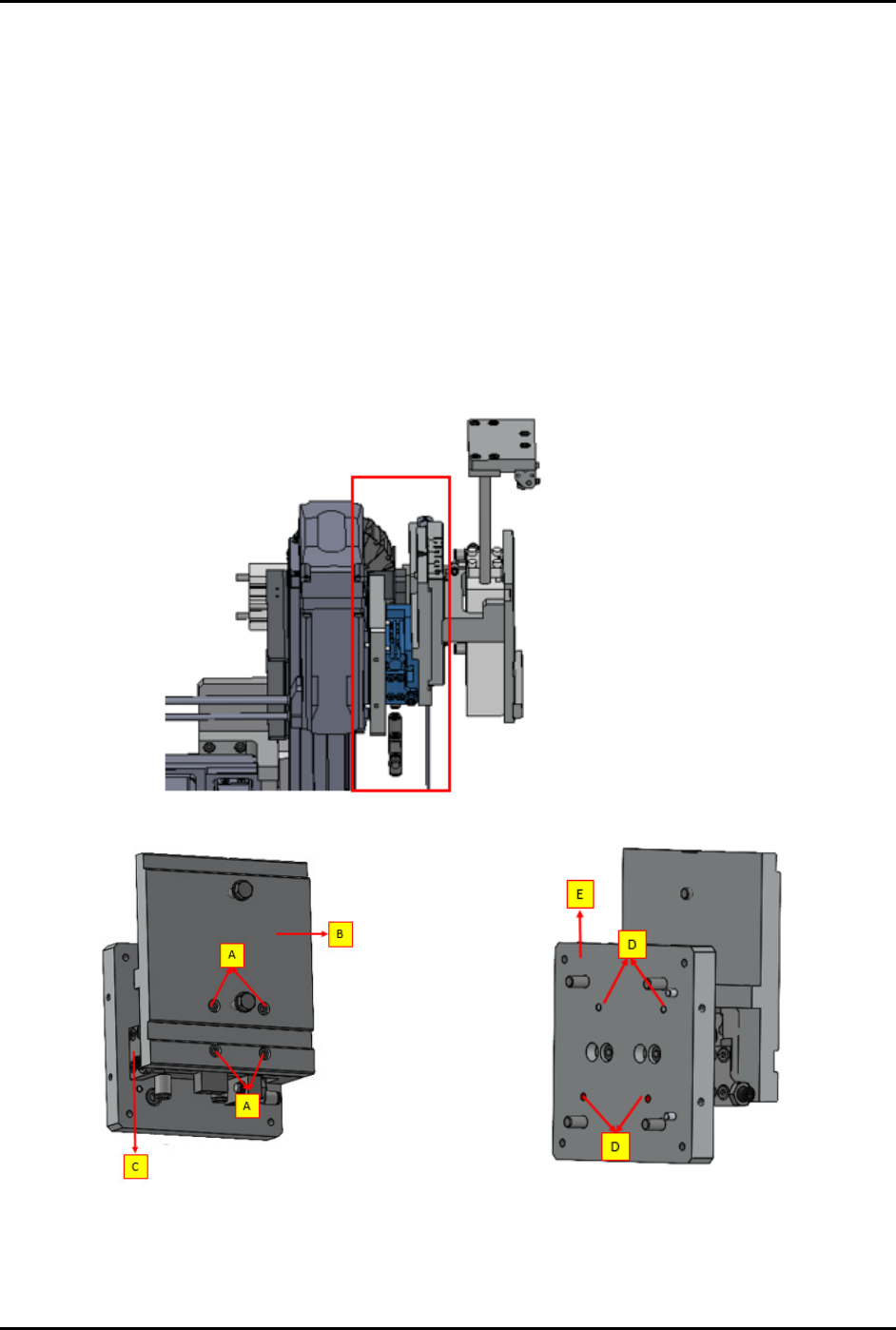

Figure 5-6 Loader and Unloader Elevator Zero Gap Cylinders
FlexTRAK-OH Material Handling System IOM Manual Maintenance
5-10 © 2023 Nordson Corporation
5.9.5 Input/Output Transfer X-Axis (CYL 3004 and 3006)
To remove and replace cylinders 3004 and 3006 (Figure 5-7):
1. Loosen two (2) screws (A) to separate the cylinder with the buffer base guider (B).
2. Remove the cylinder from each station.
3. Reverse the steps above to install a new cylinder into the module.

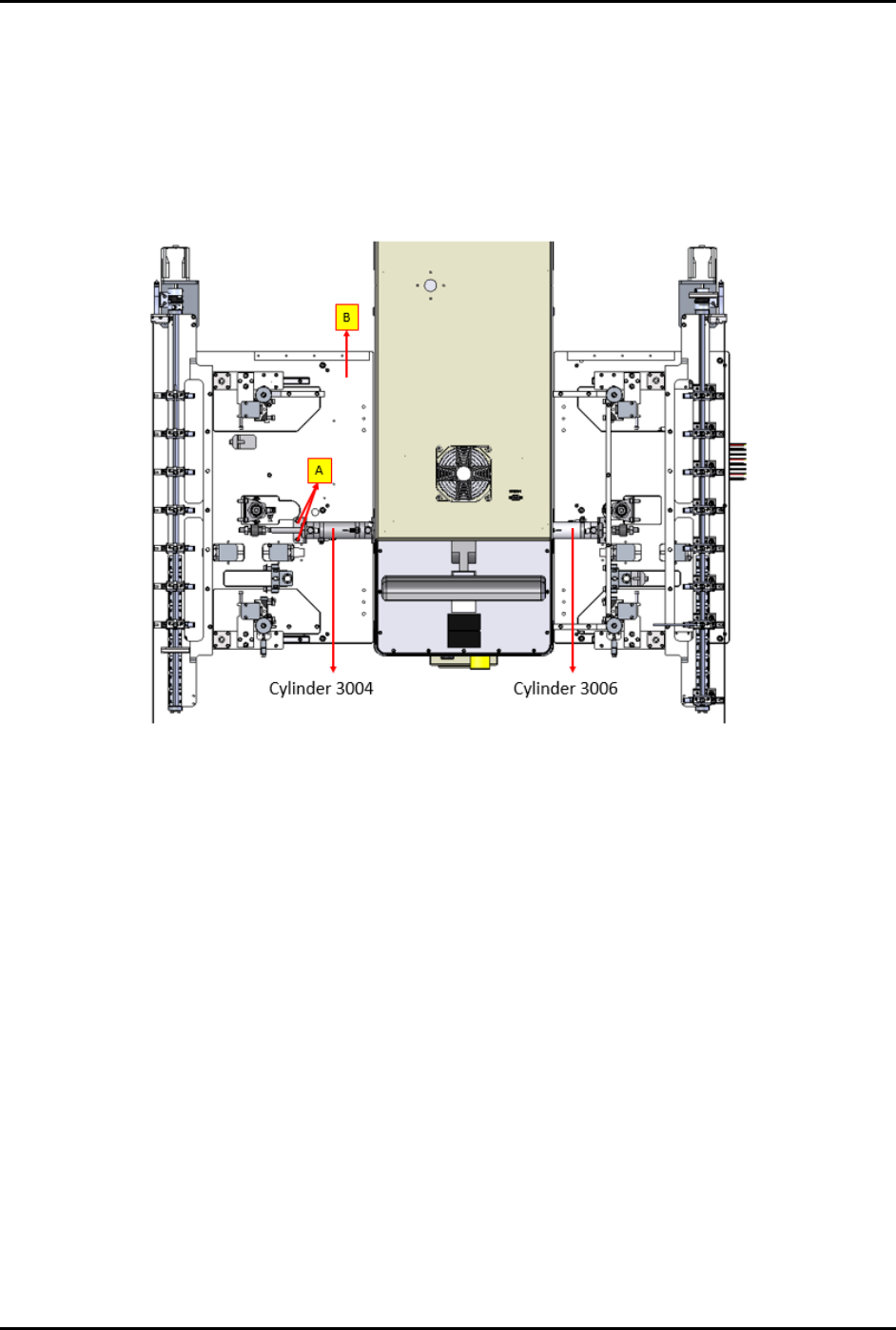

Figure 5-7 Input/Output Transfer X-Axis Cylinders (Double Acting Cylinders)
FlexTRAK-OH Material Handling System IOM Manual Maintenance
© 2023 Nordson Corporation 5-11
5.9.6 Unloader Elevator Kicker X-Axis (CYL 4002)
To remove and replace cylinder 4002 (Figure 5-8):
1. Loosen four (4) screws (A) to separate the cylinder (B) with the right mounting plate (C).
2. Loosen three (3) screws (D) to separate the cylinder with the left mounting plate (E).
3. Remove the cylinder from the module.
4. Reverse the steps above to install a new cylinder into the module.

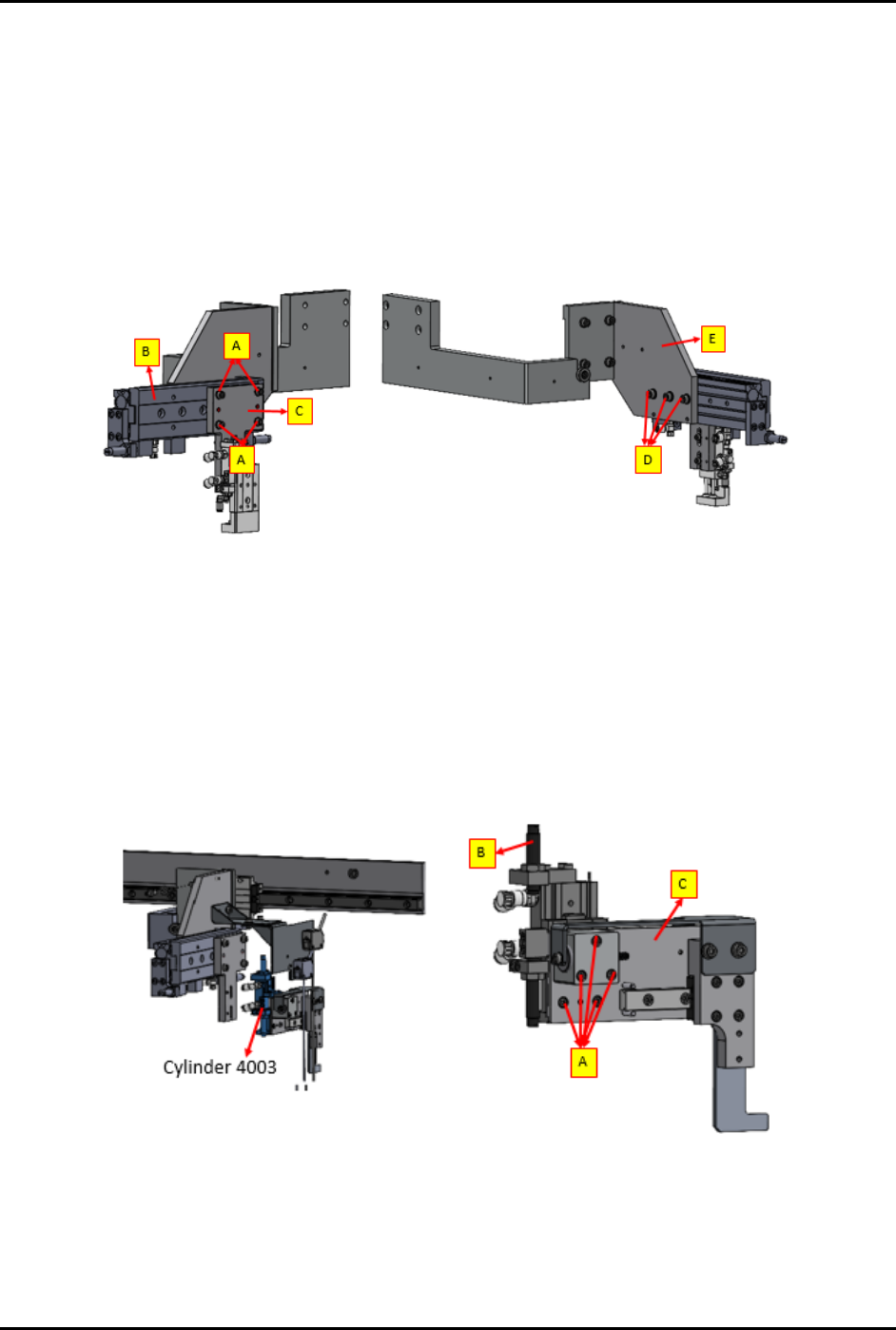

Figure 5-8 Unloader Elevator Kicker X-Axis Cylinder
5.9.7 Unloader Elevator Kicker Z-Axis (CYL 4003)
To remove and replace cylinder 4003 (Figure 5-9):
1. Loosen five (5) screws (A) to separate the cylinder (B) with the kicker pusher module.
2. Remove the cylinder from unloader magazine elevator module.
3. Reverse all the steps above to replace a new cylinder into the module.
Figure 5-9 Unloader Elevator Kicker Z-Axis Cylinder
