FlexTRAK-OH Material Handling System IOM Manual Introduction
© 2023 Nordson Corporation 1-15
1.5.9 Unloader Lifter (Stn50)
This Unloader Lifter provides a magazine elevator motor (lifting up and down) to transfer the magazine
from the loading port module to the strip unloading buffer and overhead return conveyor modules. Refer
to 1.5.8 Strip Unloading Buffer (Stn40) for further part descriptions for this module.
Item
Name
A1 Magazine Elevator Motor
B1 Loaded Magazine Gripper
B2 Empty Magazine Gripper
C Magazine Pusher

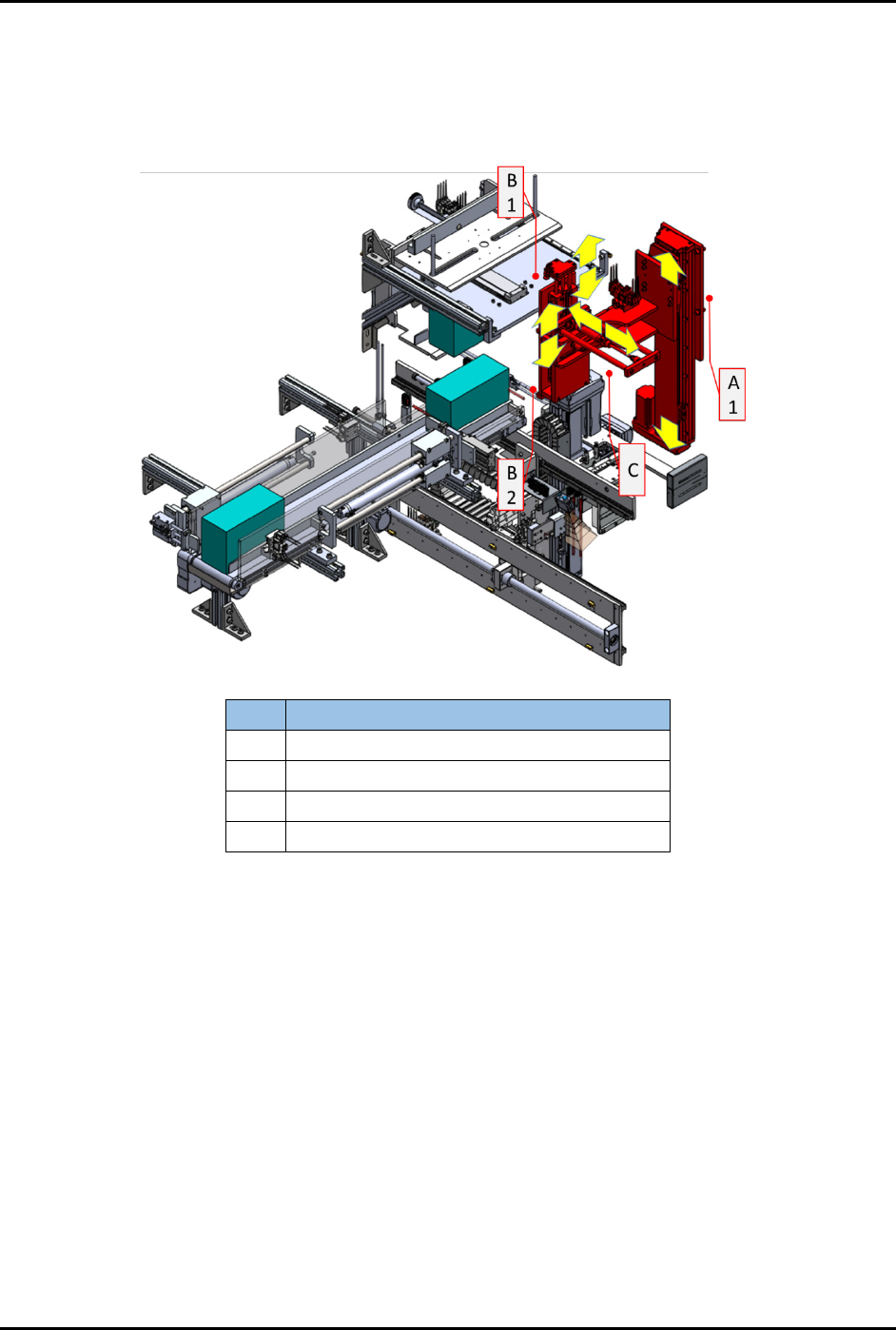

Figure 1-12 Unloader Lifter (Stn50)
FlexTRAK-OH Material Handling System IOM Manual Introduction
1-16 © 2023 Nordson Corporation
1.5.10 Overhead Magazine Unloading Port (Stn50)
The Overhead Magazine Unloading Port provides a magazine unloading mechanism to the overhead
conveyor system.
Item
Name
A Magazine Transfer Cylinder
B Magazine Side Pusher
C Magazine Rear Pusher
D Magazine Gripper Cylinder
E Magazine Gripper Linkage Gear

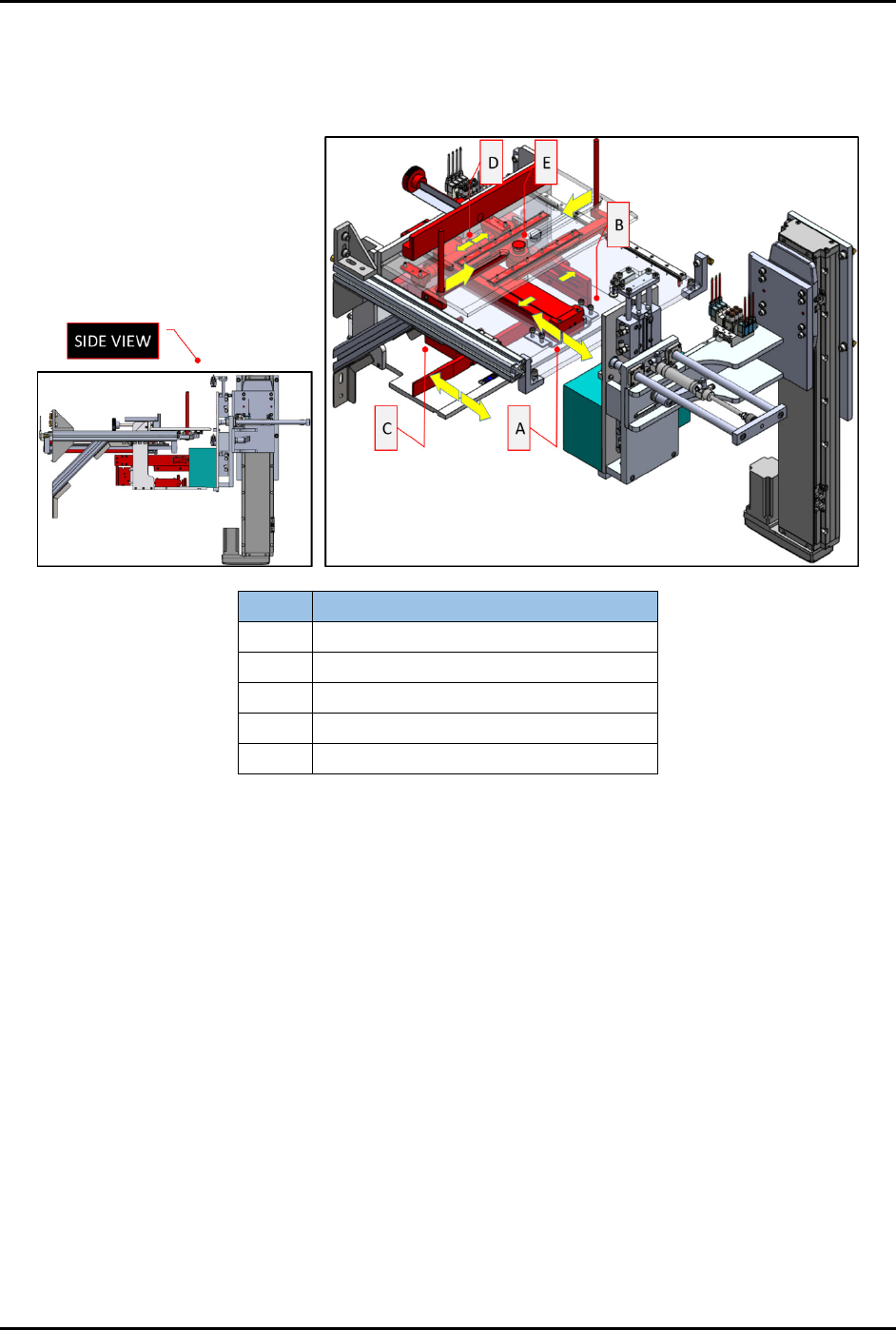

Figure 1-13 Overhead Magazine Unloading Port (Stn50)
FlexTRAK-OH Material Handling System IOM Manual Introduction
© 2023 Nordson Corporation 1-17
1.6 Strip Dimensions and Identification
The FlexTRAK-OH system has a strip ID reader (Figure 1-14) to identify the strip’s unique identity code
printed on the strip surface. See 1.5.3 Strip Loading Buffer (Stn20) for more information.
The strip must be inserted into the magazine in the correct orientation. Ensure the magazine is loaded with
a good strip in terms of physical and data printing, clarity, and orientation (Figure 1-15).
Figure 1-14 Strip Identity Code
Type Size
Length
Min: 75 mm
Max: 320 mm
Thickness
Min: 0.08 mm
Max: 3 mm
Width
Min: 25 mm
Max: 100 mm
Warpage
(gap between highest and lowest
strip displacement)
8 mm
Figure 1-15 Strip Dimensions
