FlexTRAK-OH Material Handli ng System IOM Manual Parts Replacement 7-24 © 2023 Nordson C orporation 7.11 Mechanical Parts Lists (Level 2) Level 2 parts are rarel y replaced. I f a part fails , the machi ne will be ino pe…
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-23
7.10.9 Conversion Kit
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.Y0.0400 0001-04006-00361 MINIATURE LINEAR GUIDE 1,100,000 1
A100.04.Y0.0500 0001-04006-00361 MINIATURE LINEAR GUIDE 1,100,000 1
Figure 7-20 Conversion Kit
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-24 © 2023 Nordson Corporation
7.11 Mechanical Parts Lists (Level 2)
Level 2 parts are rarely replaced. If a part fails, the machine will be inoperable. Mechanical Parts
(Level 2) are shown in Figure 7-21 through Figure 7-40.
7.11.1 Transfer Assembly
7.11.1.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.AA.1000
1073-99999-
A100_04_AA_1100
DOUBLE ACTING CYLINDER 150,000 1
A100.04.AA.1000 0001-08004-00030 FLOATING JOINT 500,000 1
Figure 7-21 Transfer Assembly List 1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-25

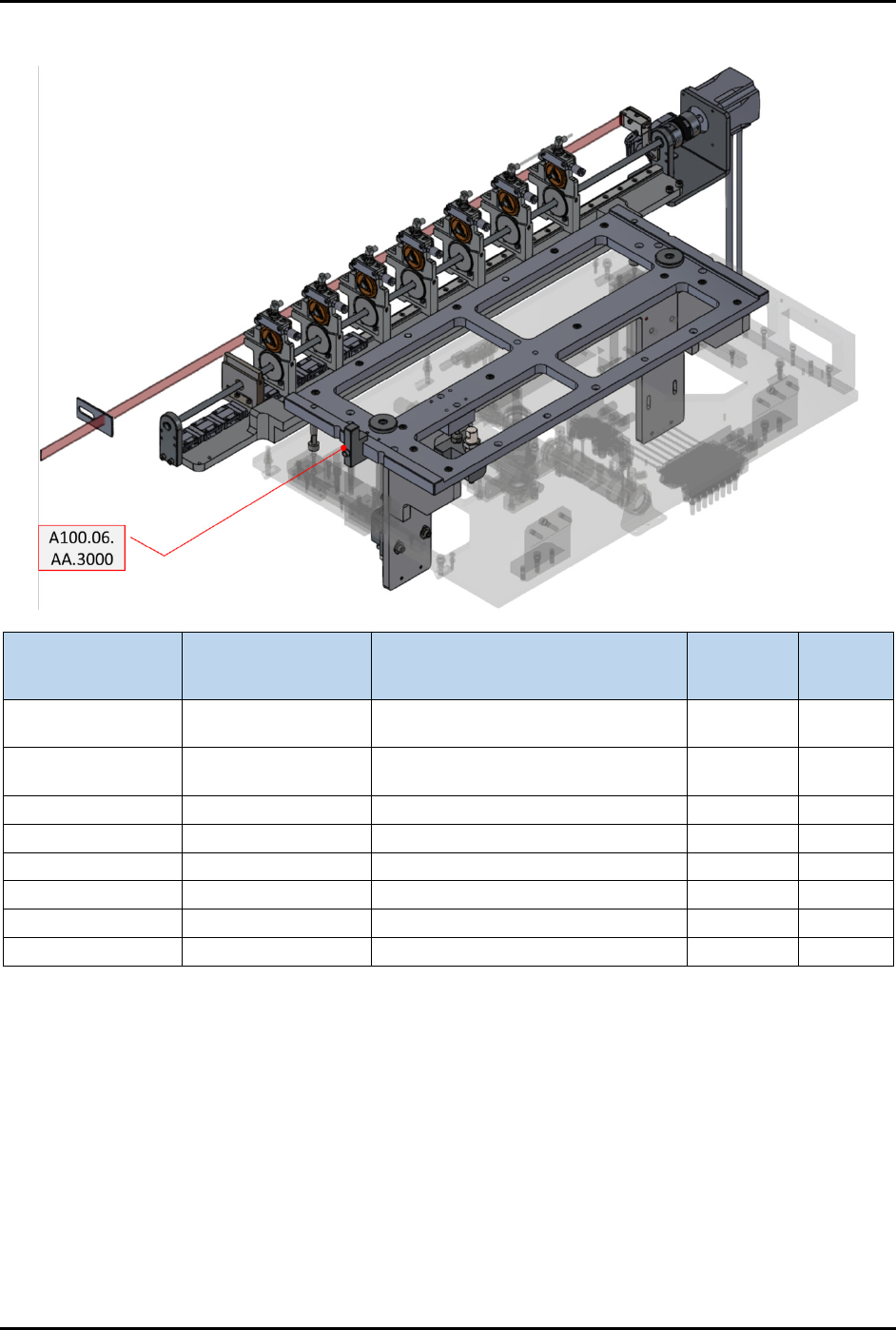

7.11.1.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.06.AA.3000
1073-99999-
A100_06_AA_3100
PINCH WHEEL INPUT 150,000 2
A100.06.AA.3000 0001-07001-00084
CLOSED LOOP 60MM STEPPER
MOTOR
500,000 1
A100.06.AA.3000 0001-09003-00180 OLDHAM COUPLING, SOH SERIES 500,000 1
A100.06.AA.3000 0001-10016-00108 REFLECTIVE TAPE 500,000 1
A100.06.AA.3000 0001-10005-00222 AMPLIFIER MAIN UNIT 1,000,000 1
A100.06.AA.3000 0001-10005-00223 LASER SENSOR AREA BEAM 1,000,000 1
A100.06.AA.3000 0001-10007-00108 PROXIMITY SENSOR M8 1,000,000 1
A100.06.AA.3000 0001-10009-00051 FIBR-OPT SENSR AMPLIFIER 1,000,000 1
Figure 7-22 Transfer Assembly List 2
