FlexTRAK-OH Material Handli ng System IOM Manual Material Handler Operation 4-46 © 2023 Nordson C orporation 4.12.4.5 Cylinder Control 3 OFF – The top pinch wheel is lifted up. This allows the output transfer cla w to tr…
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-45
4.12.4.4 Cylinder Control 2

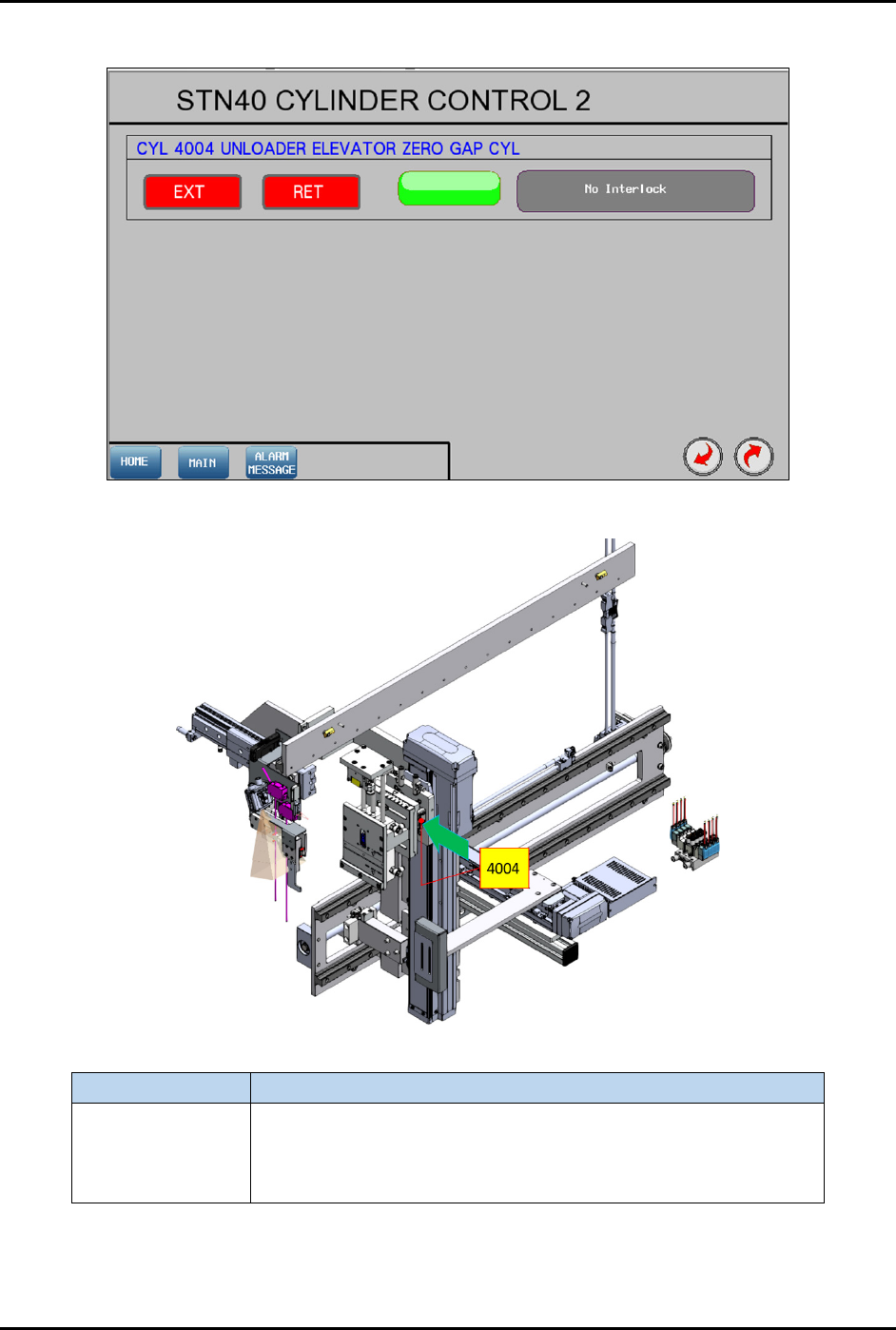

Figure 4-68 Station 40 – Cylinder Control 2 Screen
Label Description
CYL 4004
EXT – Move the elevator to form zero gap with the output buffer
lane to receive the treated strip back to the magazine.
RET – Retract the elevator away from the transfer buffer lane
before moving to the next lane.
Figure 4-69 Station 40 – Cylinder Control 2 Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-46 © 2023 Nordson Corporation
4.12.4.5 Cylinder Control 3
OFF – The top pinch wheel is lifted up. This allows the output transfer claw to transfer the treated strips
under the pinch wheel track.
ON – The top pinch wheel is pressed down. This allows the output buffer roller to transfer the treated
strip from the output buffer lane into the magazine slot.
Figure 4-70 Station 40 – Cylinder Control 3 Screen
Figure 4-71 Station 40 – Cylinder Control 3 Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-47
4.12.4.6 Cylinder Control 4
OFF – Allow strip transfer into the magazine slot.
ON – Block strip transfer into the magazine slot. This prevents the strip from over-travel when the output
claw is transferring the strip into the output buffer lane.

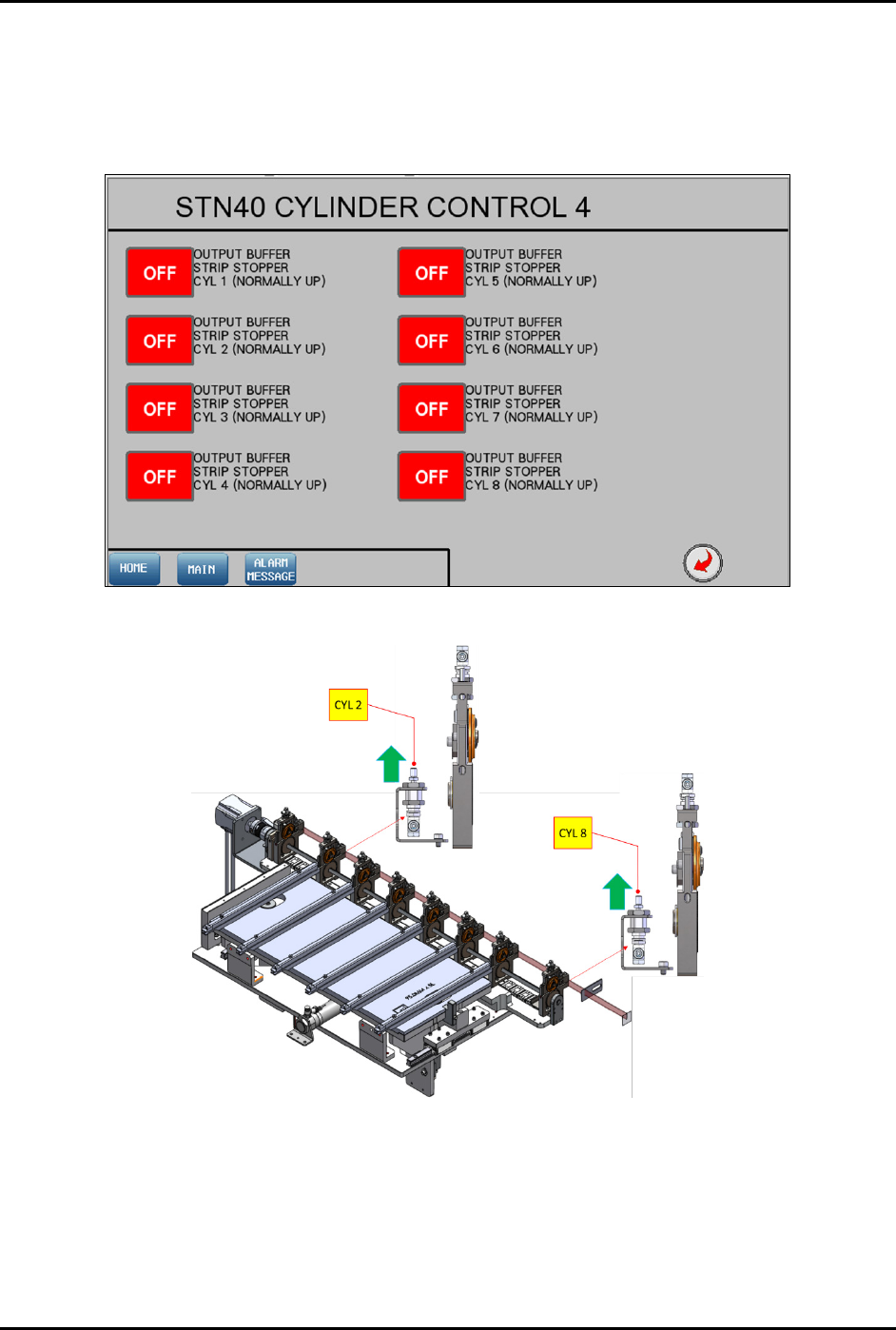

Figure 4-72 Station 40 – Cylinder Control 4 Screen
Figure 4-73 Station 40 – Cylinder Control 4 Location
