FlexTRAK-OH Material Handli ng System IOM Manual Material Handler Operation 4-50 © 2023 Nordson C orporation 4.12.4.9 M otor Con trol in Axis 7 ( Pin ch Wheel Roll er Out ) Refer to 4.11 Station M ain Menu Layout for int…
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-49
4.12.4.8 Motor Control in Axis 6 (Z-axis)
Refer to 4.11 Station Main Menu Layout for interface descriptions.
The following selections are available in the "Pos Name" drop down list:
• Standby
• To Stn50 grippers (top conv)
• Collect position (first strip bottom)
• Manual unload port (bottom conv)
• Slot map position (first strip bottom)

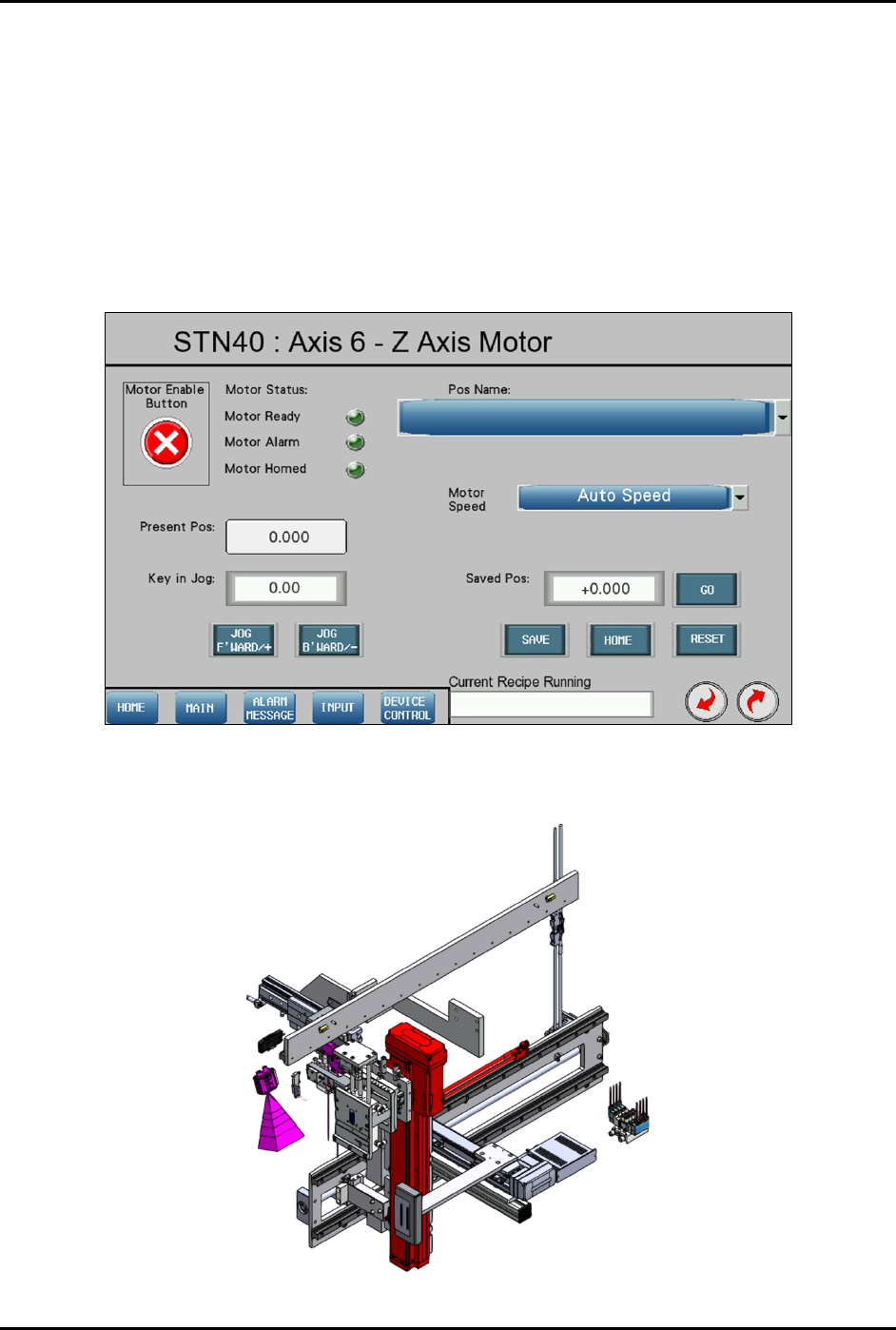

Figure 4-76 Station 40 – Axis 6 (Z-Axis Motor) Screen
The red highlighted part in the following image shows the location of Axis 6 – Z-axis in Station 40.
Figure 4-77 Station 40 – Axis 6 (Z-Axis Motor) Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-50 © 2023 Nordson Corporation
4.12.4.9 Motor Control in Axis 7 (Pinch Wheel Roller Out)
Refer to 4.11 Station Main Menu Layout for interface descriptions.

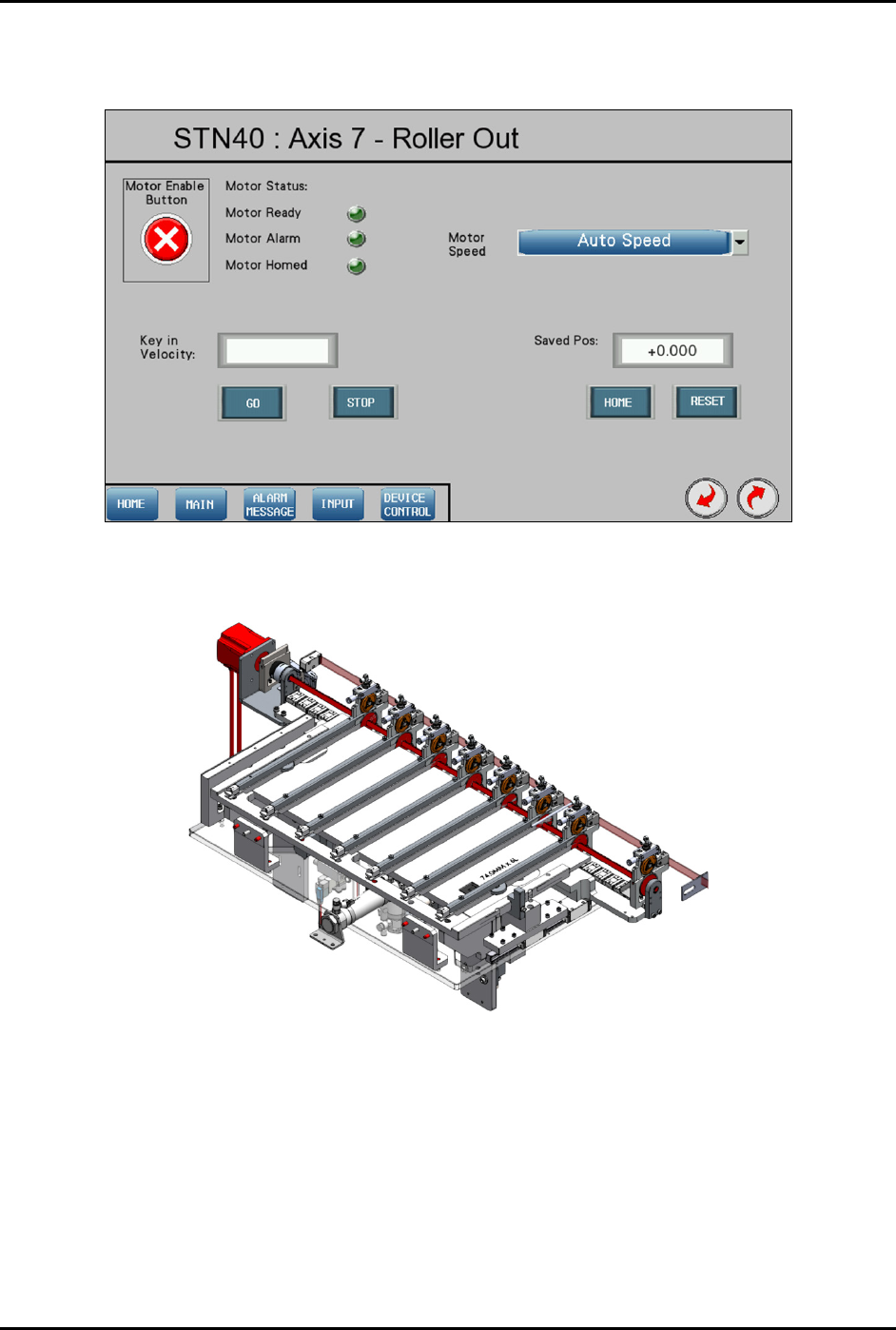

Figure 4-78 Station 40 – Axis 7 (Roller Out) Screen
The red highlighted part in the following image shows the location of Axis 7 in Station 40.
Figure 4-79 Station 40 – Axis 7 (Roller Out) Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-51
4.12.4.10 Motor Control in Axis 11 (X-axis)
Refer to 4.11 Station Main Menu Layout for interface descriptions.
The following selections are available in the "Pos Name" drop down list:
• Strip Holder Position
Figure 4-80 Station 40 – Axis 11 (X-Axis Motor) Screen
The red highlighted part in the following image shows the location of Axis 11 – X-axis in Station 40.
Figure 4-81 Station 40 – Axis 11 (X-Axis Motor) Location
