FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-12 © 2023 Nordson Corporation
7.10.4 Magazine Elevator Assembly
7.10.4.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.DA.1400 0001-09015-00441
ANGULAR CONTACT BALL
BEARING
50,000 1
A100.04.DA.2300 0001-08008-00738 DOUBLE ACTING CYLINDER 50,000 1
A100.04.DA.1300 0001-04006-00327 LINEAR GUIDE RAIL 100,000 1
A100.04.DA.1300 0001-04006-00328 LINEAR GUIDE BLOCK 100,000 1
A100.04.DA.6300
1999-01000-
A100_04_DA_6309
GRIPPER 100,000 1
A100.04.DA.1400 0001-09004-00230 TIMING BELT 250,000 1
A100.04.DA.2200
1999-01000-
A100_04_DA_2201
KICKER PLATE 300,000 1
A100.04.DA.2200 0001-04006-00329 LINEAR GUIDE BLOCK 500,000 1
A100.04.DA.2200 0001-04006-00330 LINEAR GUIDE RAIL 500,000 1

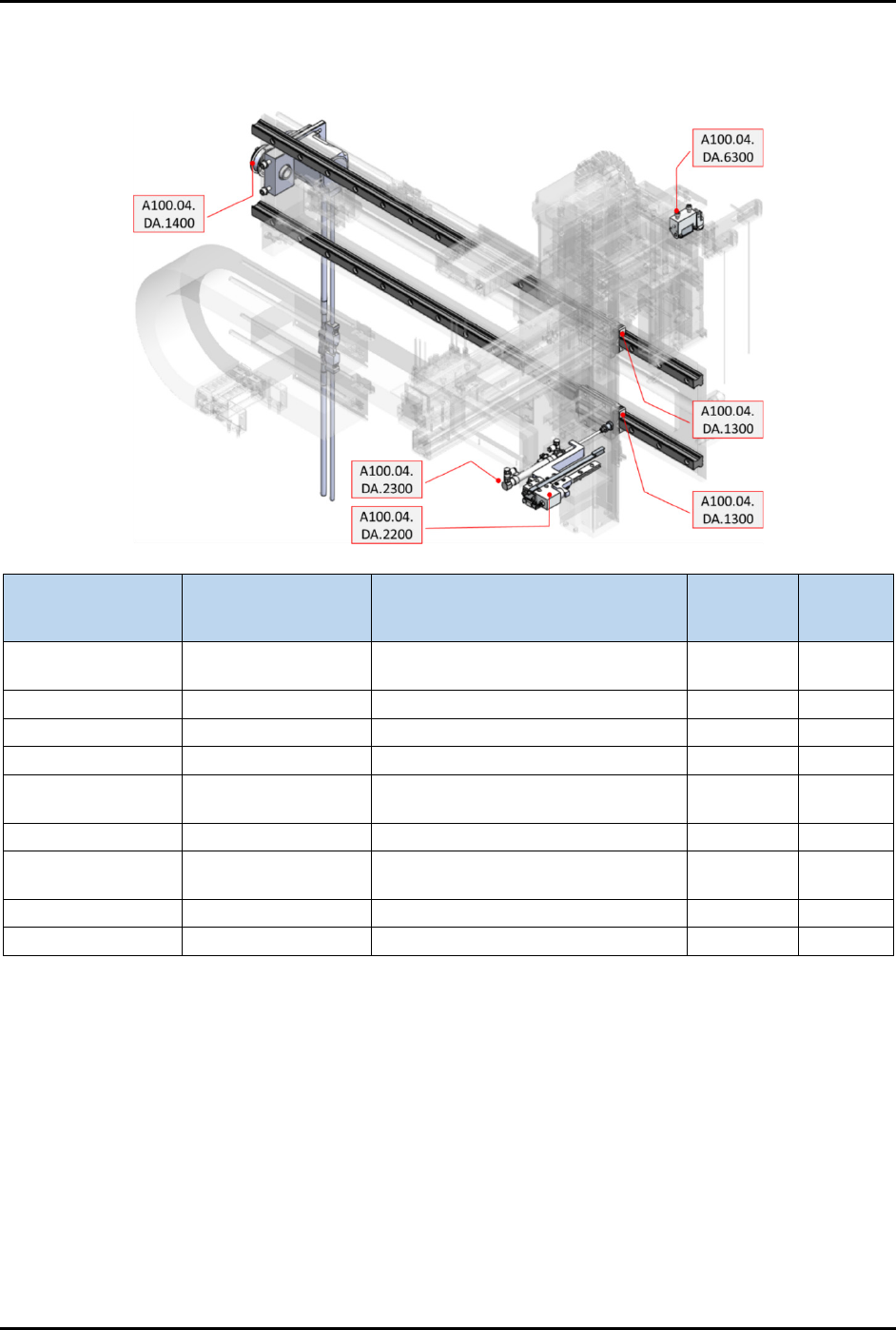

Figure 7-9 Magazine Elevator Assembly List 1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-13
7.10.4.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.DB.9100 0001-04006-00327 LINEAR GUIDE RAIL 100,000 1
A100.04.DB.9100 0001-04006-00328 LINEAR GUIDE BLOCK 100,000 1
A100.04.DB.9400
1999-01000-
A100_04_DB_9409
MAGNET JOINT 300,000 1
A100.04.DB.9400 0001-04006-00329 LINEAR GUIDE BLOCK 500,000 1
A100.04.DB.9400 0001-04006-00332 LINEAR GUIDE RAIL 1,000,000 1

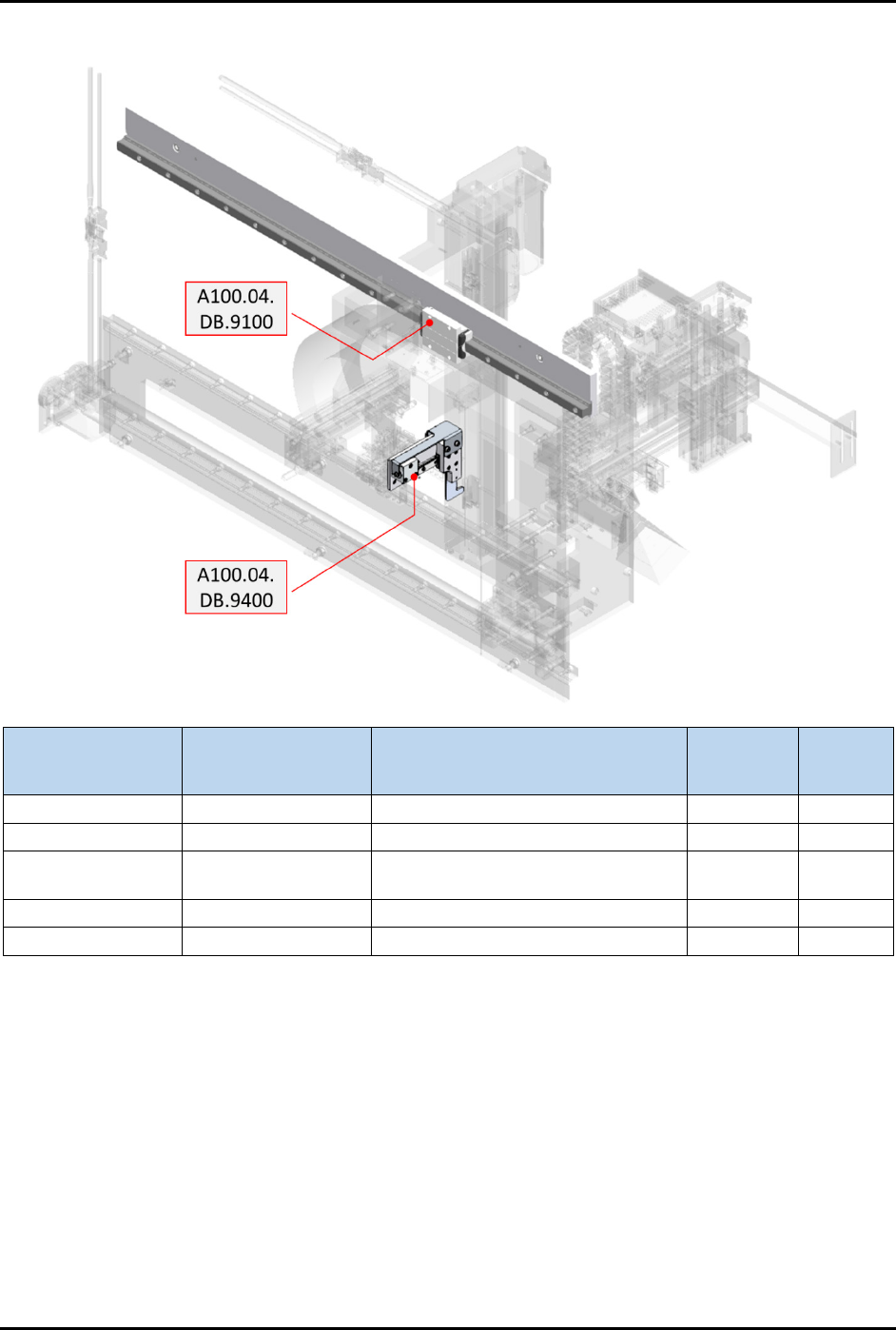

Figure 7-10 Magazine Elevator Assembly List 2
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-14 © 2023 Nordson Corporation
7.10.4.3 List 3
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.06.DA.6200 0001-08008-00689
COMPACT GUIDE CYLINDER
(CLEAN)
100,000 1
A100.06.DA.4000 0001-08008-00688
COMPACT GUIDE CYLINDER
(CLEAN)
150,000 1
A100.06.DA.1500 0001-08016-00064 SOLENOID VALVE 5/3 WAY, DIA 6 1,000,000 1
A100.06.DA.1500 0001-08016-00532 SOLENOID VALVE 5/2 WAY, DIA 4 1,000,000 1
A100.06.DA.5000 0001-04013-00090 SINGLE AXIS TABLE 1,000,000 1
A100.06.DA.5200 0001-08008-00702 13-MXS PRECISION SLIDE TABLES 10,000,000 1

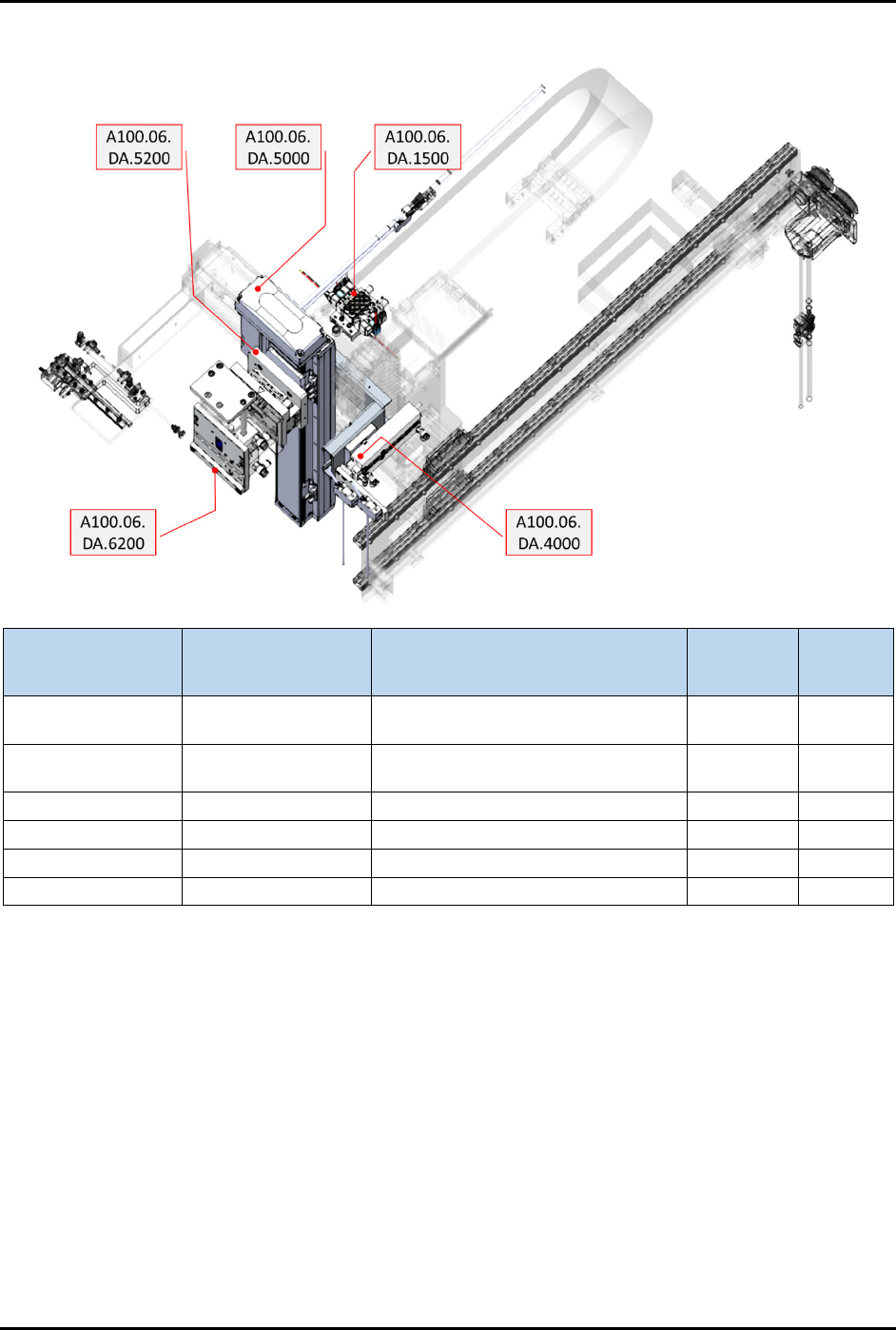

Figure 7-11 Magazine Elevator Assembly List 3
