FlexTRAK-OH Material Handli ng System IOM Manual Parts Replacement © 2023 Nordson C orporation 7-55 7.12.3 Electric al Unloader Panel Figure 7- 52 Electrical Unl oader Panel
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-54 © 2023 Nordson Corporation
7.12.2.4 DC Panel 1.3
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0002-02008-00009 SAFETY RELAY, PNOZ S4, 3NO/1NC 1,000,000 1
2 0002-02008-00010 SAFETY RELAY, PNOZ S7, 4NO/1NC 1,000,000 1
3 0002-02001-00108
MICO PRO POWER MODULE IN: 24 V
DC / 40A, 16mm²
36,000 1
4 0002-02001-00105
MICO PRO ELECTRONIC CIRCUIT
PROTECTION, 1 CHANNEL, IN: 24 V DC
OUT: 24 V DC / 11...20 A
1 year 1
5 0002-02001-00106
MICO PRO ELECTRONIC
CIRCUIT|PROTECTION,1 CHANNEL
24VDC,10A
1 year 1
6 0002-02001-00107
RJ2S SLIM POWER RELAY 8A 8-
PIN|FLAT DPDT 24VDC c/w SJ2S-07L
36,000 1

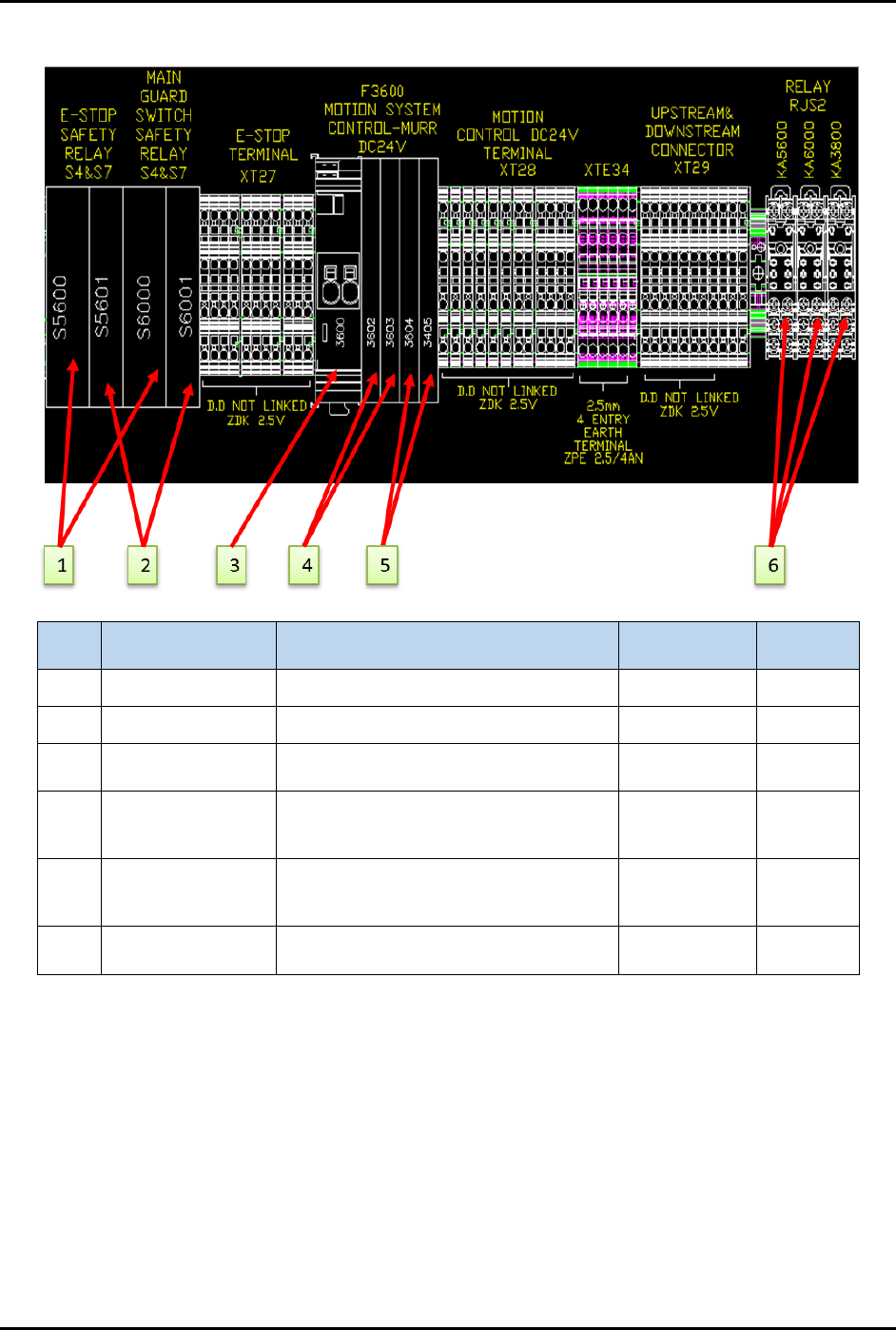

Figure 7-51 DC Panel 1.3
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-55
7.12.3 Electrical Unloader Panel

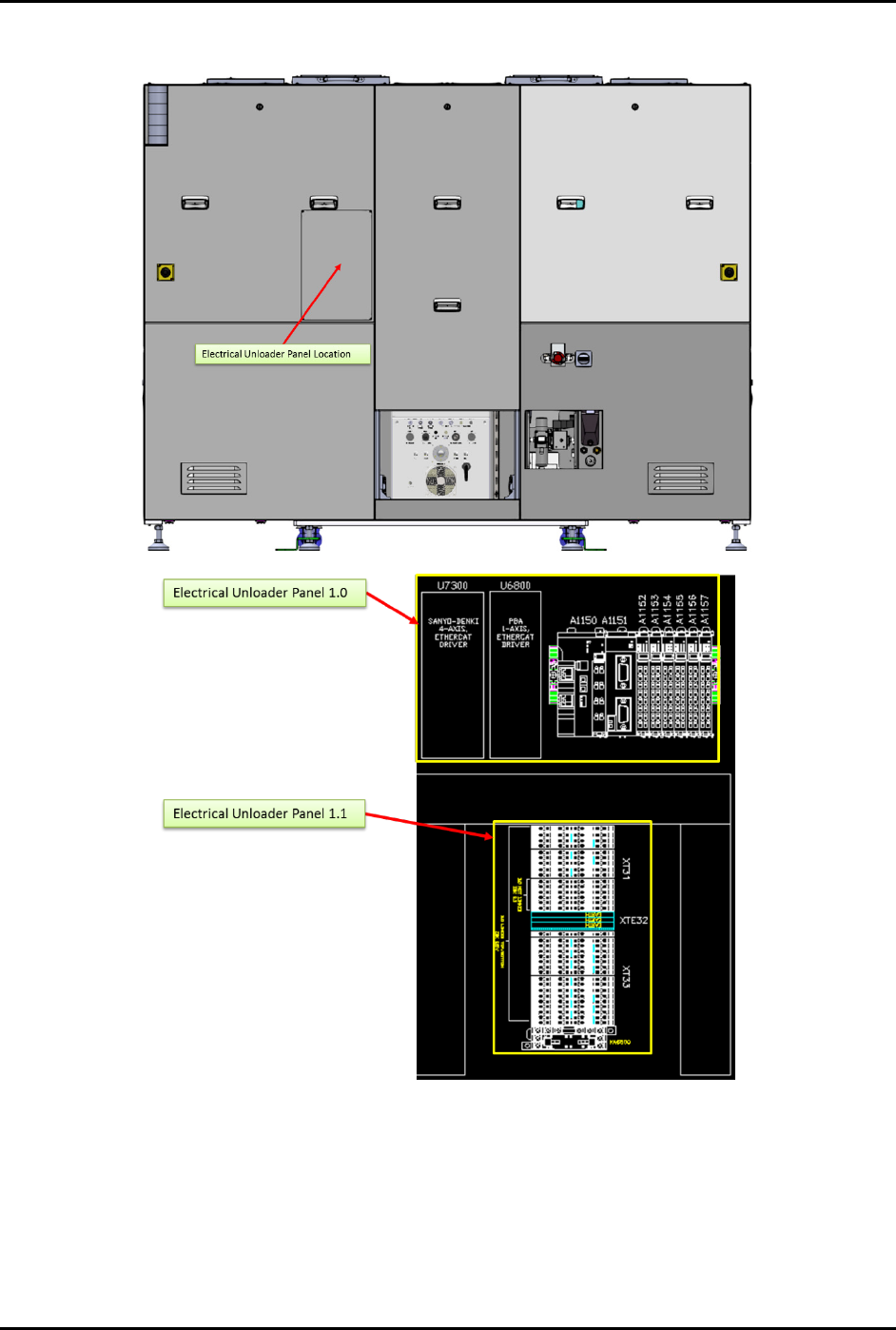

Figure 7-52 Electrical Unloader Panel
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-56 © 2023 Nordson Corporation
7.12.3.1 Electrical Unloader Panel 1.0
No. Part Number Description
Estimated Life
Span (cycles)
Quantity
1 0001-07008-00060 MULTI AXIS ETHERCAT 1 year 1
2 0001-07028-00002 ETHERCAT STEPPER DRIVER 1 year 1
3 0002-14003-00057 OMRON PLC ETHERCAT COUPLE UNIT 1 year 1
4 0002-14014-00038 OMRON PLC RS232 PORT X 2 1 year 1
5 0002-14003-00058 OMRON PLC 16 POINTS INPUT UNIT 1 year 1
6 0002-14003-00059 OMRON PLC 16 POINTS OUTPUT UNIT 1 year 1
Figure 7-53 Electrical Unloader Panel 1.0
