FlexTRAK-OH Material Handli ng System IOM Manual Parts Replacement © 2023 Nordson C orporation 7-31 7.11.3.3 List 3 Assembly Drawin g Number Part Number Descriptio n Estimated Life Span (cycles) Quantity A100.07.EB. 6600…
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-30 © 2023 Nordson Corporation
7.11.3.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.EB.6800 0001-10024-00011 STANDARD FIBER AMPLIFIER 500,000 1
A100.07.EB.6400 0002-01001-00278 OMRON SAFETY DOOR SWITCH 1,000,000 1
A100.07.EB.6800 0001-10007-00099 PROXIMITY SENSOR 1,000,000 1
A100.07.EB.6800 0001-10009-00075
FIBER OPTIC SENSOR,
REFLECTIVE
1,000,000 1

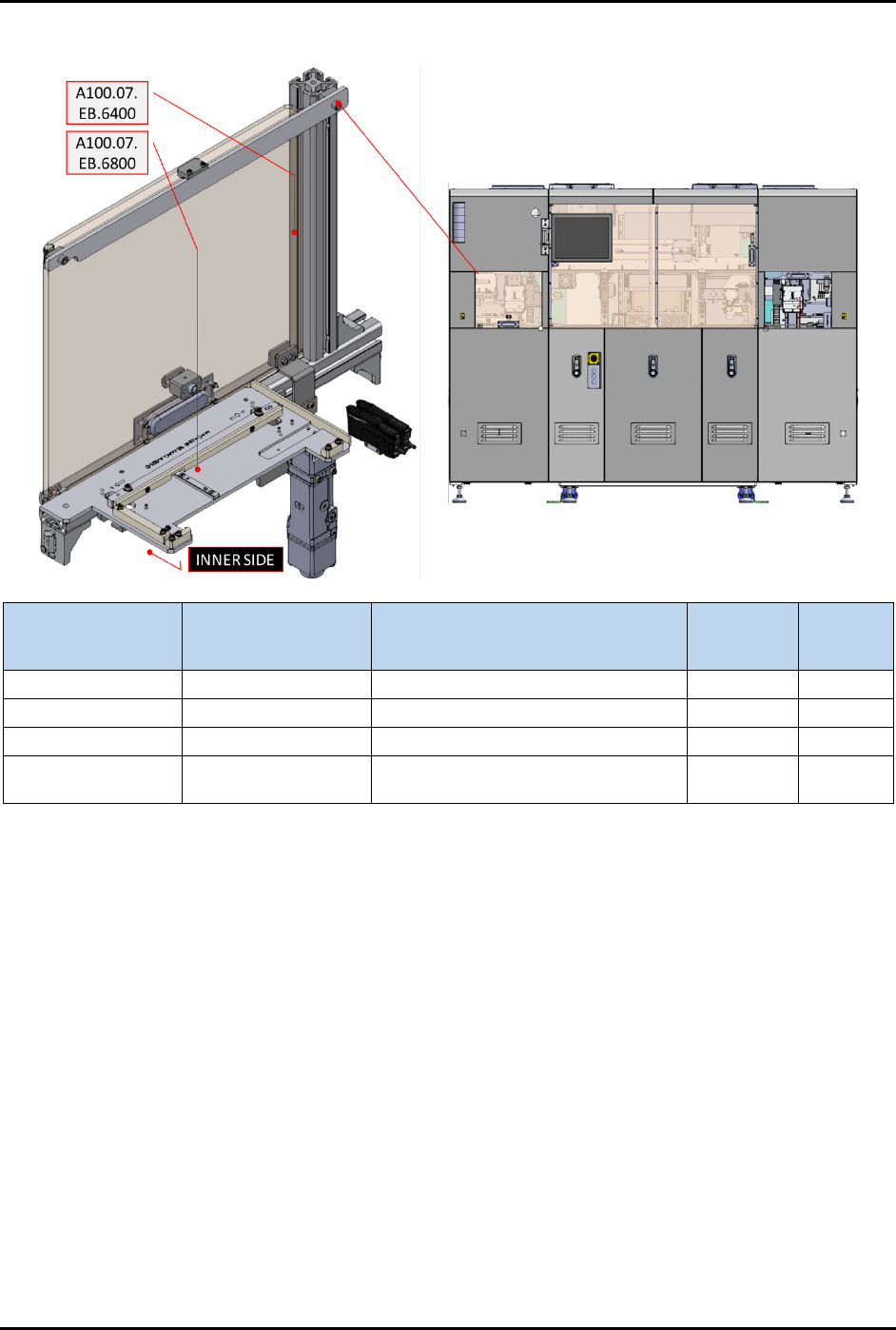

Figure 7-27 Structure and Cover Assembly List 2
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-31
7.11.3.3 List 3
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.EB.6600 0002-01001-00280 SAFETY SWITCH KEY 1,000,000 1
A100.07.EB.6700 0001-10005-00204 COMPACT PHOTOELECTRIC SENSOR 1,000,000 1

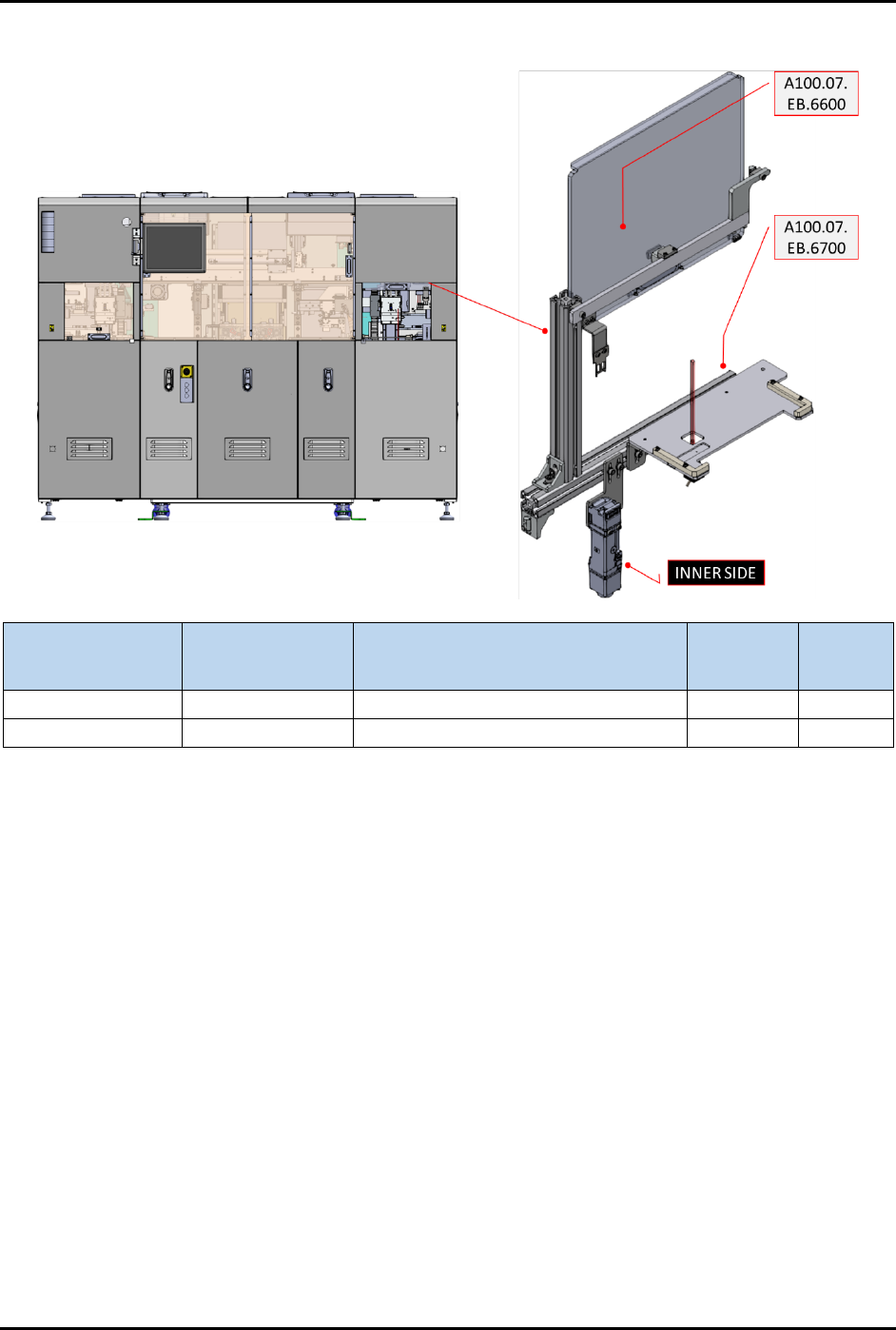

Figure 7-28 Structure and Cover Assembly List 3
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-32 © 2023 Nordson Corporation
7.11.4 Magazine Elevator Assembly
7.11.4.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.DA.1100
1999-01000-
A100_04_DA_1106
ROLLER BALL SCREW 300,000 1
A100.04.DA.1400 0001-07001-00084
CLOSED LOOP 60MM STEPPER
MOTOR
500,000 1
A100.04.DA.9000 0001-07008-00060 MULTI AXIS ETHERCAT 500,000 1
A100.04.DA.1200 0001-10005-00206 PHOTOMICRO SENSOR 1,000,000 1
A100.04.DA.2200 0001-10005-00206 PHOTOMICRO SENSOR 1,000,000 1
A100.04.DA.6300 0001-10005-00221 PHOTOMICRO SENSOR 1,000,000 1
Figure 7-29 Magazine Elevator Assembly List 1
