FlexTRAK-OH Material Handling System IOM Manual Installation
3-8 © 2023 Nordson Corporation

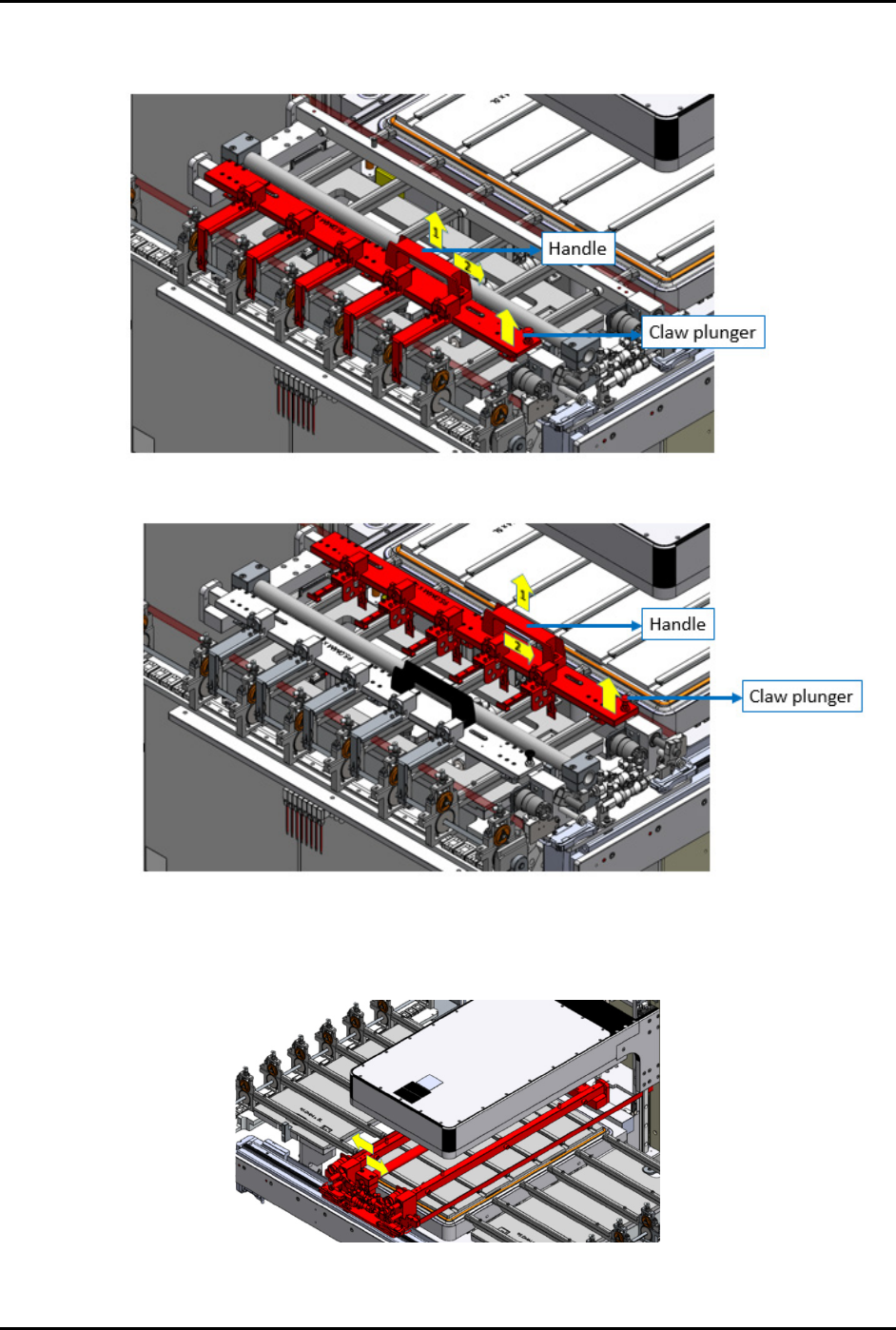

c. Pull up the claw plunger, then pull out the handle (1) and safely remove the entire strip
claw from the station (2) (Figure 3-10 and Figure 3-11).
Figure 3-10 Removing Strip Claw 1
Figure 3-11 Removing Strip Claw 2
3. Push the strip transfer claw base assembly to the center of the plasma chamber area
(Figure 3-12).
Figure 3-12 Push Strip Transfer Claw to Center
FlexTRAK-OH Material Handling System IOM Manual Installation
© 2023 Nordson Corporation 3-9

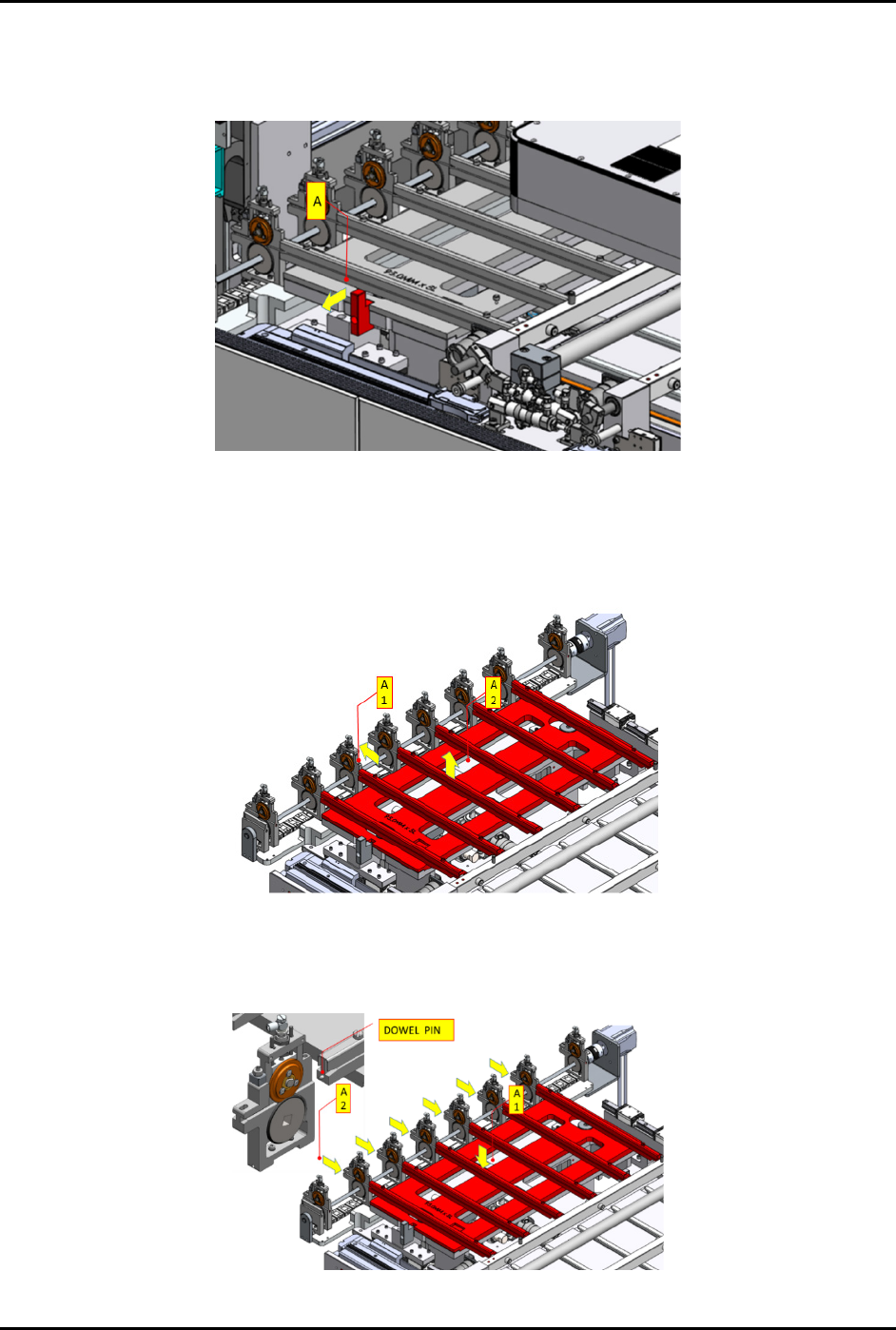

4. Follow the steps below to remove and assemble the strip loading lane:
a. Pull (A) in the direction indicated by the yellow arrow to unlock the conversion kit
(Figure 3-13).
Figure 3-13 Unlock Kit in Loading Lane
b. Pull out the pinch wheel assembly (A1) (Figure 3-14).
c. Manually lift the kit up (A2) and remove from the machine.
d. Safely place the kit on a conversion keeping rack.
Figure 3-14 Remove Loading Lane from Machine
e. Install the correct conversion kit for new production recipe (A1) (Figure 3-15).
f. Align the pinch wheel assemblies with the dowel pins on each loading lane (A2).
Figure 3-15 Install the Conversion Kit
FlexTRAK-OH Material Handling System IOM Manual Installation
3-10 © 2023 Nordson Corporation
g. Push (A) in the direction indicated by the yellow arrow to lock the conversion kit
(Figure 3-16).
Figure 3-16 Lock Conversion Kit in Place
5. Follow the steps below to remove and assemble strip unloading lane:
a. Pull (A) in the direction indicated by the yellow arrow to unlock the conversion kit
(Figure 3-17).
Figure 3-17 Unlock Conversion Kit in Place
b. Pull out the conversion kit from the pinch wheel assembly (A1) and manually lift the kit
up (A2) and remove from the machine (Figure 3-18).
c. Safely place the kit on a conversion keeping rack.
Figure 3-18 Remove Conversion Kit from Machine
