FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-32 © 2023 Nordson Corporation

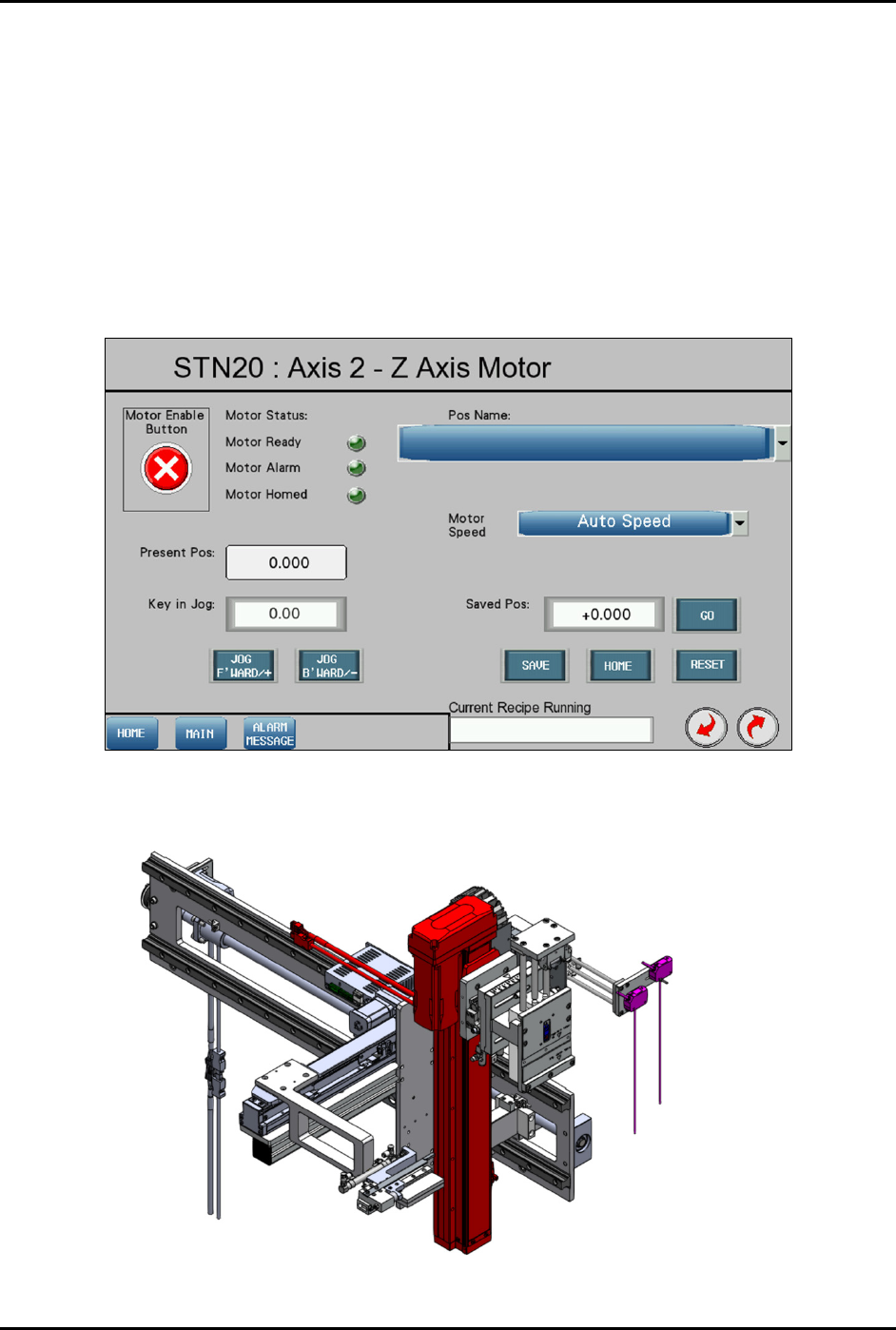

4.12.2.6 Motor Control in Axis 2 (Z-Axis)
Refer to 4.11 Station Main Menu Layout for interface descriptions.
The following selections are available in the "Pos Name" drop down list:
• Standby
• To Stn10 grippers (top conv)
• Place position (first strip bottom)
• Manual load port position (bottom conv)
• 1
st
strip scan (SO only)
• Place position (last strip top)
Figure 4-45 Station 20 – Axis 2 (Z-Axis Motor) Screen
The red highlighted area in Figure 4-46 shows the location of Axis 1 (Z-axis) in Station 20.
Figure 4-46 Station 20 – Axis 2 (Z-Axis Motor) Locations
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-33

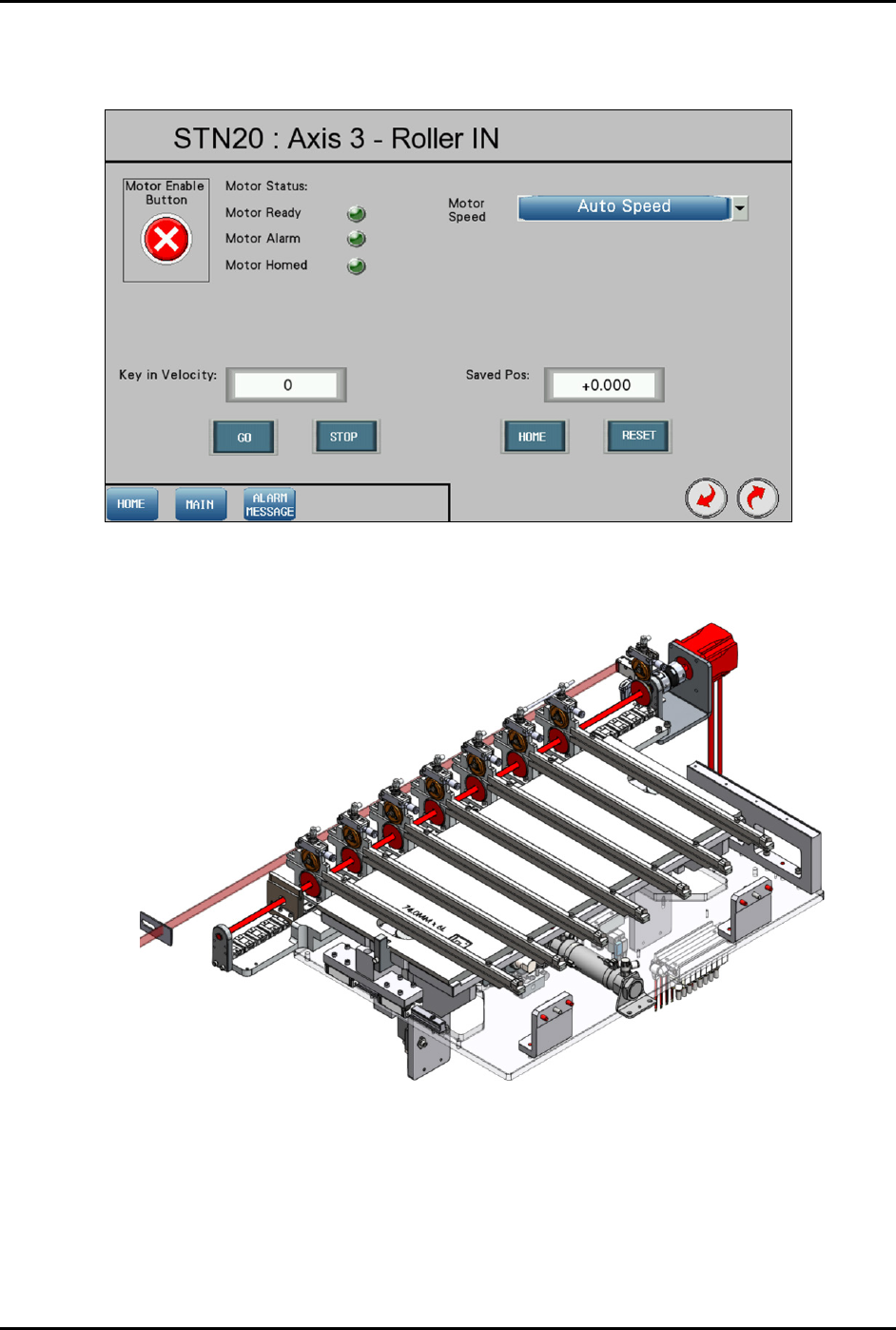

4.12.2.7 Motor Control in Axis 3 (Pinch Wheel Roller In)
Refer to 4.11 Station Main Menu Layout for interface descriptions.
Figure 4-47 Station 20 – Axis 3 (Roller In) Screen
The red highlighted area in Figure 4-48 shows the location of Axis 3 in Station 20.
Figure 4-48 Station 20 – Axis 3 Location
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-34 © 2023 Nordson Corporation

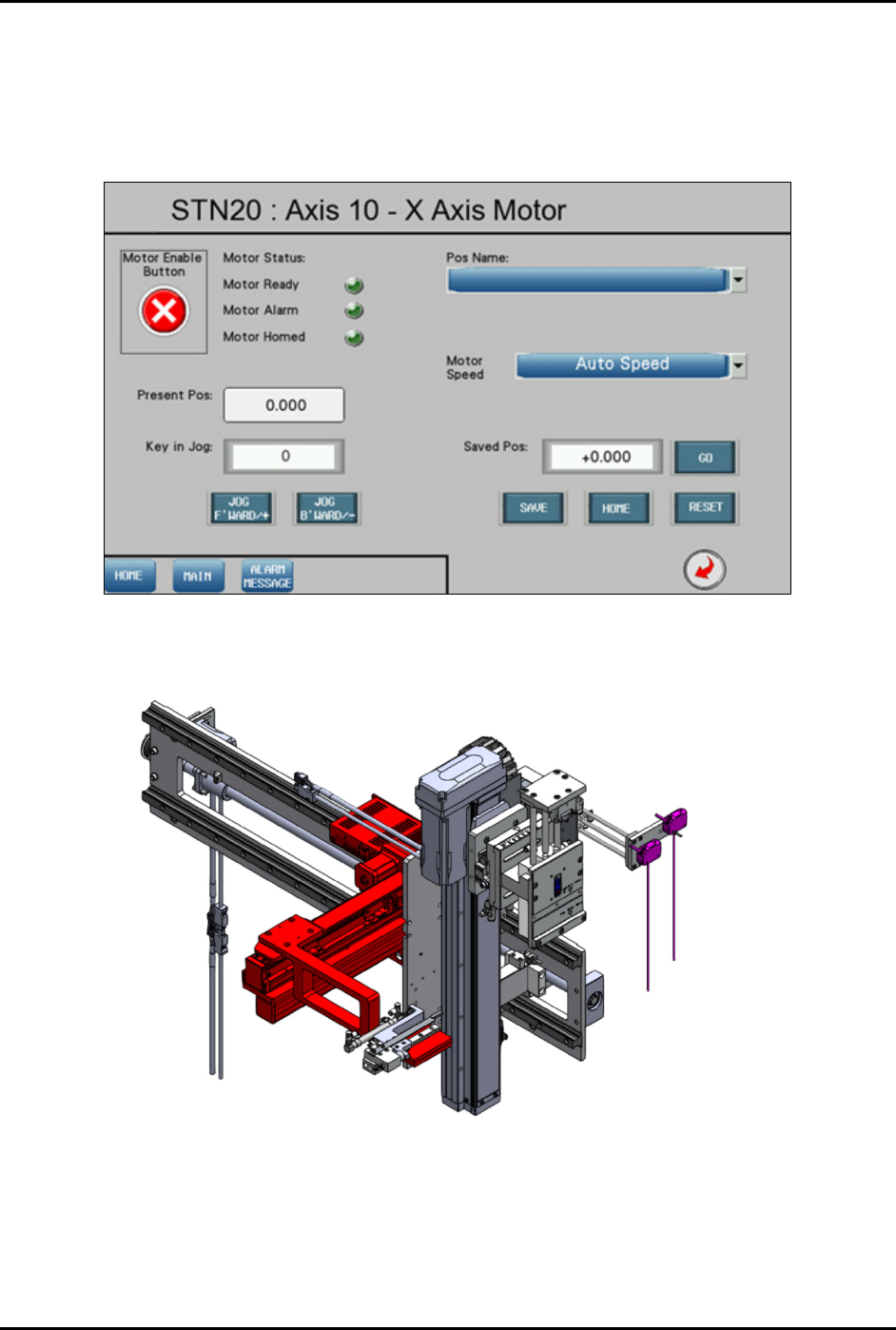

4.12.2.8 Motor Control in Axis 10 (X-Axis)
Refer to 4.11 Station Main Menu Layout for interface descriptions.
The following selections are available in the "Pos Name" drop down list:
• Kicker distance
Figure 4-49 Station 20 – Axis 10 (X-Axis Motor) Screen
The red highlighted area in Figure 4-50 shows the location of Axis 10 (X-axis) in Station 20.
Figure 4-50 Station 20 – Axis 4 Location
