FlexTRAK-OH Material Handli ng System IOM Manual Material Handler Operation 4-36 © 2023 Nordson C orporation Figure 4- 53 Station 30 – Input 2 Screen Figure 4- 54 Station 30 – Input 3 Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-35
4.12.3 Station 30
The red highlighted area in Figure 4-51 shows the location of Station 30 (plasma module) in the
FlexTRAK-OH.
Figure 4-51 Station 30 (Plasma Module) Location
4.12.3.1 Input Screens
Main screen – Refer to 4.11 Station Main Menu Layout for interface descriptions.
Input Mode – Refer to 4.10 General I/O Screen for interface descriptions.

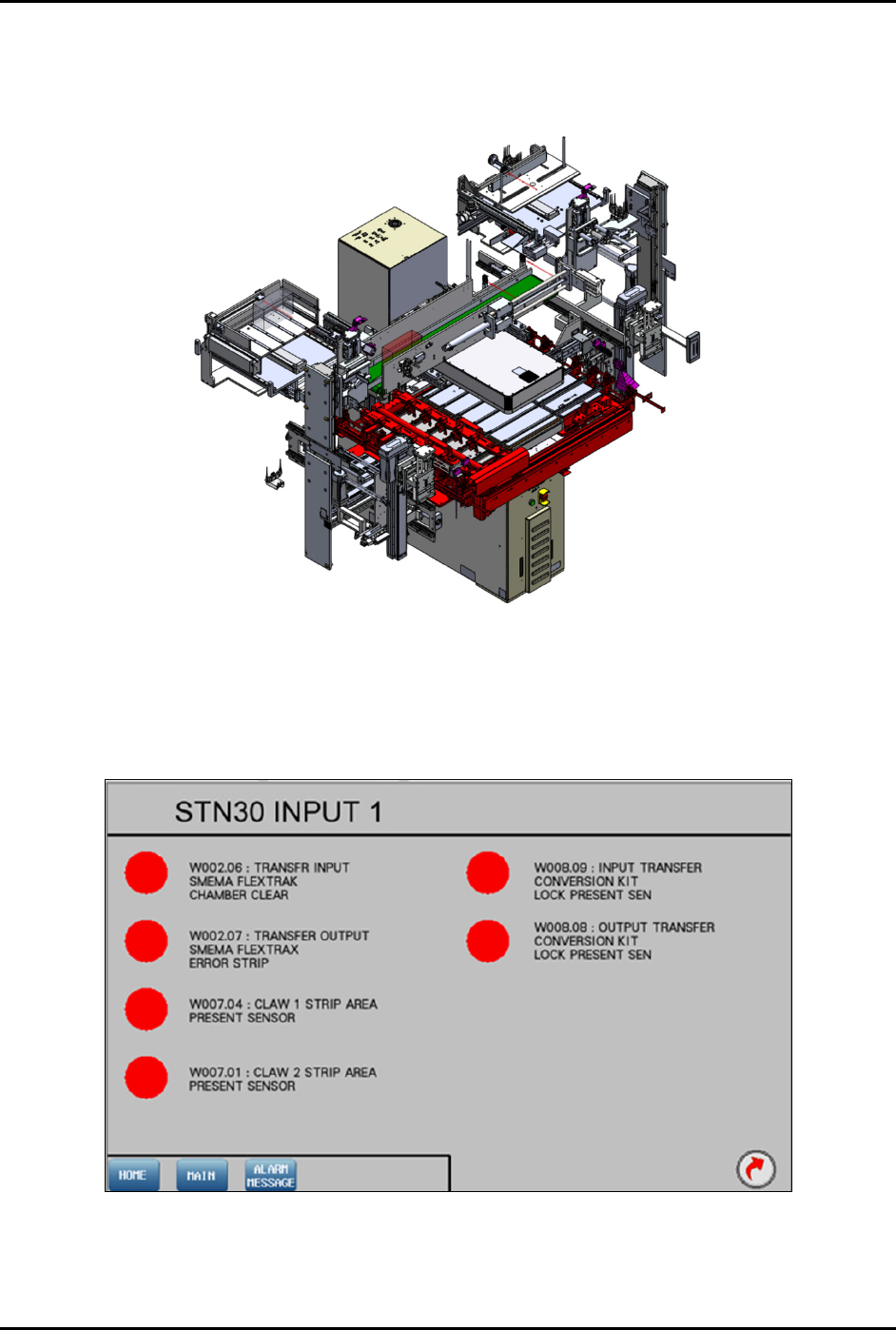

Figure 4-52 Station 30 – Input 1 Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-36 © 2023 Nordson Corporation
Figure 4-53 Station 30 – Input 2 Screen
Figure 4-54 Station 30 – Input 3 Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-37
4.12.3.2 Device Control Screen
Label
Description
Cylinder Shows the control list of electro-pneumatic cylinders.
Motor
Shows the configuration list of motor driver parameters and the
axis platform position.

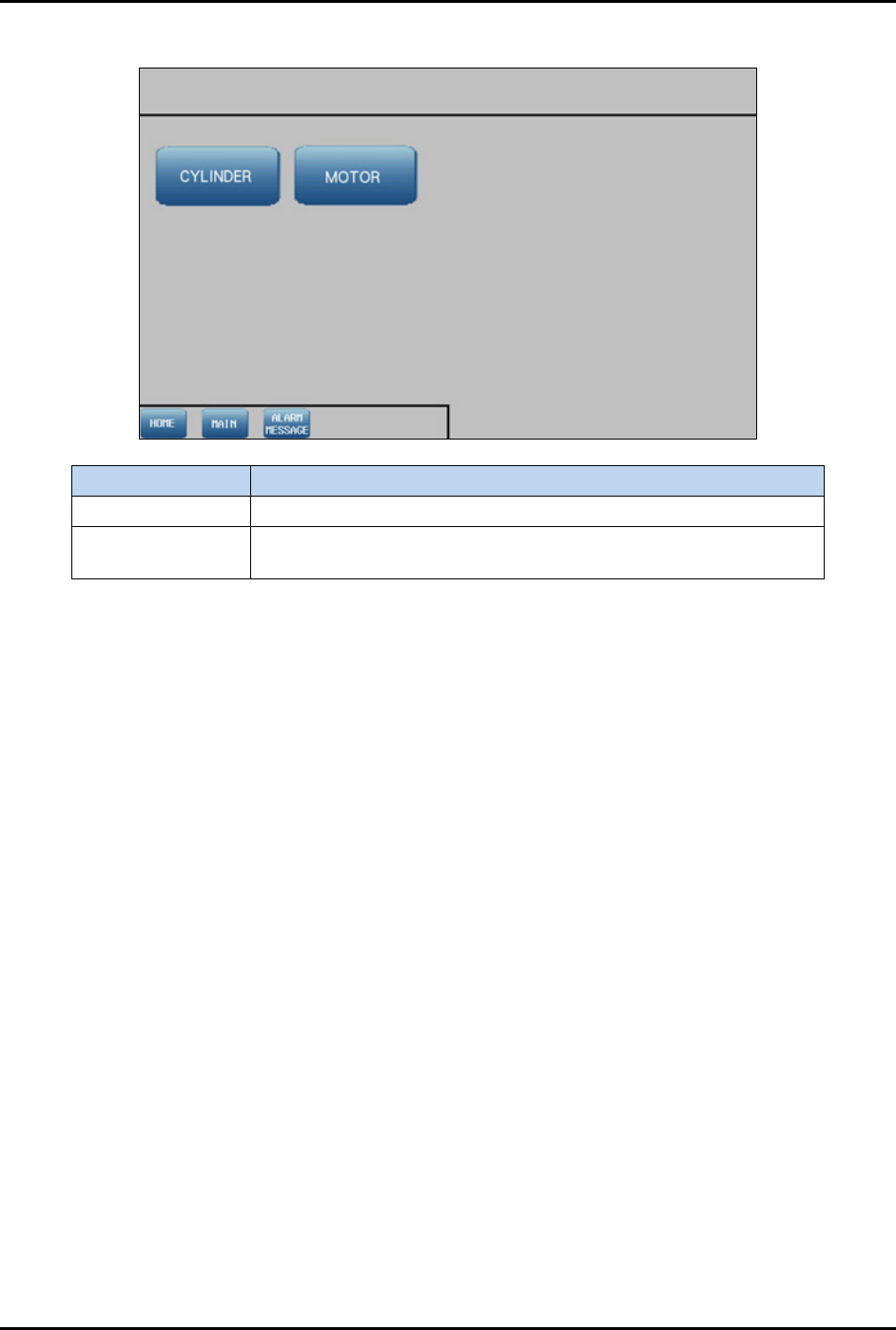

Figure 4-55 Device Control Screen
