FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-58 © 2023 Nordson Corporation
4.12.6 Station 60
The red highlighted area in Figure 4-93 shows the location of Station 60 (OH conveyor module) in the
FlexTRAK-OH.
Figure 4-93 Station 60 – OH Conveyor Module
4.12.6.1 I/O Screens
Main Screen – Refer to 4.11 Station Main Menu Layout for interface descriptions.
Input and Output Mode – Refer to 4.10 General I/O Screen for interface descriptions.
Figure 4-94 – Station 60 – Input Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-59

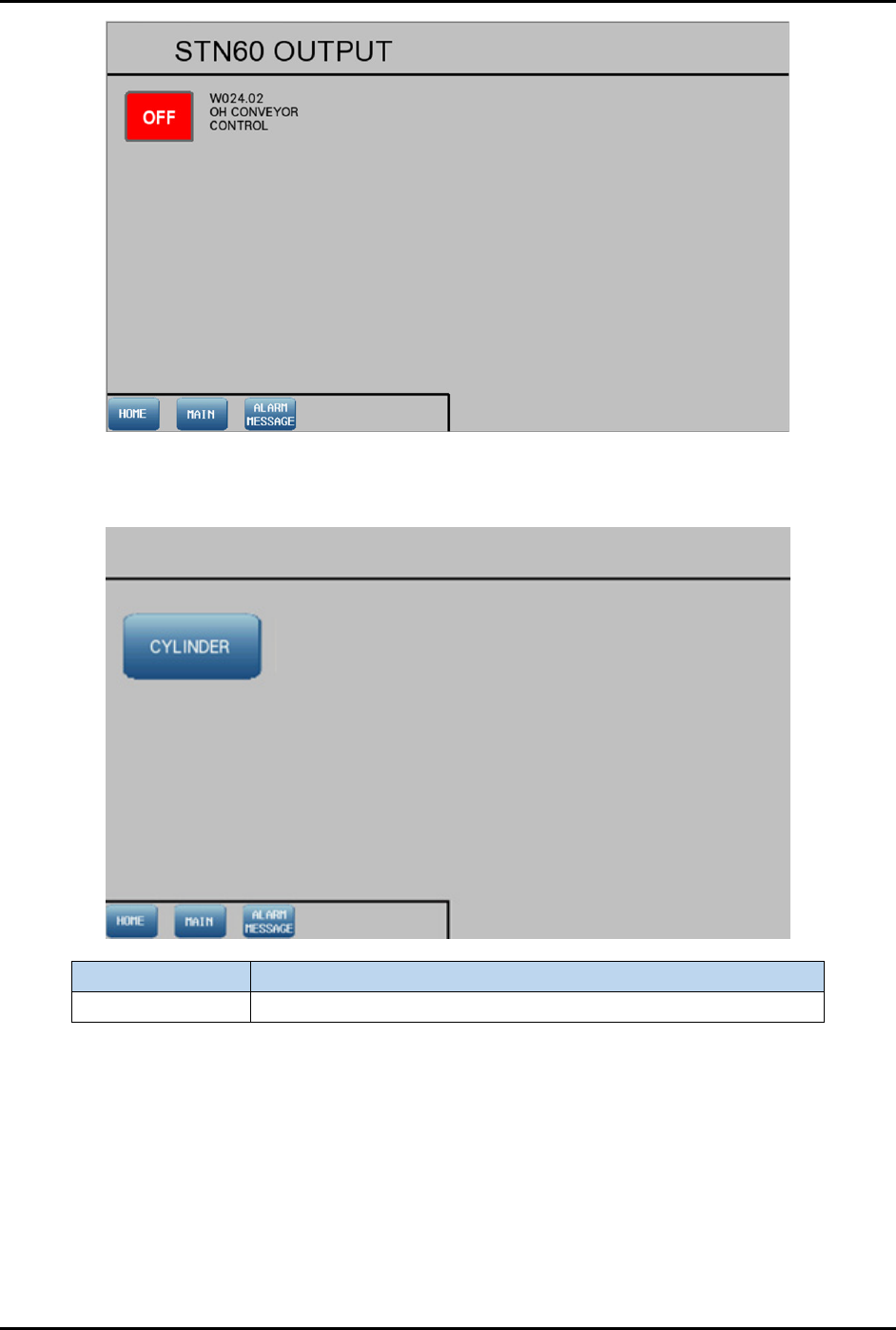

Figure 4-95 Station 60 – Output Screen
4.12.6.2 Device Control
Label Description
Cylinder Shows the control list of electro-pneumatic cylinders.
Figure 4-96 Device Control
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-60 © 2023 Nordson Corporation

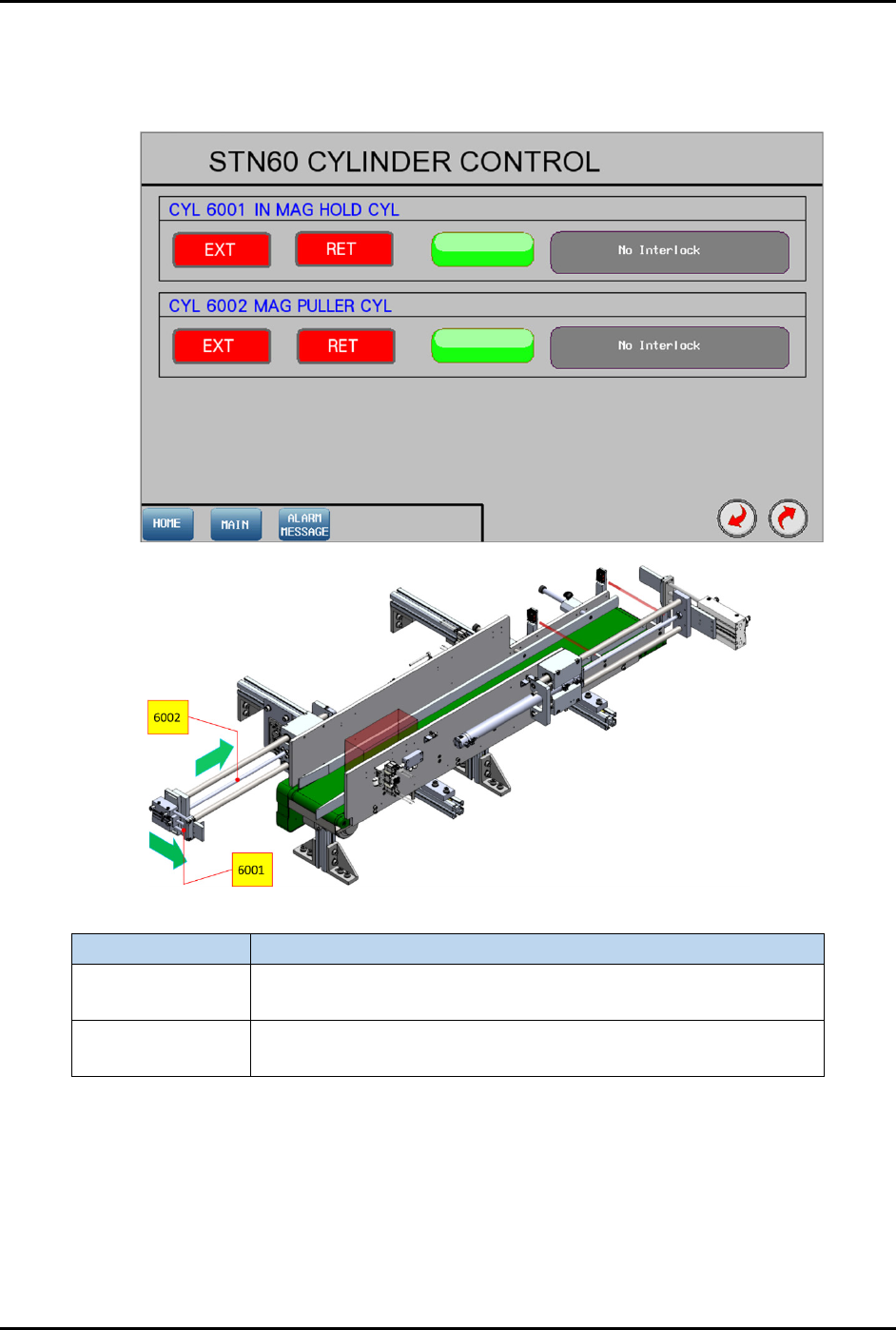

4.12.6.3 Cylinder Control 1
Pressing the CYLINDER button on the Device Control screen (Figure 4-96) will show the control list of
electro-pneumatic cylinders.
Label Description
CYL 6001
EXT – Engage with magazine at the left side.
RET – Release magazine.
CYL 6002
EXT – Position CYL 6001 at magazine rear and left sides.
RET – Pull magazine into the conveyor lane.
Figure 4-97 Station 60 – Cylinder Control 1 Screen
