FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-8 © 2023 Nordson Corporation
7.10.1.5 List 5
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.06.AA.3100 0001-09015-00443 DEEP GROOVE BALL BEARING 50,000 1
A100.06.AA.3100 0001-09015-00444 DEEP GROOVE BALL BEARING 50,000 1
A100.06.AA.3100
0001-02008-01817
ULTRA LOW HEAD CAP SCREWS
200,000
1
A100.06.AA.3100
1999-01000-
A100_04_AA_3105
PINCH WHEEL SPRING 300,000 1
A100.06.AA.3100
1999-01000-
A100_04_AA_3106
TOP WHEEL 300,000 1
A100.06.AA.3100
1999-01000-
A100_06_AA_3107
VERTICAL HOLDER 300,000 1
A100.06.AA.3100 0001-03012-00188 O-RING, MATERIAL: EPDM 300,000 1
A100.06.AA.3100 0001-08008-00071 PIN CYLINDERS 2,000,000 1

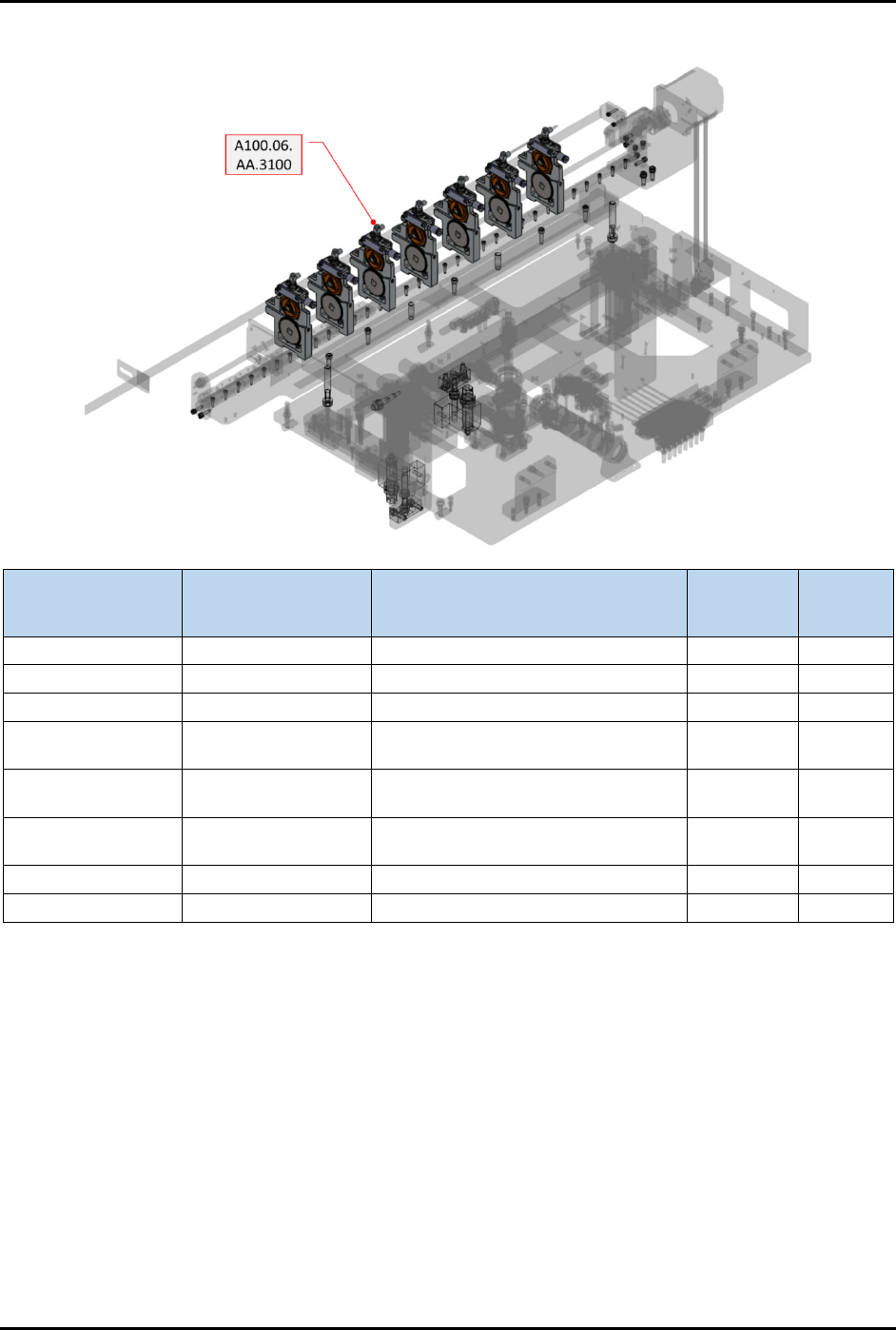

Figure 7-5 Transfer Assembly List 5
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-9
7.10.1.6 List 6
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.06.AB.3100
1999-01000-
A100_04_AA_3105
PINCH WHEEL SPRING 300,000 1
A100.06.AB.3100
1999-01000-
A100_04_AA_3106
TOP WHEEL 300,000 1
A100.06.AB.3100
1999-01000-
A100_06_AA_3107
VERTICAL HOLDER 300,000 1
A100.06.AB.3100 0001-03012-00188 O-RING, MATERIAL: EPDM 300,000 1

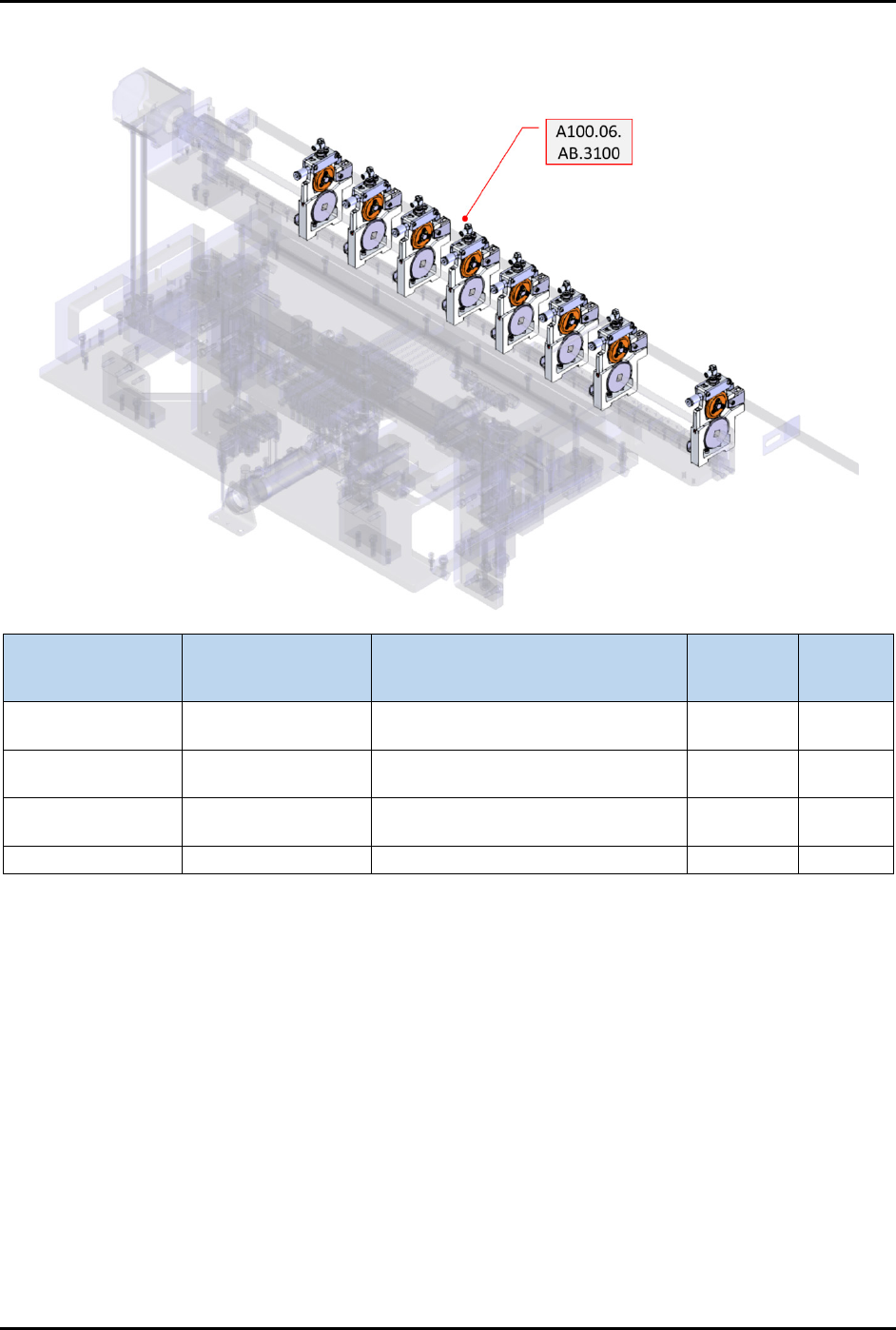

Figure 7-6 Transfer Assembly List 6
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-10 © 2023 Nordson Corporation
7.10.2 Claw Assembly
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.BB.0700 0001-09015-00437 DEEP GROOVE BALL BEARING 50,000 1
A100.04.BB.0500 0001-09015-00437 DEEP GROOVE BALL BEARING 50,000 1
A100.04.BB.0600 0001-09015-00437 DEEP GROOVE BALL BEARING 50,000 1
A100.06.B0.0000 0001-04006-00331 LM GUIDE 100,000 1
A100.04.BB.0900 0001-08016-00479 SOLENOID VALVE 5/3 WAY, Dia 4 1,000,000 1
Figure 7-7 Claw Assembly
