FlexTRAK-OH Material Handli ng System IOM Manual Pa rts Replacement © 2023 Nordson C orporation 7-39 7.11.6.2 List 2 Assembly Drawin g Number Part Number Descriptio n Estimated Life Span (cycles) Quantity A100.07.GH. 000…
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-38 © 2023 Nordson Corporation
7.11.6 Overhead Input Port Assembly
7.11.6.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.GB.2000 0001-10011-00016 SWITCH 200,000 1
A100.07.GB.3000 0001-08001-00062 AUTO SWITCH 500,000 1
A100.07.GA.0000 0001-10005-00204
COMPACT PHOTOELECTRIC
SENSOR
1,000,000 1

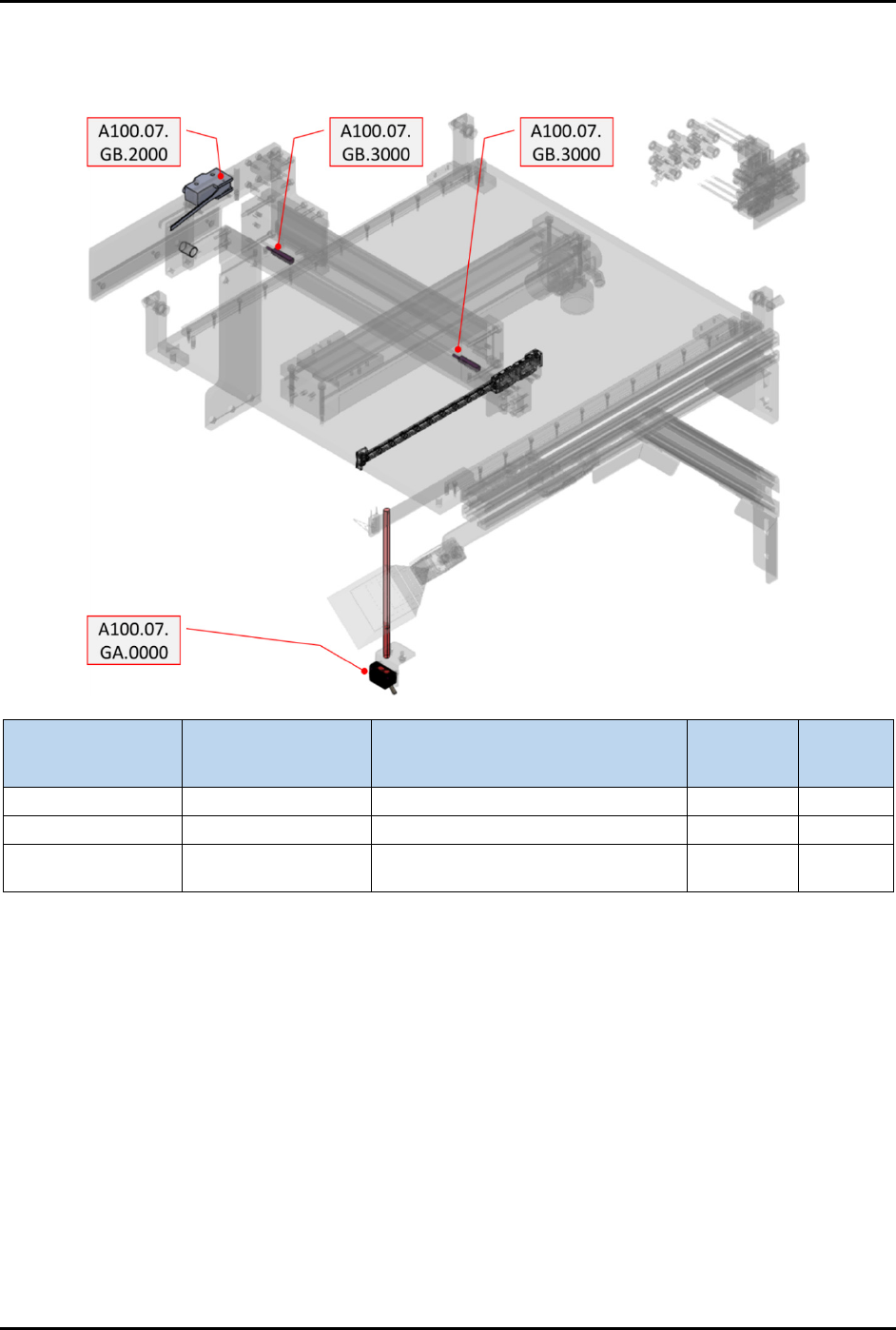

Figure 7-35 Overhead Input Port Assembly List 1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-39
7.11.6.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.GH.0000 0001-10024-00011 STANDARD FIBER AMPLIFIER 500,000 1
A100.07.GH.0000 0002-08013-00034 MICROHAWK BARCODE READER
500,000 1
A100.07.GH.0000 0002-08014-00047 QX CORDSET, ETHERNET 500,000 1
A100.07.GH.0000 0002-08014-00048 QX CORDSET 500,000 1
A100.07.GH.0000 0001-10009-00066 LIMITED REFLECT FIBER SENSOR
1,000,000 1

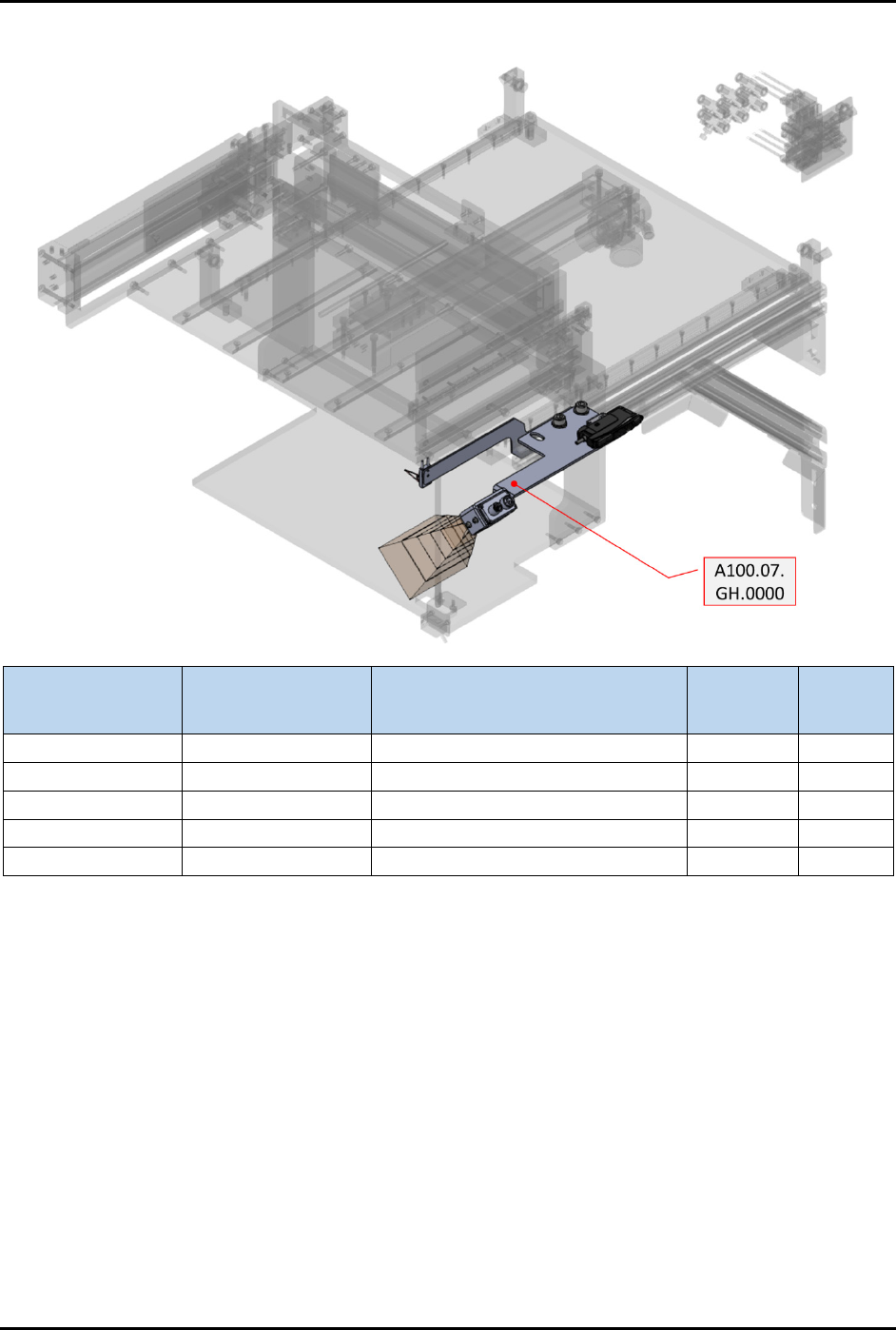

Figure 7-36 Overhead Input Port Assembly List 2
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-40 © 2023 Nordson Corporation
7.11.7 Overhead Output Port Assembly
7.11.7.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.07.HA.1000 0001-10011-00016 SWITCH 200,000 1
A100.07.HA.2000 0001-08001-00054 CYLINDER AUTO SWITCH 500,000 1
A100.07.HA.3000 0001-08001-00062 AUTO SWITCH 500,000 1
A100.07.HA.0000 0001-10005-00204
COMPACT PHOTOELECTRIC
SENSOR
1,000,000 1

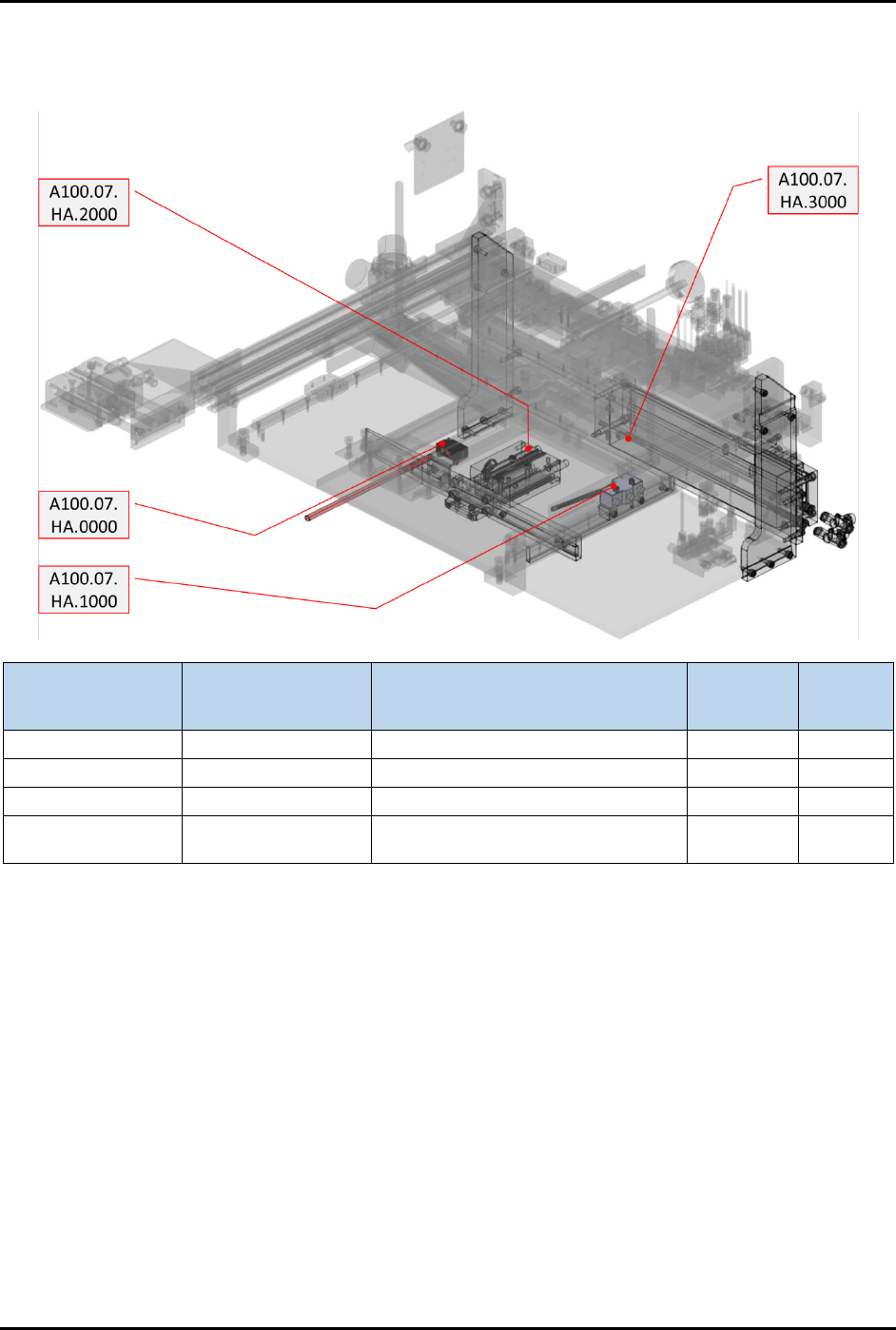

Figure 7-37 Overhead Output Port Assembly List 1
