FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-4 © 2023 Nordson Corporation
7.10 Mechanical Parts Lists (Level 1)
Mechanical Parts (Level 1) are shown in Figure 7-1 through Figure 7-20.
7.10.1 Transfer Assembly
7.10.1.1 List 1
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.AA.1200 0001-06006-00032 SHOCK ABSORBER 100,000 1
A100.04.AA.3200 0001-06006-00031 SHOCK ABSORBER 100,000 1
A100.04.AA.3300 0001-06006-00031 SHOCK ABSORBER 100,000 1
A100.04.AA.1000 0001-08008-00733 DOUBLE ACTING CYLINDER 150,000 1
A100.04.AA.2000 0001-08008-00730 DOUBLE ACTING CYLINDER 250,000 1
A100.04.AA.2000 0001-04006-00335 LM GUIDE 800,000 1

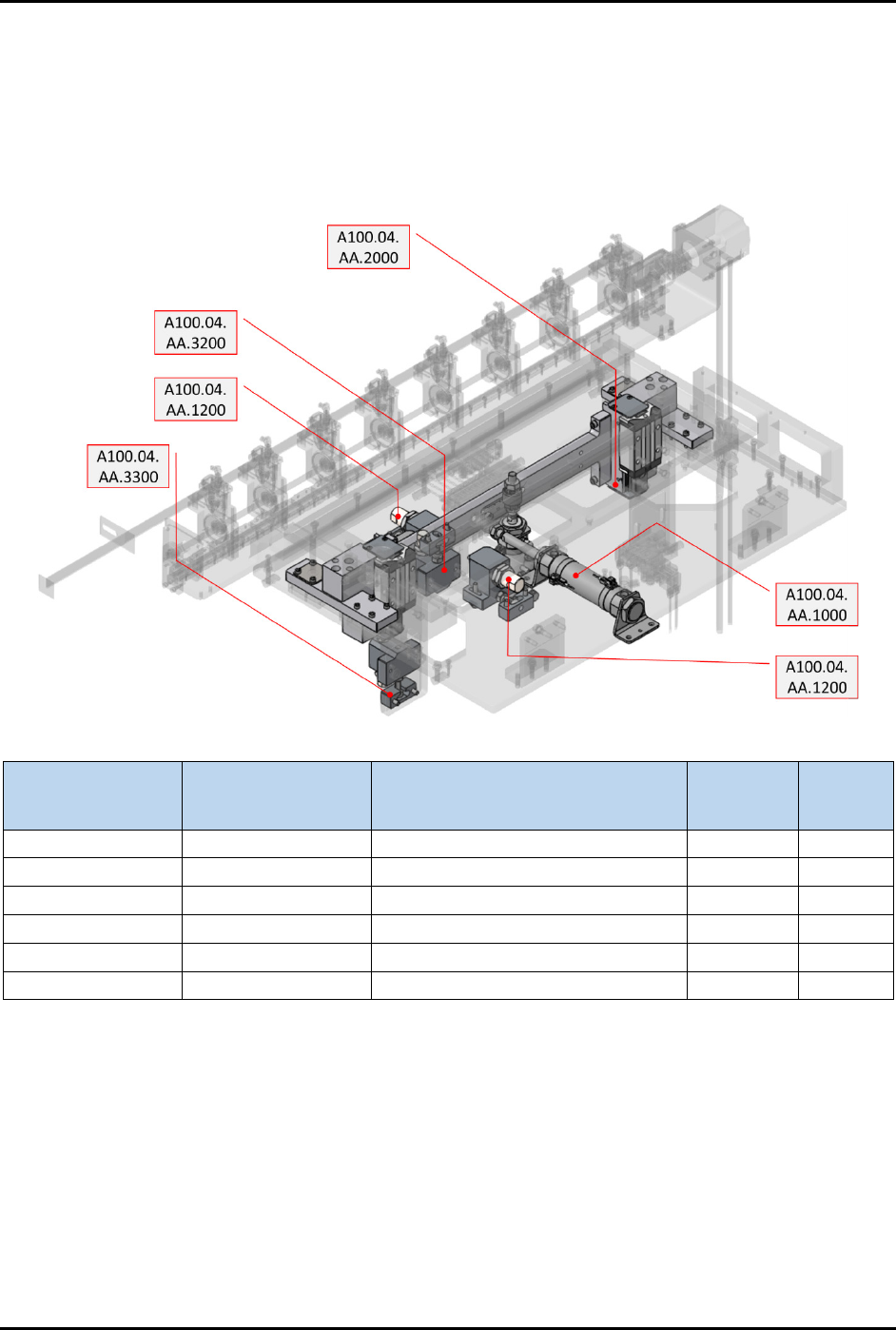

Figure 7-1 Transfer Assembly List 1
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
© 2023 Nordson Corporation 7-5
7.10.1.2 List 2
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.04.AC.0200 0001-08016-00064 SOLENOID VALVE 5/3 WAY, DIA 6 1,000,000 1
A100.04.AC.0300 0001-08016-00531 5/2-WAY SOLENOID VALVE 1,000,000 2

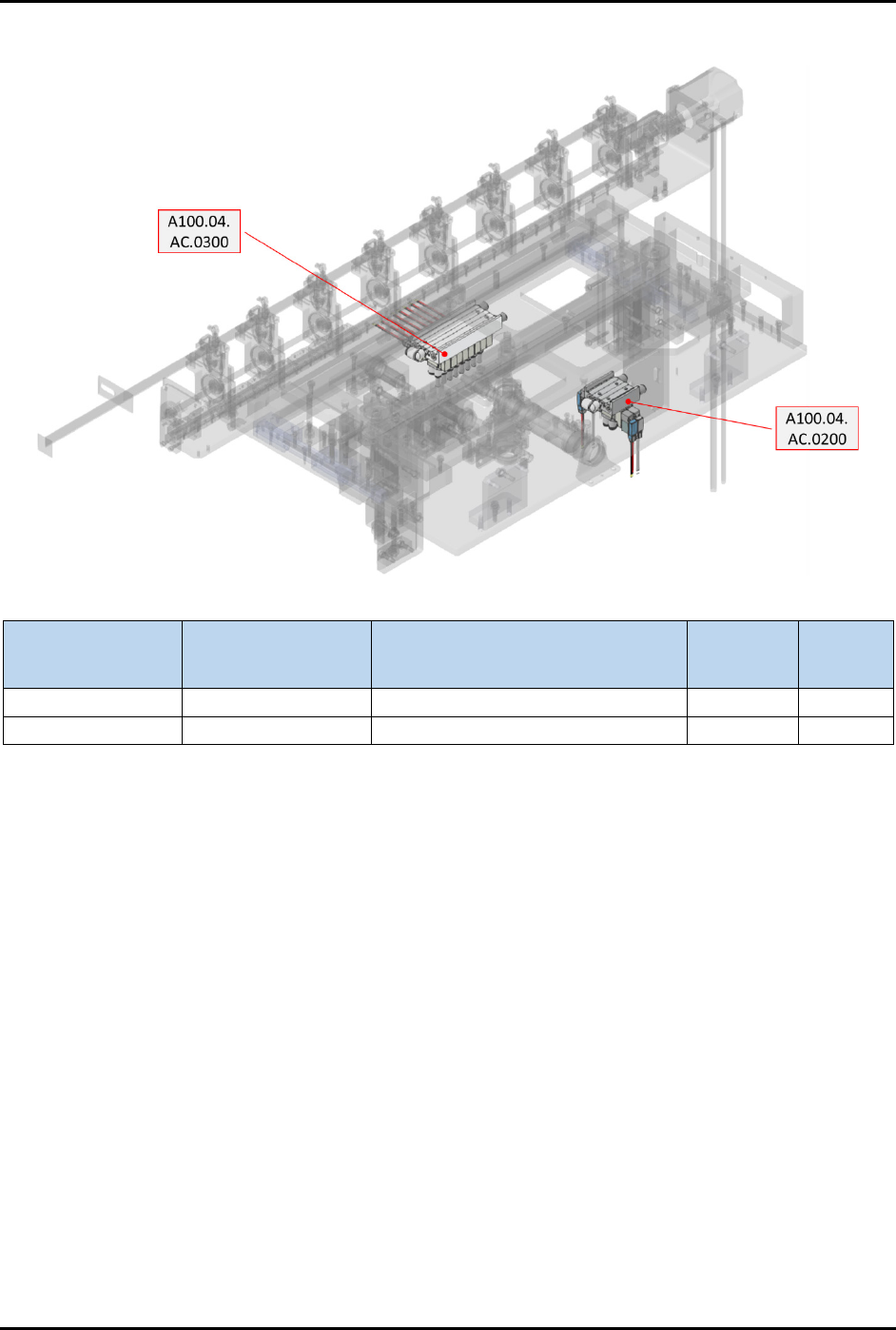

Figure 7-2 Transfer Assembly List 2
FlexTRAK-OH Material Handling System IOM Manual Parts Replacement
7-6 © 2023 Nordson Corporation
7.10.1.3 List 3
Assembly Drawing
Number
Part Number Description
Estimated
Life Span
(cycles)
Quantity
A100.06.AA.3000 0001-09015-00442 DEEP GROOVE BALL BEARING 100,000 1
A100.06.AA.3000 0001-04006-00368 LM GUIDE 125,000 1
A100.06.AA.3000 0001-06002-00070 COMPRESSION SPRING 500,000 1
A100.06.AB.3000 0001-06002-00070 COMPRESSION SPRING 500,000 1

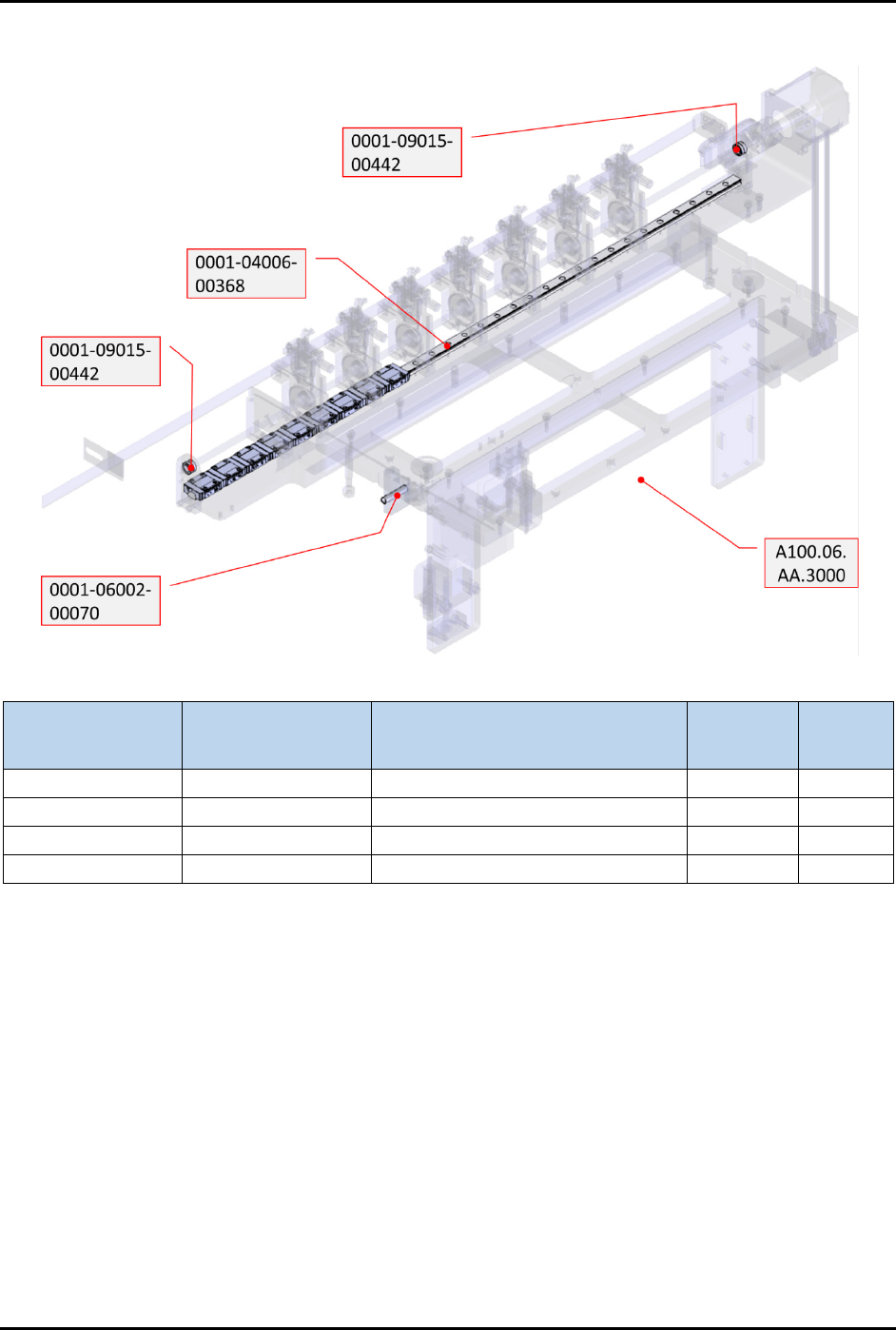

Figure 7-3 Transfer Assembly List 3
