FlexTRAK-OH Material Handli ng System IOM Manual Material Handler Operation 4-28 © 2023 Nordson C orporation 4.12.2.3 Cylinder Control 1 Pressing the CYLINDE R butt on on the Device Contr ol screen ( Figure 4- 37 ) will …
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-27

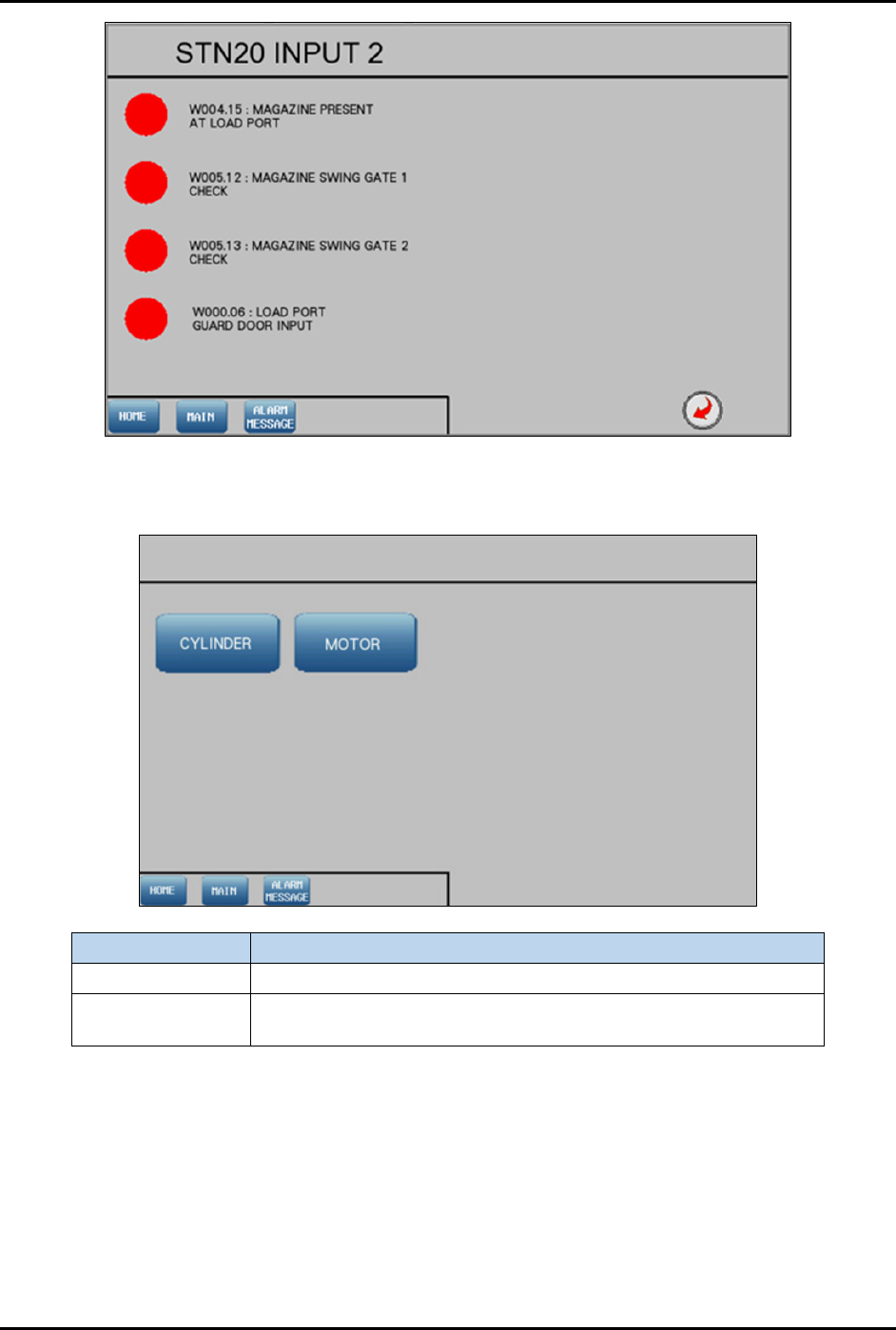

Figure 4-36 Station 20 – Input 2 Screen
4.12.2.2 Device Control Screen
Label Description
Cylinder Shows the control list of electro-pneumatic cylinders.
Motor
Shows the configuration list of motor driver parameters and the
axis platform position.
Figure 4-37 Device Control Screen
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
4-28 © 2023 Nordson Corporation
4.12.2.3 Cylinder Control 1
Pressing the CYLINDER button on the Device Control screen (Figure 4-37) will show the control list of
electro-pneumatic cylinders.
Figure 4-38 Station 20 – Cylinder Control 1 (Screen 1)
Figure 4-39 Station 20 – Cylinder Control 1 (Screen 2)
FlexTRAK-OH Material Handling System IOM Manual Material Handler Operation
© 2023 Nordson Corporation 4-29
Label
Description
CYL 2001
Clamp – Grip magazine.
Unclamp – Release magazine.
CYL 2002
EXT – Position sensor near to the pinch wheel.
RET – Position sensor away from the pinch wheel.
CYL 2003
EXT – Kick the strip out from the magazine slot.
RET – Position the kicker away from the magazine.
CYL 2004
EXT – Position the elevator close to the transfer buffer lane.
RET – Position the elevator away from the transfer buffer lane.

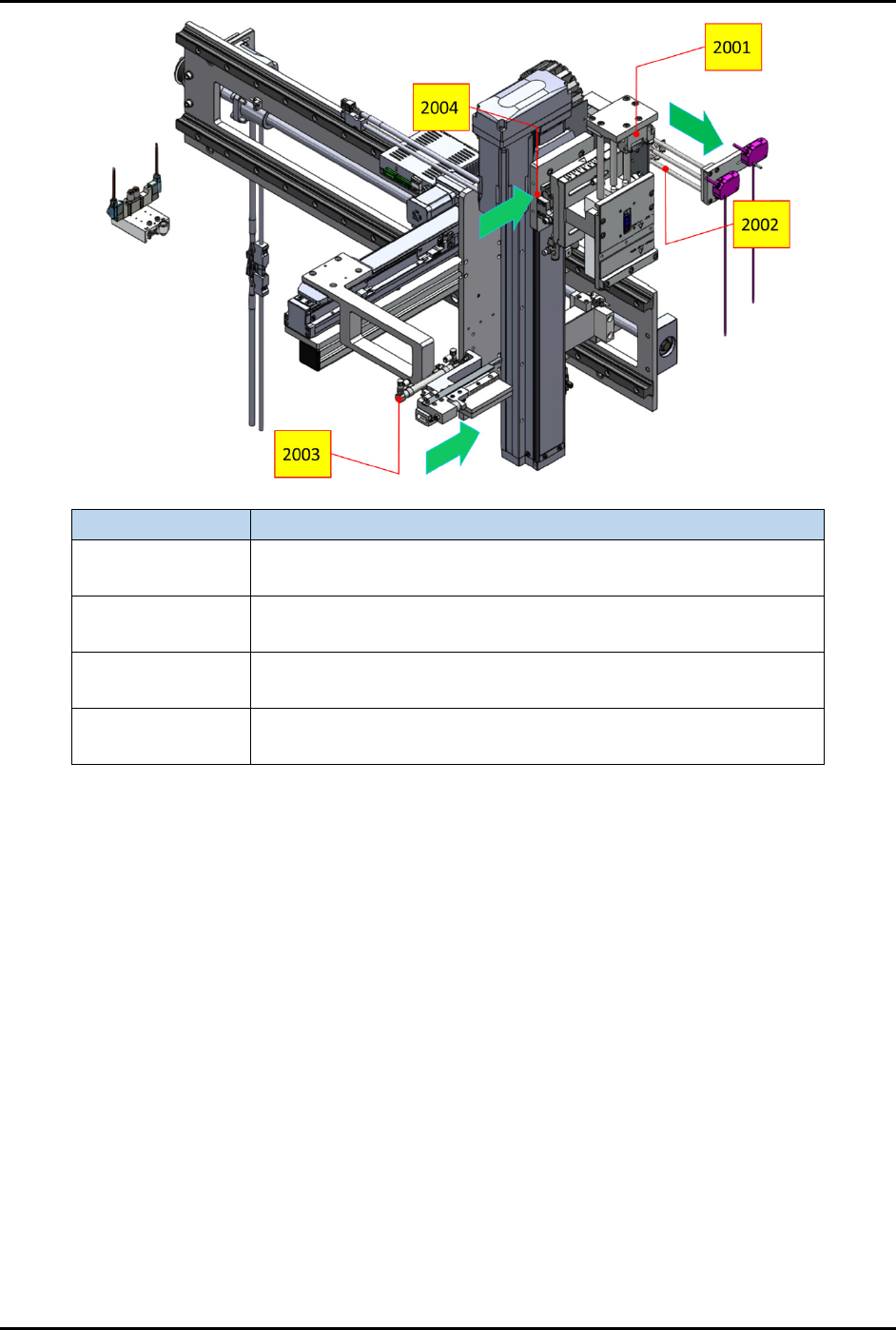

Figure 4-40 Station 20 – Cylinder Control 1 Locations
