1. Notes

1.3 Touch Screen

• Since the touch screen uses the molecules in liquid crystals, do not apply

strong pressure to the touch screen.

Try not to touch the screen except for input operations.

The touch screen reacts to the force of 0.78N (80g) or less.

Do not press the screen with an excessive force.

CAUTION

The surface of the touch screen is fragile. Do

not rub the surface nor touch it with a pen, a

screwdriver, etc.

CAUTION

The machine is not a water-proof and encap-

sulated type.

Avoid dust, water droplet, oil droplet, metal

pieces.

Especially, when metal pieces or combustible

material are mixed into the machine, it may lead

to fire ignition.

• When power is supplied to the machine at low temperature, the brightness

of the back light deteriorates but resumes normal in a few minutes.

The deterioration is not abnormal.

When the back light is turned on or off repeatedly at low temperature, the

life will be shortened.

• Caution before Touch Screen Cleaning

CAUTION

Turn off the operation power before the touch

screen is cleaned.

Cleaning the screen while it is active may cause

adverse reaction of the screen, resulting in data

corruption.

When the surface of the touch screen is stained, wipe off dust and dirt with a

dry cloth.

Do not use alcohol, benzene, etc.

CAUTION

Do not use alcohol or benzene to clean the

touch screen.

Otherwise, the surface of the touch screen may

melt or get cloudy.

• To Correct the Drift of the Touch Screen Sensors

The touch screen sensors should be adjusted to compensate for the drift

between the reacting part of the touch screen sensors and the screen images.

Refer to “Section 5 Touch Screen in Volume 4” for the adjustment.

0004-002 2-6 Tg0246-PM-OP

1. Notes

1.4 Component Shortage Indicator

Component Shortage

Indicator (A)

[READY]

Button

[READY] Button

Component Shortage Indicator (B)

(Front View) (Beam B Side) (Rear View) (Beam A Side)

1. Notes

0004-002 2-7 Tg0246-PM-OP

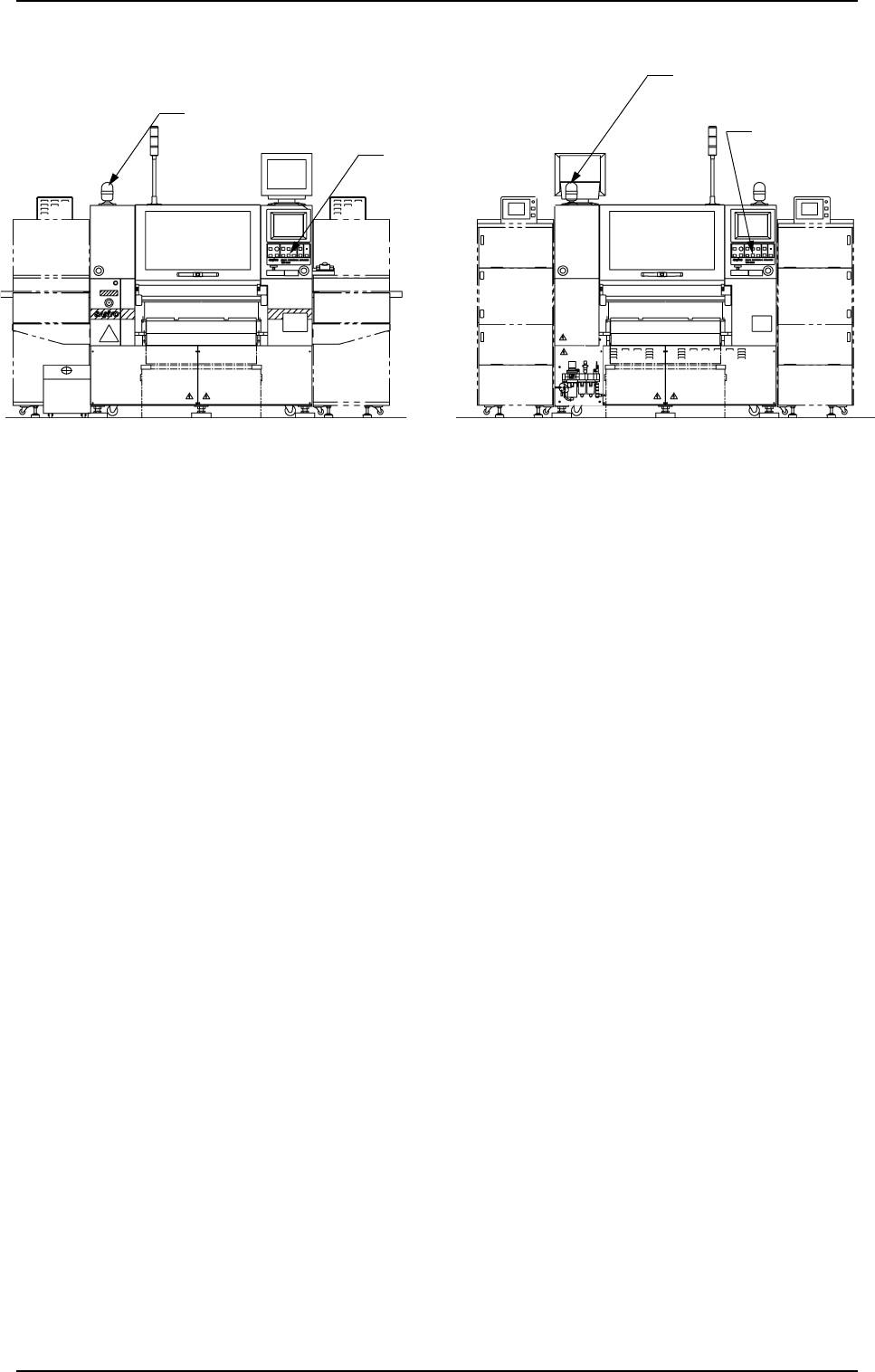

Fig. 2.1

This indicator shows that a feeder on the feeder base is short of components.

• Component Shortage Indicator ON

When component supply to the feeder is completed and the X/Y beam on

the related side is available in operation, the component shortage indicator

illuminates.

• Component Shortage Indicator OFF

When components are not picked up from the related side according to the

current pattern program, the component shortage indicator extinguishes.

• Component Shortage Indicator “Flickering” (The indicator flickers only when

components are picked up from the related side according to the current

pattern program.)

When the operation on the related side cannot be continued due to a compo-

nent shortage error during operation, the component shortage indicator flick-

ers, indicating that the feeder can be replaced or replenished with compo-

nents.

When the [READY] button is pressed after the feeder replacement or com-

ponent supply is completed, the component shortage indicator keeps on flick-

ering until the machine is set in the “READY” mode.

When the [READY] button is pressed and the electromagnetic locks of the

supply cover and the safety bar are released, the component shortage indica-

tor flickers, indicating that the feeder can be replaced or replenished with

components.

Note: When the [OPERATION/SET UP] switch is set to the “SET UP” side,

the operation on the available side is locked and the electromagnetic

locks of the supply cover and the safety bar are latched forcibly and

both the LED of the [READY] button and the component shortage

indicator flicker. (Only when components are picked up from the op-

posite side according to the current pattern program)

1. Notes

Fig. 2.2

(3) Confirm that the supply cover is securely fixed.

CAUTION

Insufficient fixation causes the supply cover to

fall down.

1.5 Opening and Closing of Supply Cover

CAUTION

• If there are more than one person, ensure

good communication by giving loud verbal

instructions for safety purposes.

• Confirm that no obstacle, etc., exist around

the opening of the supply cover and then

open or close the supply cover.

Purpose of Opening or Closing

• To supply components after component shortage.

• To remove mispicked components.

• To replace each feeder.

• To perform the program change operation.

• Others

How to Open or Close the Supply Cover

How to Open the Supply Cover

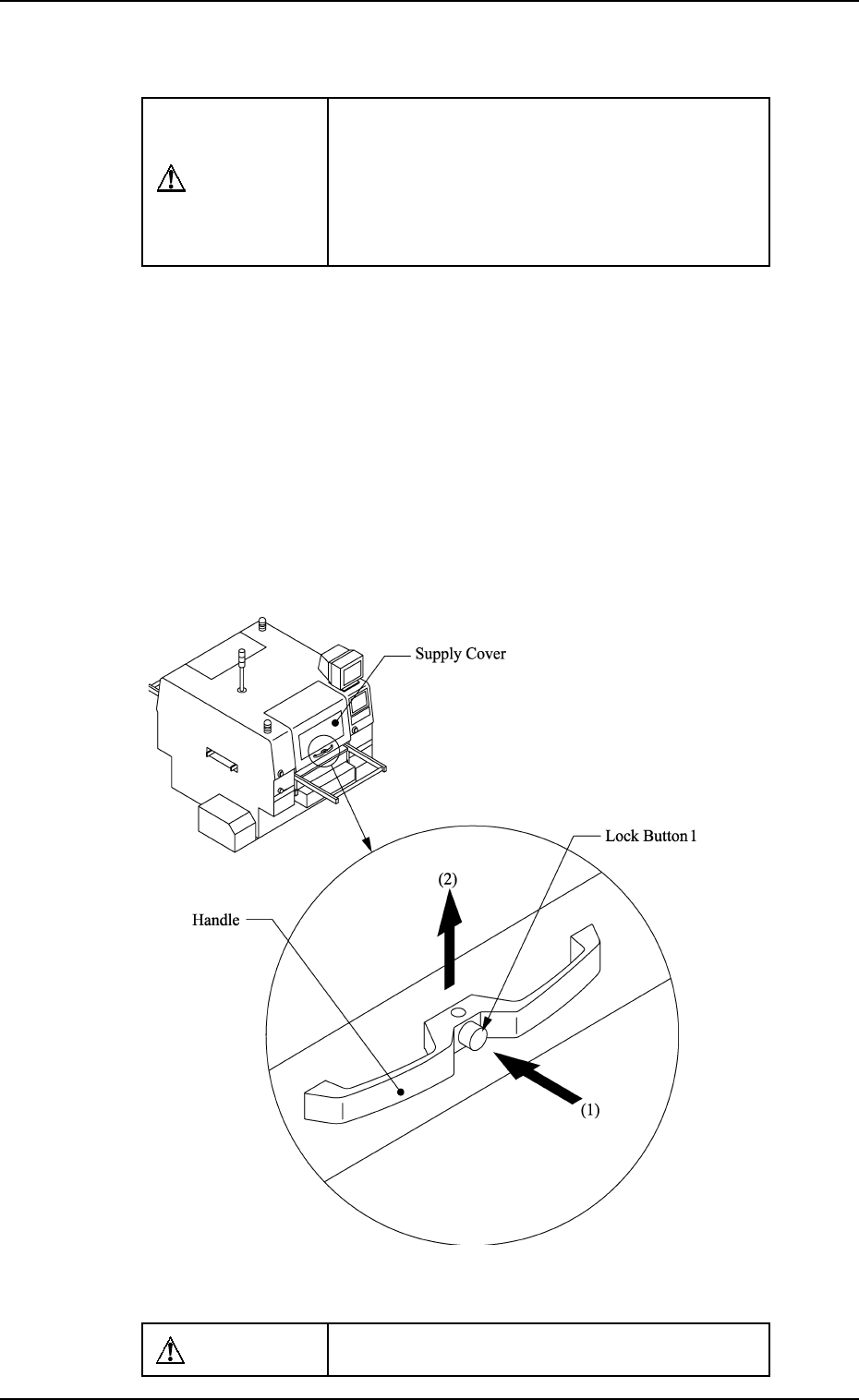

(1) Hold the handle firmly with both hands and push the lock button 1

to unlatch.

(2) Lift the supply cover to its upper limit. Then fix it securely.
