3.17 Simultaneous Recognition Function
When the right and left heads pick up components and move to the component
recognition camera positions through the simultaneous pick-up and pick-up pri-
ority functions and the picked components and the visual fields of the two con-
fronting component recognition cameras are combined in conformity with each
other, this function can be activated to capture the images of the components for
simultaneous component recognition.
Refer to “16. HEAD OFFSET (GET BOTH IMAGE) Display of Section 5 in
Volume 2” and “6.6 HEAD OFFSET (GET BOTH IMAGE) Display of Sec-
tion 3 in Volume 4” for details.
0103-002 1-27 Tg0246-PM-OP
3. Functions

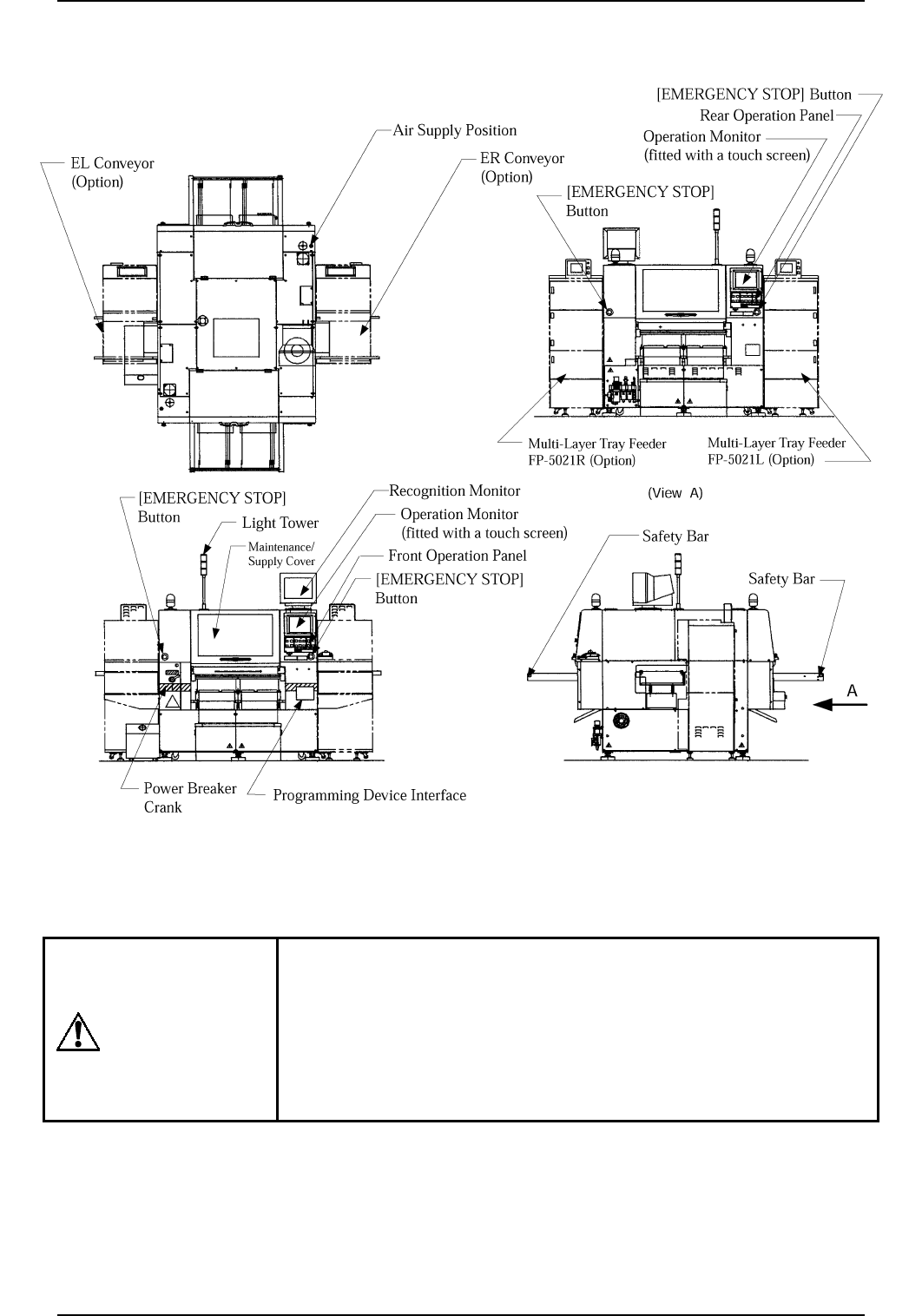

4. Structure and Names
WARNING
Press one of the [EMERGENCY STOP] buttons
to stop the machine immediately in an emergency.
The power is turned off and the machine stops
running immediately.
4. Structure and Names
Fig. 1.5
0308-004 1-28
Tg0246-PM-OP
5. Operation Panel (Names and Functions)
5. Operation Panel (Names and Functions)

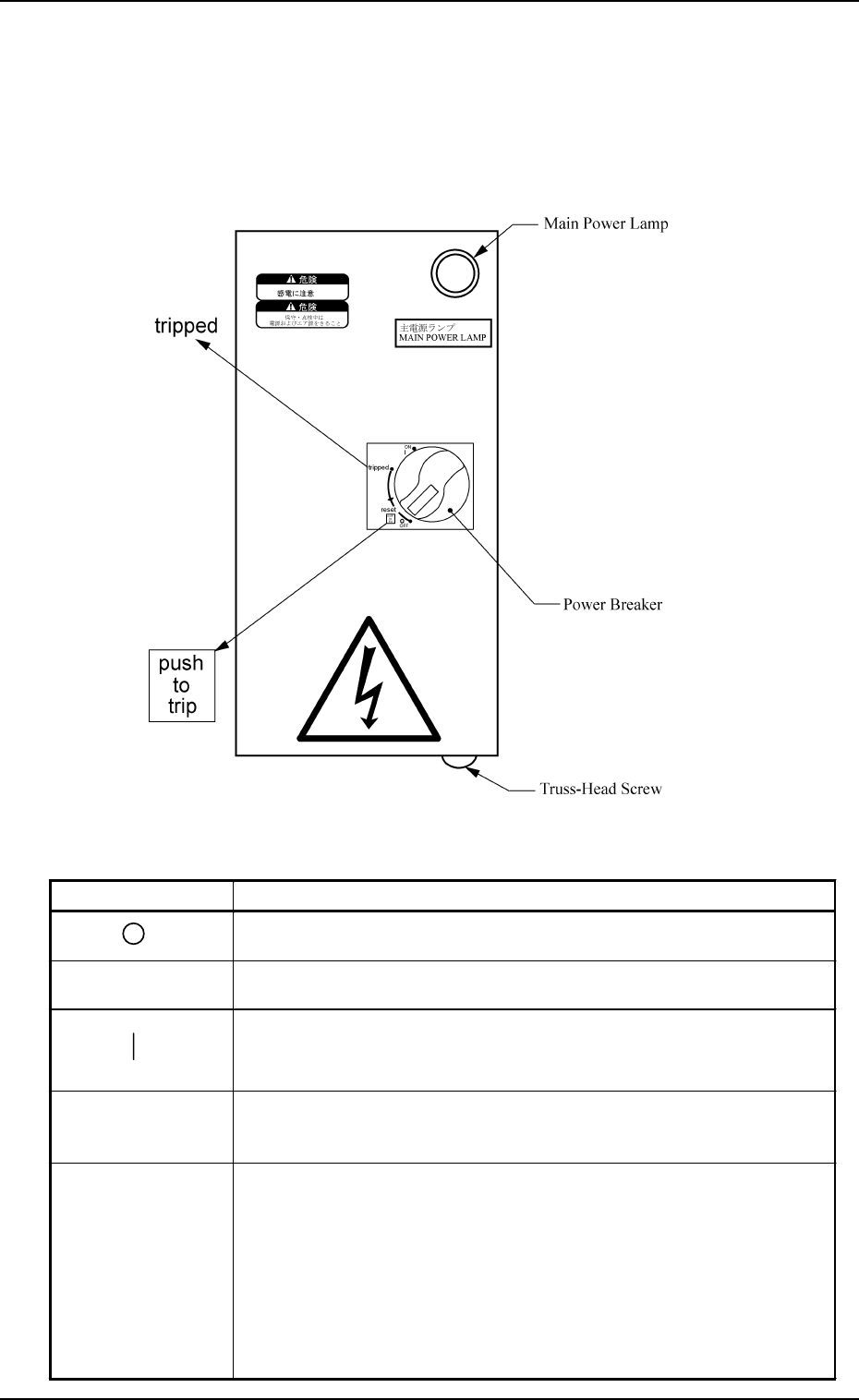

5.1 Power Breaker Box
The power breaker can be locked using a padlock.
Before maintenance and inspections work, shut off the power breaker and lock
it using the padlock for safety purposes.
Fig. 1.6
Note: Only the personnel in charge of maintenance should remove the truss-
head screw for safety purposes.
Table 1.1
0103-003 1-29 Tg0246-PM-OP
Symbol/Name Function
Power Breaker OFF (Fig. 1.6)
tripped
Power Breaker Tripped
Power Breaker ON
(The door of the power breaker cannot be opened.)
Note:
Do not try to open the door
forcibly.
Push
to
trip
This button checks the power breaker trip.
Main Power Lamp
ON
: Power is supplied. (Power ON Condition)
OFF : Power is shut off.
The circuit of the lamp may be broken or an error
might have occurred.
(Phase Interruption Detection)
Ref.: Phase interruption can be detected only when power is supplied.
When the machine is already powered, phase interruption cannot
be detected.
