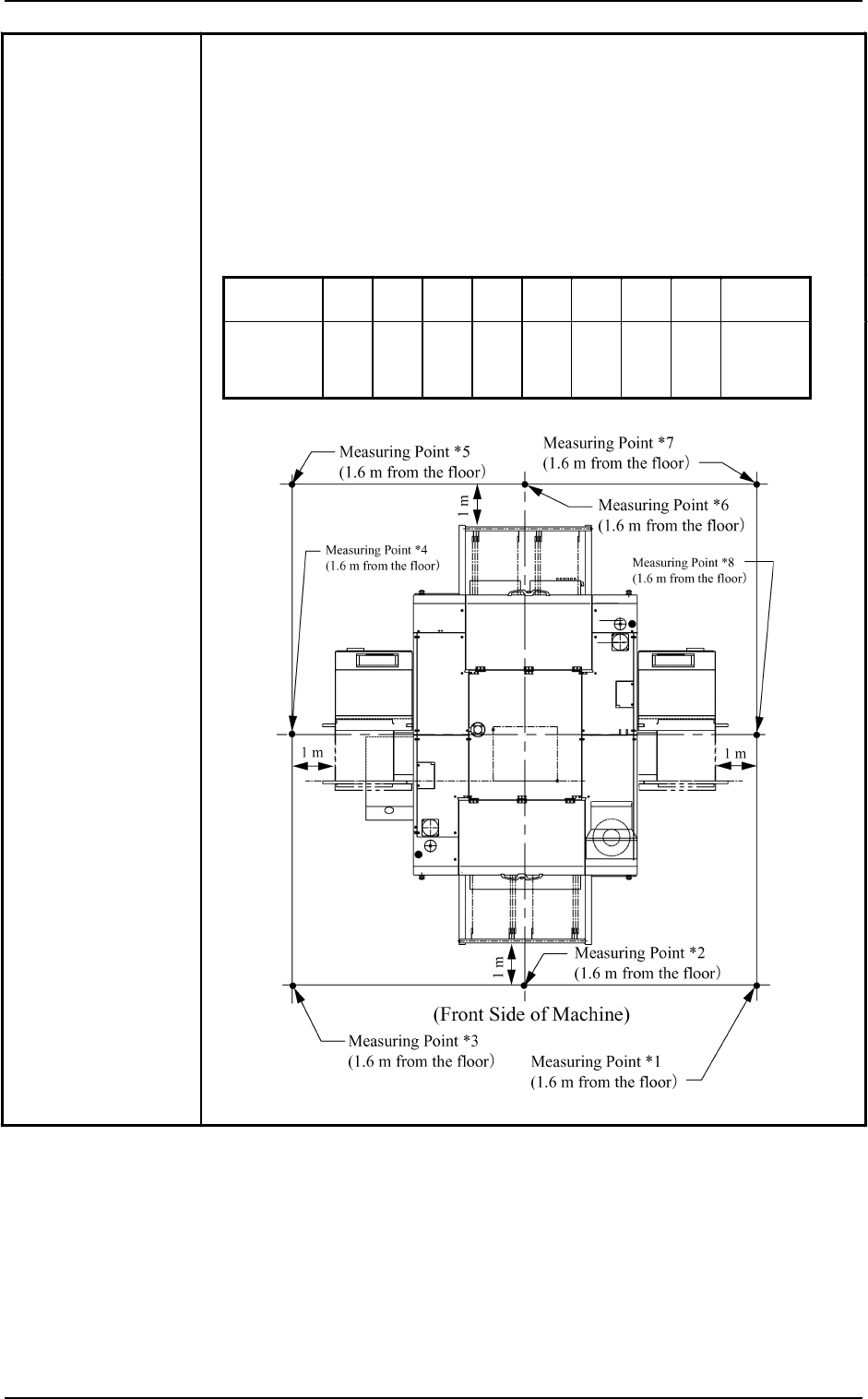

[Measuring Condition]
• Measuring Position
Position 1 m away and 1.6 m in height from the machine.
• Noise Measuring Instrument
Model: RION NA-60 (Range A)
• Requirements for Operation
Test Run Actions: No P.C.B. Transfer, No Component Picks/No
Recognition/No Placement, Repetition of Stages 11 and 12 for Multi-Layer
Tray Feeders L/R, Only One 32 mm Tape Feeder Activated (FDR No. 228)
Measuring
Point
*1 *2 *3 *4 *5 *6 *7 *8
Remarks
Measured
Noise
Value
[
dB
]
70.8 70.6 70.8 68.4 68.7 69.6 68.4 69.1
Background
Noise
(Surroundings)
48.7 [dB]
37. Measured Noise
Value
2. Specifications
9910-001 1-13 Tg0246-PM-OP
2. Specifications
9910-001 1-14 Tg0246-PM-OP
38. Conditions for
Component
Placement
(1) Shape of Vacuum Nozzle
When components are to be placed to the previously-placed components or
the obstacles, the shape of the vacuum nozzle becomes part of the
constraint condition. Refer to “8. Vacuum Nozzles of Section 1 ” for the shapes
of vacuum nozzles.

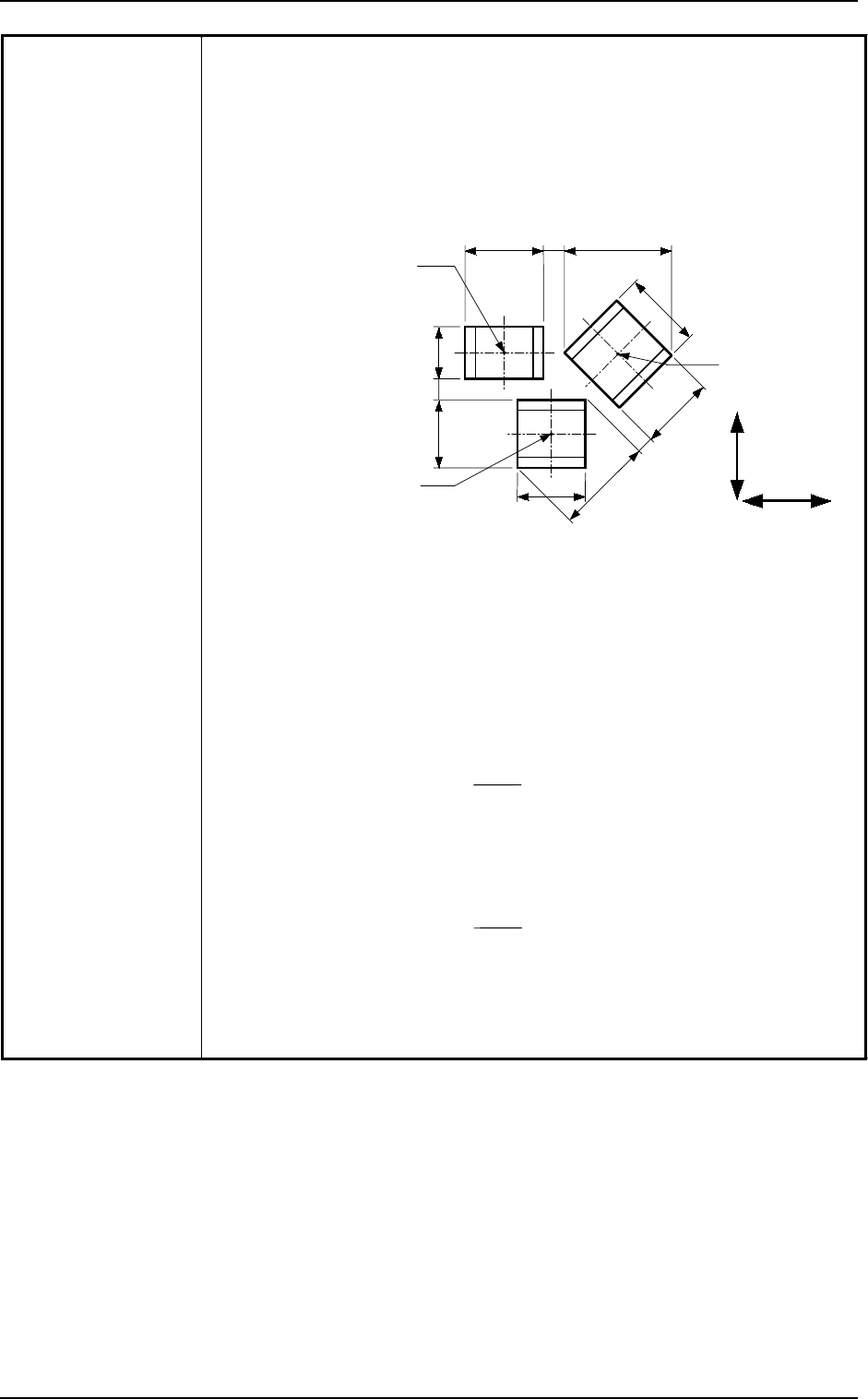

(2) Adjoining Distances between Components
(when the component placement position is taken into consideration)
A
a
G
F
E
b
B
C
c
H
Component
Placement Point 3
Component
Placement Point 2
Component
Placement Point 1
X Direction
Y Direction
Note: (a) The above figure shows that the vacuum nozzles are not protruding
from the outer shapes of components. Consult our sales personnel
for details.
(b) “A to H” in the above figure show the maximum dimensions including
the variations in the dimensions of each component. The minimum
adjoining distances (a, b, and c) of each component should be 0.4 mm.
(c) The minimum adjoining placement position data for component
placement points 1 and 3 is
“X Direction Data = + Min. 0.4 mm”
(The Y direction data is not related.)
(d) The minimum adjoining placement position data for component
placement points 1 and 2 is
“Y Direction Data = + Min. 0.4 mm”
(The X direction data is not related.)
(e) See the above figure and obtain the minimum adjoining placement
position data for component placement points 2 and 3.
B + E
2
A + G
2
2. Specifications
9910-001 1-15 Tg0246-PM-OP

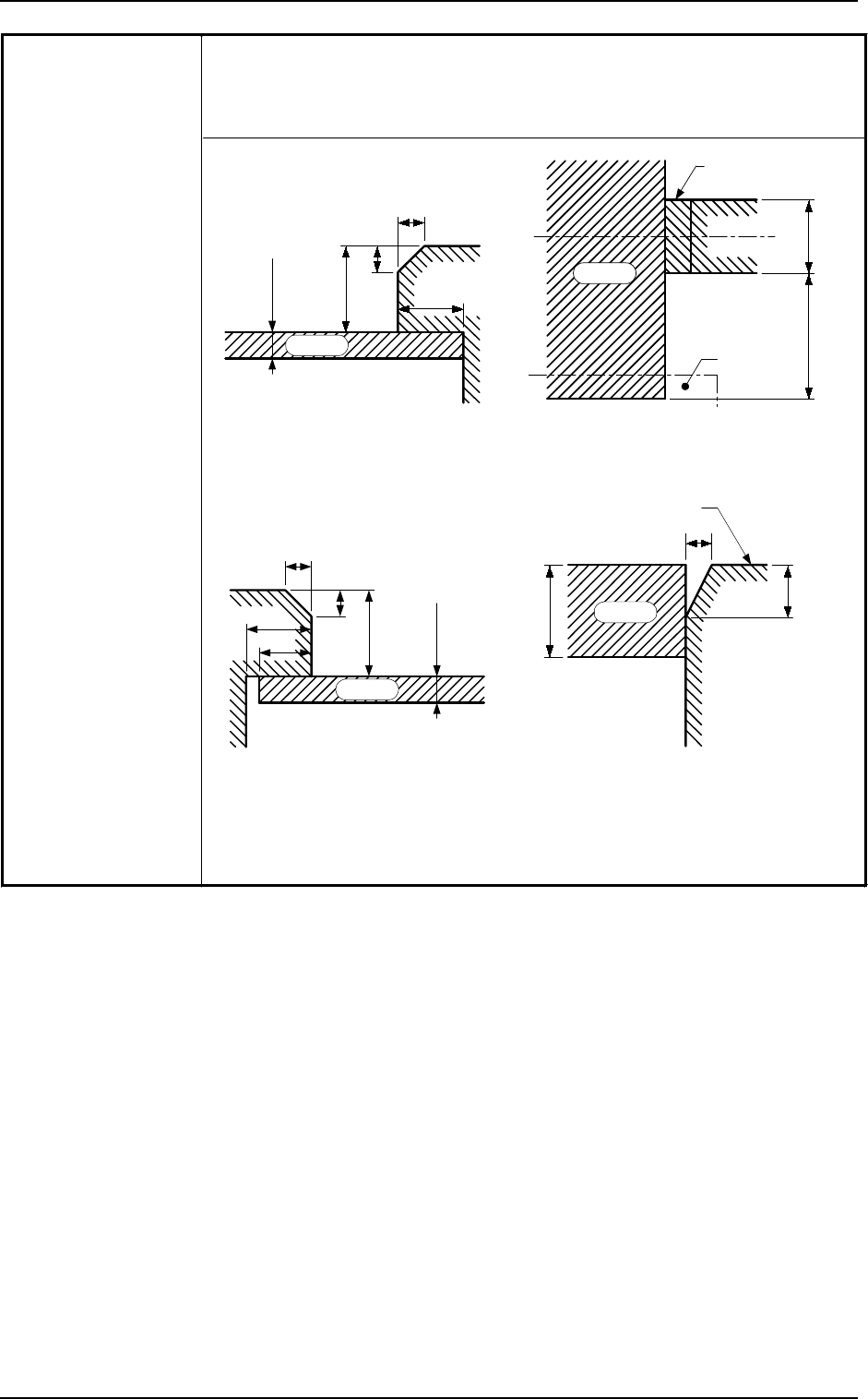

(3) Limit of Closest Distance to Obstacle
The closest distances between an obstacle (See each sectional view.) and
the vacuum nozzle or component shall be 0.5 mm or more. The upper
surface of the P.C.B. is the reference plane.
0.3 to 5
2.5
6.5
1
1
P.C.B.
6
P.C.B.
11
Chute
P.C.B. Stopper
0.3 to 5
2.5
6.5
1
1
P.C.B.
2
0.3 to 5
2
1
P.C.B.
Flush with Upper
Surface of P.C.B.
Unit: mm
Sectional View of
P.C.B. Stopper Section
Sectional View of
Movable Chute Section
Sectional View of
Fixed Chute Section
Top View of P.C.B.
Stopper Section
