7. Construction of Feeder Carriages 0308-003 1-63 Tg0246-PM-OP (2) Installable Feeder Slot Nos. at Both Feeder Base Ends Note ( a ) Fig. 1.29 shows how the feeder bases are provided. (b) Rejected component storage boxes …
7. Construction of Feeder Carriages
0308-003 1-62 Tg0246-PM-OP
7.1 Feeder Installation on Carriages

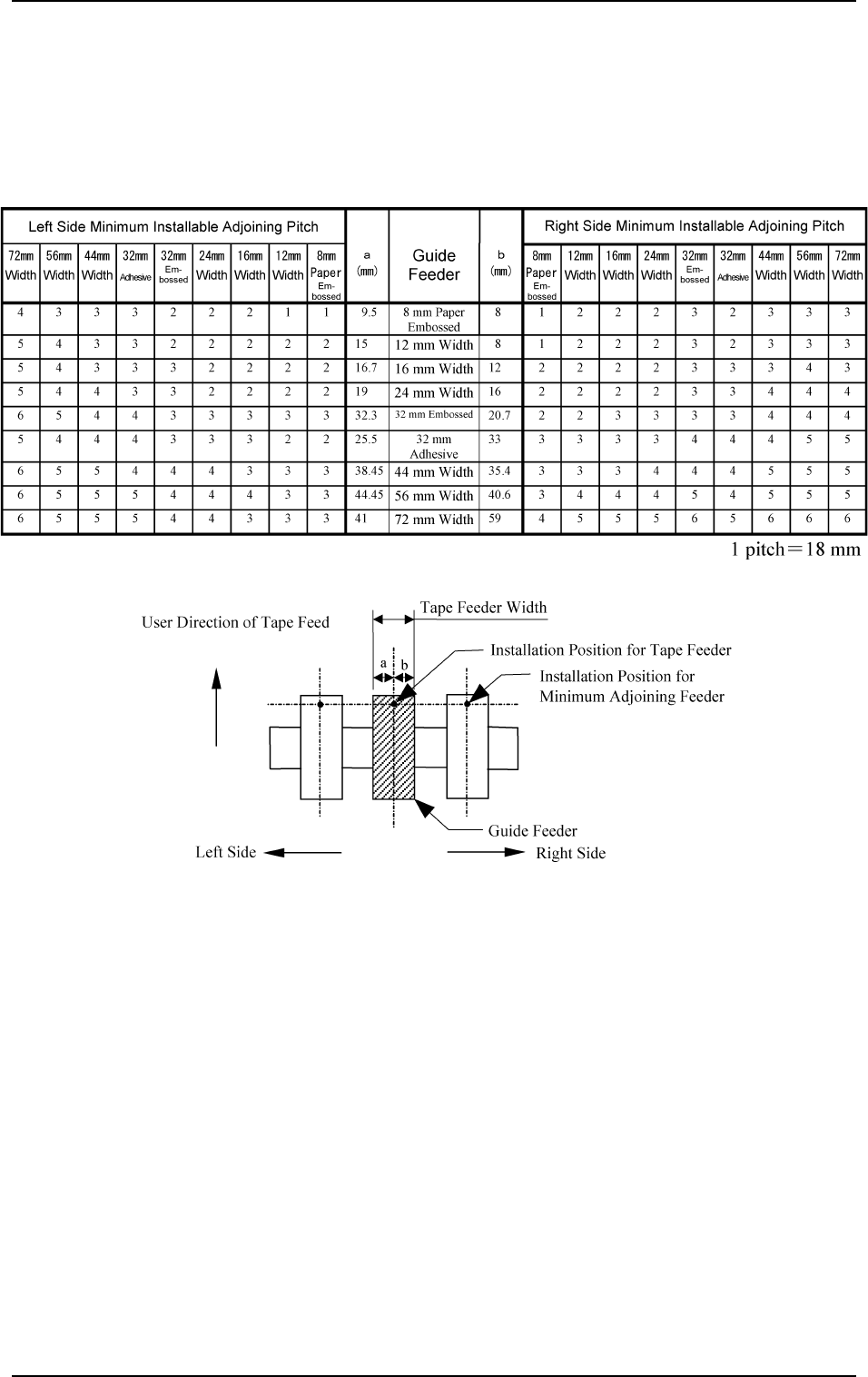

Adjoining Pitch for Tape Feeder Installation
(1) Minimum Adjoining Pitch Based on Guide Feeder
Note: Shown in Fig. 1.28 is a view based on the direction in which the feed-
ers are installed.
Table 1.9
Fig. 1.28
7. Construction of Feeder Carriages
0308-003 1-63 Tg0246-PM-OP

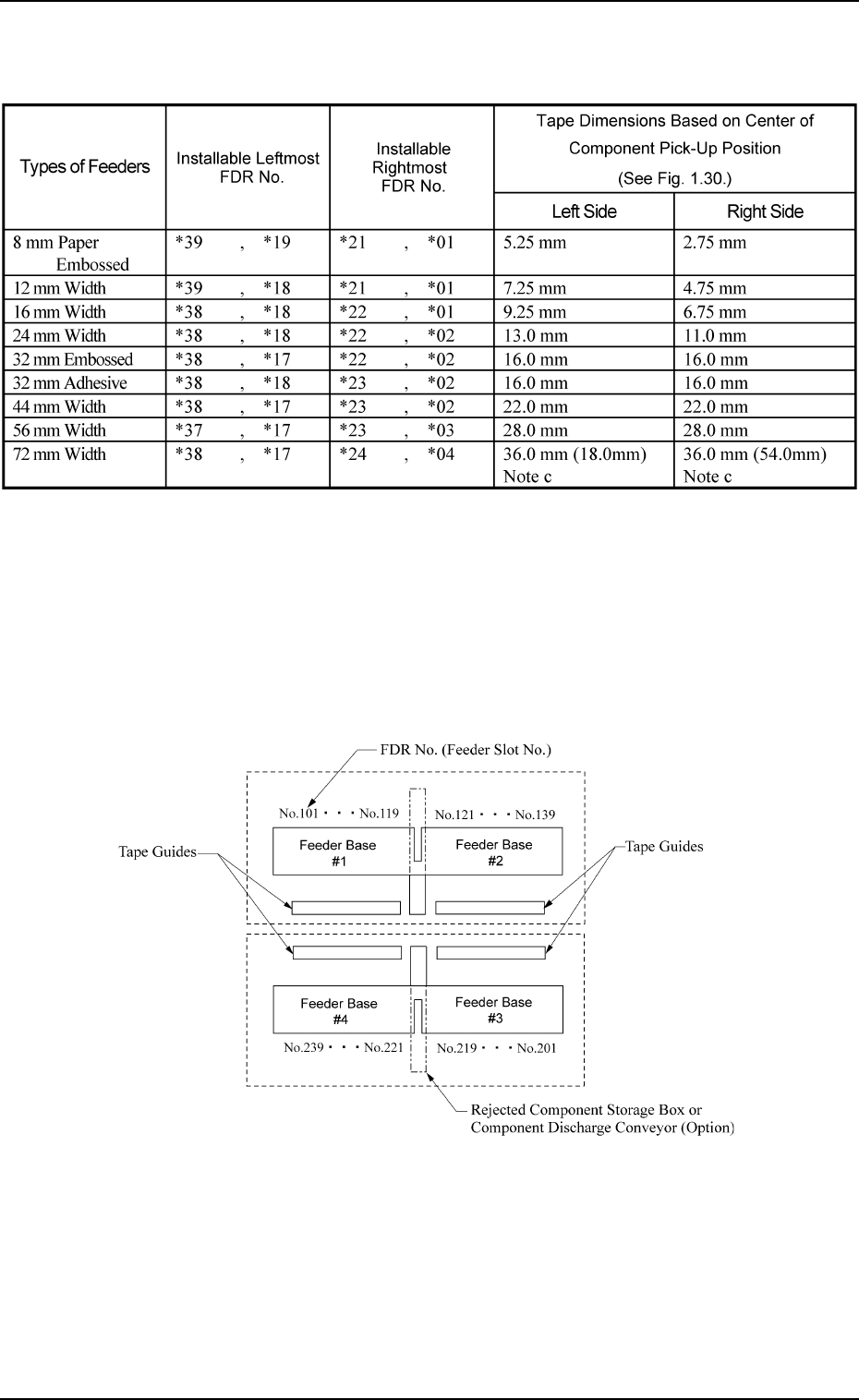

(2) Installable Feeder Slot Nos. at Both Feeder Base Ends
Note (a) Fig. 1.29 shows how the feeder bases are provided.
(b) Rejected component storage boxes or component discharge conveyors (op-
tion) can be mounted between Feeder Bases #1 and #2 and between Feeder
Bases #4 and #3.
(c) The dimensions in ( ) are those (tape width) based on the tape feeder instal-
lation position.
Table 1.10
Beam A Side
Beam B Side
(Front Side of Machine)
Fig. 1.29
7. Construction of Feeder Carriages

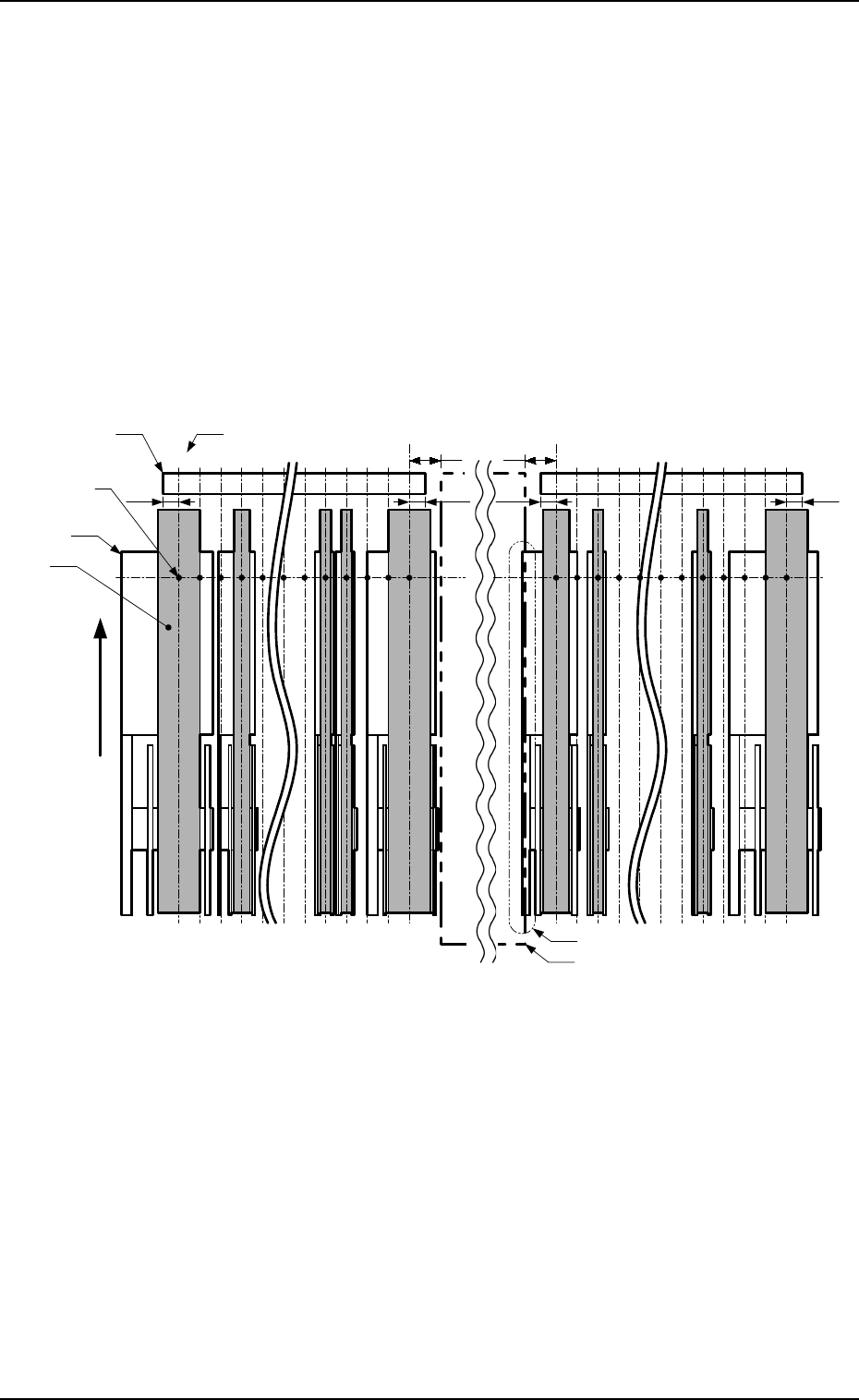

Example: Fig. 1.30 shows how tape feeders are installed on the feeder bases.
• FDR No. *01
The tape feeder cannot be installed on the feeder base because the tape
interferes with the tape guide when the tape is fed out.
• FDR No. *19
The tape feeder cannot be installed on the feeder base because it inter-
feres with the rejected component storage box or the component dis-
charge conveyor (option).
• FDR No. *21
The tape feeder cannot be installed on the feeder base because the tape
interferes with the tape guide when the tape is fed out.
• FDR No. *39
The tape feeder cannot be installed on the feeder base because the tape
interferes with the tape guide when the tape is fed out.
7.3
*39
Tape Feeder
Center of Component
Pick-Up Position
Rejected Component Storage Box or
Component Discharge Conveyor (Option)
7.3
*21
*23*25*37 *35 *01*03*05
*19
*17 *15
FDR No. (Feeder Slot No.)
Tape
Tape Guide
10 10
Left Side
7.37.3
User Direction of
Tape Feed
(Direction of
Unreeling the Tape)
Right Side
Interference (Installation Impossible
)
Fig. 1.30
9910-001 1-64 Tg0246-PM-OP
