2. Specifications 9910-001 1-18 Tg0246-PM-OP (2) Stick Components Note: Some components cannot be used due to the mechanical char- acteristics and shapes, etc. Consult our sales personnel for details. (3) T ray Component…
2. Specifications
9910-001 1-17 Tg0246-PM-OP
Notes: (a) Some components cannot be used due to the mechani-
cal characteristics and shapes, etc. Consult our sales
personnel for details.
(b) Use a tape which will fit the outer diameter of Max.
φ 382 mm or less.
(c) The 72 mm tapes are on-specification products (prod-
ucts made in compliance with our standard). Consult
our sales personnel for details.
Tape Width : 32 mm
Packaging Standard
Taping Reel
Applicable Components for Reference
TB 3212
TB 3216
TB 3220
TB 3224
TB 3228
TB3232
R32
TJ 3212
TJ 3216
TJ 3224
TJ 3232
TJ 3236
R73
• Mini-Flat Packaged ICs (SOP-IC)
8 to 10Pins
14 to 28Pins
• Other similar-shaped components
Tape Width : 44 mm
Packaging Standard
Taping Reel
Applicable Components for Reference
TB 4424
TB 4428
TB 4432
TB 4436
TB 4440
TB 4444
R44
• Connectors
• Other similar-shaped components
Tape Width : 56 mm
Packaging Standard
Taping Reel
Applicable Components for Reference
TB 5640
TB 5644
TB 5648
TB 5652
TB 5656
R56
Note (b)
• Connectors
• Other similar-shaped components
Tape Width : 72 mm
Packaging Standard
Taping Reel
Applicable Components for Reference
Note (c) Note (b)
Note (c)
• Connectors
• Other similar-shaped components
2. Specifications
9910-001 1-18 Tg0246-PM-OP
(2) Stick Components
Note: Some components cannot be used due to the mechanical char-
acteristics and shapes, etc. Consult our sales personnel for
details.
(3) Tray Components
Notes: (a) In the case of the connector, this recognition can be
applied to Max. 150
× 26 mm.
(b) Irregular-shaped components can also be used when an
optional device is provided.
(c) Some components cannot be used due to the mechani-
cal characteristics and shapes, etc. Consult our sales
personnel for details.

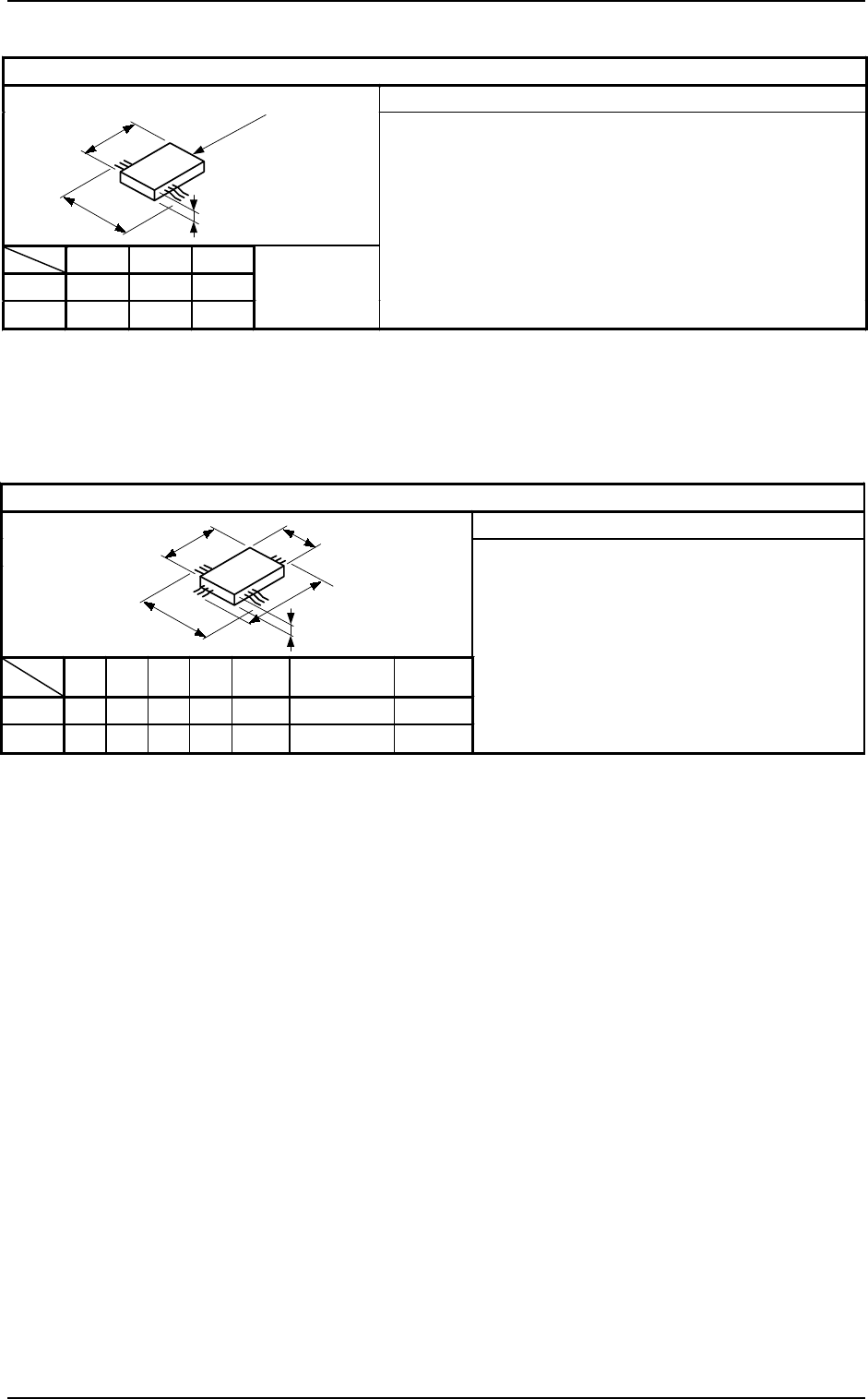

Packaging Standard
Applicable Components for Reference
t
a
d
b
c
abcd t
Lead End
Thickness
Mass
Min.
7755 − 0.10 −
Max
5 5 5 5 25.4 − 20 g
•
Flat Packaged ICs
•
Connector
•
Other similar-shaped components
Packaging Standard
Applicable Components for Reference
t
a
b
Direction of
Component Feed
ab t
Min. 551
Max. 55 30 12.7
• Mini-Flat Packaged ICs (SOP-IC)
8 to 10Pins
14 to 28Pins
• PLCC
• LCC
• Other similar-shaped components
Unit : mm
40. Requirements for Simultaneous Component Picks
(1) Feeders Available for Simultaneous Component Picks
Tape Feeders
(2) Requirements for Simultaneous Picks
As the distance between the nozzle rotational centers of Heads
#1 and #2 is “108 mm”, components can be picked up simulta-
neously only when the distance of the component supply posi-
tion is “108 mm”.
Consult our sales personnel for details.
Notes: (a) When two components are on different feeder
bases, they cannot be picked up simultaneously.
(b) When a component is specified for eccentric pick-
up operation, it cannot be picked up simultaneously.
Simultaneous Pick Position
(Component Loading Position)
108
9910-001 1-19 Tg0246-PM-OP
2. Specifications
Unit : mm
