5. Operation Mode
5.6 COMPONENT MISSING CHECK MODE Display
• This display allows the operator to determine whether or not the component
missing check mode should be enabled or disabled.
When the [COMP. MISSING CHECK MODE] key is pressed at the “OPERA-
TION MODE” display, the following display appears on the screen.
0004-002 3-31 Tg0246-PM-OP

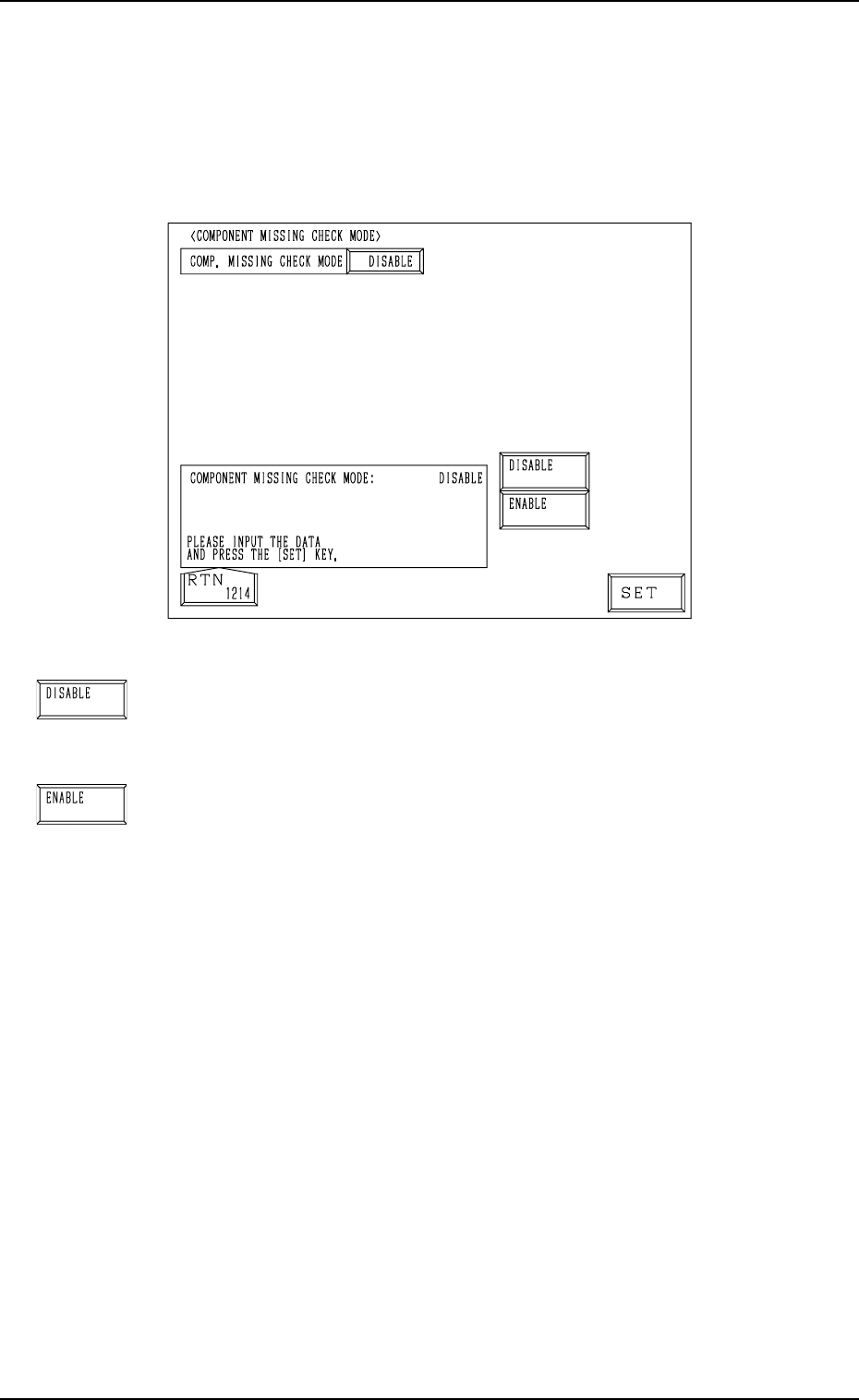

Fig. 3.15
[DISABLE] Key
When this key is selected, “DISABLE” is set in the “COMP.
MISSING CHECK MODE” data box, indicating that the com-
ponent missing check mode is disabled.
[ENABLE] Key
When this key is selected, “ENABLE” is set in the “COMP.
MISSING CHECK MODE” data box, indicating that the com-
ponent missing check mode is enabled.
6. RECOVERY OPN. TEACHING OPN. Display
9910-001 3-32 Tg0246-PM-OP
6. RECOVERY OPN. TEACHING OPN. Display
Menus are provided to edit or correct pattern program data, edit component
library data, change the feeding angle of a packaged component, and check
feeder (B) offset data.
When the [RECOVERY OPN TEACHING OPN] key is pressed at the “AUTO
OPN. SUB-MENU” display, the following display appears on the screen.
Note: The -marked items are optional.

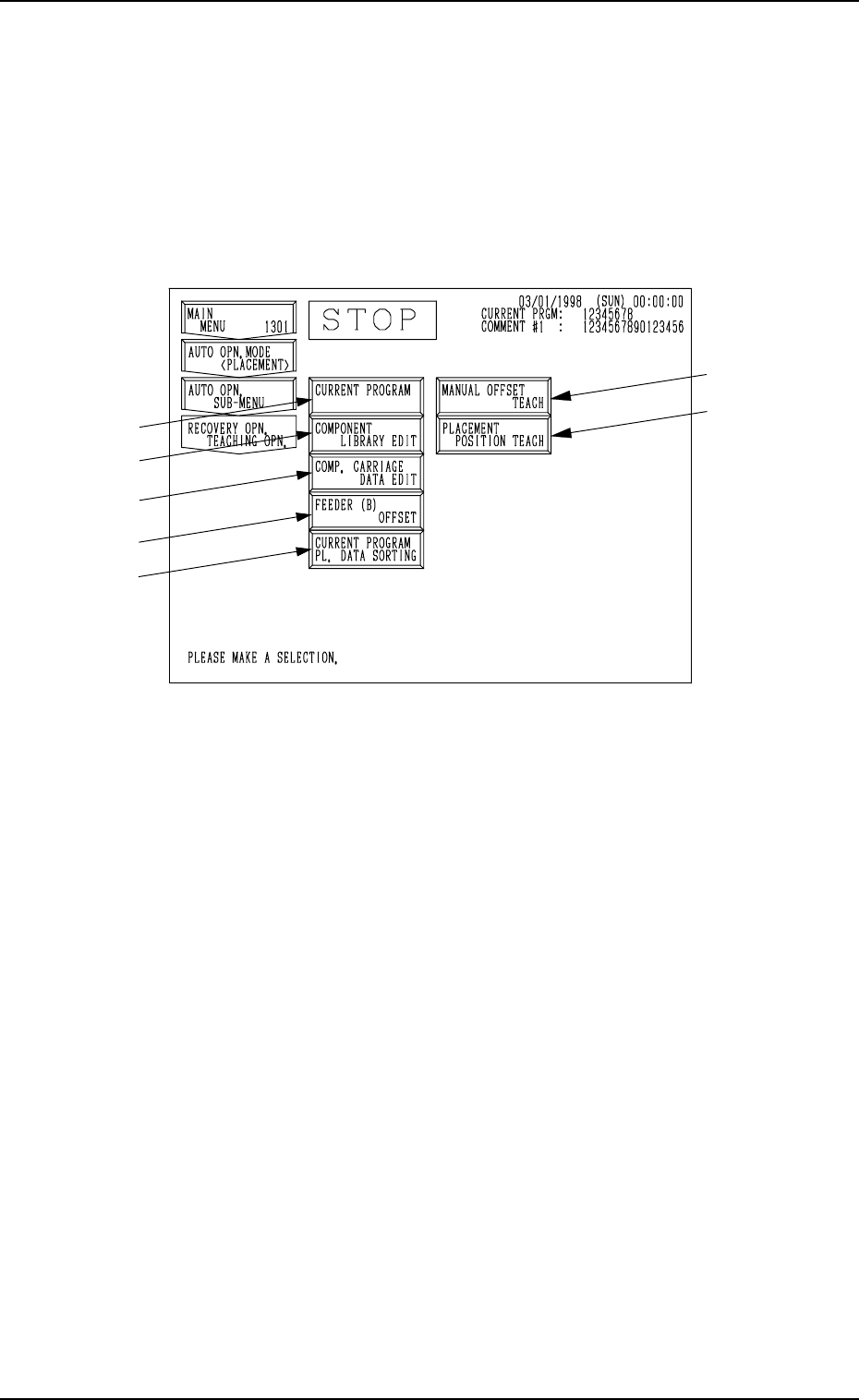

Fig. 3.16
*1 [CURRENT PROGRAM] Key
When this key is pressed, the “PATTERN PROGRAM EDIT” display ap-
pears on the screen, enabling the correction and editing of the current pat-
tern program data.
*2 [COMPONENT LIBRARY EDIT] Key
When this key is pressed, the “COMPONENT LIBRARY” display ap-
pears on the screen, enabling the correction of the component library data.
*3 [COMP. CARRIAGE DATA EDIT] Key
When this key is pressed, the “COMPONENT CARRIAGE DATA EDIT”
display appears, enabling the alteration of the component carriage data. When
component packaged equally cannot be prepared for component replenish-
ment and components of the same type but packaged differently in direction
or packaging type (Example: a packaging type changed from a paper to an
embossed tape) must be supplied, this function enables the continuous op-
eration temporarily after replenishment of such components.
*4 [FEEDER (B) OFFSET] Key
When this key is pressed, the “FEEDER (B) OFFSET” display appears on
the screen, enabling the confirmation and editing of the feeder (B) offset
data. This is the same display which appears when the [FEEDER (B) OFF-
SET] key is selected at the “OFFSET DATA” display (the display located
hierarchically below the “DATA EDIT” display).
*1
*2
*3
*4
*5
6. RECOVERY OPN. TEACHING OPN. Display
9910-001 3-33 Tg0246-PM-OP
*5 [CURRENT PROGRAM PL. DATA SORTING] Key
When this key is pressed, the “PLACEMENT DATA SORTING” display
appears on the screen, enabling the sorting of placement order.
Refer to “2.1.4 PLACEMENT DATA SORTING Display and 4.1.3 PLACE-
MENT DATA SORTING Display of Section 2 in Volume 2” for details.
6.1 PATTERN PROGRAM EDIT Display
When the [CURRENT PROGRAM] key is pressed at the “RECOVERY OPN.
TEACHING OPN.” display, the following display appears on the screen.
Notes: (a) When the machine is set in the “RUN”, “WAIT”, or “PAUSE”
mode, the data save operation (saving of changed setting) can-
not be performed. The displayed parameters can only be referred
to.
(b) The -marked functions are optional.

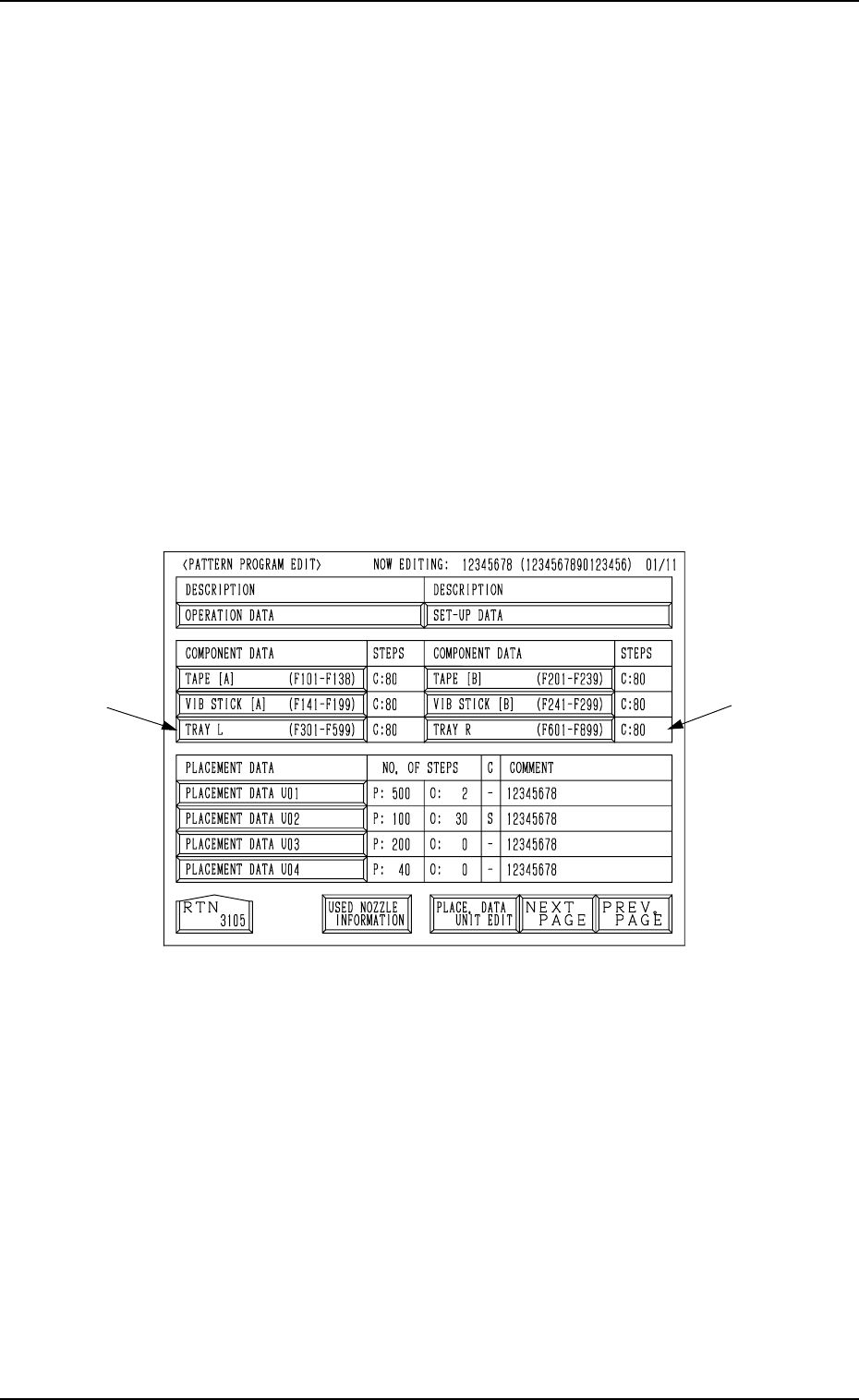

Fig. 3.17
Refer to “4. PATTERN PROGRAM Display of Section 2 in Volume 2” for
details.
