1. Safety Precaution “Safety Requirements”

0304-002 9 Tg0246-PM-OP

1. Safety Precaution “Safety Requirements”

This section describes "1.1 Caution of Pre-Installation", "1.2 Precautions be-

fore Operation", "1.3 Precautions during Operation", "1.4 Precautions

in Maintenance" and "1.5 Other Precautions". Please read the following

items carefully before using the machine to ensure smooth operation.

1.1 Caution of Pre-Installation

If the machine is installed in unsatisfactory environmental condition, it will mal-

function due to damage or breakdown made to bear on the machine. To avoid

this, make preparations to install the machine as follows.

• The primary power source must be prepared on the local source.

Voltage: 200 ± 20 V AC, 3-Phase

Maximum Power Consumption: Approx. 7kVA

• Our service personnel will connect the primary power source.

When any person other than our service personnel must connect the primary

power source, consult our marketing depatment or sales agency beforehand.

• If the machine is scheduled to be transferred to another place, please contact

our sales division or agency beforehand.

• Select a place solid enough to support the

weight of the machine.

Ref.: It is recommended that the ma-

chine should be installed on the

first floor.

When the machine has to be

installed on a floor other than the

first one, please consult our sales

personnel or agency for details.

• Avoid any place that vibrates severely.

• Environmental temperature must be 20 ±

10°C, humidity 30% to 80%, and dew

condensation must be avoided.

• Ensure that the selected place is free from

electric noises.

1.1 Caution of Pre-Installation

0304-002 10 Tg0246-PM-OP

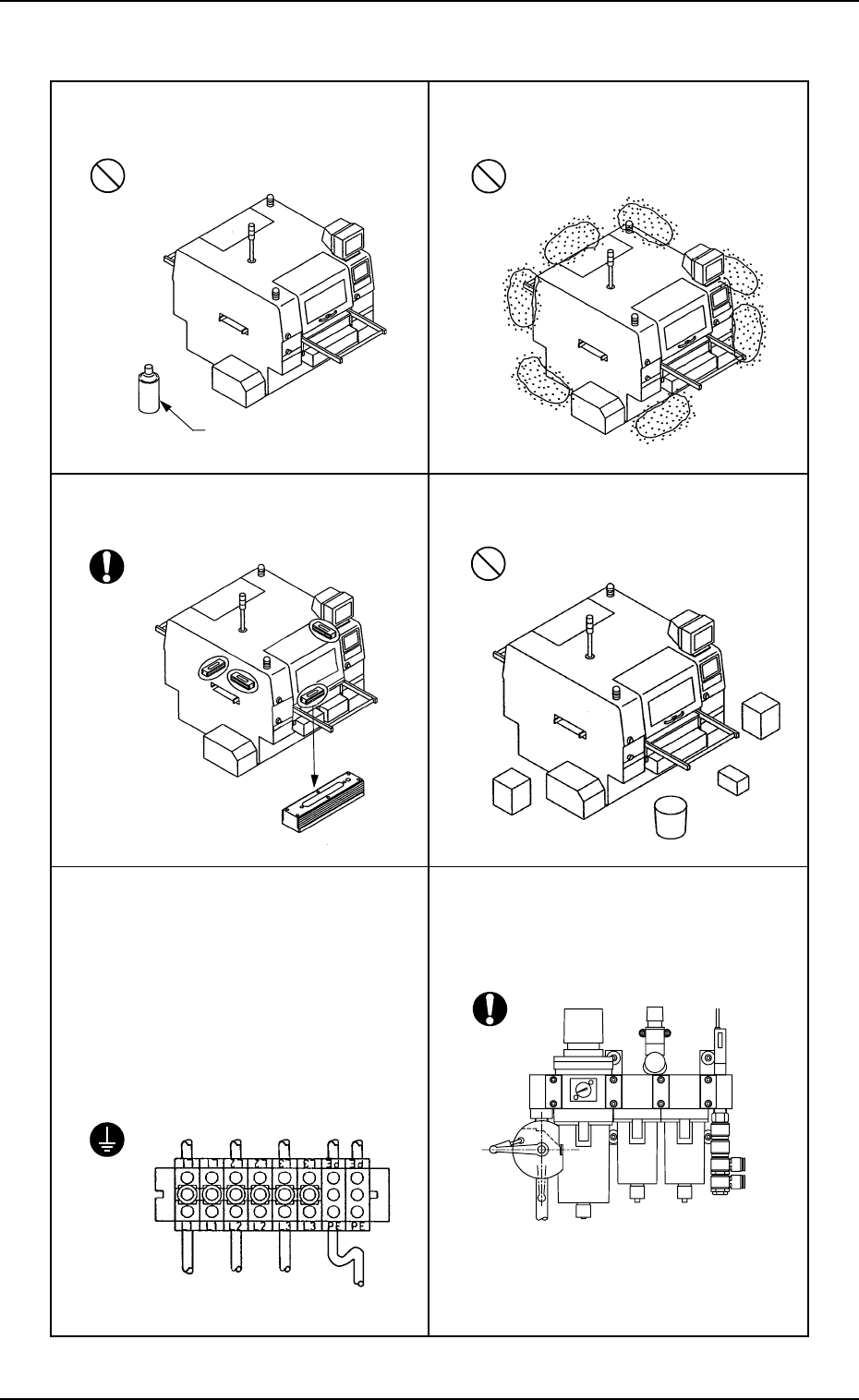

• Do not expose the machine to combustible

and corrosive gas.

• Select a place free from lamp soot and dust.

• Level the machine at the correct height,

using a level vial.

• The machine should be located at a place

free from obstacles for easy maintenance.

• Primary power supply must be connected

terminals “L1”, “L2”, and “L3” and the

ground wire to “PE”.

Voltage: 200 ± 20 V AC, 3-Phase

Maximum Power Consumption:

Approx. 7kVA

Note: Make the PE wire longer than the

others “L1 through L3 wires”,

giving some leeway.

Combustible and

Corrosive Gas

• Clean, dry, and non-lubricated air (air con-

taining no moisture, oil, and dust) must be

supplied at an air pressure of 0.49 to 0.69

MPa (5 to 7 kgf/cm

L2L1 PEL3
