2. Specifications
9910-001 1-9 Tg0246-PM-OP
16. Number of
Installable Feeders
(1) Tape Feeders
Max. 76 feeders (when only 8 mm tape feeders are used)
(Max. 38 feeders when only 12 mm tape feeders are used)
(Max. 36 feeders when only 16 mm tape feeders are used)
(Max. 36 feeders when only 24 mm tape feeders are used)
(Max. 24 feeders when only 32 mm tape feeders are used)
(Max. 18 feeders when only 32 mm adhesive tape feeders are used)
(Max. 16 feeders when only 44 mm tape feeders are used)
(Max. 12 feeders when only 56 mm tape feeders are used)
(Max. 12 feeders when only 72 mm tape feeders are used)
(2) Stick Feeders (Vibratory)
Max. 12 feeders
(when only vibratory stick feeders are used)
(3) Tray Feeders
Max. 2 feeders (Up to 360 types can be used)
Ref. : Tray feeders do not give any effect to the number of installable tape
and stick feeders.
Note : The number of installable feeders varies according to the combination
of tape and stick feeders. Consult our sales personnel for details.
17. Placement Heads Equipped with 4 DD (Direct-Drive Motor) Heads (2 beams)
18. Number of
Stocked Vacuum
Nozzles
Up to 20 nozzles can be attached. (Standard)
Up to 40 nozzles can be attached. (Option)
When the machine is provided with the lead coplanarity detection function
(option), up to 30 nozzles can be attached.
1 Type/DD Head
(Selected automatically according to the components being used)
19. Control System Numerical Control by Microcomputer
20. Pattern Program
Data Code
ASCII Code
21. Pattern Program
Memory Capacity
Maximum Number of Steps : 5,000 steps/model
Maximum Memorized Number of Steps : 7,600 steps
Maximum Memorized Number of Models : 24 models
Note : The occupied capacity is determined according to the interrelation of
the above-described conditions.
22. Pattern Program
Data Saving
Built-In Backup RAM
Pattern program data can be saved in the data storage device of the
programming device (option).
23. Pattern Program
Data Editing and
Input
Pattern program data editing is possible through touch screen key operations
of the monitor for operation or using the programming device (option).
Pattern program data can be entered through serial data transfer from the data
storage device of the programming device.
24. Pattern Program
and Management
Data Output
Data can be displayed on the monitor for operation, printed out from the
printer (option), and transferred to the data storage device of the programming
device.
2. Specifications
9910-001 1-10 Tg0246-PM-OP
Camera for Extra Large Visual Field
Front Lighting Recognition
2.0 × 1.2 to 46 × 46 mm
Batch
Back Lighting Recognition
2.0 × 1.2 to 36 × 36 mm
Divided
Front Lighting Recognition Max. 55 × 55 mm
Note
Minimum Lead Pitch : 0.5 mm
Minimum Ball Diameter : φ 0.5 mm
Minimum Ball Pitch : 0.7 mm
Camera for Large Visual Field
Front Lighting Recognition
2.0 × 1.2 to 46 × 34 mm
Batch
Back Lighting Recognition
2.0 × 1.2 to 36 × 35 mm
Divided
Front Lighting Recognition Max. 55 × 55 mm
Note
Minimum Lead Pitch : 0.4 mm
Minimum Ball Diameter : φ 0.4 mm
Minimum Ball Pitch : 0.55 mm
Camera for Small Visual Field
Front Lighting Recognition
1.0 × 0.5 to 23 × 15 mm
Batch
Back Lighting Recognition
1.0 × 0.5 to 23 × 15 mm
Divided
Front Lighting Recognition Max. 55 × 55 mm
Minimum Lead Pitch : 0.3 mm
Minimum Ball Diameter : φ 0.19 mm
Minimum Ball Pitch : 0.27 mm
Applicable
Component Sizes
Note : In the case of the connector , this recognition can
be applied to Max. 150 × 26 mm.
Ref. : Two types of cameras (four cameras in total) can
be installed on Beams A and B.
Photoimage Front Lighting System
(Direct Recognition of Component by Front Lighting)
Back Lighting System
(Recognition by Component Silhouette)
25. Component
Recognition
Notes : (a) The cameras are automatically selected according to the shape
and size of a component.
(b) The cameras (option) are to be selected by the customer. As a
standard combination of cameras, four large view cameras are
recommended. Consult our sales personnel for details.
Visual Field Approx. 16 × 12 mm
Ref. : One camera is installed on Beam A and the other
on Beam B.
Window Size 1.0 × 1.0 to 5.0 × 5.0 mm
Recognition
(Processing) Time
Approx. 0.15 second/mark
(including the reading time of the image)
Photoimage Front Lighting System
(Recognition of Fiducial Mark by Front Lighting)
(“Normal” or “Reverse” can be selected for each mark.)
26. P.E.C.
Recognition
Notes : (a) The above recognition time will be obtained when the window
size is “3 × 3 mm” and a fiducial mark size is “φ 1.0 mm”. The
recognition time changes according to the window size, a fiducial
mark size, etc.
(b) Time of X/Y beam movement is included in the actually
measured recognition time.
2. Specifications
9910-001 1-11 Tg0246-PM-OP

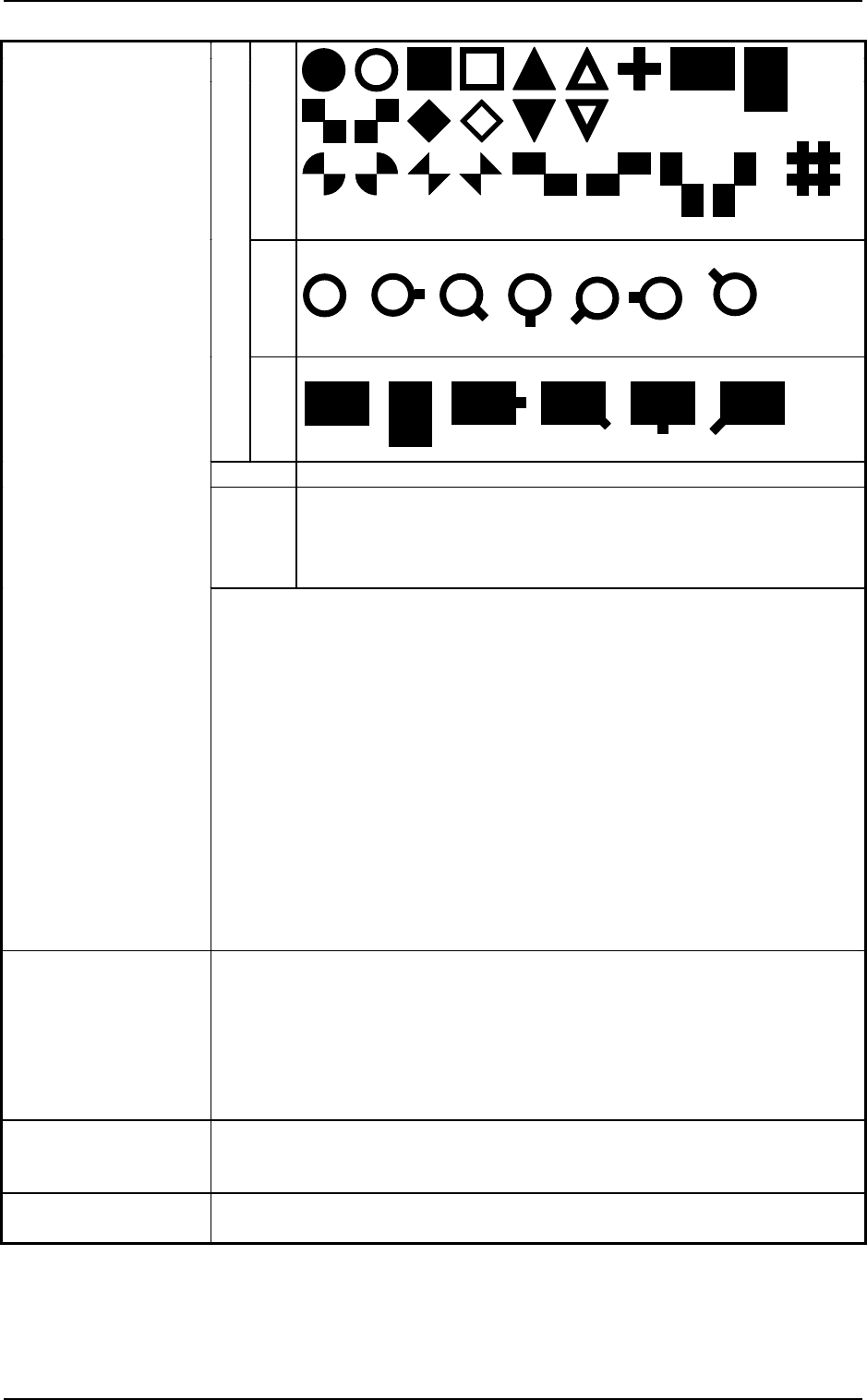

Fiducial Marks
Through
Hole
s
Shapes
Pad Marks
Size 0.5 to 2.0 mm
Material
• Copper Leaf (Au and Ni plating possible but mirror surfaces
cannot be used.)
• Solder-Plated Marks (Consult our sales personnel for details.)
• Solder Leveler (Consult our sales personnel for details.)
27. Fiducial Marks
Notes : (a) A through hole or a pad mark should have only one land which
is directed in increments of 45°. Consult our sales personnel for
details.
(b) The fiducial mark should make ample contrast with the
surroundings.
(c) A test may be required when the fiducial mark cannot be
recognized because of the extreme warpage of the PCB.
(d) Anything like a pattern similar to a fiducial mark should not
exist in the designated window. If exists, it may cause a false
recognition. Also the shape (a cutout, a punched hole) of the
PCB, the light reflected from a structure, or the light from the
external elements may sometimes interfere with the recognition.
Consult our sales personnel for details.
(e) Consult our sales personnel for details if you require additional
information.
28. Specifications of
Automatic Setup
Function
When a program change is made, the PCB transfer conveyor width and the
PCB backup pin’s up/down movement are automatically set up.
Minimum Unit of Movement
PCB Transfer Conveyor Width : 0.1 mm
(Resolution : 0.0025 mm/pulse)
PCB Backup Pin Up/Down Movement : 0.01 mm
(Resolution : 0.00048075 mm/pulse)
29. Power Supply 200 ± 20 V AC, 3-Phase, 50/60Hz
Connected to the power supply unit (3-phase 4-wire system)
(One of the four wires is used as a ground wire.)
30. Maximum Power
Consumption
Approx. 7 kVA
Others
Others
(Under Development)
