3. AUTO OPN SUB-MENU Display 0004-002 3-8 Tg0246-PM-OP *2 [SIDE A [MOVE]] or [SIDE B [READY]] Key/ [SIDE B [MOVE]] or [SIDE A [READY]] Key These keys are used to inform the machine that a feeder on the feeder base is set…

3. AUTO OPN SUB-MENU Display

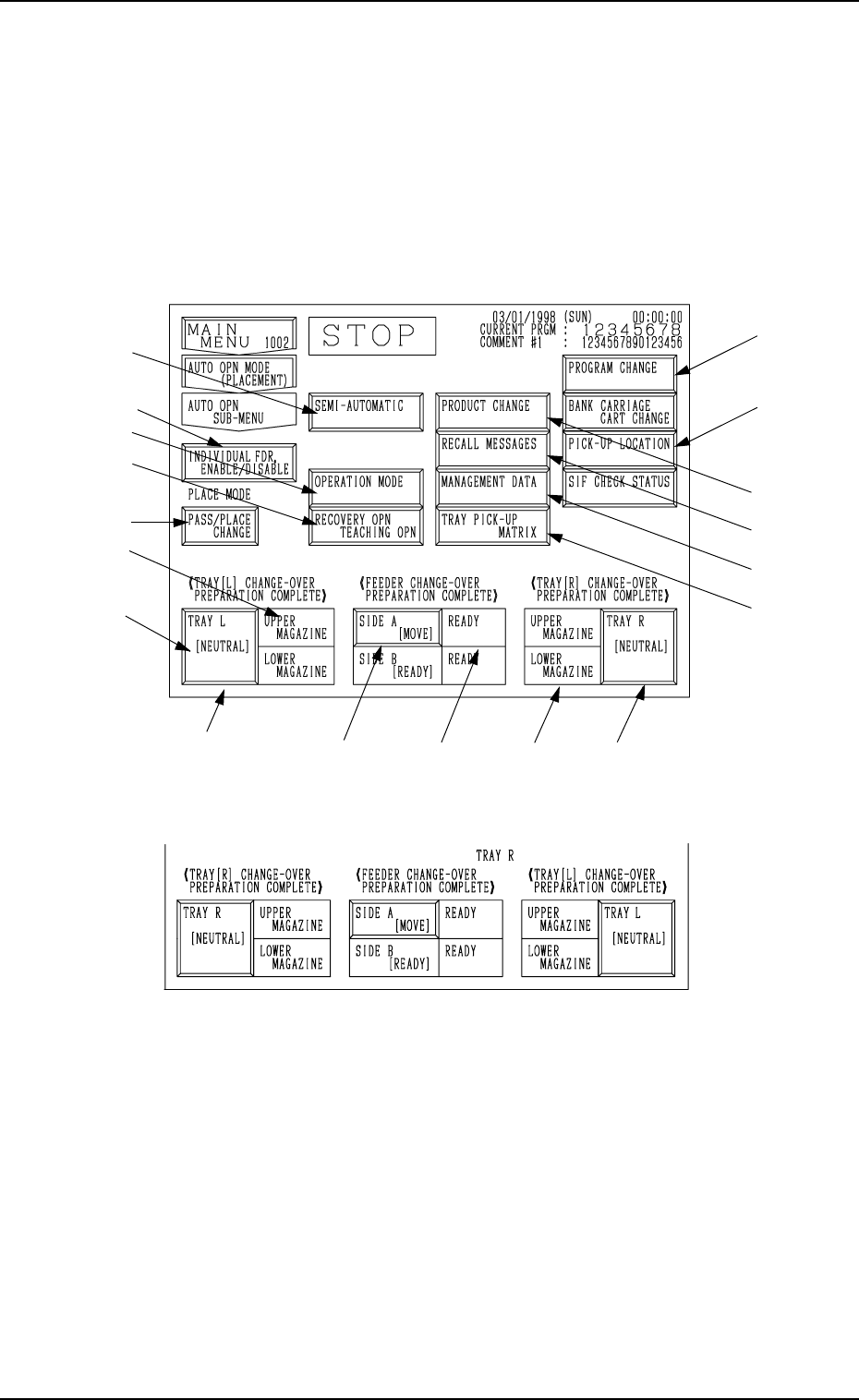

Fig. 3.2-1 Operation Display for Side B

Fig. 3.2-2 Operation Display for Side A

Operation Keys

*1 [PASS/PLACE CHANGE] Key

This key is used to change the placement mode (ON/OFF of Vacuum

Pump).

Note: When the machine is set in the “STOP” mode, this key can be

selected.

*3 *5 *4

*10

*11

*12

*13

*14

0103-003 3-7 Tg0246-PM-OP

3. AUTO OPN SUB-MENU Display

When the [AUTO OPN SUB-MENU] key is pressed at the “AUTO OPN MODE

(PLACEMENT)” display, the following display appears on the screen.

Note: There is a slight difference in the operation displays between the front

side (Side B) and the rear side (Side A).

Operation and function keys required for automatic operation can

be selected at this display.

*16

*15

3. AUTO OPN SUB-MENU Display

0004-002 3-8 Tg0246-PM-OP

*2 [SIDE A [MOVE]] or [SIDE B [READY]] Key/[SIDE B [MOVE]] or

[SIDE A [READY]] Key

These keys are used to inform the machine that a feeder on the feeder base

is set ready for replacement and component replenishment.

Note: Only the status is displayed on the operation-available side.

Press the [SIDE X [READY] key before performing the compo-

nent replenishment operation. “X” represents either “A” or “B”.

• When one of these keys is pressed with “NOT READY” in *3 and the

[MOVE] button is pressed after the key turns “ON” in blue, the opera-

tion available and opposite sides can be set ready for operation. (The

supply covers and the safety bars are locked and the machine starts run-

ning.)

• When one of these keys is pressed with “READY” in *3 and the [MOVE]

button is pressed after the key turns “ON” in blue, the operation avail-

able and opposite sides can be set ready for component supply opera-

tion. (The X/Y beam moves to its standby position, the supply covers

and the safety bars are unlocked, and the machine is set ready for com-

ponent supply to the tape feeders.)

WARNING

The X/Y beam on the opposite side to the op-

eration available side starts moving.

It is dangerous! Confirm that there is no person

on the opposite side.

When the machine is operated by more than

one person, ensure good communication by giv-

ing loud verbal instructions.

*3 Mode: “READY”, “NOT READY”, or “RUN”

A mode appears, indicating whether or not the machine is set ready for

component supply operation or showing that the machine is in the process

of mode change (“READY” to “NOT READY” or vice versa).

READY : The machine is set ready for component supply opera-

tion. The component supply operation can be performed.

NOT READY : The machine is not set ready for component supply op-

eration.

The supply covers and the safety bars are unlocked, mak-

ing it possible to supply components to the tape feeders.

RUN : The machine is in the progress of mode change

(“READY” to “NOT READY” or vice versa).

The machine is performing a series of operations such

as X/Y movement to the stationary position, X/Y beam

power ON/OFF, and electromagnetic locks ON/OFF.

3. AUTO OPN SUB-MENU Display

9910-001 3-9 Tg0246-PM-OP

*4 [TRAY L [NEUTRAL]/[LOCAL]/[LINE]] and [TRAY R (NEUTRAL]/

[LOCAL]/[LINE]] Keys (Options)

These keys are used to set the multi-layer tray feeder (L) or (R) in the

connection mode (line).

The label in [ ] shows the condition of the multi-layer tray feeder.

[NEUTRAL] : The multi-layer tray feeder is in the same condition as

that set when power is supplied.

[LOCAL] : The multi-layer tray feeder is in the “Local” mode. As

it is separated forcibly from the main machine, the au-

tomatic operation cannot be performed.

Manual operation is possible with the touch panel on

the multi-layer tray feeder side.

[LINE] : The multi-layer tray feeder is connected forcibly to the

main machine.

The multi-layer tray feeder is set ready for automatic

operation.

*5 UPPER MAGAZINE or LOWER MAGAZINE (Options)

These labels indicate whether or not the upper or the lower magazine on

the multi-layer tray feeder is set ready.

ON (Green) : Ready

OFF : Component Supply Possible

Function Keys

*6 [PROGRAM CHANGE] Key

This key is used to change current pattern program.

Refer to “3. Program Change of Section 4” for details.

*7 [SEMI-AUTOMATIC OPERATION] Key

This key is used to call the start-up menu for component placement start-

ing in the middle of pattern program data steps.

The related functions are used to reset the machine to the normal condi-

tion and start up the operation again after power is shut off during opera-

tion or to re-start the operation in the middle of steps after system clear

operation.

*8 [OPERATION MODE] Key

When this key is pressed, the “OPERATION MODE” display opens. Ba-

sically parameters for operation mode are set in the current pattern pro-

gram data. When some of the parameters (feeder alternate cancel, etc.)

must be modified according to situational changes and the required menu

key is pressed at the “OPERATION MODE” display, the corresponding

display opens, enabling the alteration of parameters set in the data boxes

labeled such as “RECOVERY MODE” (reserved function), etc.

*9 [RECOVERY OPN TEACHING OPN] Key

When this key is pressed, the “RECOVERY OPN TEACHING OPN” dis-

play opens, enabling the selection of menu keys to edit or correct pattern

program data, to change the feeding angle of a packaged component, to

edit or correct feeder (B) offset data, etc.

*10 [PRODUCT CHANGE] Key

This key is used to set up the conveyor width, etc.

Refer to “4. Product Change of Section 4” for details.
