5. Preparation and Confirmation before Operation 5.1.2 Creation of Pattern Program for Production Model A pattern program contains the information on P .C.B.’s, the arrangement of components to be placed, and component p…

5. Preparation and Confirmation before Operation

5.1 Preparation of Pattern Program

Component library data, nozzle data, placement head/nozzle data, and a pat-

tern program are required for automatic operation of the machine.

Data can be created using the optional programming device (sold separately).

The created data can be transferred to the machine side and stored in memory.

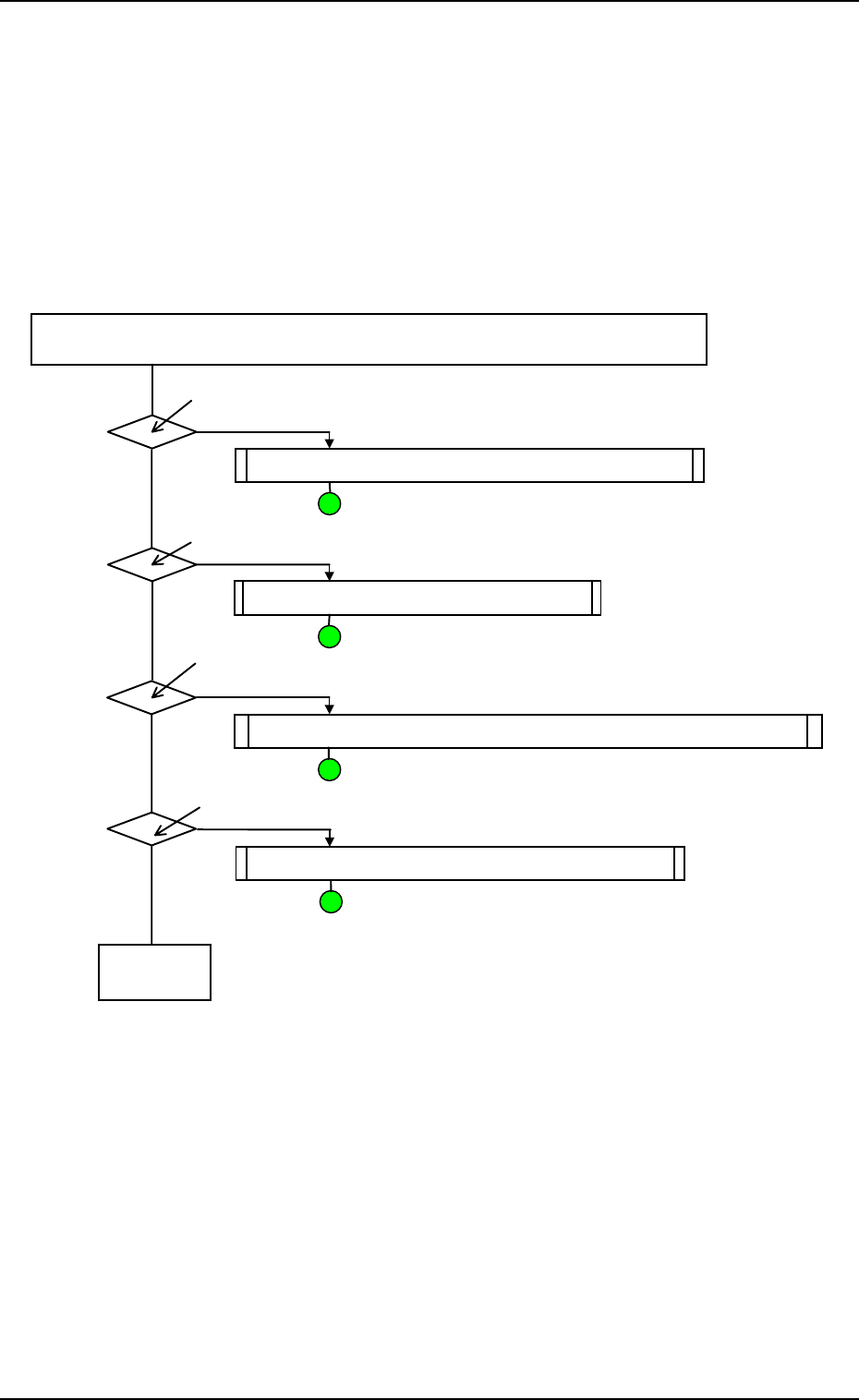

Check the data required for the machine to place components.

Is all the component library data already registered in the

machine for the components to be placed ?

Yes

Creation and Registration of Component Library Data

The nozzle data of the vacuum nozzle to be used is already registered

in the machine.

Creation and Registration of Nozzle Data

Yes

Is the placement head/nozzle data already registered in the machine

for the nozzle stocker section ? (All vacuum nozzles to be used)

Registration of placement head/Nozzle Data and Setting of Nozzles

Yes

Automatic

Operation

Is the pattern program data already registered in the machine ?

Creation and Registration of Pattern Program Data

Yes

5.1.1 Preparation of Component Library

Component library data must be created for each type of components to be

placed.

Refer to “COMPONENT LIBRARY” for details on how to create a new com-

ponent library.

In normal cases, a component library is created with the programming device

(option). The created library data is transferred to the machine side and stored

in memory.

0004-002 2-30 Tg0246-PM-OP

5. Preparation and Confirmation before Operation

5.1.2 Creation of Pattern Program for Production Model

A pattern program contains the information on P.C.B.’s, the arrangement of

components to be placed, and component placement position, etc.

Refer to “2. Pattern Program of Section 2 in Volume 2” for details on how to

create a new pattern program.

In normal cases, a pattern program is created with the programming device

(option). The created program is transferred to the machine side and stored in

memory.

5.1.3 Registration (Storage in Memory) of Pattern Program for Pro-

duction Model

The data created by this machine is stored in memory.

In normal cases, newly created component library and pattern program must

be sent from the programming device (option) and stored in memory of the

machine through data communication.

Follow the procedure below to transfer the component library and the pattern

program from the programming device to the machine.

Data Transfer (From Programming Device (Option) to Machine)

(1) Connect the power cable of the programming device to the power outlet

(100 V AC) of the console panel of this machine.

CAUTION

• Do not connect any equipment other than the

specified programming device with the power

outlet of the console panel of this machine.

Otherwise, the machine performance may be-

come unstable due to some noise, the differ-

ence on electrical characteristics, etc., or a

fuse may melt, breaking the circuit.

Specifications of Power Outlet

100V AC, 3A

(for both front and rear panels)

(2) Connect the signal cable of the programming device to the console con-

nector on the console panel of the machine.

Note: Be sure to turn off the power switches of the machine and the

programming device before the connectors are connected.

(3) Supply power to the machine and the programming device.

When a password is set, enter it. The “MAIN MENU” display appears on

the screen.

(4) Press the [CONS CHANGE] button on the machine and validate the con-

nector where the programming device is connected.

• Press the [CONS CHANGE] button on the connected side so that the

LED (-HD07) illuminates.

9910-001 2-31 Tg0246-PM-OP

5. Preparation and Confirmation before Operation

(5) Check the line letter and the device number located at the bottom right of

the “MAIN MENU” display before starting data communication.

(6) Start sending data.

Refer to the instruction manual of the programming device for details on

how to transmit data.

Notes: (a) When the pattern program is transferred from the program-

ming device to the machine, the component library data speci-

fied in the pattern program is also sent out to the machine

simultaneously.

When the component library data having the same compo-

nent ID already exists in the machine, the specified compo-

nent library data is not sent out to the machine.

The floppy disk drive (FDD) of the machine is a reserved

function. In normal cases, it is not used to register pattern

programs.

(b) The requirements for data communication are as follows.

• The number of pattern programs stored in memory of the

machine should be “24 programs (models)” or less.

The total number of steps in a pattern program should be

“7,600 steps” or less.

• No data communication is available during editing of a

pattern program.

• No data communication is available during memory check

operation.

• No data communication is available when the [OPERA-

TION/SET UP] switch is set to the “SET UP” side.
