1.3 Precautions during Operation
0004-002 12 Tg0246-PM-OP
1.3 Precautions during Operation
• When the tower lamp (green) is ON, it shows that the static machine is in the
“automatic” mode (awaiting mode).
• When there is a problem with the machine, locate the cause and assess the
condition. After the problem has been rectified, turn off power supply (if re-
quired) and follow reset procedures.
• Ensure personnel (part of body and clothes) and foreign objects remain clear
of the moving parts of the machine.
• Keep one’s face and hands away from any moving part of the machine.
Power OFF Mode
• When the machine stops due to error during automatic operation, check the
cause of the error through the operation monitor and turn off the power. Keep
the power off until the cause is completely resolved.
(Refer to “Volume 3 : Troubleshooting” for details.)
WARNING
WARNING
CAUTION
CAUTION
Power Breaker
Mispicked Component
1.3 Precautions during Operation
9910-001 13 Tg0246-PM-OP
• When a pick-up error has occurred in the tape feeder, be sure to remove the
mispicked component and then start the automatic operation.
• When a pick-up error has occurred in the vibratory stick feeder, be sure to
remove the mispicked component and then start the automatic operation.
CAUTION
CAUTION
Mispicked Component

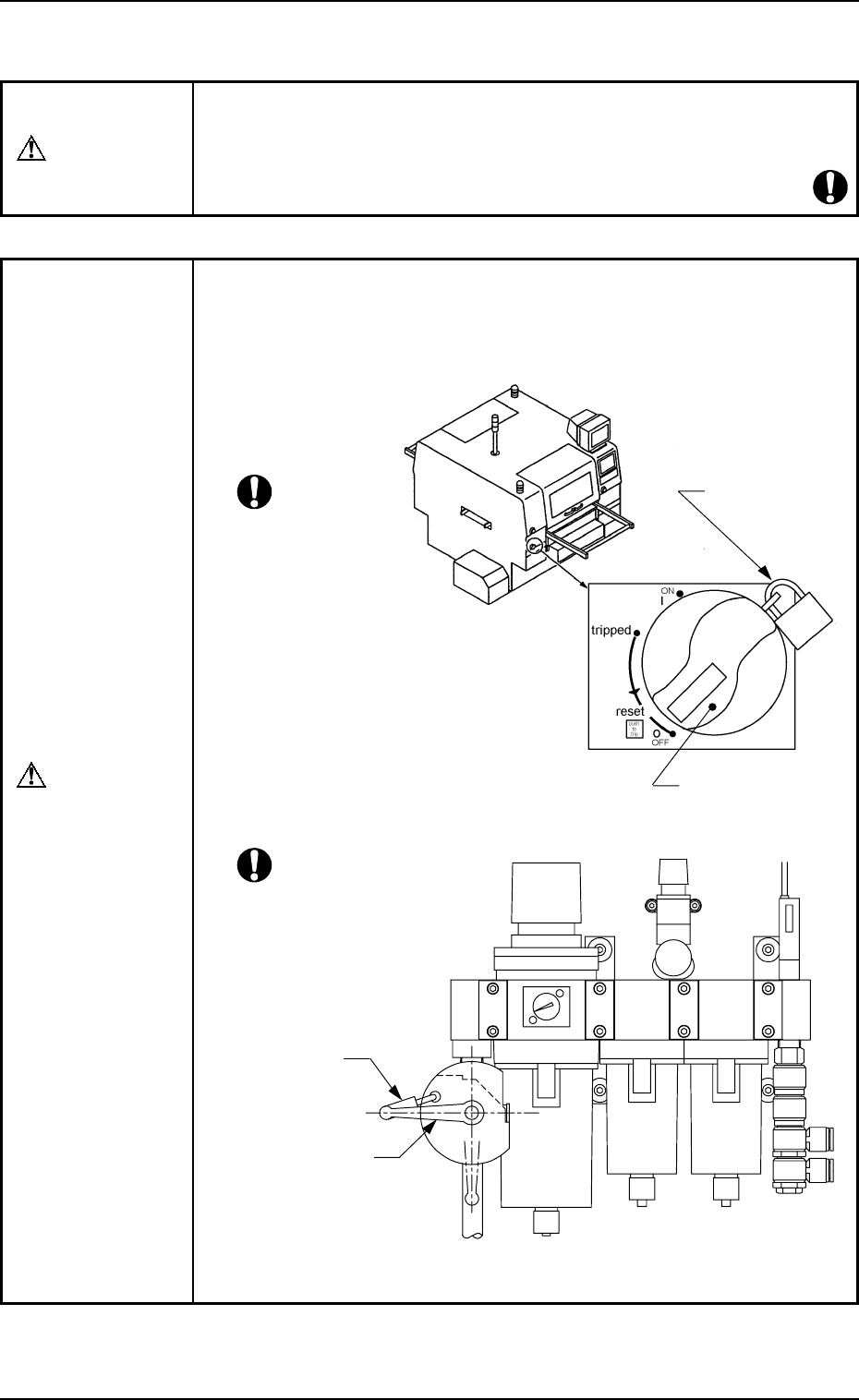

1.4 Precautions in Maintenance
9910-001 14 Tg0246-PM-OP
Air Source
1.4 Precautions in Maintenance
• Before maintenance, inspection, adjustment, lubrication, or cleaning work,
turn off the power switch of the machine and the air source. Only qualified
personnel should operate the machine, following the instructions.
• Whenever maintenance work is performed, turn off the power and
air sources and lock the power breaker using the padlock.
• Designate a personnel who can have charge of the padlock key.
• If the provided padlock is lost or damaged, purchase its substi-
tute.
Power Source
WARNING
WARNING
Power Breaker
Padlock
(No. 2500 30 MM)
Padlock
(No. 2500 25 MM)
Main Valve
