第 2 章 操作顺序书 2- 1. 治具列表 治具名称／图编号 用途 MEASURE MENT SE T, PRESSU ER / EZ A2 042049 A ( 1 s et ) Com ponent parts • SENSOR D IGITAL PL ESSURE (P G - 100 - 102VP ) / EZ 152053512 (1) • UNIO N ( KQ 2H04 - M5N), HALF / EZ 444705…
第
2
章
操作顺序书
2-1. 治具列表
治具名称／图编号
用途

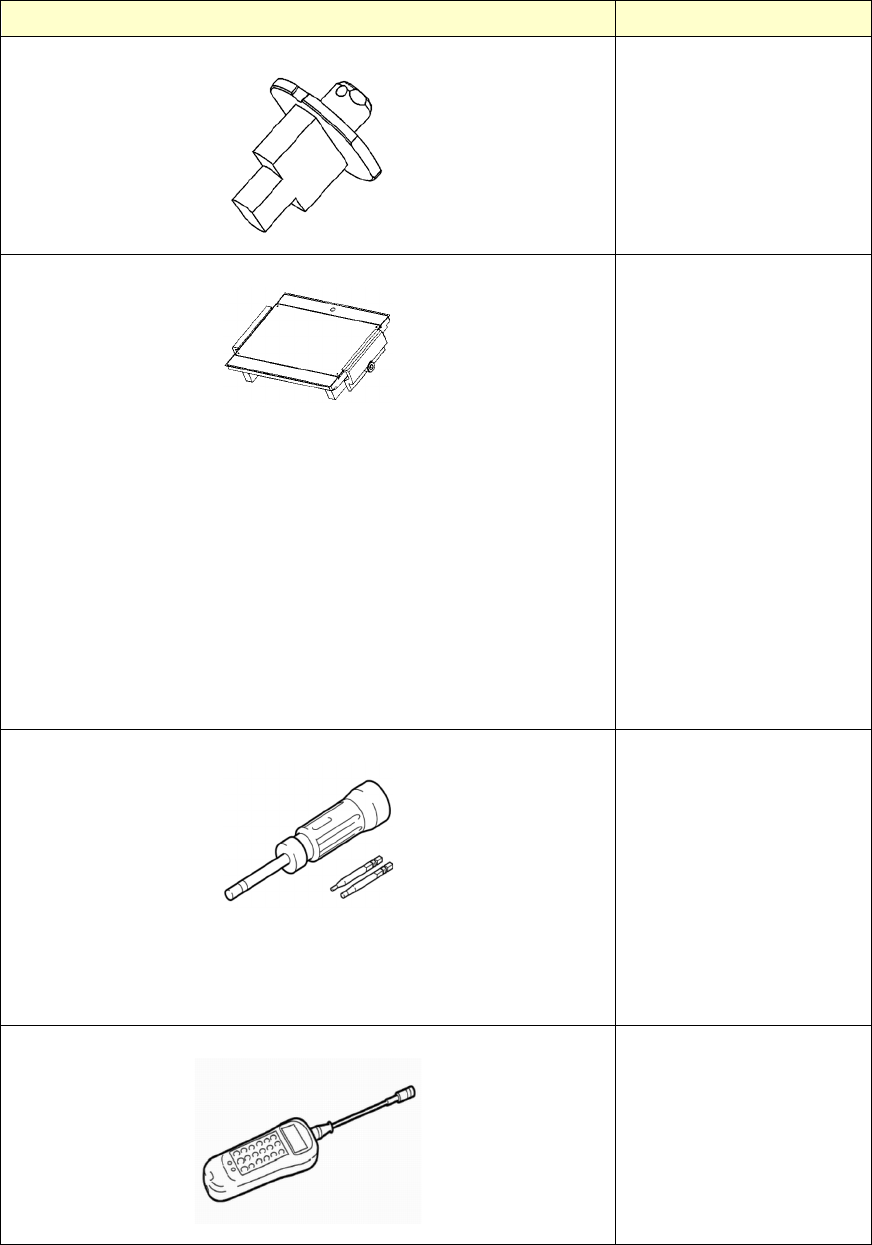

NOZZLE, HIGHT CAM CLAIB / EZ453432301 (1)
•
确定吸取检查摄像机的
像素率
ACCURACY CHECK KIT (S SIZE) / EZA2040090A (1 set)
Component parts
•
PC BOARD, MEASUREMENT GLASS / EZ267245902 (2)
•
TAPE, ADHESION / EZ445731701 (1)
•
GLASS BOARD RETAINER (S SIZE) / EZ453431001 (1)
•
GLASS BORAD CLAMP (S SIZE) / EZ453459401 (2)
•
PIN (SPSPM-D3-L5) / EZ453505701 (4)
•
CASE CONFIRM KIT (S SIZE) / EZ453709101 (1)
•
BOLT,HEXAGON SOCKET 4 x 12 / EZ768342104 (2)
•
CLAMP NOB / 40166897 (2)
•
测定贴装精度
WRENCH KIT, TORQUE / EZA1800938A (1 set)
Component parts
•
BIT (SB2.0) / EZ426504101 (1)
•
DRIVER SET (N6LTDK), TORQUE / EZ472277102 (1)
•
各部分螺丝的固定
TENSION METER, BELT (U-507) / EZ152054211 (1)
•
X
轴・传送装置皮带的
张力调整
5
第
2
章
操作顺序书
2-1. 治具列表
治具名称／图编号
用途

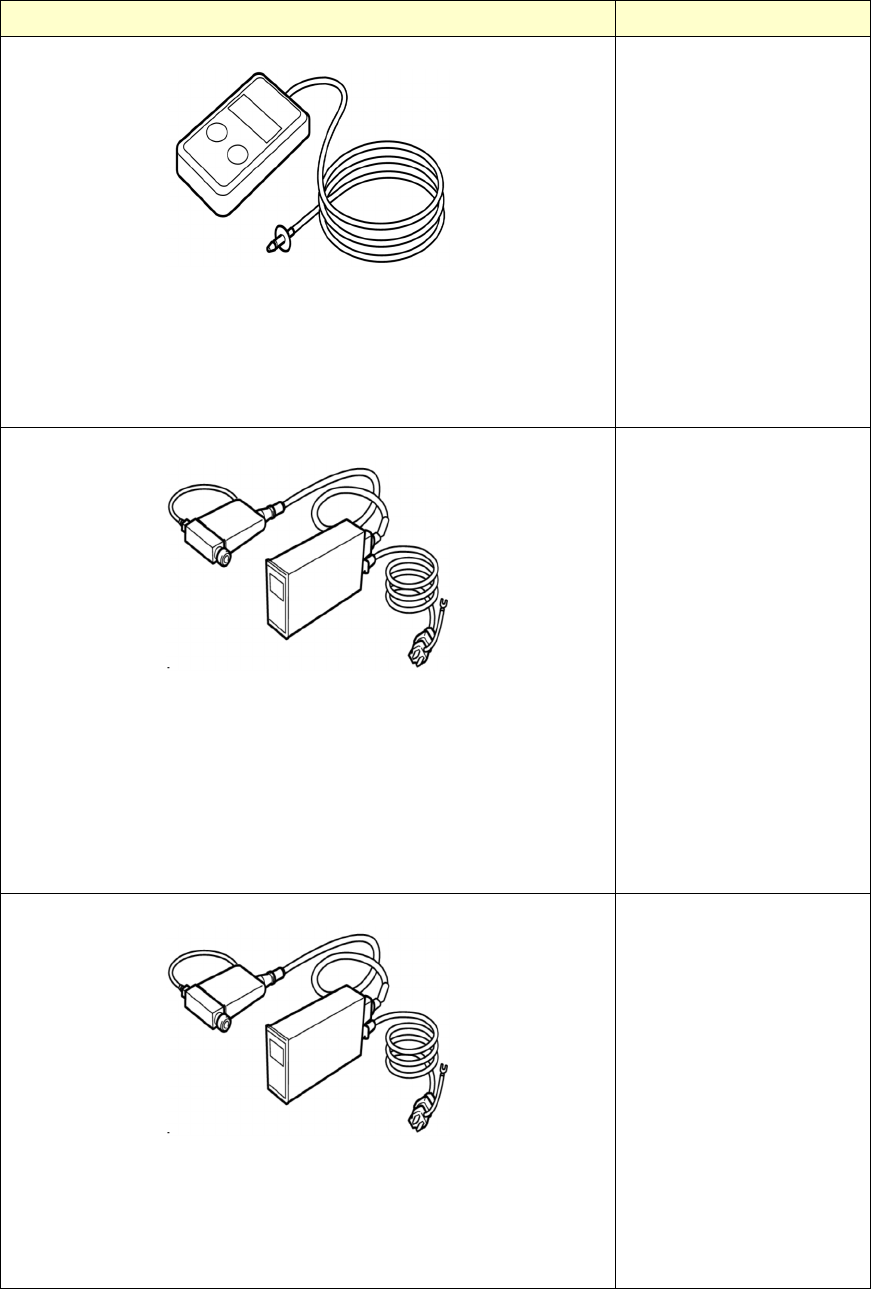

MEASUREMENT SET, PRESSUER / EZA2042049A (1 set)
Component parts
•
SENSOR DIGITAL PLESSURE (PG-100-102VP) /
EZ152053512 (1)
•
UNION (KQ2H04-M5N), HALF / EZ444705301 (1)
•
JOINT, NOZZLE MOLD / EZ453460301 (1)
•
TUBE (TU0425B-100-X3) / EZ763000347 (350 mm)
•
吸嘴上的真空压力测定
MEASUREMENT SET, MASS FLOW / EZA-2042-050-A (1 set)
Component parts
•
REJUICER (KQ2R04-08A) / EZ444671511 (1)
•
UNION (KQ2H04-M5N), HALF / EZ444705301 (1)
•
UNION (KQ2H08-02AS), HALF / EZ444724821 (1)
•
JOINT, NOZZLE MOLD / EZ453460301 (1)
•
TUBE (TU0425B-100-X3) / EZ763000347 (350 mm)
•
测定喷气流量
•
流量计不含在内
METER KIT, FLOW RATE / EZA8417279A (1 set)
Component parts
•
POWER (PAC-D1) / EZ146860311 (1)
•
METER, FLOW RATE (SEF-400RC1/4) / EZ152053311 (1)
•
CORD, CONNECTION (SC-D4-S) /EZ175792111 (1)
•
测定喷气流量
6
第
2
章
操作顺序书
2-1. 治具列表
治具名称／图编号
用途

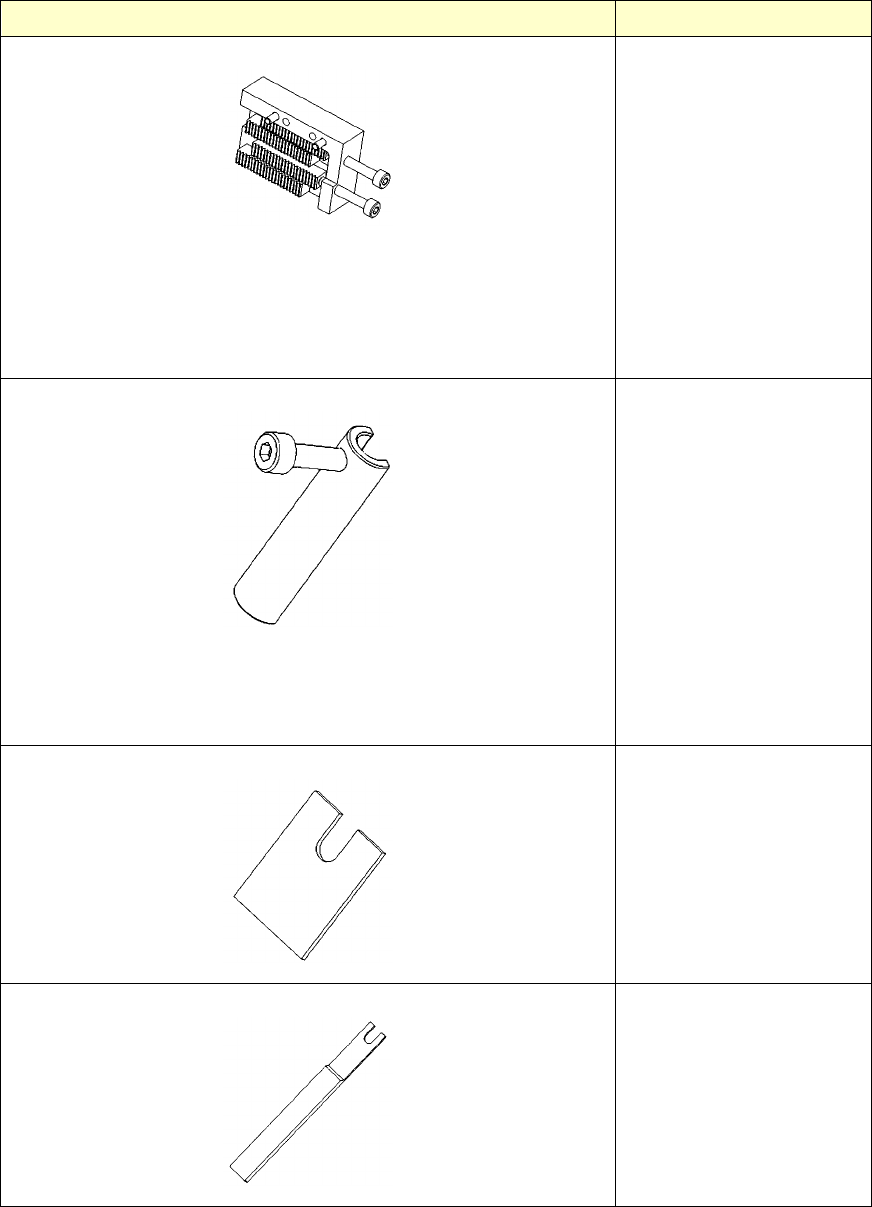

JIG, BEARING NUT FIXED ASSY / EZA2039702A (1 set)
Component parts
•
JIG, BEARING NUT CONCLUDE / EZ453431901 (1)
•
SHAFT S065A / EZ453433201 (2)
•
BOLT,HEXAGON SOCKET 4 x 20 / EZ768342504 (1)
•
交叉齿轮的调整
JIG, SHAFT HOLDER ASSEMBLE / EZA2039744A (1 set)
Component parts
•
JIG, BEARING NUT FIXED ASSY / EZA2039702A (1)
•
NZ SHAFT HOLDER BOX WRENCH / EZ453425501 (1)
•
把吸嘴轴架安装到转塔
上
JIG, SET DRIVING GEAR / EZ453431501 (1)
•
将驱动齿轮装到电动机
上时用来决定安装位置
的垫铁
WRENCH, MAIN SHAFT / EZ453431101 (1)
•
把零件安装到主轴上时
用来固定
7
