III-25

Programming Manual

Part III Inspection Algorithm

1.9.7 Setting Procedure of Average (QFP)

Step1: Refer to Step1 to 6 of Part III 1.9.6 Setting Procedure of Average (SOP).

Step2: Select the Average inspection window. Right-click and select X-Symmetric Copy.

Step3: Select two Average inspection windows by pressing

Right-click and select Y-Symmetric Copy.

Step4: Change the Memorize to value of the Average inspection windows. Enter M2, M3, or M4

in the Memorize to ﬁ eld of the inspection windows which are made in Step2 and Step3.

Step5: Select the inspection windows which are made in Step2 and Step3.

Right-click and select Copy Window.

Step6: Change the algorithm of the inspection windows which are made in Step5 to Mem1-Mem2.

Step7: Select the inspection windows which are made in Step5. Right-click and select Copy Window.

Repeat the same procedure twice to make two windows.

Step8: Change the Memory2 value of the Mem1-Mem2 inspection window. Enter M2, M3, or M4

in the Memory2 ﬁ elds of the inspection windows which are made on Step7.

Step9: Change the Upper ﬁ eld and Lower ﬁ eld of Mem1-Mem2. If brightness level of a polarity

mark is higher than brightness level of the component body, enter 255 in the Upper ﬁ eld

and 1 in the Lower ﬁ eld. If brightness level of a polarity mark is lower than brightness level

of the component body, enter -1 in the Upper ﬁ eld and -255 in the Lower ﬁ eld.

Step10: Press Inspect. Make sure that the inspection is completed properly.

㪤㪈

㪤㪉

㪤㪈

㪤㪉

㪤㪊

㪤㪋

㩿㪸㪀㪪㪦㪧㩷㩿㪹㪀㪨㪝㪧㩷

Figure 1-28 Inspection Window for Polarity Inspection

III-26

Programming Manual

Part III Inspection Algorithm

1.10 Diagonally

1.10.1 Inspection Overview

Diagonally is the algorithm to inspect the average luminance of the inspection windows which are

located on symmetrical positions from the center of component.

Diagonally is suitable for polarity inspection of IC components.

1.10.2 Parameter Setting

Figure 1-29 Diagonally

Parameter Description

Lighting Select a lighting that displays a polarity visually clear.

Algorithm Select Diagonally.

Win Setting[1-3] Set the number of the windows to be compared.

Shift[V1-V8]

Enter the appropriate vector. Any value from V1 to V8 is available.

Select the vector according to the Memorize to ﬁ eld of the Adjust window.

Memorize to -

Upper, Lower

If brightness level of polarity is higher than brightness level of component body, enter 255

in the Upper ﬁ eld and 1 in the Lower ﬁ eld. If brightness level of polarity is lower than

brightness level of component body, enter -1 in the Upper ﬁ eld and -255 in the Lower ﬁ eld.

Sample

If 1 is entered in Win setting, the brightness level difference between the window

and the window on the point-symmetric point will be calculated and its result

becomes the sample value.

If 2 is entered, in addition to operations of 1, the brightness level difference between

the window and the window at the center point on the component will also be

calculated. Two brightness level difference values are compared and the bigger one

becomes the sample value.

If 3 is entered, in addition to operations of 1, the brightness level difference between

the window which the setting is applied and the window on the line-symmetric point

will be calculated. Three brightness level difference values are compared and the

biggest one becomes the sample value.

Table 1-8 Parameter of Diagonally

III-27

Programming Manual

Part III Inspection Algorithm

1.10.3 Setting Procedure of Shift Inspection

Step1: Select a lighting that displays a polarity visually clear from the Lighting drop-down list.

Step2: Adjust the Diagonally inspection window position to surround the polarity mark.

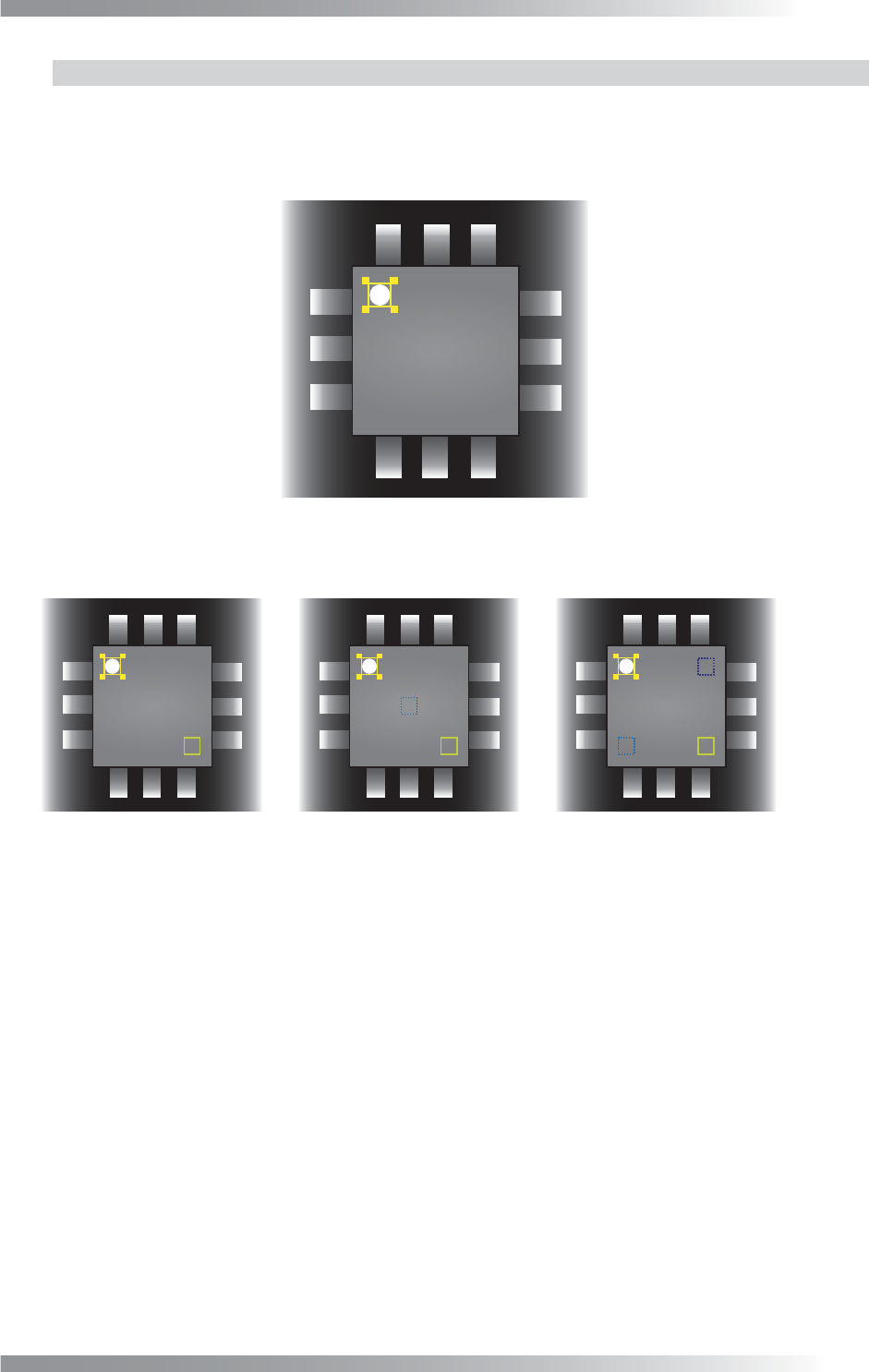

Figure 1-30 Inspection Window of Diagonally

Step3: Set the number of the windows to be compared in Win Setting.

㪧㪈㪧㪈

㪧㪈

㪧㪉

㪧㪊

(a) Win Setting 1 (b) Win Setting 2 (c) Win Setting 3

Sample value = Base - P1

Calculate Base - P1, Base - P2, and Base - P3.

Max value is sample value.

Calculate Base - P1 and Base - P2.

Max value is sample value.

㪙㪸㫊㪼㪙㪸㫊㪼㪙㪸㫊㪼

Figure 1-31 Win Setting

Step4: If the brightness level of the polarity mark is higher than the brightness level of the component

body, enter 255 in the Upper ﬁ eld and 1 in the Lower ﬁ eld. If the brightness level of the

polarity mark is lower than the brightness level of the component body, enter -1 in the

Upper ﬁ eld and -255 in the Lower ﬁ eld.

Step5: Enter the appropriate vector into the Shift ﬁ eld by selecting from V1 to V8 according to the

vector used in Memorize to in the Adjust window.

Step6: Press Inspect. Make sure that the inspection is completed properly.
