IV-17
Programming Manual
Part IV Option Setting
2.5 Edit NG
Inspection data of NG components can be edited.
Step1: Select Edit > Edit NG from the menu-bar. The dialog shown in Figure 2-9 appears.
Figure 2-9 Edit NG
Step2: Select the component type from the Type drop-down list.
Step3: Select the library data to be edited from the list-box.
Step4: Double-click the NG component or press Edit to display the Edit Components window.
Step5: Edit the inspection data.
Step6: Press Inspect. Make sure that NG has been changed to OK.
NOTE
In Modifi ed component, individually registered components are displayed.
To register a component individually, press OK instead of Library Update in Edit Components.
To cancel the individual registration, select a component and press In the list.
If All is pressed, all individual registration will be canceled.
IV-18
Programming Manual
Part IV Option Setting
2.6 Offset
This menu can be used if an image and inspection data are misaligned.
Select Edit > Offset from the menu-bar. The dialog shown in Figure 2-10 appears.
Figure 2-10 Offset
Item Description
Mirroring X (X→Board Size-X)
Refer to Figure 2-11.
Mirroring Y (Y→Board Size-Y)
Invert X (X→-X)
Invert Y (Y→-Y)
Add Offset (X→Offset+X) Moves an inspection data by a specifi ed offset value.
Move center of all component on
cross line
Aligns the center of an inspection data to the intersection of a white cross line.
Rotate Components Rotates an inspection data by a specifi ed degree.
All Data Moves all sub board data when data exists.
Block Moves a specifi ed sub board data.
Table 2-7 Offset
(b) Mirroring X
;ĺ%RDUG6L]H;
(c) Mirroring Y
<ĺ%RDUG6L]H<
G,QYHUW;
;ĺ;
H,QYHUW<
<ĺ<
D1RUPDO
Figure 2-11 Offset
IV-19
Programming Manual
Part IV Option Setting
2.7 Edit Library
An inspection library can be copied to another data group.
Step1: Select Edit > Edit Library from the menu-bar. The dialog shown in Figure 2-11 appears.

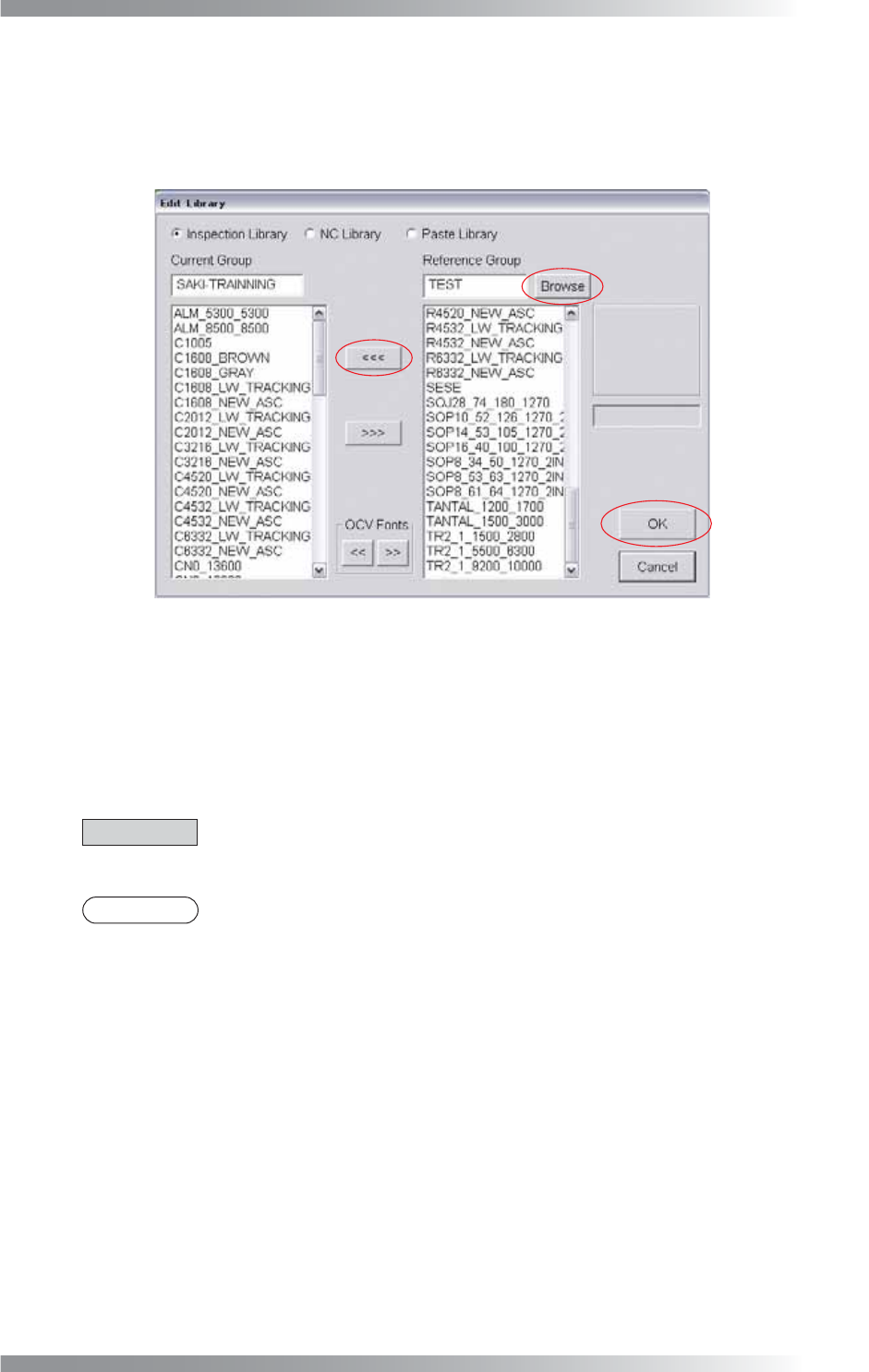

Figure 2-12 Edit Library
Step2: Press Browse and select a data group.
Step3: Select a library in the Reference Group list-box and press <<<.
Step4: Press OK.
CAUTION
If copying a library of a component and the component Type is IC/Connector, copy the
libraries of Inspection Library and NC Library.
NOTE
The font registered by the OCV algorithm can be copied by pressing << or >> in OCV Fonts.
