IV - 7 Programming Manual Part IV Option Setting 1.4 Side Check 1.4.1 Making Inspection Data f or a Double Side PCB Step1: Make the side A inspection data by reference to Part II 1.1 Make Inspection Data on AOI Machine .…

IV-6

Programming Manual

Part IV Option Setting

1.3 Algorithm Setting

Press

Ctrl

Alt

+ concurrently. The dialog shown in Figure 1-6 appears.

Set the algorithm to be used in each NG type.

To change the in use/Not in use setting of an algorithm, press <<< or >>>.

If All <<< or All >>> is pressed, the in use/Not in use setting of an algorithm is applied to all NG types.

To make sure of each NG typeʼs in use/Not in use algorithms, select All Algorithm from the NG Type drop-

down list.

Figure 1-6 Select Algorithm

IV-7

Programming Manual

Part IV Option Setting

1.4 Side Check

1.4.1 Making Inspection Data for a Double Side PCB

Step1: Make the side A inspection data by reference to Part II 1.1 Make Inspection Data on AOI

Machine.

Step2: Select View > Side B from the menu-bar. The PCB side B will be displayed.

Make sure that B is displayed on the upper right corner of the display.

Figure 1-7 Side B

Figure 1-8 A→B

IV-8

Programming Manual

Part IV Option Setting

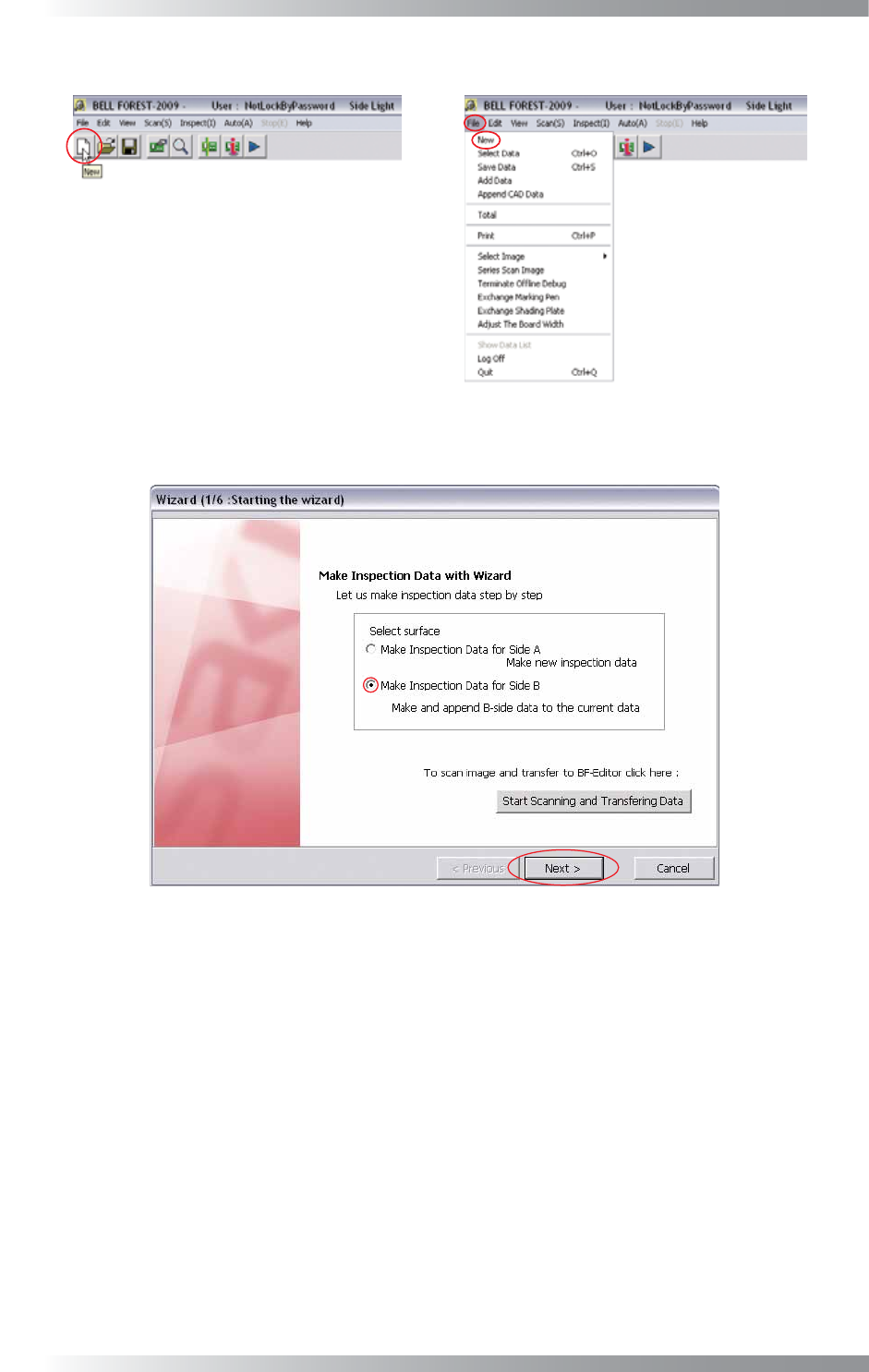

Step3: Press New button on the tool-bar or select File > New from the menu-bar.

Figure 1-9 New

Step4: Check Make Inspection Data for Side B and press Next.

Figure 1-10 Wizard 1

Step5: Make the side B inspection data by reference to Step3 and following steps in Part II 1.1

Make Inspection Data on AOI Machine.
