II- 24 Programming Manual Part II Inspection Data Step7: The dialog shown in Figure 1-44 appears. Check Fiducial Mark Number and enter a sub mark number. After all the settings are completed, press OK . Figure 1-44 Fiduc…

II-23

Programming Manual

Part II Inspection Data

Step3: Check Fiducial Mark and press OK.

Figure 1-41 Fiducial Mark

Step4: The dialog shown in Figure 1-42 appears. Press OK.

Figure 1-42 Add this component to other blocks

Step5: Refer to Step 26 to 41 in Part II 1.1 Make Inspection Data on AOI Machine.

Step6: Surround the sub board with a frame by mouse-dragging.

MARK1

MARK2

Sub Board 1 Sub Board 2

Sub Board 3 Sub Board 4

Surround the sub board with a frame by mouse-dragging.

Figure 1-43 Surround the Sub Board

II-24

Programming Manual

Part II Inspection Data

Step7: The dialog shown in Figure 1-44 appears. Check Fiducial Mark Number and enter a sub

mark number. After all the settings are completed, press OK.

Figure 1-44 Fiducial Mark Number

Step8: Select Edit > SubMark from the menu-bar.

Figure 1-45 Sub Mark

II-25

Programming Manual

Part II Inspection Data

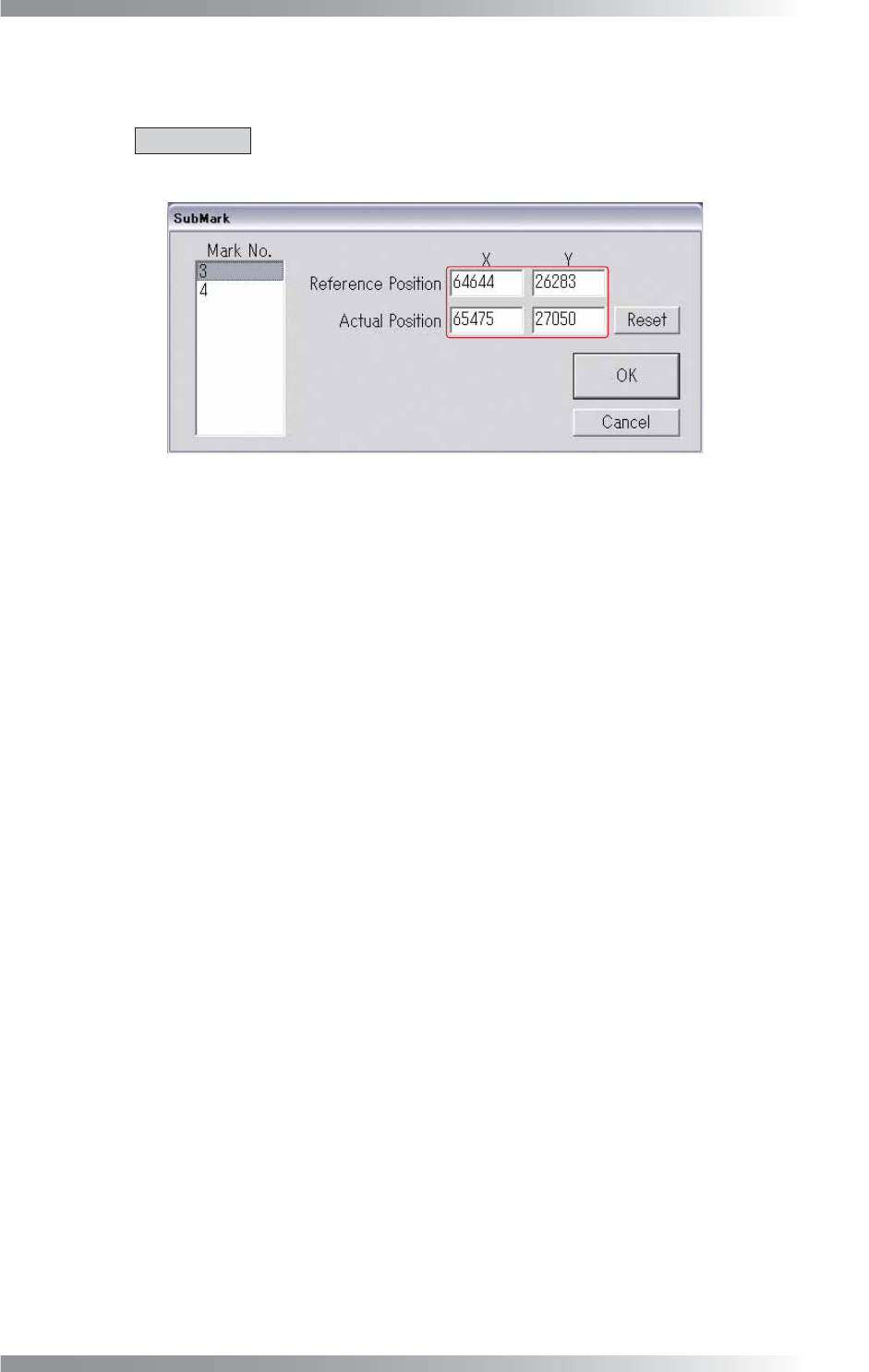

Step9: The dialog shown in Figure 1-46 appears.

Make sure that coordinates are entered correctly.

CAUTION

If 0 or 999999 are entered as coordinates, press Reset to reset the sub mark.

Press OK.

Figure 1-46 Sub Mark Edit
