V- 17 Programming Manual Part V Other Function Figure 1-23 Combine Similar Colors Figure 1-24 KPK Window OK Setting

V-16

Programming Manual

Part V Other Function

Figure 1-20 Select on Image

Figure 1-21 Extract from Window 1

Figure 1-22 Extract from Window 2

V-17

Programming Manual

Part V Other Function

Figure 1-23 Combine Similar Colors

Figure 1-24 KPK Window OK Setting

V-18

Programming Manual

Part V Other Function

2 ECD

ECD (Extra Component Detection) is a function to detect extra component which is fallen and attached to

the area other than the component mounting area from any cause.

2.1 Inspection Overview

Sample several OK PCBs and make template images. Extra component is detected based on the difference

of template images and inspection PCB images. ECD enables to inspect entire PCB with one inspection

window.

2.2 Inspection Procedure

Step1: Select Edit > ECD Option from the menu-bar.

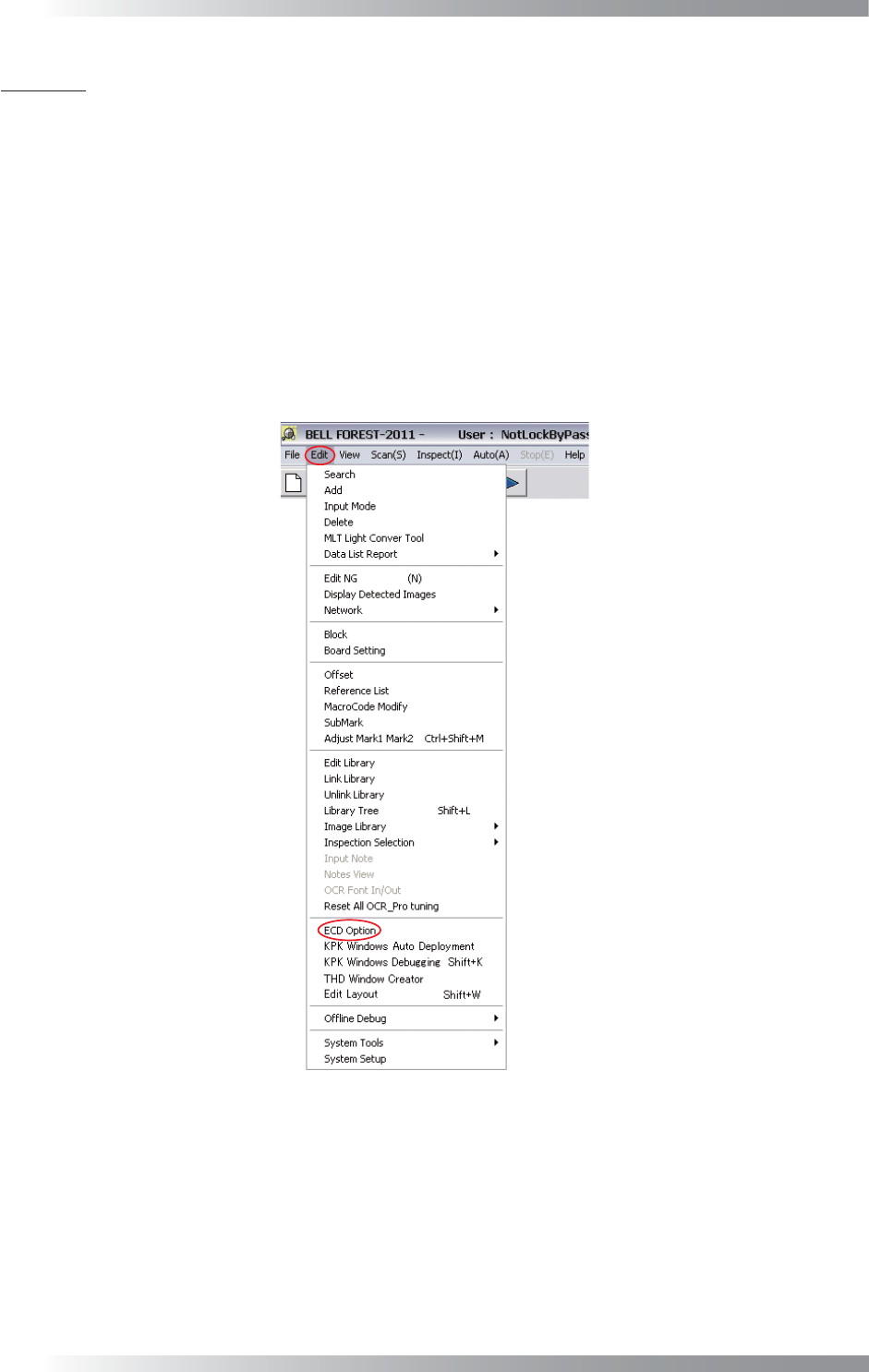

Figure 2-1 ECD Option
